06 Nissan Altima Camshaft Position Sensor Location

The Camshaft Position Sensor (CPS) is a critical component in your 06 Nissan Altima's engine management system. It relays information about the camshaft's position to the engine control unit (ECU), which uses this data to precisely time fuel injection and ignition. A failing CPS can lead to a range of performance problems, so understanding its location, troubleshooting common issues, and knowing how to maintain it is essential for both car owners and mechanics.

Location of the Camshaft Position Sensor on a 2006 Nissan Altima

The location of the CPS on a 2006 Nissan Altima depends on the engine type. The Altima came with two main engine options in 2006: a 2.5L 4-cylinder engine (QR25DE) and a 3.5L V6 engine (VQ35DE).

2.5L 4-Cylinder Engine (QR25DE):

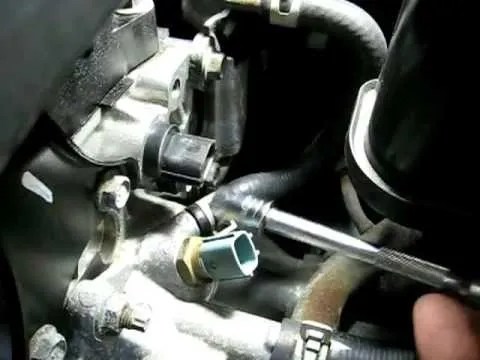

On the QR25DE engine, the camshaft position sensor is typically located on the cylinder head, towards the front of the engine near the valve cover. It's usually positioned on the intake side of the engine. Look for a sensor with a wiring harness connected to it. It's generally held in place by a single bolt.

3.5L V6 Engine (VQ35DE):

The VQ35DE engine has two camshaft position sensors, one for each cylinder bank. They are located on the rear of each cylinder head, near the valve covers. Accessing these can be slightly more challenging compared to the 4-cylinder due to their position at the rear of the engine bay.

Common Symptoms of a Failing Camshaft Position Sensor

A failing CPS can manifest in various ways. Recognizing these symptoms early can prevent further engine damage and costly repairs. Here are some common indicators:

Check Engine Light: This is the most frequent indicator. The ECU detects inconsistencies and illuminates the Check Engine Light. Diagnostic trouble codes (DTCs) such as P0340, P0341, P0342, P0343, P0344, P0345, P0346, P0347, P0348, and P0349 are often associated with CPS issues. Always use an OBD-II scanner to read the codes.
Engine Stalling: The engine may stall intermittently, especially when idling or at low speeds. This occurs because the ECU isn't receiving accurate information about the camshaft's position, leading to incorrect fuel and ignition timing.
Hard Starting or No Start Condition: A completely failed CPS can prevent the engine from starting altogether. If the ECU doesn't receive a signal from the CPS, it may not allow the engine to start as a safety measure.
Rough Idling: The engine may idle roughly or erratically. This is caused by misfires due to incorrect ignition timing.
Poor Fuel Economy: Inaccurate timing can result in inefficient combustion, leading to decreased fuel economy.
Loss of Power: The engine may experience a noticeable loss of power, especially during acceleration.
Engine Misfires: Incorrect timing can lead to engine misfires, which can be felt as jerking or hesitation during acceleration.

Troubleshooting the Camshaft Position Sensor

Before replacing the CPS, it's crucial to perform some troubleshooting steps to confirm that the sensor is indeed the problem. Here’s a step-by-step guide:

Read Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to retrieve any stored trouble codes. Note the codes and research their meaning. Codes like P0340 (Camshaft Position Sensor Circuit Malfunction) or P0341 (Camshaft Position Sensor Circuit Range/Performance) strongly indicate a CPS issue.
Visual Inspection: Inspect the sensor and its wiring harness for any visible damage, such as cracks, frayed wires, or corrosion. Check the connector to ensure it's securely attached to the sensor.
Wiring Harness Test: Use a multimeter to check the wiring harness for continuity and proper voltage. Refer to the vehicle's wiring diagram for the correct pinout and voltage specifications. A break in the wiring or a short circuit can cause the same symptoms as a faulty sensor.
Sensor Resistance Test: With the sensor disconnected, use a multimeter to measure the resistance between the sensor terminals. Compare the reading to the manufacturer's specifications. An incorrect resistance reading indicates a faulty sensor. Important: Always disconnect the battery's negative terminal before performing any electrical tests.
Output Signal Test (Advanced): This test requires an oscilloscope. With the engine running, connect the oscilloscope to the sensor's output signal wire. The oscilloscope should display a clear, consistent waveform. A distorted or missing waveform indicates a faulty sensor. This test is typically performed by experienced mechanics.

Common Causes of CPS Failure

Several factors can contribute to CPS failure. Understanding these causes can help prevent future problems.

Age and Wear: Like any electronic component, CPSs can degrade over time due to heat, vibration, and exposure to the elements.
Contamination: Oil leaks or coolant leaks can contaminate the sensor, leading to premature failure.
Physical Damage: Impacts or vibrations can damage the sensor's internal components.
Wiring Issues: Damaged or corroded wiring can disrupt the sensor's signal, causing it to malfunction.
Poor Quality Replacement Parts: Using cheap or unreliable replacement parts can lead to early failure. Always use high-quality, OEM-specified sensors.

Replacing the Camshaft Position Sensor

If troubleshooting confirms that the CPS is faulty, replacing it is usually a straightforward process. Here’s a general guide:

Gather Tools and Parts: You'll need a new CPS, a socket set, a wrench, a screwdriver, and potentially a wiring diagram.
Disconnect the Battery: Disconnect the negative terminal of the battery to prevent electrical shorts.
Locate the Sensor: Refer to the location information provided earlier in this article.
Disconnect the Wiring Harness: Carefully disconnect the wiring harness from the sensor.
Remove the Sensor: Remove the bolt or fastener holding the sensor in place. Gently pull the sensor out of its bore.
Install the New Sensor: Install the new sensor, making sure it's properly seated. Tighten the bolt or fastener to the manufacturer's specified torque.
Reconnect the Wiring Harness: Reconnect the wiring harness to the sensor.
Reconnect the Battery: Reconnect the negative terminal of the battery.
Clear Diagnostic Trouble Codes: Use an OBD-II scanner to clear any stored DTCs.
Test Drive: Start the engine and take the vehicle for a test drive to ensure the problem is resolved. Monitor for any recurrence of the symptoms.

Important Note: In some cases, replacing the CPS may require a relearn procedure. This involves using a diagnostic tool to teach the ECU the characteristics of the new sensor. Consult your vehicle's repair manual or a qualified mechanic for more information.

Real-World Examples and Case Studies

Example 1: Honda Civic - Crank, No Start: A common problem with older Honda Civics is a crank, no start condition that can often be traced back to a failing crankshaft position sensor or camshaft position sensor. The owner usually reports replacing the battery and starter motor to no avail. Diagnostic trouble codes point directly to the sensor circuit. Solution: Replace the faulty sensor with an OEM part and clear the codes.

Example 2: Ford F-150 - Intermittent Stalling: Many Ford F-150 owners have reported intermittent stalling issues, especially when the engine is warm. In some cases, the cause is a failing camshaft position sensor. The symptoms are often exacerbated by hot weather. Solution: Conduct a resistance test on the CPS when the engine is both cold and hot. If the resistance reading deviates significantly from the manufacturer's specifications when hot, replace the sensor.

Example 3: Toyota Camry - Poor Fuel Economy and Check Engine Light: A Toyota Camry owner reported a sudden drop in fuel economy accompanied by a check engine light. The diagnostic trouble code indicated a problem with the camshaft position sensor. Solution: Inspect the wiring harness for damage and corrosion. Clean the sensor connector with electrical contact cleaner. If the problem persists, replace the CPS.

Maintenance Tips for Keeping Your Car in Top Condition

Preventive maintenance is key to avoiding CPS failures and other engine problems. Here are some tips:

Regular Oil Changes: Changing your engine oil regularly helps prevent sludge buildup, which can contaminate the CPS.
Check for Leaks: Inspect the engine for oil or coolant leaks, and address any leaks promptly to prevent contamination of the CPS.
Use Quality Parts: When replacing any engine component, always use high-quality, OEM-specified parts.
Follow Maintenance Schedule: Adhere to your vehicle's recommended maintenance schedule, including spark plug replacement and other engine tune-up procedures.
Monitor Engine Performance: Pay attention to any changes in engine performance, such as rough idling, stalling, or loss of power. Address any issues promptly to prevent further damage.

By understanding the location of the camshaft position sensor on your 06 Nissan Altima, recognizing the symptoms of a failing sensor, and following these troubleshooting and maintenance tips, you can keep your car running smoothly and avoid costly repairs. Whether you're a car owner or a mechanic, this knowledge will empower you to diagnose and address CPS issues effectively.
