2004 Nissan Murano Camshaft Position Sensor Location

The 2004 Nissan Murano, a pioneer in the crossover SUV segment, offered a blend of style, performance, and practicality that resonated with many drivers. However, like any vehicle, it's susceptible to certain common issues. One frequently encountered problem involves the camshaft position sensor (CPS). Understanding its location and function is crucial for both DIY enthusiasts and professional mechanics aiming to diagnose and resolve related engine problems.

Understanding the Camshaft Position Sensor

Before diving into the specific location on the 2004 Murano, let's clarify what the camshaft position sensor does. Essentially, this sensor monitors the position of the camshaft, relaying this information to the engine control unit (ECU), also known as the engine control module (ECM). The ECU uses this data, along with input from other sensors like the crankshaft position sensor, to precisely control fuel injection timing and ignition timing. This precise control is essential for optimal engine performance, fuel efficiency, and emissions control.

A faulty CPS can lead to a range of issues, including:

Engine stalling or rough idling
Difficulty starting the engine
Decreased fuel economy
Reduced engine power
Check engine light illumination (often accompanied by diagnostic trouble codes like P0340 or P0345)

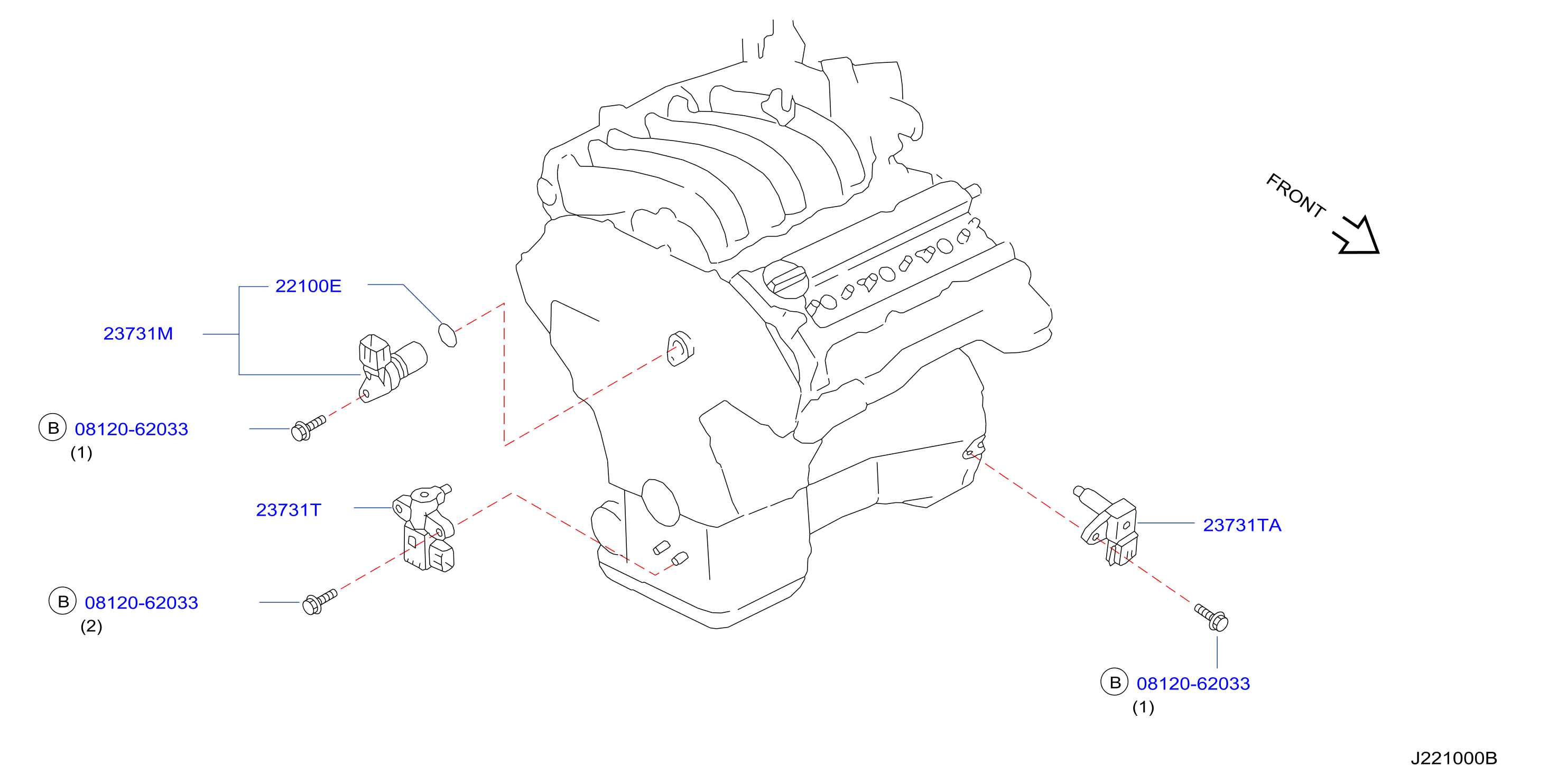

2004 Nissan Murano Camshaft Position Sensor Location: The VQ35DE Engine

The 2004 Nissan Murano is equipped with the VQ35DE engine, a 3.5-liter V6 known for its reliability and smooth power delivery. This engine utilizes two camshaft position sensors, one for each cylinder bank. This dual-sensor setup is typical for V-configuration engines, ensuring accurate monitoring of each camshaft. Note, some models produced later in 2004 may have been equipped with updated engine components; however, the sensor location remains consistent.

Bank 1 Sensor Location

Bank 1 refers to the cylinder bank that includes the number 1 cylinder. On the 2004 Nissan Murano, the Bank 1 camshaft position sensor is located on the rear cylinder head, closer to the firewall (the partition separating the engine compartment from the passenger compartment). It's typically positioned on the top or side of the cylinder head, near the camshaft pulley. You'll be looking for a small, cylindrical sensor with a wire harness connected to it. Access can be somewhat restricted due to the engine's placement and the proximity of other components, such as intake manifold parts. Consider the use of extensions and flexible sockets to improve access.

Bank 2 Sensor Location

Bank 2 is the cylinder bank opposite Bank 1. Consequently, the Bank 2 camshaft position sensor is located on the front cylinder head, the one closest to the radiator. Similar to Bank 1, it's situated on the top or side of the cylinder head, adjacent to the camshaft pulley. Access to the Bank 2 sensor is generally easier than accessing the Bank 1 sensor because it's more exposed. Still, care should be taken to avoid damaging surrounding components.

Important Note: Always disconnect the negative battery terminal before working on any electrical components, including the camshaft position sensors. This prevents accidental short circuits and potential damage to the vehicle's electrical system.

Identifying the Correct Sensor

While the sensors are physically similar, it's essential to identify the correct sensor for each bank. Refer to your vehicle's repair manual or consult a reliable online resource for diagrams and specific instructions. Often, the sensors will have part numbers printed on them, which can be used to confirm their application. Swapping the sensors between banks is generally not recommended and could lead to further diagnostic confusion.

Replacing the Camshaft Position Sensor

Replacing the camshaft position sensor is a relatively straightforward process that most DIY mechanics can undertake with basic tools. However, it's crucial to follow these steps carefully:

Disconnect the negative battery terminal.
Locate the faulty camshaft position sensor. Use the information above to identify the correct bank and sensor location.
Disconnect the electrical connector. Gently press the release tab on the connector and pull it straight off the sensor. Avoid pulling on the wires themselves.
Remove the sensor. Typically, the sensor is held in place by a single bolt or screw. Remove the bolt and carefully pull the sensor straight out. Note the orientation of the sensor for proper reinstallation.
Install the new sensor. Apply a light coat of dielectric grease to the sensor's electrical connector to prevent corrosion and ensure a good connection. Install the new sensor, aligning it properly with the mounting hole. Tighten the retaining bolt to the manufacturer's specified torque.
Reconnect the electrical connector. Ensure the connector clicks securely into place.
Reconnect the negative battery terminal.
Clear any diagnostic trouble codes (DTCs). Use an OBD-II scanner to clear any stored codes related to the camshaft position sensor.
Start the engine and verify proper operation. Monitor the engine for any signs of misfiring, rough idling, or stalling.

Pro Tip: When replacing a camshaft position sensor, it's often a good idea to replace the crankshaft position sensor as well. These sensors work together, and if one is failing, the other may be nearing the end of its lifespan. Replacing both sensors at the same time can save you time and money in the long run.

Common Problems and Solutions

Besides sensor failure, other issues can mimic camshaft position sensor problems. These include:

Wiring issues: Damaged or corroded wiring to the sensor can disrupt the signal to the ECU. Inspect the wiring harness for any signs of damage and repair as needed.
Connector problems: A loose or corroded electrical connector can also cause problems. Clean the connector with electrical contact cleaner and ensure it's properly seated.
Timing chain issues: A stretched or worn timing chain can affect the camshaft's position, leading to inaccurate readings from the sensor. This is a more serious issue that requires professional attention.
Low battery voltage: Low battery voltage can sometimes cause erratic sensor readings. Ensure the battery is properly charged and in good condition.

Cost of Replacement

The cost of replacing a camshaft position sensor on a 2004 Nissan Murano can vary depending on the brand of the sensor, the labor costs (if you're having a mechanic do the work), and your location. Generally, a replacement sensor will cost between $30 and $100. Labor costs can range from $50 to $150, depending on the mechanic's hourly rate and the difficulty of accessing the sensor. Doing the job yourself can save you on labor costs, but be sure you have the necessary tools and expertise.

Maintenance Tip: Regularly inspect your vehicle's engine for any signs of leaks or damage. Addressing minor issues promptly can prevent them from escalating into more costly repairs. Consider using a scan tool to periodically check for diagnostic trouble codes, even if the check engine light is not illuminated.

Conclusion

The camshaft position sensor is a vital component in the 2004 Nissan Murano's engine management system. Knowing its location and function, as well as understanding the common symptoms of a failing sensor, can help you diagnose and resolve engine problems effectively. Whether you're a seasoned mechanic or a DIY enthusiast, the information provided in this article should equip you with the knowledge necessary to tackle this common repair.
