2005 Nissan Altima Camshaft Position Sensor Location

So, your 2005 Nissan Altima is acting up, and you suspect it might be the camshaft position sensor (CMP sensor). You're not alone! This is a fairly common issue with this generation Altima. The good news is, with a little guidance, you can diagnose and potentially even fix it yourself, saving some money. Let's dive into what's going on, where that sensor lives, and what it takes to get your Altima back on the road.

Understanding the Camshaft Position Sensor and Its Role

First, let's quickly cover what the camshaft position sensor does. The CMP sensor's primary job is to monitor the position and speed of the camshaft(s). This information is relayed to the engine control unit (ECU), which uses it to precisely time fuel injection and ignition. Think of it as a crucial piece of the puzzle ensuring your engine runs smoothly and efficiently.

When the CMP sensor fails, or its signal becomes erratic, the ECU can't accurately time these processes. This can lead to a variety of symptoms, including:

Rough idling: The engine may shake or sputter, especially at idle.
Engine stalling: The engine might suddenly shut off while driving or idling.
Difficulty starting: The engine may crank for a long time before starting, or may not start at all.
Reduced fuel economy: Inefficient timing can lead to burning more fuel than usual.
Check Engine Light: This is almost always illuminated when there's a problem with the CMP sensor. Common codes include P0340, P0341, P0342, P0343, P0344, P0345, P0346, P0347, P0348, and P0349, depending on which sensor is affected and the specific issue.
Hesitation or lack of power: You might notice the engine lacking its usual pep during acceleration.

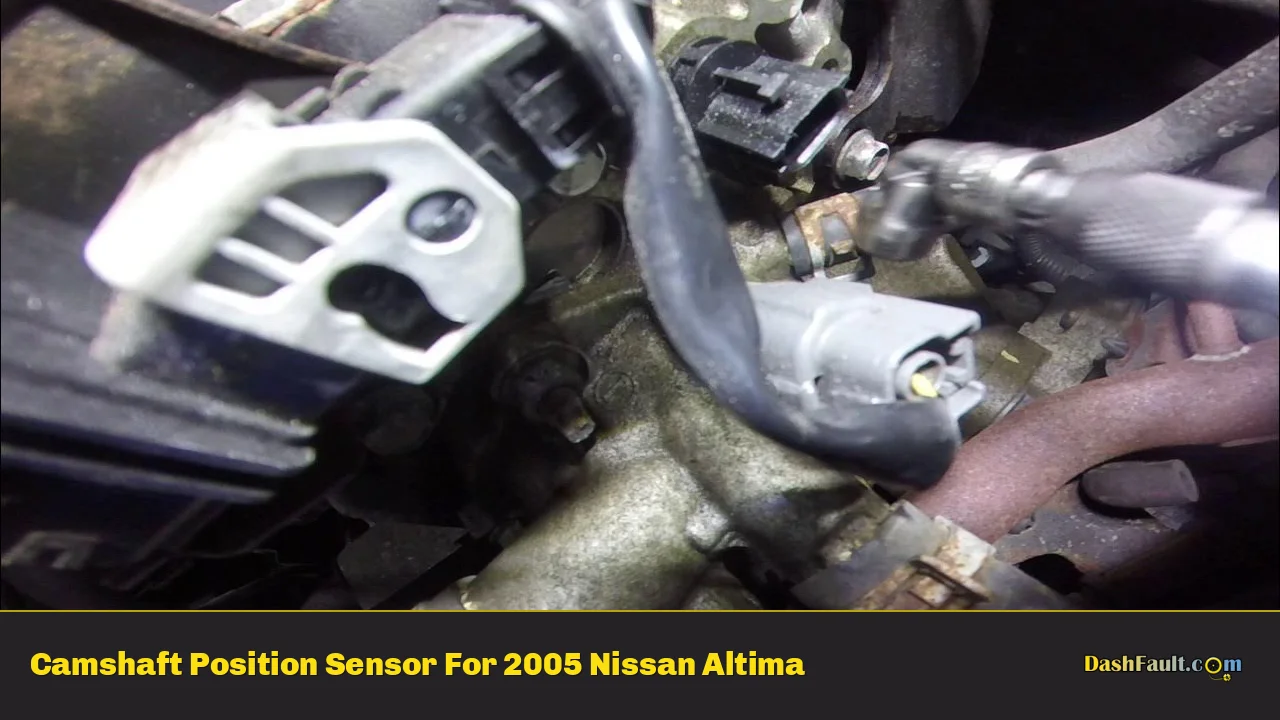

Locating the Camshaft Position Sensor on Your 2005 Altima

Okay, let's get to the main question: Where is the camshaft position sensor located on your 2005 Nissan Altima? This is important because the location differs slightly depending on which engine your Altima has.

Your 2005 Altima came with one of two engine options:

2.5L Inline-4 (QR25DE): This is the more common engine. For this engine, the camshaft position sensor is typically located on the rear of the engine near the top, on the cylinder head. It's usually accessible without removing a lot of other components. You will find the sensor sitting near the valve cover.
3.5L V6 (VQ35DE): The V6 engine has two camshaft position sensors, one for each bank of cylinders. These are usually located on the rear of the engine, near the valve covers, toward the transmission side. One sensor is located on bank 1 (rear bank) and the other is on bank 2 (front bank). They are easily accessible.

Important Note: While the general location is described above, always double-check with a repair manual or online diagrams specific to your engine and VIN to ensure accuracy. Misidentification could lead to unnecessary work.

Visual Clues: The CMP sensor itself is usually a small, cylindrical component with a wiring connector attached. It's often black or dark gray in color. Look for a sensor that's bolted to the engine block near the camshaft sprocket or valve cover with a two or three-wire connector.

Steps for Locating and Accessing the Sensor

Here's a general guide to help you find the sensor:

Safety First!: Disconnect the negative battery terminal to prevent any electrical mishaps. Let the engine cool down completely before you start working.
Gather Your Tools: You'll likely need a socket set (metric), a ratchet, extensions, a screwdriver (possibly Phillips and flathead), and possibly a small pick or tool to help disconnect the wiring connector.
Locate the Sensor: Refer to the engine-specific information above and carefully inspect the areas mentioned. Use a flashlight to get a better view.
Remove Any Obstructions: Depending on the exact location, you might need to remove a plastic engine cover or air intake component to gain better access. Take pictures before removing anything to help with reassembly.
Disconnect the Wiring Connector: Carefully disconnect the wiring connector from the CMP sensor. Be gentle, as the plastic connectors can become brittle with age. Some connectors have a locking tab that needs to be depressed before you can pull the connector off.

Diagnosing a Faulty Camshaft Position Sensor

Once you've located and accessed the sensor, you'll want to confirm that it's actually the problem. Here are some common diagnostic steps:

Visual Inspection: Check the sensor for any obvious damage, such as cracks, broken connectors, or corrosion. Also, check the wiring harness and connector for damage or loose connections.
Scan for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to check for any stored trouble codes related to the CMP sensor. This is the most reliable way to confirm a sensor issue. Common codes include P0340, P0341, P0342, P0343, P0344, P0345, P0346, P0347, P0348, and P0349.
Multimeter Testing: With the help of a wiring diagram and repair manual, you can use a multimeter to test the sensor's resistance and voltage. This will help determine if the sensor is functioning correctly. This requires technical knowledge and caution, so if you're not comfortable with electrical testing, it's best to consult a professional.
Wiring Inspection: Inspect the wiring harness leading to the CMP sensor for any breaks, shorts, or corrosion. A faulty wire can cause the same symptoms as a bad sensor.

Important Note: Sometimes, the issue isn't the sensor itself, but rather a problem with the wiring or the camshaft timing. If you're unsure about the diagnosis, it's best to consult a qualified mechanic.

Replacing the Camshaft Position Sensor

If you've confirmed that the CMP sensor is faulty, replacing it is usually a straightforward process:

Purchase a Replacement Sensor: Obtain a new CMP sensor that is specifically designed for your 2005 Nissan Altima with the correct engine. You can find these at auto parts stores or online retailers. Using a sensor not designed for your vehicle can cause further problems.
Remove the Old Sensor: Using the appropriate socket or wrench, carefully remove the bolt or fastener that secures the old sensor to the engine.
Install the New Sensor: Install the new CMP sensor in the same orientation as the old one. Tighten the bolt or fastener to the manufacturer's specified torque (check a repair manual for the correct torque specification). Over-tightening can damage the sensor or the engine.
Reconnect the Wiring Connector: Reconnect the wiring connector to the new CMP sensor, ensuring it clicks into place securely.
Reinstall Any Removed Components: Reinstall any engine covers or air intake components that you removed to access the sensor.
Reconnect the Battery: Reconnect the negative battery terminal.
Clear Diagnostic Trouble Codes: Use an OBD-II scanner to clear any stored trouble codes.
Test Drive: Start the engine and take the vehicle for a test drive to ensure that the problem has been resolved. Monitor the engine for any signs of hesitation, stalling, or rough idling.

Estimated Repair Costs

If you decide to take your Altima to a mechanic, here's a rough estimate of the repair costs:

Parts Cost: A new CMP sensor typically costs between $30 and $100, depending on the brand and quality.
Labor Cost: Labor costs can vary depending on the mechanic's hourly rate and the complexity of the repair. Expect to pay between $50 and $150 for labor.
Total Cost: The total cost for replacing a CMP sensor can range from $80 to $250, or more if you have both sensors replaced on the V6 engine.

DIY Savings: If you choose to replace the sensor yourself, you'll save on the labor costs, making the repair significantly cheaper.

Preventative Maintenance and Tips

While CMP sensors can fail unexpectedly, there are a few things you can do to help prolong their lifespan:

Regular Oil Changes: Using clean, high-quality engine oil can help keep the engine components, including the CMP sensor, clean and lubricated.
Avoid Excessive Engine Heat: Overheating can damage various engine components, including sensors. Ensure your cooling system is functioning properly.
Inspect Wiring and Connectors: Periodically inspect the wiring and connectors leading to the CMP sensor for any signs of damage or corrosion.

Final Thoughts

Replacing a camshaft position sensor on your 2005 Nissan Altima is a repair that many DIYers can tackle. However, if you're not comfortable with automotive repairs or electrical testing, it's always best to consult a qualified mechanic. By understanding the sensor's function, location, and diagnostic steps, you can make an informed decision about how to proceed and potentially save yourself some money.

Remember to always prioritize safety and consult a repair manual or online diagrams specific to your vehicle before starting any repair. Good luck getting your Altima back in top shape!
