2005 Nissan Altima Crankshaft Position Sensor Location

The 2005 Nissan Altima, a mainstay of mid-size sedans, boasts a reputation for reliability and practicality. However, like any vehicle, it's not immune to component failures. One common culprit causing starting problems or rough running is a faulty Crankshaft Position Sensor (CKP). This article will provide a detailed guide to locating this sensor on your 2005 Altima, aiding enthusiasts, mechanics, and owners alike in diagnosing and resolving potential issues.

Understanding the Crankshaft Position Sensor

Before diving into the location, let's briefly discuss the CKP sensor's function. The crankshaft is the rotating axis around which your engine's pistons move. The CKP sensor monitors the crankshaft's position and speed (RPM). This information is relayed to the Engine Control Module (ECM), also known as the Powertrain Control Module (PCM), allowing the ECM to precisely control ignition timing and fuel injection. A faulty CKP sensor disrupts this critical communication, leading to various performance problems.

Symptoms of a failing CKP sensor on a 2005 Altima can include:

Difficulty starting the engine, or a no-start condition.
Engine stalling, particularly when warm.
Rough running or misfires.
Check Engine Light illumination with codes such as P0335, P0336, or similar CKP-related codes.
Reduced fuel economy.

Ignoring these symptoms can lead to more significant engine damage, making prompt diagnosis and repair crucial.

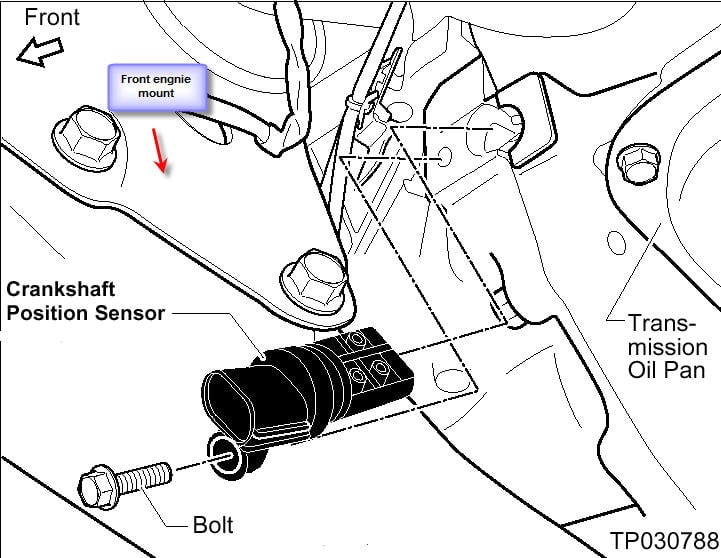

Locating the Crankshaft Position Sensor on a 2005 Nissan Altima

The location of the CKP sensor on a 2005 Altima varies slightly depending on the engine option. The Altima was available with two primary engine choices:

2.5L Inline-4 (QR25DE)
3.5L V6 (VQ35DE)

We will cover the location for both engines separately.

2.5L Inline-4 (QR25DE) Engine

For the 2.5L engine, the CKP sensor is generally located near the rear of the engine block, on the transmission side. Here's a step-by-step guide to finding it:

Safety First: Disconnect the negative battery cable to prevent electrical shocks and potential damage to the vehicle's electrical system.
Locate the Transmission: Identify the transmission housing. The CKP sensor will be mounted close to where the engine and transmission meet.
Visual Inspection: Look for a small, cylindrical sensor with a wire harness connected to it. It's typically black or dark grey. The sensor is mounted into the engine block.
Follow the Wires: Trace the wires from the sensor back to the main wiring harness. This can help confirm you've located the correct sensor.
Accessibility: Access can be tight depending on your tools. It's typically accessible from underneath the vehicle, but sometimes from above with some creative maneuvering. Consider using a jack and jack stands to safely elevate the vehicle for better access. Never work under a vehicle supported only by a jack.

Important Note: On the QR25DE engine, there are two sensors that look similar: The Crankshaft Position Sensor and the Camshaft Position Sensor. The Camshaft Position Sensor is located on the cylinder head, near the valve cover, which makes it easier to distinguish.

3.5L V6 (VQ35DE) Engine

The CKP sensor location on the 3.5L V6 engine is slightly different. There are actually two CKP sensors on this engine, often referred to as CKP sensors "A" and "B." They are located near the rear of the engine, close to the transmission bellhousing, but on opposite sides of the engine. One sensor is near the bank 1 cylinders (the bank that includes cylinder number 1), and the other is near the bank 2 cylinders.

Safety First: Disconnect the negative battery cable.
Locate the Transmission: As with the 2.5L engine, start by identifying the transmission housing.
Visual Inspection: Look for the two sensors mounted on the engine block near the transmission. They will have wire harnesses connected to them. Access is typically from underneath the vehicle.
Sensor A and Sensor B: Refer to a repair manual or diagnostic information to determine which sensor is "A" and which is "B" if you are dealing with specific diagnostic codes related to one sensor or the other. Generally, sensor A is closer to the firewall.
Accessibility: The VQ35DE engine bay can be crowded. You may need to remove or relocate some components (like air intake ducting) to gain better access to the sensors.

Tools and Considerations for Replacement

Replacing the CKP sensor is a relatively straightforward task for a DIY mechanic, but proper tools and precautions are essential:

Socket Set: You'll need a socket set with various sizes to remove the mounting bolts. Typically, a 10mm or 12mm socket is required.
Wrench Set: A wrench set can be useful for accessing tight spaces.
Screwdrivers: Both flathead and Phillips head screwdrivers might be needed to remove any clips or brackets obstructing access.
Jack and Jack Stands: For safe access underneath the vehicle.
Penetrating Oil: If the sensor is seized, penetrating oil can help loosen the mounting bolts.
New Sensor: Purchase a quality replacement CKP sensor from a reputable auto parts supplier. Avoid cheap, generic sensors, as they may not perform reliably. Consider brands like Hitachi or NTK, which are often OEM suppliers.
Torque Wrench: To ensure proper tightening of the mounting bolts during reinstallation. Refer to the service manual for the correct torque specification.
Diagnostic Scanner: After replacing the sensor, use a diagnostic scanner to clear any stored fault codes.

Important Considerations:

Sensor Orientation: Pay close attention to the orientation of the old sensor before removing it. Install the new sensor in the same orientation.
Wiring Harness: Inspect the wiring harness and connector for any signs of damage (corrosion, frayed wires). Repair or replace the harness if necessary.
Ground Connection: Ensure that the sensor has a good ground connection. A poor ground can cause intermittent sensor failures.
Professional Help: If you're not comfortable working on your vehicle or lack the necessary tools and experience, it's best to seek professional help from a qualified mechanic.

Troubleshooting and Diagnosis

If you've located the CKP sensor and are considering replacing it, it's crucial to perform some basic troubleshooting to confirm that the sensor is indeed the problem. A diagnostic scanner can read fault codes stored in the ECM, providing valuable clues. Codes related to the CKP sensor, such as P0335 (Crankshaft Position Sensor "A" Circuit Malfunction), strongly indicate a sensor issue.

However, it's also important to rule out other potential causes, such as:

Wiring problems: Damaged or corroded wiring can disrupt the sensor's signal.
Loose connections: Ensure that the sensor connector is securely attached.
ECM issues: In rare cases, the ECM itself may be faulty.

Using a multimeter to test the sensor's resistance and signal output can help further pinpoint the problem. Refer to a service manual for the correct testing procedures and specifications.

Maintenance and Prevention

While CKP sensors are generally reliable, proper maintenance can help extend their lifespan and prevent premature failures. Regularly inspect the wiring harness and connector for any signs of damage. Keep the engine bay clean and free of debris, as excessive dirt and grime can contribute to sensor failure.

Additionally, following the manufacturer's recommended maintenance schedule for oil changes and other services can help keep the engine running smoothly and prevent excessive wear on the crankshaft and related components.

Conclusion

The Crankshaft Position Sensor is a vital component of your 2005 Nissan Altima's engine management system. Understanding its location and function is essential for diagnosing and resolving potential performance issues. By following the steps outlined in this guide, you can confidently locate the CKP sensor on your Altima, troubleshoot potential problems, and perform necessary repairs. Remember to prioritize safety, use the correct tools, and consult a qualified mechanic if you're unsure about any aspect of the repair process. Addressing a failing CKP sensor promptly will help keep your Altima running smoothly and reliably for years to come.
