2006 Nissan Altima 2.5 Crankshaft Position Sensor Location
The 2006 Nissan Altima 2.5, known for its reliability, can sometimes be plagued by issues related to its crankshaft position sensor (CKP). This seemingly small component plays a crucial role in your engine's operation, and when it malfunctions, it can lead to a range of frustrating problems. This article serves as a practical guide for both car owners and mechanics, providing insights into the CKP sensor's location, common symptoms of failure, troubleshooting tips, and real-world solutions.

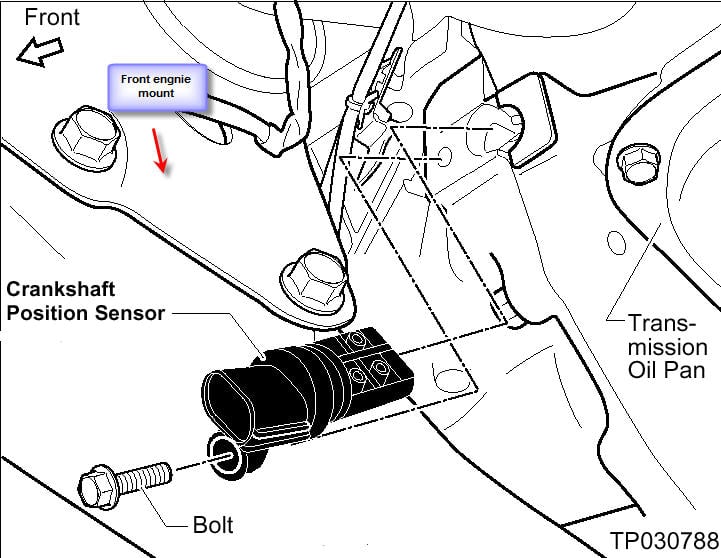

Locating the Crankshaft Position Sensor on a 2006 Nissan Altima 2.5
Finding the CKP sensor is the first step in addressing any potential issues. For the 2006 Nissan Altima 2.5, the CKP sensor is typically located near the lower rear of the engine block, close to the transmission bellhousing. Specifically, it's usually positioned to read the teeth on the crankshaft's reluctor ring (also known as a tone wheel or trigger wheel). This ring is mounted on the crankshaft and rotates with it. The sensor's proximity to this ring allows it to detect the crankshaft's position and speed.
While the exact location may vary slightly depending on minor variations in engine configuration, it's generally accessible from underneath the vehicle. You'll likely need to jack up the car and secure it with jack stands for safe access. A flashlight and a mirror can be helpful in locating the sensor, especially if the engine bay is cramped or dirty.
Common Symptoms of a Failing CKP Sensor
Recognizing the symptoms of a failing CKP sensor can save you time and money by preventing misdiagnosis. Here are some of the most common warning signs:
- Hard Starting or No Start: This is perhaps the most prevalent symptom. If the CKP sensor isn't providing accurate information to the engine control unit (ECU), the ECU may not be able to properly time the ignition and fuel injection, leading to difficulty starting or a complete failure to start.
- Engine Stalling: A faulty CKP sensor can cause the engine to stall unexpectedly, especially at idle or low speeds. The engine might run fine for a while and then suddenly shut off.
- Rough Running or Misfiring: Inaccurate crankshaft position data can disrupt the engine's timing, leading to rough idling, misfires, and overall poor engine performance. You might notice vibrations or a lack of power.
- Check Engine Light: A malfunctioning CKP sensor will almost always trigger the check engine light. Diagnostic trouble codes (DTCs) such as P0335, P0336, P0337, P0338, or P0339 are commonly associated with CKP sensor issues. Use an OBD-II scanner to read the codes and confirm the problem.
- Reduced Fuel Economy: Because the ECU relies on the CKP sensor for accurate fuel injection timing, a faulty sensor can lead to inefficient fuel consumption.
- Hesitation During Acceleration: You might experience hesitation or a lack of responsiveness when you try to accelerate. This can be particularly noticeable when merging onto a highway or climbing a hill.
Troubleshooting the CKP Sensor
Once you suspect a CKP sensor issue, it's time to troubleshoot. Here's a step-by-step approach:
- Read Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to retrieve any stored DTCs. Note the code(s) present as they provide crucial information about the nature of the problem.
- Visual Inspection: Carefully inspect the CKP sensor and its wiring harness for any signs of damage, such as frayed wires, cracks, or corrosion. Pay close attention to the connector that plugs into the sensor.
- Check the Wiring: Use a multimeter to check the continuity of the wiring between the CKP sensor connector and the ECU. Look for any breaks or shorts in the wiring. Consult the vehicle's wiring diagram for the correct pin assignments.
- Test the Sensor's Resistance: Use a multimeter to measure the resistance of the CKP sensor. Compare the reading to the manufacturer's specifications. An out-of-range resistance value indicates a faulty sensor.
- Check the Sensor's Output Voltage: With the engine running (if possible), use a multimeter or oscilloscope to check the sensor's output voltage. The voltage should fluctuate as the crankshaft rotates. A steady voltage or no voltage indicates a problem.
- Inspect the Reluctor Ring: Examine the reluctor ring for any damage, such as broken or missing teeth. A damaged reluctor ring can prevent the CKP sensor from functioning correctly. This requires more involved disassembly.
Real-World Issues and Solutions
Let's examine some common scenarios and how to address them:
Scenario 1: Code P0335 - Crankshaft Position Sensor "A" Circuit Malfunction
Problem: The ECU is reporting a general malfunction in the CKP sensor circuit.
Possible Causes:
- Faulty CKP sensor
- Wiring issues (open circuit, short circuit, or high resistance)
- Loose or corroded connector
- Faulty ECU (rare)
Solutions:
- Start with a visual inspection of the sensor and wiring.
- Check the wiring for continuity and shorts.
- Test the sensor's resistance and output voltage.
- If the sensor tests bad, replace it with a new one. Always use a quality replacement part from a reputable manufacturer.
- If the wiring is damaged, repair or replace it.
- If all else fails, suspect a faulty ECU, but this is the least likely cause.
Scenario 2: Intermittent Stalling, No Code Present
Problem: The engine stalls intermittently, but there are no DTCs stored in the ECU.
Possible Causes:
- Marginally faulty CKP sensor
- Intermittent wiring issue
- Loose connector
- Vacuum leak
Solutions:
- This can be a tricky problem to diagnose. Try wiggling the CKP sensor connector and wiring while the engine is running to see if you can induce the stalling.
- Use a scan tool that can monitor live data from the CKP sensor. Look for any dropouts or inconsistencies in the signal.
- If you suspect a marginally faulty sensor, consider replacing it as a preventative measure.
- Check for vacuum leaks, which can also cause intermittent stalling.
Scenario 3: Hard Starting Only When Engine is Hot
Problem: The engine is difficult to start only when it's hot, but starts fine when it's cold.
Possible Causes:
- Heat-sensitive CKP sensor
- Fuel pressure issue
- Crankshaft end play
Solutions:
- A CKP sensor can become heat-sensitive over time. When hot, the internal resistance can change, leading to starting problems. Replacing the sensor is often the solution.
- Check the fuel pressure to ensure it's within specifications. A weak fuel pump or leaky fuel injectors can cause hard starting when hot.
- Excessive crankshaft end play can also cause starting problems. Check the end play with a dial indicator.
CKP Sensors in Other Models: A Comparative Look
CKP sensor issues are not unique to the 2006 Nissan Altima. Many other vehicles experience similar problems. For example:
- Honda Civic: Similar stalling and no-start symptoms can occur with a faulty CKP sensor.
- Toyota Camry: P0335 code is common, often related to wiring damage near the sensor.
- Ford F-150: Crank-no-start conditions are frequently linked to CKP sensor failure, especially in older models.
The troubleshooting steps are generally the same across different makes and models, although the sensor location and wiring diagrams will vary. Always consult the vehicle's service manual for specific information.
Maintenance and Prevention
While CKP sensor failure can be unavoidable, there are steps you can take to minimize the risk and keep your car in top condition:
- Regular Inspections: Periodically inspect the CKP sensor and its wiring for any signs of damage or wear.
- Proper Maintenance: Follow the manufacturer's recommended maintenance schedule, including oil changes and tune-ups. This helps keep the engine running smoothly and reduces stress on the CKP sensor.
- Avoid Overheating: Overheating can damage the CKP sensor and other engine components. Ensure that the cooling system is functioning properly.
- Use Quality Parts: When replacing the CKP sensor or any other engine component, use quality parts from reputable manufacturers. Cheap aftermarket parts may not meet OEM specifications and can fail prematurely.
- Address Problems Promptly: Don't ignore warning signs, such as a check engine light or rough running. Address problems promptly to prevent further damage.
By understanding the location, symptoms, and troubleshooting steps related to the crankshaft position sensor on your 2006 Nissan Altima 2.5, you can effectively diagnose and resolve potential issues, ensuring the continued reliability and performance of your vehicle. Whether you're a car owner or a mechanic, a proactive approach and attention to detail will go a long way in keeping your car running smoothly.
