2008 Nissan Frontier Crankshaft Position Sensor Location

The 2008 Nissan Frontier, a stalwart in the mid-size truck segment, offers a blend of practicality and capability that has made it a favorite among truck enthusiasts and professionals alike. Understanding the location of key components like the Crankshaft Position Sensor (CKPS) is crucial for diagnosing and resolving engine-related issues. This article provides a comprehensive guide to locating the CKPS on the 2008 Nissan Frontier, along with relevant information about its function, common problems, and troubleshooting tips.

Understanding the Crankshaft Position Sensor

Before diving into the location, let's briefly discuss the CKPS and its importance. The CKPS, sometimes referred to as a crank sensor, is an electronic device that monitors the position and rotational speed of the crankshaft. This information is then relayed to the engine control unit (ECU), which uses it to control ignition timing, fuel injection, and other critical engine functions. In essence, the CKPS is a vital sensor for proper engine operation.

A faulty CKPS can lead to a variety of problems, ranging from rough idling and stalling to a complete no-start condition. Recognizing the symptoms of a failing CKPS is the first step in diagnosing potential engine issues.

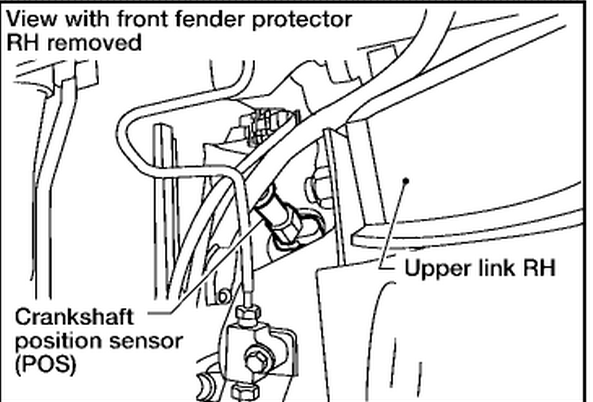

Locating the Crankshaft Position Sensor on the 2008 Nissan Frontier

The location of the CKPS on the 2008 Nissan Frontier varies depending on the engine. The Frontier was offered with two engine options in 2008: a 2.5-liter inline-4 (KA24DE or QR25DE depending on market) and a 4.0-liter V6 (VQ40DE).

2.5-Liter Inline-4 Engine

For the 2.5-liter inline-4 engine, the CKPS is typically located on the rear of the engine block, near the transmission bellhousing. This location places it in close proximity to the crankshaft's rotation. To access it, you'll generally need to work from underneath the vehicle.

Specific steps to locate the CKPS (2.5L):

Safely lift and secure the vehicle using jack stands. Never work under a vehicle supported only by a jack.
Locate the transmission bellhousing. The CKPS will be mounted to the engine block in this area.
Look for a sensor with a two- or three-wire electrical connector. The sensor will be held in place by a single bolt.

4.0-Liter V6 Engine

The 4.0-liter V6 engine (VQ40DE) has a slightly different CKPS location. It is still situated on the rear of the engine block, near the transmission bellhousing, but it might be a bit more challenging to access due to its position and the surrounding components. The exhaust system can sometimes obstruct easy access.

Specific steps to locate the CKPS (4.0L):

Safely lift and secure the vehicle using jack stands.
Locate the transmission bellhousing. The CKPS will be mounted to the engine block in this area.
Look for a sensor with a two- or three-wire electrical connector. It will be held in place by a single bolt. Note: It might be partially obscured by exhaust components, so a flashlight and potentially a mirror might be helpful.

Important Note: Always disconnect the negative battery terminal before working on any electrical components to prevent accidental shorts or injuries.

Identifying a Failing Crankshaft Position Sensor

Recognizing the symptoms of a failing CKPS can save you time and money on unnecessary repairs. Here are some common indicators:

Check Engine Light (CEL): A failing CKPS will often trigger the CEL, accompanied by diagnostic trouble codes (DTCs) such as P0335 (Crankshaft Position Sensor A Circuit Malfunction), P0336 (Crankshaft Position Sensor A Circuit Range/Performance), or similar codes.
Rough Idling: The engine may idle erratically or stall frequently.
Stalling: The engine may stall unexpectedly, especially at low speeds or when coming to a stop.
Hard Starting or No Start: A completely failed CKPS can prevent the engine from starting altogether.
Reduced Engine Performance: You might notice a decrease in power and acceleration.
Hesitation: The engine may hesitate or stumble during acceleration.

If you experience any of these symptoms, it's crucial to diagnose the issue promptly. While a failing CKPS is a common cause, other problems can mimic these symptoms, so a thorough diagnosis is essential.

Testing the Crankshaft Position Sensor

Before replacing the CKPS, it's wise to test it to confirm that it's indeed the source of the problem. A multimeter can be used to check the sensor's resistance and voltage output.

Resistance Test: Disconnect the sensor's electrical connector and use a multimeter to measure the resistance between the terminals. Refer to the vehicle's service manual or online resources for the correct resistance range. A reading outside the specified range indicates a faulty sensor.

Voltage Test: With the sensor connected and the engine running (if possible), use a multimeter to measure the voltage output. Again, consult the service manual for the correct voltage specifications. An abnormal voltage reading suggests a problem with the sensor.

Important Note: Always follow the manufacturer's recommended testing procedures. Incorrect testing methods can damage the sensor or other components.

Replacing the Crankshaft Position Sensor

Replacing the CKPS is a relatively straightforward task that can often be performed by a DIY mechanic with basic tools. However, if you're not comfortable working on your vehicle, it's best to seek professional assistance.

Steps to Replace the CKPS:

Disconnect the negative battery terminal.
Locate the CKPS (as described above).
Disconnect the electrical connector from the sensor.
Remove the bolt securing the sensor to the engine block.
Carefully remove the old sensor.
Install the new sensor, ensuring it's properly seated.
Tighten the retaining bolt to the specified torque. Refer to the service manual for the correct torque value.
Reconnect the electrical connector.
Reconnect the negative battery terminal.
Start the engine and check for proper operation. Clear any DTCs that may have been stored in the ECU.

Tips for Replacement:

Apply a small amount of dielectric grease to the electrical connector to prevent corrosion and ensure a good connection.
Be careful not to damage the sensor's tip during installation.
Ensure the sensor is properly seated against the engine block.

Common Problems and Maintenance

While the CKPS is a relatively reliable component, it can fail over time due to heat, vibration, and exposure to contaminants. Regular maintenance can help prolong its lifespan.

Keep the engine clean: Dirt and grime can accelerate the wear and tear on the sensor.
Inspect the wiring: Check the wiring harness and connector for any signs of damage or corrosion.
Replace the sensor proactively: If you're experiencing intermittent problems or your vehicle has high mileage, consider replacing the CKPS as part of routine maintenance.

Aftermarket vs. OEM Sensors

When replacing the CKPS, you'll have the option of choosing between aftermarket and original equipment manufacturer (OEM) sensors. OEM sensors are typically more expensive but are generally considered to be of higher quality and more reliable. Aftermarket sensors can be a more affordable option, but their quality and performance can vary. Consider reading online reviews and comparing specifications before making a decision.

For critical components like the CKPS, investing in a quality sensor is often worth the extra cost to ensure reliable engine operation.

Cost Considerations

The cost of replacing the CKPS on a 2008 Nissan Frontier can vary depending on several factors, including the type of sensor (OEM or aftermarket), the labor rate at your chosen repair shop, and your location. As a general guideline, expect to pay between $100 and $300 for the entire job, including parts and labor. The CKPS itself usually ranges from $30 to $150.

DIY replacement can save on labor costs, but it's essential to have the necessary tools and knowledge to perform the job correctly. Improper installation can damage the sensor or other engine components.

Conclusion

Understanding the location and function of the Crankshaft Position Sensor on your 2008 Nissan Frontier is essential for maintaining optimal engine performance. By following the steps outlined in this article, you can confidently locate the CKPS, diagnose potential problems, and perform a replacement if necessary. Remember to always prioritize safety and consult the vehicle's service manual for specific instructions and torque specifications. Whether you're a seasoned mechanic or a DIY enthusiast, this knowledge will empower you to keep your Frontier running smoothly for years to come.
