2010 Nissan Pathfinder Passenger Mirror Replacement

Replacing the passenger side mirror on a 2010 Nissan Pathfinder is a task most intermediate DIYers can tackle. While it might seem daunting, with the right tools and a bit of patience, you can save yourself a considerable amount of money compared to taking it to a professional mechanic. This guide provides a detailed walkthrough, covering everything from initial assessment to final testing.

Preliminary Assessment and Tool Gathering

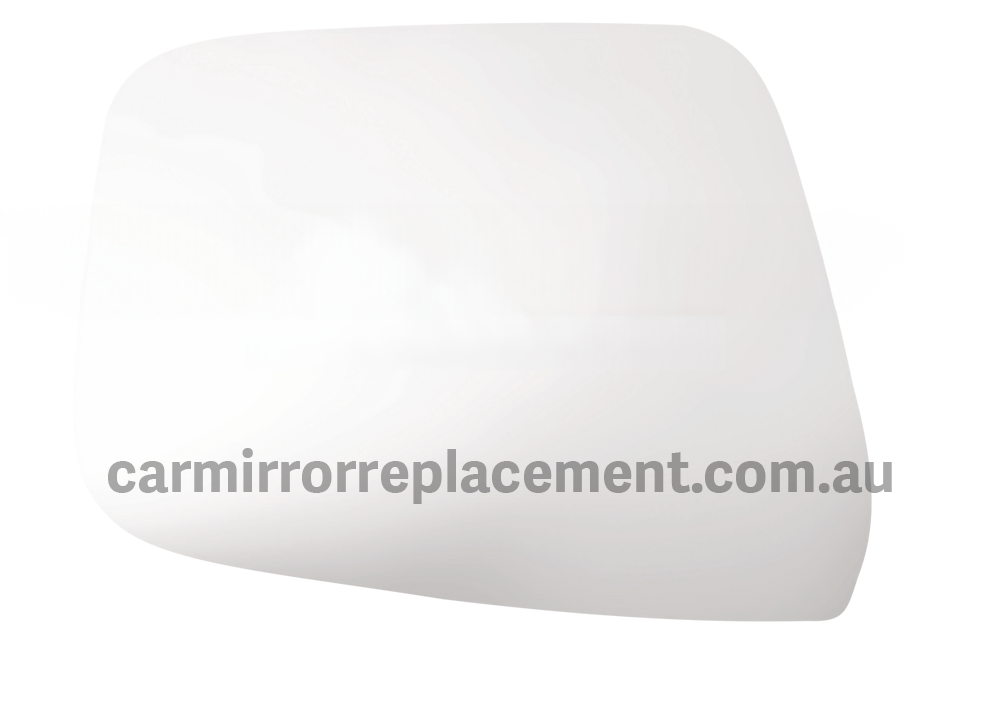

Before diving in, it's crucial to assess the damage and identify the correct replacement part. Is the mirror glass broken, or is the entire assembly damaged? Knowing this will determine whether you need just the glass, the entire mirror housing, or even a wiring harness if electrical functions are affected. Confirm the replacement mirror is compatible with your Pathfinder's trim level (e.g., power, heated, turn signal).

Essential Tools and Materials:

New Replacement Mirror Assembly (ensure compatibility with your vehicle)
Trim Panel Removal Tool (essential for preventing damage to interior panels)
Socket Set with Various Sizes (typically 10mm and 12mm sockets)
Ratchet and Extension
Screwdrivers (Phillips and Flathead)
Pliers (needle-nose can be helpful)
Protective Gloves (optional, but recommended)
Safety Glasses
Clean Rags
Electrical Tape or Heat Shrink Tubing (if wiring repair is needed)
Multimeter (optional, for testing electrical continuity)

Important Note: Disconnecting the battery is generally not required for this procedure. However, if you're uncomfortable working near electrical connections, or if you suspect significant damage to the wiring, disconnecting the negative terminal is a wise precaution. Always remember to have your radio code handy if you decide to disconnect the battery.

Step-by-Step Replacement Procedure

1. Accessing the Mirror's Mounting Point

The first step involves gaining access to the mirror's mounting point behind the interior door panel. The 2010 Pathfinder utilizes a plastic trim panel that covers this area. This panel is usually secured with a combination of clips and potentially a few screws.

Using the Trim Panel Removal Tool: This tool is designed to gently pry the panel away from the door without damaging the plastic or the retaining clips. Insert the tool between the panel and the door frame, near a clip location. Gently pry outwards until the clip releases. Work your way around the panel, releasing each clip one at a time.

Removing Screws (if applicable): Some Pathfinder models may have screws securing the panel. These are typically located behind the door handle or in the armrest area. Remove these screws before attempting to pry the panel off.

Careful Removal: Once all clips and screws are removed, gently pull the panel away from the door. There may be wiring connected to the power window and door lock switches. Be cautious not to yank the panel abruptly.

2. Disconnecting Electrical Connectors

If your Pathfinder has power mirrors, heated mirrors, or turn signals integrated into the mirror assembly, there will be electrical connectors attached to the mirror wiring. Before completely removing the door panel, these connectors need to be disconnected.

Identifying Connectors: Carefully examine the wiring harness connected to the mirror. There will likely be one or more connectors that plug into the mirror assembly. These connectors usually have a locking mechanism that needs to be disengaged before they can be separated.

Disconnecting Connectors: Use your fingers or a small flathead screwdriver to gently release the locking mechanism on each connector. Once the lock is released, carefully pull the connector apart. Never yank on the wires themselves, as this can damage the wiring or the connector.

Documenting Connections (Optional): Taking pictures of the connector locations and wire colors before disconnecting them can be extremely helpful during reassembly. This ensures that everything is reconnected correctly.

3. Removing the Old Mirror

With the door panel removed and the electrical connectors disconnected, you can now access the bolts or nuts that secure the mirror assembly to the door. These are typically located behind the trim panel you just removed.

Locating Mounting Hardware: Look for the nuts or bolts that hold the mirror base to the door. They’re typically accessible through holes in the door frame.

Loosening and Removing Hardware: Use the appropriate sized socket and ratchet to loosen and remove the mounting hardware. Be careful not to drop the nuts or bolts inside the door. A magnetic pickup tool can be helpful for retrieving dropped hardware.

Supporting the Mirror: As you remove the last bolt or nut, support the mirror assembly with your other hand to prevent it from falling and potentially damaging the door or itself.

Removing the Mirror Assembly: Carefully detach the old mirror assembly from the door.

4. Installing the New Mirror

The installation process is essentially the reverse of the removal process.

Mounting the New Mirror: Align the new mirror assembly with the mounting holes on the door. Secure the mirror with the original nuts or bolts. Tighten the hardware securely, but do not overtighten, as this could damage the mounting points or the mirror housing.

Reconnecting Electrical Connectors: Reconnect all electrical connectors to the new mirror assembly. Ensure that the connectors are properly seated and the locking mechanisms are engaged. Refer to your previously taken photos (if applicable) to ensure correct connections.

5. Reinstalling the Door Panel

With the new mirror securely mounted and the electrical connectors reconnected, you can now reinstall the door panel.

Aligning the Panel: Carefully align the door panel with the door frame. Ensure that all wiring is tucked out of the way and will not be pinched during reinstallation.

Pressing in the Clips: Press the panel firmly against the door, ensuring that all the retaining clips snap back into place. You should hear a distinct "click" as each clip engages.

Reinstalling Screws (if applicable): Reinstall any screws that were removed during the initial panel removal.

6. Testing and Final Adjustments

Before considering the job complete, it's crucial to test the functionality of the new mirror. Start the vehicle and test the following:

Power Mirror Adjustment: Ensure that the power mirror adjustment functions correctly in all directions (up, down, left, right).

Heated Mirror (if applicable): Turn on the heated mirror function and check that the mirror glass warms up. This may take a few minutes to become noticeable.

Turn Signal (if applicable): Activate the turn signals and verify that the turn signal indicator on the mirror is functioning correctly.

Visual Inspection: Visually inspect the mirror assembly to ensure that it is securely mounted and that there are no gaps or loose connections.

If any of these functions are not working correctly, double-check the electrical connections and wiring. Use a multimeter to test for continuity and voltage if necessary.

Troubleshooting Tips

Door Panel Won't Come Off: Double-check for hidden screws. Some models may have additional screws in less obvious locations. Ensure you're using the trim panel removal tool correctly to avoid breaking clips.
Electrical Functions Not Working: Verify that all electrical connectors are fully seated and locked. Check the fuse box for any blown fuses related to the mirrors. Use a multimeter to check for voltage at the connector.
Mirror Loose: Ensure that the mounting hardware is tightened securely. If the mounting points on the door are damaged, you may need to use washers or other shims to provide a secure fit.
Wiring Damage: If you find damaged wiring, repair it using electrical tape or heat shrink tubing. Ensure that the connections are properly insulated to prevent shorts.

Conclusion

Replacing the passenger side mirror on a 2010 Nissan Pathfinder is a manageable DIY project. By following these steps and taking your time, you can successfully complete the replacement and save yourself money on professional repair costs. Remember to prioritize safety, use the correct tools, and double-check all connections before considering the job complete. Good luck!
