2012 Nissan Pathfinder Crankshaft Position Sensor Location

The crankshaft position sensor (CKP sensor) is a critical component in modern internal combustion engines. It's like the engine's heartbeat monitor, constantly feeding vital information to the engine control unit (ECU) about the crankshaft's position and speed. This information is crucial for precisely timing fuel injection and ignition, ensuring the engine runs smoothly and efficiently. In this article, we'll focus specifically on the 2012 Nissan Pathfinder's CKP sensor location, delving into the technical aspects while keeping it accessible for car enthusiasts of all levels.

Understanding the Crankshaft Position Sensor

Before we pinpoint the sensor's location on the Pathfinder, let's break down what it does and why it's so important. Imagine the crankshaft as the engine's main rotating shaft, responsible for converting the linear motion of the pistons into rotational motion that ultimately drives the wheels. The CKP sensor's job is to monitor the crankshaft's position as it spins.

How it Works: Most CKP sensors are either magnetic inductive or Hall-effect sensors. Both types generate a signal that the ECU interprets. A magnetic inductive sensor works by detecting changes in a magnetic field caused by a rotating toothed wheel (reluctor ring) attached to the crankshaft. As each tooth passes the sensor, it disrupts the magnetic field, generating a pulse. The Hall-effect sensor, on the other hand, uses a semiconductor that produces a voltage proportional to the magnetic field passing through it. Again, a rotating target wheel with strategically placed notches or magnets triggers changes in the magnetic field, creating the necessary signal for the ECU.

Why it's Crucial: The ECU uses the CKP sensor's information to:

• Time Fuel Injection: Precisely control when fuel injectors spray fuel into the cylinders. Incorrect timing can lead to poor fuel economy, rough idling, and even engine damage.
• Time Ignition: Determine when the spark plugs should fire to ignite the air-fuel mixture. Incorrect timing here can result in misfires, reduced power, and potential catalytic converter damage.
• Detect Misfires: Identify when a cylinder isn't firing correctly, allowing the ECU to take corrective action or alert the driver with a check engine light.
• Calculate Engine Speed (RPM): Provide vital information for various engine control functions, including idle speed control and transmission shifting.

Think of it like this: the CKP sensor is the conductor of the engine's orchestra, ensuring all the instruments (fuel injectors, spark plugs) play in perfect harmony. Without it, the engine would be a chaotic mess.

Locating the CKP Sensor on a 2012 Nissan Pathfinder

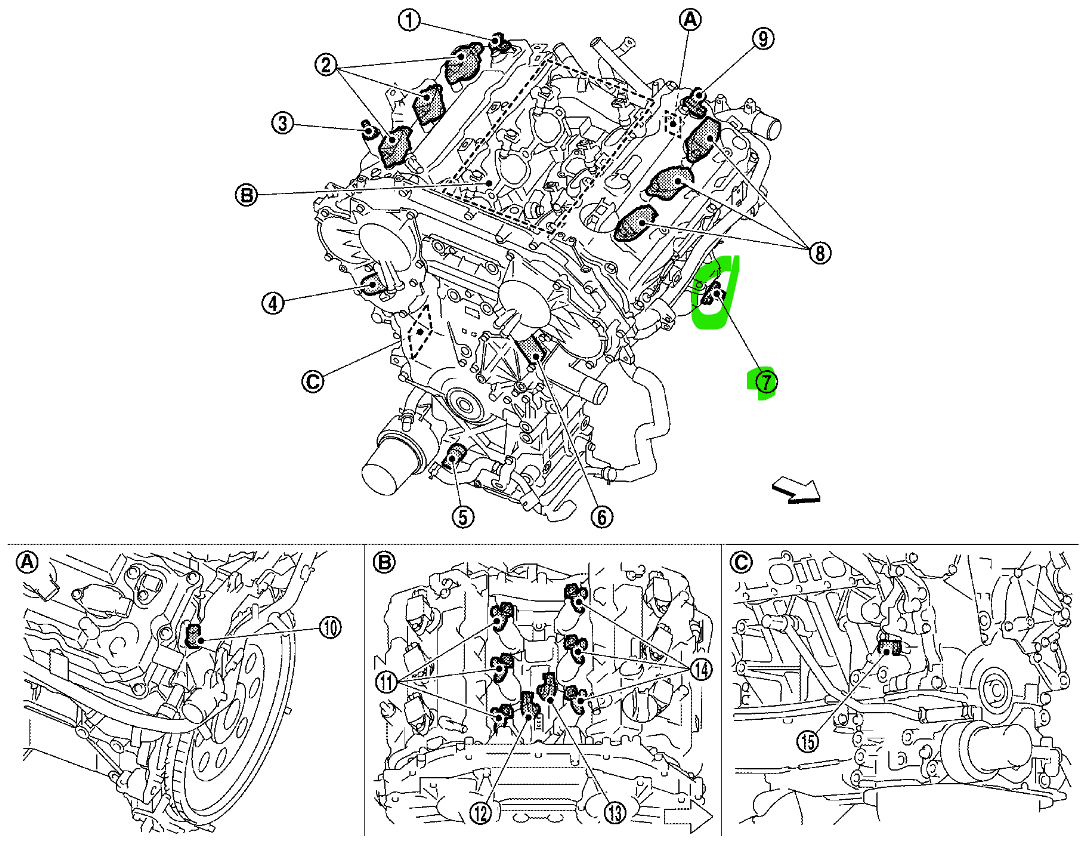

Alright, let's get to the main question: where is the CKP sensor located on a 2012 Nissan Pathfinder? The location is fairly consistent across the VQ40DE engine, which is the primary engine used in the 2012 Pathfinder. While there can be slight variations depending on the specific trim and production date, the general area remains the same.

Generally, the CKP sensor on the 2012 Pathfinder is located at the rear of the engine block, near the transmission bellhousing. Specifically, you'll find it mounted close to where the transmission bolts to the engine. It is often situated on the driver's side of the engine, but accessing it can be a bit tricky due to its location and surrounding components.

Visual Clues and Steps to Locate:

1. Safety First: Disconnect the negative battery terminal before attempting any work on the electrical system.
2. Locate the Transmission Bellhousing: This is the large housing where the engine connects to the transmission. It's typically made of aluminum or cast iron.
3. Look for Wiring: Trace any wiring harnesses that lead towards the rear of the engine near the bellhousing. The CKP sensor will have a connector with typically two or three wires leading to it.
4. Sensor Appearance: The CKP sensor itself is usually a small, cylindrical sensor with a mounting bolt. It's typically black or gray in color.
5. Possible Obstructions: Depending on the specific vehicle configuration, you might need to remove or temporarily move components like exhaust heat shields or wiring harnesses to gain better access to the sensor.

Analogy to Other Vehicles: Think of locating the CKP sensor like finding the crankshaft pulley on a Honda Civic – you know it's at the front of the engine, bolted to the crankshaft. You might have to remove a plastic cover or two to see it clearly, but you know the general area to look.

Important Note: There are also camshaft position sensors (CMP sensors) in most modern engines. These sensors monitor the position of the camshafts, which control the opening and closing of the valves. Don't confuse the CKP sensor with the CMP sensors. The CMP sensors are typically located on the cylinder heads, closer to the top of the engine. On the VQ40DE engine in the Pathfinder, you'll find two CMP sensors, one on each cylinder head.

Tools and Techniques for Replacement

If you suspect your 2012 Nissan Pathfinder's CKP sensor is faulty (common symptoms include a check engine light, stalling, difficulty starting, and rough idling), you might consider replacing it yourself. Here's what you'll need and some tips:

Essential Tools:

• Socket Set: Metric sockets will be needed to remove the mounting bolt securing the sensor.
• Wrench Set: You might need wrenches to access the sensor depending on its location and surrounding components.
• Screwdrivers: A Phillips head or flathead screwdriver might be needed to remove any covers or clips.
• Multimeter (Optional): A multimeter can be used to test the sensor's functionality.
• Penetrating Oil: This can help loosen a stubborn mounting bolt.
• New CKP Sensor: Make sure you get the correct replacement sensor for your 2012 Nissan Pathfinder. Check the part number and compatibility.

Replacement Steps:

1. Disconnect the Battery: As always, disconnect the negative battery terminal for safety.
2. Locate the Sensor: As described earlier, find the CKP sensor at the rear of the engine near the transmission bellhousing.
3. Disconnect the Connector: Carefully disconnect the electrical connector from the sensor. Be mindful of any locking tabs or clips that might need to be released.
4. Remove the Mounting Bolt: Use the appropriate socket or wrench to remove the mounting bolt securing the sensor.
5. Remove the Old Sensor: Gently wiggle and pull the old sensor out of its mounting hole.
6. Install the New Sensor: Apply a small amount of dielectric grease to the new sensor's O-ring (if equipped) to ensure a good seal. Carefully insert the new sensor into the mounting hole.
7. Secure the Mounting Bolt: Tighten the mounting bolt to the manufacturer's specified torque (if known). Overtightening can damage the sensor or the engine block.
8. Reconnect the Connector: Reconnect the electrical connector to the new sensor, ensuring it clicks into place.
9. Reconnect the Battery: Reconnect the negative battery terminal.
10. Clear the Codes: Use an OBD-II scanner to clear any diagnostic trouble codes (DTCs) that may have been stored in the ECU.

Pro Tip: Take pictures before you start disassembling anything. This will help you remember how everything goes back together.

Potential Problems and Troubleshooting

Even with careful replacement, issues can sometimes arise. Here are some common problems and troubleshooting tips:

• Check Engine Light Persists: If the check engine light remains on after replacing the sensor and clearing the codes, there might be another underlying problem, such as a wiring issue, a faulty reluctor ring, or a problem with the ECU.
• Incorrect Sensor: Ensure you have the correct replacement sensor. Using the wrong sensor can lead to performance problems or even damage the engine.
• Wiring Issues: Inspect the wiring harness and connector for any signs of damage, corrosion, or loose connections. Repair or replace any damaged wiring.
• Reluctor Ring Damage: The reluctor ring (or target wheel) that the CKP sensor reads can sometimes become damaged or misaligned. Inspect the reluctor ring for any signs of damage.

Analogy: It’s like replacing a headlight bulb in your Ford F-150. You put in a new bulb, but the light still doesn't work. You then check the fuse and find it's blown. The problem wasn't just the bulb; there was an underlying electrical issue.

Practical Takeaways

By understanding the CKP sensor's function, location, and potential issues, you can better diagnose and address engine-related problems on your 2012 Nissan Pathfinder. Remember to prioritize safety and use the correct tools and techniques. Happy wrenching!
