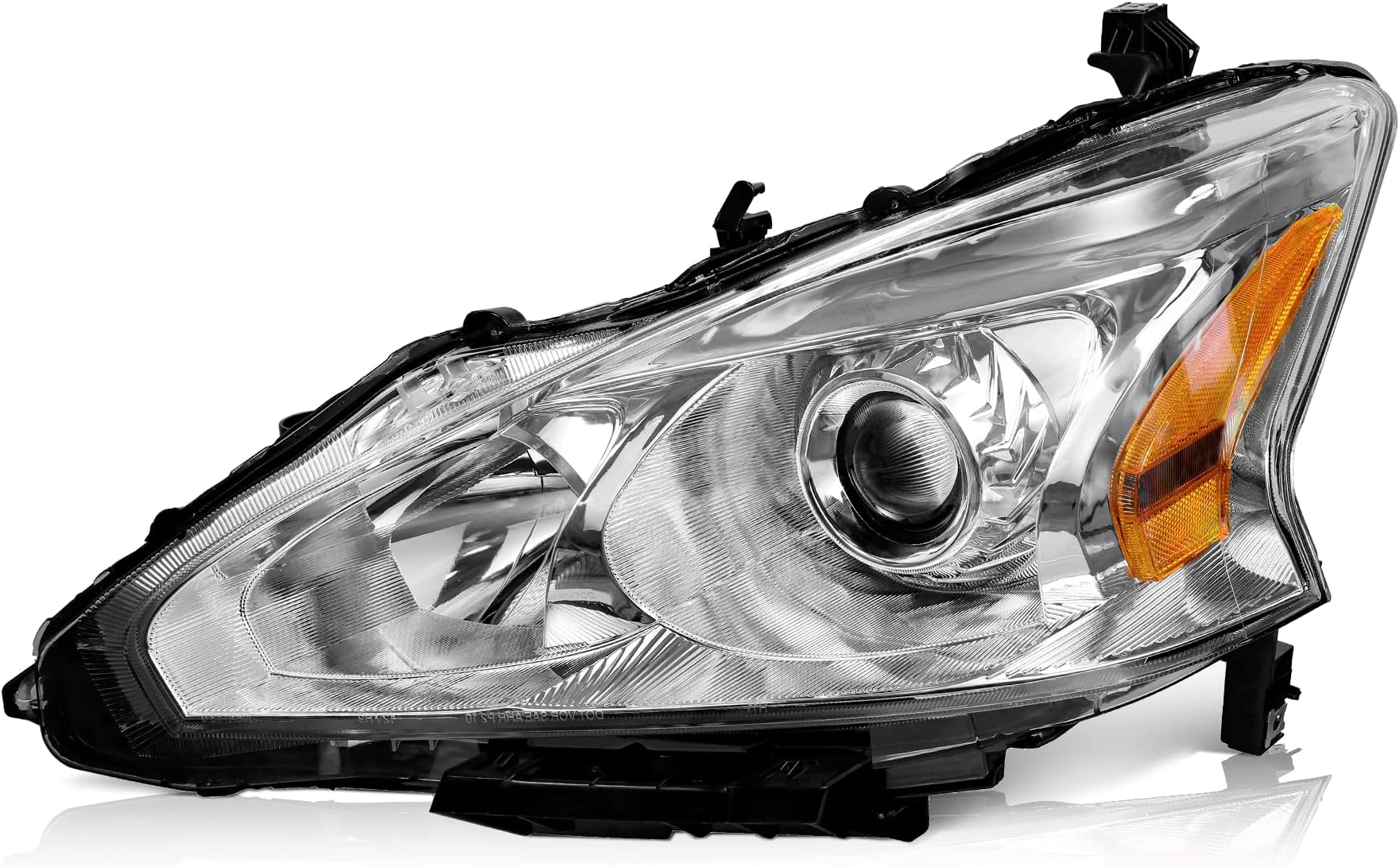

2014 Nissan Altima Headlight Assembly Replacement

The 2014 Nissan Altima, a mainstay of the mid-size sedan segment, boasts a blend of reliability and efficiency. A critical safety component, the headlight assembly, is not only essential for nighttime visibility but also contributes significantly to the vehicle's overall aesthetics. While professional installation is always recommended, understanding the intricacies of a headlight assembly replacement can empower the informed car owner with valuable knowledge. This guide provides an in-depth look at the process, blending practical instructions with technical explanations.

Understanding the Headlight Assembly

Before diving into the replacement procedure, it's crucial to understand the components and functions of a typical 2014 Altima headlight assembly. The assembly is not simply a light bulb; it's a complex system designed to project light in a controlled and focused manner. Key elements include:

Housing: This is the main structural component, providing a protective enclosure for the internal elements. It's typically made of polycarbonate plastic, chosen for its impact resistance and UV stability.
Lens: The lens is the transparent cover that focuses and directs the light emitted by the bulb. Its design incorporates Fresnel lenses or reflectors to optimize light distribution and minimize glare for oncoming drivers. The lens material must be highly transparent and resistant to yellowing due to UV exposure.
Reflectors: These are curved, mirrored surfaces strategically positioned to capture and redirect the light from the bulb. The reflector's shape and finish are critical for controlling the beam pattern, ensuring adequate illumination while minimizing stray light.
Bulbs: The light source itself. The 2014 Altima typically uses halogen bulbs for the low and high beams. Halogen bulbs contain a tungsten filament encased in a gas-filled envelope, producing light through incandescence.
Adjusters: These mechanisms allow for vertical and horizontal aiming of the headlight beam. Proper adjustment is crucial for optimal visibility and to avoid blinding other drivers.
Wiring Harness and Connectors: These provide the electrical connection between the vehicle's electrical system and the headlight bulbs. Proper insulation and secure connections are essential for reliable operation.

Modern headlight assemblies often incorporate additional features like LED daytime running lights (DRLs) or integrated turn signals. These features add complexity to the assembly but enhance the vehicle's visibility and aesthetics.

Tools and Materials Required

Successful headlight assembly replacement requires the right tools and materials. Gather the following before starting:

New Headlight Assembly: Ensure the replacement assembly is compatible with the 2014 Nissan Altima, specifying the correct trim level (e.g., S, SV, SL).
Socket Set: A standard socket set with metric sizes is essential for removing bolts and nuts securing the assembly.
Screwdrivers: Both Phillips head and flathead screwdrivers may be needed for various fasteners.
Trim Removal Tools: Plastic trim removal tools are invaluable for safely removing interior panels or trim pieces without causing damage.
Pliers: For disconnecting wiring connectors and potentially removing stubborn clips.
Gloves: To protect your hands and prevent contamination of the bulb with skin oils.
Shop Rags: For wiping away dirt and grease.
Headlight Aiming Tool (Optional): For accurately aiming the headlights after installation. Alternatively, you can use a flat wall and measuring tape for a rough aiming adjustment.
Penetrating Oil (Optional): For loosening corroded bolts or fasteners.
Work Light: Adequate lighting is crucial for safe and efficient work.

Step-by-Step Replacement Procedure

This section details the procedure for replacing the headlight assembly on a 2014 Nissan Altima. Always disconnect the negative battery terminal before starting any electrical work on a vehicle.

Step 1: Accessing the Headlight Assembly

The first step involves gaining access to the headlight assembly. This usually requires removing some front-end components. Typically, this involves removing the grille and possibly part of the front bumper cover. The exact steps can vary slightly depending on the Altima's trim level, so consulting a repair manual or online resource specific to your vehicle is highly recommended. Use trim removal tools to carefully detach any clips or fasteners securing the grille or bumper cover. Pay close attention to the location and orientation of these fasteners, as they will need to be reinstalled correctly later.

Step 2: Disconnecting Electrical Connectors

Once the headlight assembly is accessible, disconnect the electrical connectors attached to the bulbs. These connectors are typically equipped with locking tabs. Press the tab firmly while gently pulling the connector away from the bulb. Do not pull on the wires themselves, as this can damage the connector. Inspect the connectors for any signs of corrosion or damage. If necessary, clean the connectors with electrical contact cleaner and apply dielectric grease to ensure a good connection.

Step 3: Removing the Old Headlight Assembly

With the electrical connectors disconnected, remove the bolts or screws securing the headlight assembly to the vehicle's frame. These fasteners are usually located around the perimeter of the assembly. Use the appropriate socket or screwdriver to loosen and remove the fasteners. Be careful not to drop the fasteners, as they can be difficult to retrieve. Once all the fasteners are removed, gently wiggle the headlight assembly free from its mounting location. It may be necessary to maneuver the assembly slightly to clear any obstructions.

Step 4: Installing the New Headlight Assembly

Carefully position the new headlight assembly in its mounting location. Align the mounting holes with the corresponding holes in the vehicle's frame. Install the bolts or screws that were removed earlier, tightening them securely but avoiding over-tightening, which could damage the assembly or the mounting points.

Step 5: Reconnecting Electrical Connectors

Reconnect the electrical connectors to the bulbs in the new headlight assembly. Ensure the connectors are fully seated and the locking tabs are engaged. Double-check that the connectors are properly oriented and that all wires are securely connected.

Step 6: Reassembling the Front End

Reinstall the grille and bumper cover that were removed earlier. Align the components carefully and reattach all the fasteners. Ensure all clips and trim pieces are properly seated and that there are no gaps or misalignments.

Step 7: Headlight Aiming

After installing the new headlight assembly, it's essential to aim the headlights properly. Incorrectly aimed headlights can reduce visibility and blind other drivers. There are several methods for aiming headlights, ranging from using a professional aiming tool to performing a rough adjustment using a flat wall and measuring tape.

For a rough adjustment, park the vehicle on a level surface facing a flat wall. Measure the distance from the ground to the center of the headlight lens. Mark this height on the wall. Then, measure the distance between the centers of the two headlights and mark this distance on the wall as well.

Turn on the headlights and adjust the vertical and horizontal adjusters until the brightest part of the beam is centered on the marks on the wall. The exact aiming specifications can be found in the vehicle's owner's manual or a repair manual.

Troubleshooting

Even with careful attention to detail, problems can sometimes arise during headlight assembly replacement. Here are some common issues and their potential solutions:

Headlight Doesn't Turn On: Check the bulb, the electrical connector, and the vehicle's fuses. Ensure the bulb is properly seated in the socket and that the connector is securely attached. A blown fuse can prevent the headlight from functioning.
Headlight Flickers: This could indicate a loose electrical connection or a failing bulb. Inspect the connectors and bulbs for any signs of damage.
Headlight Beam is Misaligned: Use the headlight adjusters to aim the beam properly. Consult the vehicle's owner's manual or a repair manual for the correct aiming specifications.
Difficulty Removing Fasteners: Apply penetrating oil to loosen corroded bolts or screws. If necessary, use a wrench or socket to carefully break the fastener free.

Conclusion

Replacing a headlight assembly on a 2014 Nissan Altima is a manageable task for the informed car owner. By understanding the components of the assembly, gathering the necessary tools, and following the step-by-step procedure outlined in this guide, you can successfully complete the replacement and restore your vehicle's nighttime visibility. Remember to prioritize safety by disconnecting the battery and taking precautions to avoid damaging any components. While this guide provides comprehensive information, always consult a qualified mechanic if you are unsure about any aspect of the replacement process. With patience and attention to detail, you can confidently tackle this project and gain a deeper understanding of your vehicle's systems.
