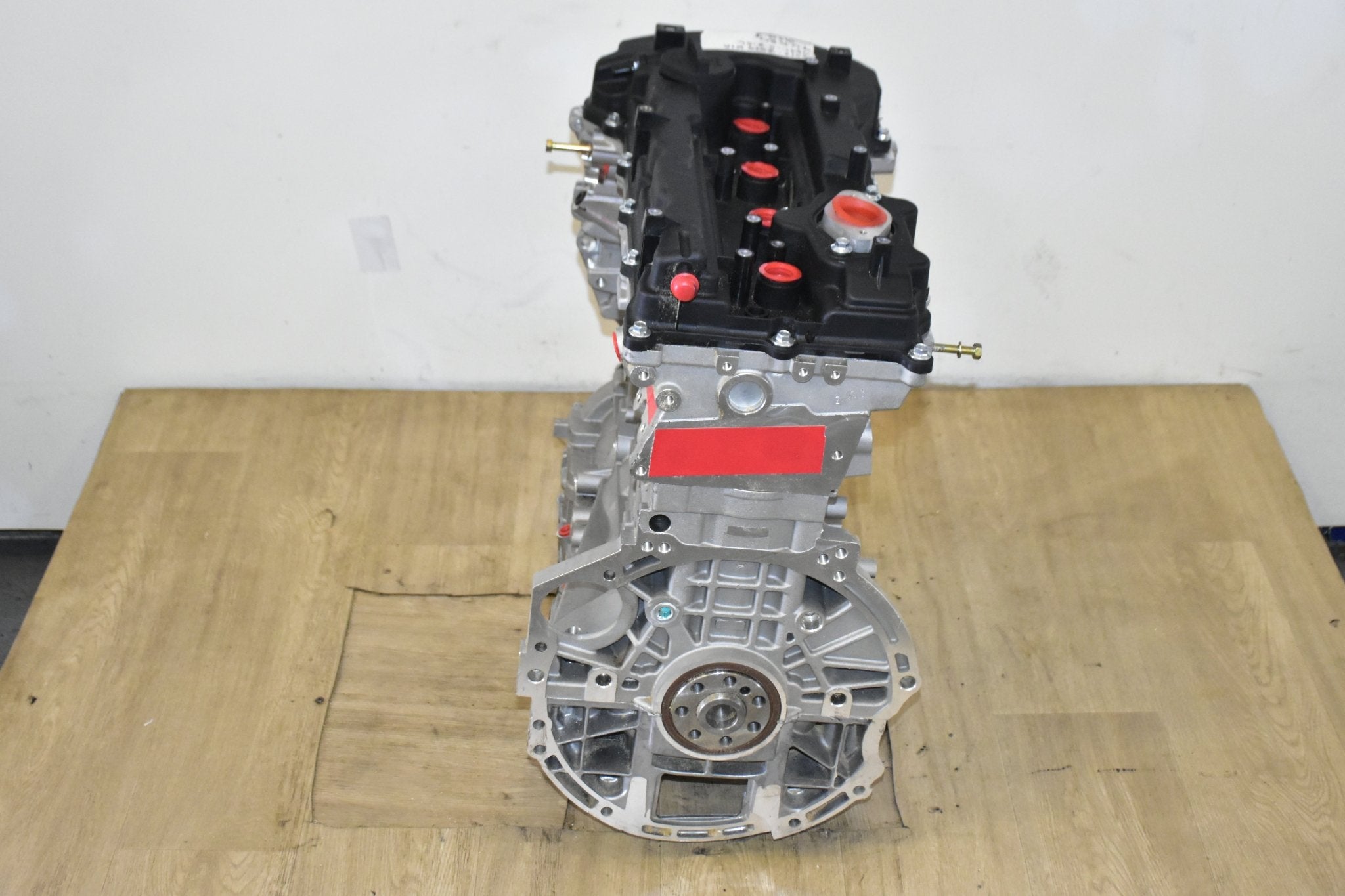

2016 Hyundai Sonata Engine 2.4 L 4-cylinder
The 2016 Hyundai Sonata, particularly the models equipped with the 2.4L 4-cylinder engine (often internally designated as the Theta II engine family), represents a significant step forward in Hyundai's powertrain engineering. While not boasting groundbreaking innovations, it showcases a refined approach to achieving a balance of fuel efficiency, reliability, and adequate performance for its intended application. This guide will delve into the technical aspects of this engine, exploring its key components, operating principles, and some common points of interest.
Engine Block and Rotating Assembly
The foundation of the 2.4L Theta II is a cast aluminum alloy cylinder block. Aluminum, compared to cast iron, offers a significant weight reduction, contributing to improved fuel economy and handling. The block incorporates cast-in iron cylinder liners. This is a crucial design choice, as aluminum, while lightweight, is not ideal for direct contact with the piston rings due to its wear characteristics. The iron liners provide a durable and wear-resistant surface for the pistons to reciprocate against. The block design also prioritizes rigidity to minimize vibration and noise.
Inside the block resides the rotating assembly, consisting of the crankshaft, connecting rods, and pistons. The crankshaft is typically made of forged steel, a material known for its strength and ability to withstand high stresses. It's supported by main bearings that are precisely fitted to ensure proper lubrication and minimal friction. The connecting rods, also likely forged or made from a high-strength alloy, connect the pistons to the crankshaft. These rods must be strong enough to transmit the considerable forces generated during combustion.
The pistons themselves are typically made of cast aluminum alloy. They feature piston rings that seal the combustion chamber, preventing combustion gases from escaping and oil from entering. These rings also play a vital role in controlling oil consumption and maintaining cylinder pressure. Piston cooling is often achieved through oil squirters in the block that spray oil onto the underside of the piston crowns, dissipating heat.
Cylinder Head and Valvetrain
The cylinder head, also typically made of cast aluminum alloy, sits atop the engine block and houses the intake and exhaust valves, as well as the combustion chambers. The 2.4L Theta II employs a Double Overhead Camshaft (DOHC) configuration, meaning it has two camshafts located in the cylinder head – one for the intake valves and one for the exhaust valves. This DOHC design allows for more precise control over valve timing compared to a Single Overhead Camshaft (SOHC) arrangement.
The valves are actuated by the camshafts through either direct acting tappets or, more commonly, rocker arms. The camshaft lobes are precisely shaped to open and close the valves at specific times, influencing the engine's performance characteristics. The valve timing is critical for efficient combustion, power output, and emissions control. Many versions of the 2.4L Theta II incorporate Variable Valve Timing (VVT), often referred to as Dual Continuously Variable Valve Timing (D-CVVT). This system allows the engine control unit (ECU) to adjust the timing of both the intake and exhaust valves independently, optimizing performance across a wider range of engine speeds and loads. VVT achieves this by hydraulically actuating cam phasers, which rotate the camshafts relative to the crankshaft.
The intake and exhaust ports in the cylinder head are designed to maximize airflow into and out of the combustion chambers. The shape, size, and finish of these ports can significantly impact the engine's volumetric efficiency, which is a measure of how effectively the engine fills its cylinders with air. The combustion chamber design itself is also crucial for promoting efficient combustion and minimizing emissions.
Fuel and Ignition Systems
The 2016 Sonata 2.4L utilizes a multi-port fuel injection (MPFI) system. In this system, fuel injectors are located in the intake manifold, spraying fuel into each intake port just before the intake valve. This allows for precise fuel metering and good fuel atomization. The ECU controls the fuel injectors, determining the amount of fuel injected based on various sensor inputs, such as engine speed, throttle position, and air intake temperature.
The ignition system is a distributorless ignition system (DIS), also known as coil-on-plug (COP). This means that each cylinder has its own ignition coil mounted directly on the spark plug. The ECU triggers each coil to fire at the precise moment, igniting the air-fuel mixture in the combustion chamber. This eliminates the need for a distributor, improving reliability and allowing for more precise ignition timing control.
Engine Management System (EMS)
The engine is managed by a sophisticated ECU, which constantly monitors various engine parameters and adjusts fuel injection, ignition timing, and valve timing to optimize performance, fuel economy, and emissions. The ECU receives input from a multitude of sensors, including:
- Mass Airflow (MAF) or Manifold Absolute Pressure (MAP) sensor: Measures the amount of air entering the engine.
- Throttle Position Sensor (TPS): Indicates the position of the throttle plate.
- Engine Coolant Temperature (ECT) sensor: Monitors the engine's temperature.
- Oxygen (O2) sensors: Measure the oxygen content in the exhaust gas, providing feedback to the ECU for adjusting the air-fuel mixture.
- Crankshaft Position Sensor (CKP): Provides information about the crankshaft's position and speed.
- Camshaft Position Sensor (CMP): Provides information about the camshaft's position.
Based on these sensor inputs, the ECU makes real-time adjustments to the engine's operating parameters to achieve the desired performance and efficiency. This sophisticated control system is essential for meeting modern emissions standards and delivering a smooth and responsive driving experience.
Lubrication and Cooling Systems
A robust lubrication system is critical for ensuring the longevity and reliability of the engine. A gear-type or crescent-type oil pump draws oil from the oil pan and circulates it throughout the engine, providing lubrication to all moving parts. The oil filter removes contaminants from the oil, preventing them from causing wear and damage. Oil squirters, as mentioned earlier, help cool the pistons.
The cooling system is equally important for maintaining the engine's operating temperature within the optimal range. A water pump circulates coolant through the engine block, cylinder head, and radiator. The radiator dissipates heat from the coolant, preventing the engine from overheating. A thermostat regulates the flow of coolant, ensuring that the engine reaches its operating temperature quickly and maintains it consistently.
Maintaining proper coolant levels and the integrity of the cooling system components is essential for preventing engine damage.
Common Issues and Considerations
While generally a reliable engine, the 2.4L Theta II (and its variants) has been subject to some scrutiny and recalls over the years, particularly concerning potential oil consumption issues and connecting rod bearing failures in certain production periods. These issues, while not universally present in all engines, highlight the importance of regular maintenance, including timely oil changes with the correct grade of oil and adherence to recommended service intervals. Always consult the vehicle's owner's manual for specific maintenance recommendations.
Another common area of concern can be related to the VVT system. Problems with the cam phasers or solenoids controlling the VVT can lead to reduced performance, poor fuel economy, and diagnostic trouble codes (DTCs). Proper diagnosis and repair are crucial to restoring optimal engine operation.
In conclusion, the 2016 Hyundai Sonata's 2.4L 4-cylinder engine represents a well-engineered and generally reliable powertrain option. Understanding its key components and operating principles can empower owners to better maintain their vehicles and diagnose potential issues. Remember that regular maintenance and prompt attention to any unusual symptoms are essential for ensuring the longevity and performance of this engine.
