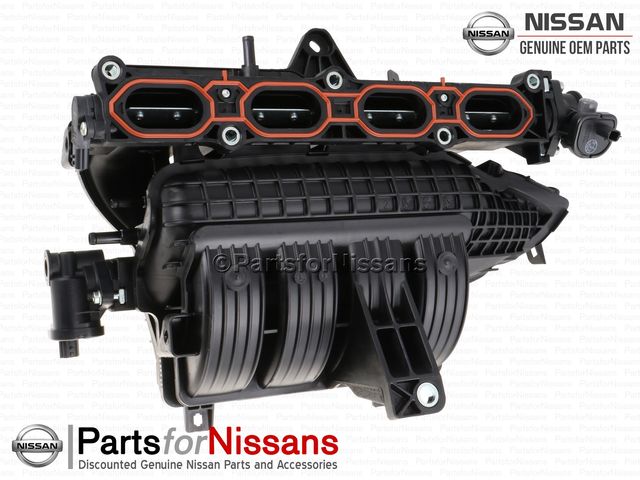

2016 Nissan Altima Intake Manifold Runner Control

The 2016 Nissan Altima, like many modern vehicles, utilizes an Intake Manifold Runner Control (IMRC) system to optimize engine performance across various driving conditions. This system, while beneficial, can sometimes present challenges. This article provides a practical guide for car owners and mechanics, focusing on the maintenance, troubleshooting, and real-world issues associated with the 2016 Altima's IMRC system.

Understanding the Intake Manifold Runner Control (IMRC) System

The IMRC system's primary function is to improve engine efficiency and power output. It achieves this by altering the length of the intake runners within the intake manifold. At lower engine speeds, the runners are lengthened to increase air velocity, improving cylinder filling and low-end torque. At higher engine speeds, the runners are shortened to maximize airflow and increase peak horsepower. The IMRC system is usually composed of:

Intake Manifold Runners: These are the physical passages that direct air into the engine cylinders.
Actuator: Usually vacuum or electronically controlled, the actuator moves the runner flaps.
Runner Flaps: These flaps physically change the length of the intake runners.
Control Solenoid/Motor: This component regulates the vacuum or electric current to the actuator.
Engine Control Unit (ECU): The brain of the system, the ECU monitors engine parameters and controls the IMRC system accordingly.

Similar systems are found in other vehicles like the Toyota Camry (variable intake systems) and the Ford Mustang (charge motion control valves). The underlying principles are the same – optimizing airflow for improved performance and fuel economy.

Common Symptoms of IMRC Problems in the 2016 Altima

Recognizing the symptoms of a malfunctioning IMRC system is the first step towards diagnosis and repair. Here are some common indicators:

Loss of Low-End Torque: This is one of the most noticeable symptoms. You might experience sluggish acceleration, especially when starting from a stop or climbing hills.
Poor Fuel Economy: An inefficient IMRC system can lead to increased fuel consumption.
Rough Idle: The engine might idle unevenly or stall, particularly when cold.
Check Engine Light: The most obvious sign. Codes related to the IMRC system, such as P2004, P2005, P2006, P2007, P2008, P2015, P2016, and P2017, are commonly triggered.
Hesitation During Acceleration: The engine may hesitate or stumble when you try to accelerate quickly.
Reduced Horsepower at Higher RPMs: Although less common, a stuck IMRC valve can sometimes restrict airflow even at high speeds.

Troubleshooting the IMRC System: A Step-by-Step Guide

Diagnosing IMRC issues requires a systematic approach. Here’s a guide for both DIY car owners and professional mechanics:

1. Retrieving and Interpreting Diagnostic Trouble Codes (DTCs)

Use an OBD-II scanner to retrieve any stored DTCs. Common codes related to the IMRC system include the P20XX series as mentioned above. Research the specific code to understand its meaning and potential causes. For example:

P2004: Intake Manifold Runner Control Stuck Open Bank 1.

P2005: Intake Manifold Runner Control Stuck Open Bank 2.

These codes indicate that the runner flaps are not closing properly on the respective engine banks.

2. Visual Inspection

Carefully inspect the IMRC system components for any obvious signs of damage, such as:

Vacuum Leaks: Check vacuum hoses for cracks, breaks, or disconnections. Use a vacuum gauge to verify proper vacuum levels.
Actuator Damage: Examine the actuator for physical damage or corrosion. Test its operation by manually applying vacuum or voltage (depending on the type of actuator) and observing the movement of the runner flaps.
Runner Flap Binding: Manually try to move the runner flaps. They should move freely without excessive resistance. Carbon buildup can cause them to stick.
Wiring and Connectors: Inspect the wiring harness and connectors for damage, corrosion, or loose connections.

3. Testing the IMRC Actuator

The method for testing the actuator depends on whether it's vacuum-operated or electronically controlled.

Vacuum-Operated Actuators:

Disconnect the vacuum hose from the actuator.
Apply vacuum to the actuator using a hand-held vacuum pump.
Observe the movement of the runner flaps. They should move smoothly and completely.
Check for vacuum leaks in the actuator diaphragm. If it doesn't hold vacuum, it's faulty and needs to be replaced.

Electronically Controlled Actuators:

Use a multimeter to check for voltage at the actuator connector when the engine is running and the ECU is commanding the IMRC system to operate. Refer to the vehicle's wiring diagram for the correct pins to test.
If voltage is present, but the actuator is not working, the actuator itself is likely faulty.
You can also use a scan tool capable of advanced functions to command the IMRC system on and off and observe the actuator's response.

4. Checking the Control Solenoid/Motor

The control solenoid or motor regulates the vacuum or electric current to the actuator. Test it using a multimeter to check for continuity and resistance. Consult the vehicle's service manual for the correct specifications.

5. Inspecting and Cleaning Runner Flaps

Carbon buildup on the runner flaps is a common issue, especially in vehicles with higher mileage. This buildup can restrict their movement and cause them to stick. To inspect and clean the runner flaps:

Remove the intake manifold.
Carefully inspect the runner flaps for carbon buildup.
Use a carburetor cleaner or intake manifold cleaner to remove the carbon deposits.
Ensure the flaps move freely after cleaning.

Real-World IMRC Problems and Solutions on the 2016 Altima

Here are some common IMRC issues encountered on the 2016 Nissan Altima and their corresponding solutions:

Problem: P2004 code (Intake Manifold Runner Control Stuck Open Bank 1) after 80,000 miles.

Cause: Vacuum leak in the hose connecting the intake manifold to the IMRC actuator.
Solution: Replace the cracked or damaged vacuum hose.

Problem: Reduced low-end torque and hesitation during acceleration. No DTCs are present initially, but P2015 appears later.

Cause: Carbon buildup on the runner flaps restricting their movement.
Solution: Remove the intake manifold, clean the runner flaps thoroughly, and reinstall. Consider using a fuel system cleaner regularly to prevent future buildup.

Problem: Engine runs rough at idle; P2008 code (Intake Manifold Runner Control Circuit Open Bank 1).

Cause: Faulty IMRC control solenoid.
Solution: Replace the IMRC control solenoid. Verify proper voltage at the solenoid connector before replacing to rule out wiring issues.

Problem: Actuator arm broken or disconnected from the runner flaps.

Cause: Material fatigue or stress.
Solution: Replacing the entire intake manifold may be necessary, especially if the linkage is integrated. Some aftermarket kits may offer repair options.

Maintenance Tips for Preventing IMRC Problems

Preventative maintenance can significantly reduce the likelihood of IMRC problems. Here are some tips:

Regular Fuel System Cleaners: Use a high-quality fuel system cleaner periodically to help prevent carbon buildup on the runner flaps and other intake components.
Inspect Vacuum Hoses Regularly: Check vacuum hoses for cracks, leaks, or damage during routine maintenance. Replace them as needed.
Maintain Proper Engine Oil: Using the correct engine oil and changing it regularly helps prevent excessive oil consumption, which can contribute to carbon buildup in the intake manifold.
Address Engine Issues Promptly: Any underlying engine problems, such as vacuum leaks or misfires, should be addressed promptly to prevent them from affecting the IMRC system.

Conclusion

The Intake Manifold Runner Control (IMRC) system in the 2016 Nissan Altima plays a vital role in optimizing engine performance. By understanding the system's operation, recognizing common symptoms of failure, and following a systematic troubleshooting approach, both car owners and mechanics can effectively diagnose and repair IMRC issues. Remember that preventative maintenance is crucial for preventing problems and keeping your Altima running smoothly for years to come. Pay attention to the condition of your hoses, regularly use fuel system cleaners, and don't ignore the check engine light. A well-maintained IMRC system translates to better fuel economy, improved performance, and a more enjoyable driving experience.
