2016 Ram 2500 Blend Door Actuator Location

Alright, let's dive into the notorious blend door actuator location on a 2016 Ram 2500. This is a common trouble spot that can lead to frustrating HVAC (Heating, Ventilation, and Air Conditioning) issues, like only getting hot air, only cold air, or inconsistent temperature control. Replacing the blend door actuator isn't the most complex job, but knowing exactly where it lives is half the battle. We'll break down its location, removal, and a few things to watch out for along the way.

Understanding the Blend Door System

Before we pinpoint the actuator, let's quickly review what it does. The blend door, as the name suggests, blends hot and cold air within the HVAC system. Think of it like a physical mixer for your climate control. The blend door actuator is a small electric motor that controls the position of this door. It receives signals from the HVAC control panel (the buttons and knobs you use to adjust the temperature) and translates those signals into mechanical movement, opening or closing the passage for heated air from the heater core and cooled air from the evaporator core. The heater core is a small radiator that circulates hot coolant from the engine, while the evaporator core contains refrigerant and cools the air that passes through it.

When the actuator fails, the blend door can get stuck in one position, resulting in consistent temperature issues. Common symptoms of a failing blend door actuator include:

Inconsistent air temperature (e.g., hot air blowing when you set it to cold).
Only hot or only cold air blowing.
Clicking or thumping noises coming from behind the dashboard. This is often the actuator trying to move the door but failing.
Temperature changes that don't match your settings.

Locating the Primary Blend Door Actuator

On a 2016 Ram 2500, you'll typically find the primary blend door actuator located on the passenger side of the dashboard. It's usually mounted on the HVAC housing itself, beneath the glove box. While there might be variations based on specific trim levels and options (like dual-zone climate control, which adds complexity), this is the most common location. Here's a step-by-step guide to accessing it:

Disconnect the Negative Battery Terminal: Always disconnect the negative battery terminal before working on any electrical components. This prevents accidental shorts and potential damage to the vehicle's electrical system. Use a wrench to loosen the terminal clamp and carefully remove the cable.

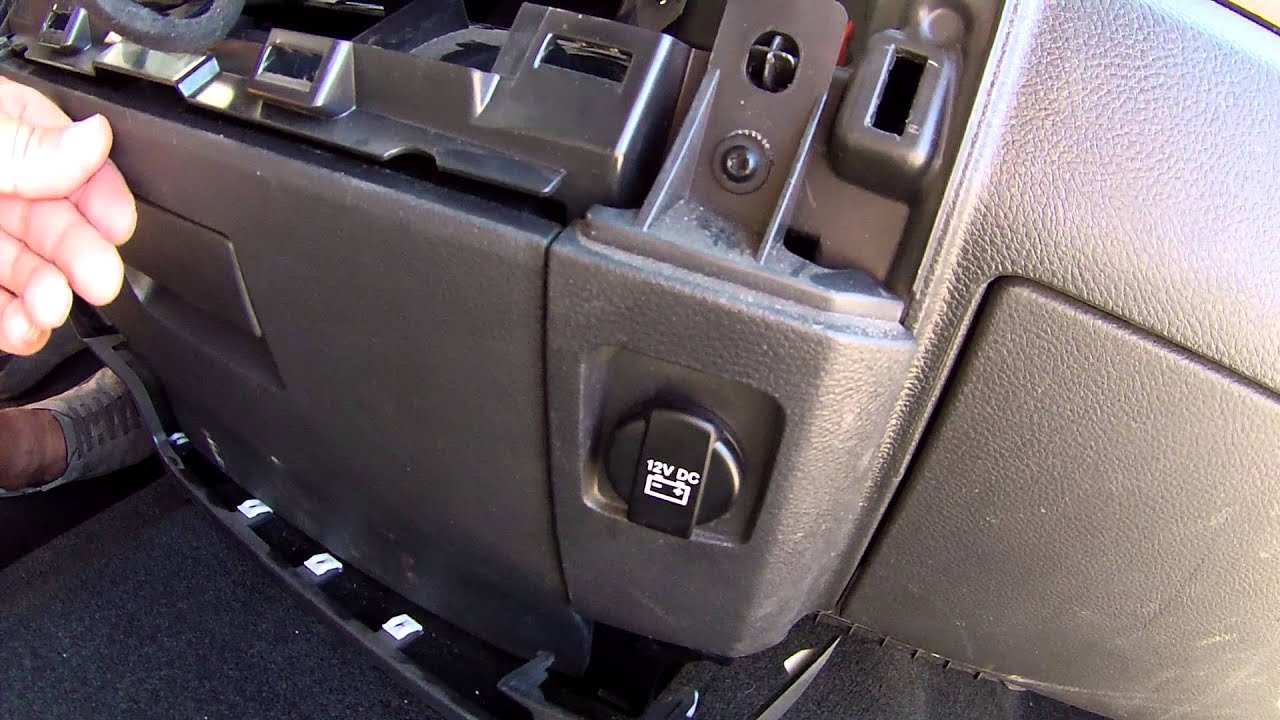

Remove the Glove Box: Open the glove box. You'll likely find release tabs or clips on either side of the glove box. Depress these tabs or unclip them to allow the glove box to swing down further. Some models might have a damper or cable connecting the glove box to the dashboard. Disconnect this damper or cable carefully. The goal is to completely remove the glove box to expose the area behind it.
Locate the HVAC Housing: Once the glove box is out of the way, you should be able to see the large plastic housing that contains the HVAC components. This is where you'll find the blend door actuator. It's usually a rectangular plastic module, often black or grey, with a wiring harness connected to it.
Identify the Actuator: You're looking for an actuator that appears to control a door related to temperature. There might be other actuators in the vicinity controlling mode selection (where the air blows – vents, floor, defrost). Follow the linkage or the actuator's arm to visually confirm it's connected to the blend door mechanism. Sometimes, a visual inspection is possible using a flashlight to confirm the position of the blend door by looking at the movement of the linkage when you change the temperature settings.

Dual-Zone Climate Control Considerations

If your 2016 Ram 2500 has dual-zone climate control, things get a bit more complex. Dual-zone systems have separate actuators for the driver and passenger sides, allowing for independent temperature control. In this case, you'll find an additional actuator on the driver's side, often mirrored in position to the passenger-side actuator. The driver-side blend door actuator can be more challenging to access, potentially requiring the removal of trim panels around the steering column or even part of the lower dashboard.

Removing and Replacing the Blend Door Actuator

Once you've located the actuator, the removal and replacement process is usually straightforward:

Disconnect the Wiring Harness: Carefully disconnect the wiring harness from the actuator. Most connectors have a locking tab that you need to depress before you can pull the connector off. Never pull on the wires themselves; always grip the connector body.
Remove the Mounting Screws: The actuator is typically held in place by two or three screws. These are often Torx head screws (T20 or T25 are common sizes), but sometimes Phillips head screws are used. Use the correct screwdriver or Torx bit to remove the screws.
Remove the Actuator: Once the screws are out, gently pull the actuator away from the HVAC housing. Be careful not to force it; it should come out easily.
Install the New Actuator: Align the new actuator with the mounting holes and install the screws. Tighten the screws snugly, but don't overtighten them, as you could damage the plastic housing.
Reconnect the Wiring Harness: Plug the wiring harness back into the actuator, making sure it clicks into place.
Reinstall the Glove Box: Reverse the glove box removal steps to reinstall it. Reconnect any dampers or cables.
Reconnect the Negative Battery Terminal: Reconnect the negative battery terminal.

Calibration and Testing

After replacing the blend door actuator, it's often necessary to perform a calibration procedure. This allows the HVAC system to learn the new actuator's position and ensure proper operation. The specific calibration procedure can vary slightly depending on the vehicle and the type of HVAC system. Consult your owner's manual or a reliable repair manual for the correct procedure for your 2016 Ram 2500. Common methods include:

Automatic Calibration: Some vehicles automatically calibrate the actuators when the ignition is turned on. You might hear the actuators cycling as they go through the calibration process.
Scan Tool Calibration: Using a scan tool, you can access the HVAC control module and initiate the calibration procedure. This is the most reliable method, as it allows you to monitor the process and ensure it completes successfully.

If you don't calibrate the actuator, you might experience inaccurate temperature control or error codes in the HVAC system. After calibration, test the HVAC system by adjusting the temperature settings and verifying that the air temperature changes accordingly.

Common Pitfalls and Considerations

Actuator Quality: It's always best to use a high-quality replacement actuator. Cheap aftermarket actuators are prone to failure and may not calibrate properly. Consider using an OEM (Original Equipment Manufacturer) actuator for the best reliability.
Door Binding: Before installing the new actuator, manually check the blend door's movement. If the door is binding or sticking, the new actuator will likely fail prematurely. Address the underlying issue with the door itself (e.g., debris, broken linkage) before installing the new actuator.
Wiring Issues: Inspect the wiring harness and connector for any signs of damage, corrosion, or loose connections. A faulty wiring connection can prevent the actuator from working correctly.
Scan Tool Diagnostics: If you're having trouble diagnosing the problem or if the new actuator doesn't solve the issue, consider using a scan tool to check for HVAC system error codes. These codes can provide valuable clues about the root cause of the problem.

Replacing the blend door actuator on your 2016 Ram 2500 is a manageable DIY project. By carefully following these steps and paying attention to the details, you can save yourself a trip to the mechanic and restore proper climate control to your truck. Remember to always prioritize safety by disconnecting the battery and using the correct tools. Good luck!
