Can You Replace Piston Rings Without Removing Engine

The automotive industry is in a constant state of evolution, demanding technicians and engineers to adapt to emerging technologies and refine existing practices. One of the enduring debates within the repair and maintenance sphere centers around the feasibility and efficacy of replacing piston rings without a complete engine removal. This article delves into the technical aspects, engineering considerations, real-world performance, and future trends surrounding this complex procedure, offering a comprehensive analysis for automotive professionals.

The Core Question: Rings In-Situ?

The conventional approach to piston ring replacement involves a complete engine teardown. This allows for thorough inspection of all internal components, proper cleaning, and precise measurement of cylinder bore wear, ensuring optimal ring seating and longevity. However, the labor cost and downtime associated with this method can be substantial, prompting exploration of alternative solutions.

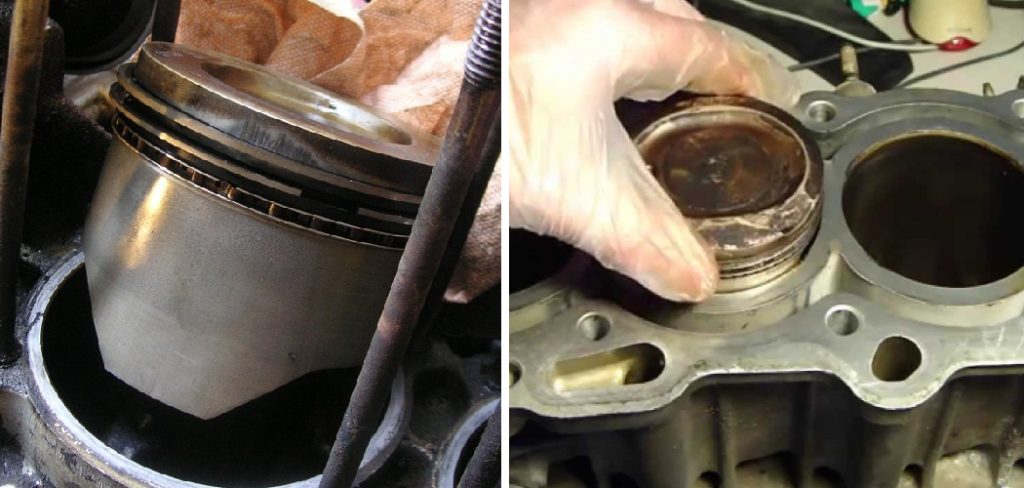

The alternative, in-situ ring replacement, aims to address these drawbacks by replacing the rings with the engine still in the vehicle. This involves removing the oil pan and connecting rod caps, pushing the pistons up through the cylinders, and replacing the rings. While seemingly simpler, this method presents a unique set of challenges.

Technical Specifications and Engineering Choices

The feasibility of in-situ ring replacement hinges on several technical factors:

Cylinder Bore Condition: The most critical aspect is the condition of the cylinder bores. Excessive wear, ovality, or taper renders in-situ replacement ineffective. Precise measurements using a bore gauge are essential to assess the bore's suitability. Acceptable tolerance levels vary by engine manufacturer, but generally, deviations exceeding 0.002-0.003 inches (0.05-0.08 mm) necessitate a full rebuild.
Piston Condition: The pistons themselves must be in good condition. Excessive skirt wear, damage to the ring grooves, or piston pin issues preclude successful ring replacement. Thorough inspection is crucial.
Crankshaft and Bearing Condition: While not directly impacted by ring replacement, the condition of the crankshaft journals and connecting rod bearings should be evaluated. Replacing the rings without addressing worn bearings can lead to premature engine failure.
Ring Gap: Proper ring gap is essential for optimal sealing and preventing blow-by. The correct gap specification is dictated by the engine manufacturer and varies depending on the ring type and engine application. Achieving the correct gap during in-situ replacement requires careful filing of the ring ends, a process that demands precision and attention to detail.
Ring Material and Design: Piston rings are manufactured from various materials, including cast iron, ductile iron, and steel, often with coatings such as chrome or molybdenum for improved wear resistance. The ring design (e.g., compression ring, oil control ring) and profile also play a crucial role in performance. The choice of replacement rings should match or exceed the specifications of the original equipment.

Engineering choices in engine design also influence the viability of in-situ ring replacement. Engines with short connecting rods or angled cylinders can make piston removal and installation more difficult. Furthermore, some engine designs incorporate features that obstruct access to the connecting rod caps or oil pan, complicating the process.

Real-World Performance and Comparison with Alternatives

The real-world performance of in-situ ring replacement is a subject of ongoing debate. While some technicians report successful outcomes, others express skepticism about its long-term reliability.

Pros:

Reduced Labor Costs: The primary advantage is the significant reduction in labor costs compared to a full engine rebuild. This makes it an attractive option for budget-conscious customers.
Faster Turnaround Time: In-situ replacement can be completed in a fraction of the time required for a complete engine teardown, minimizing vehicle downtime.

Cons:

Limited Inspection: The inability to thoroughly inspect all internal engine components is a major drawback. Hidden issues, such as bearing wear or cylinder head problems, may go undetected, leading to future problems.
Risk of Damage: The process of pushing the pistons through the cylinders can potentially damage the cylinder walls, especially if there is carbon buildup or wear ridges.
Difficulty in Achieving Proper Ring Seating: Without honing the cylinders, it can be difficult to achieve optimal ring seating, potentially resulting in reduced compression and increased oil consumption.
Questionable Long-Term Reliability: The long-term reliability of in-situ ring replacement is uncertain, especially in engines with significant wear.

Alternatives:

Engine Rebuild: The traditional approach, offering the most comprehensive solution. It allows for thorough inspection, cleaning, and repair of all engine components, ensuring optimal performance and longevity. However, it is also the most expensive and time-consuming option.
Engine Replacement: Replacing the entire engine with a new or remanufactured unit is another alternative. This option provides a known quantity in terms of engine condition and performance but can be costly.
Used Engine Installation: Installing a used engine is the least expensive option, but it carries the greatest risk due to the unknown condition of the engine.

The choice between these alternatives depends on the vehicle's condition, budget, and desired level of reliability. In-situ ring replacement is generally only suitable for engines with relatively low mileage and minimal cylinder wear. A thorough inspection and careful assessment are essential before proceeding with this method.

Reliability Aspects and Maintenance Tips

To maximize the reliability of in-situ ring replacement, it is crucial to adhere to the following guidelines:

Thorough Inspection: Conduct a comprehensive inspection of the cylinders, pistons, crankshaft, and bearings before proceeding.
Precise Measurements: Use precision measuring tools to assess cylinder bore wear, piston clearance, and ring gap.
Proper Cleaning: Clean the cylinders and pistons thoroughly to remove carbon deposits and debris.
Careful Installation: Install the new rings carefully, ensuring proper orientation and staggering of the ring gaps.
Honing (Optional but Recommended): Lightly honing the cylinders can improve ring seating, but it is essential to use the correct honing technique and grit size.
Break-In Procedure: Follow a specific break-in procedure to allow the rings to seat properly. This typically involves avoiding high engine speeds and heavy loads for the first few hundred miles.
Oil Change: Perform an oil change after the break-in period to remove any debris generated during the seating process.

Regular maintenance, including timely oil changes and air filter replacements, is essential for maintaining engine health and prolonging the life of the piston rings, regardless of whether they were replaced in-situ or during a full rebuild.

Future Trends

Several future trends are likely to influence the debate surrounding in-situ ring replacement:

Advanced Diagnostic Tools: The development of more sophisticated diagnostic tools, such as in-cylinder pressure sensors and oil analysis techniques, will allow for more accurate assessment of engine condition and inform the decision-making process regarding ring replacement.
Improved Ring Materials and Designs: Ongoing research into new ring materials and designs will lead to more durable and efficient rings, potentially improving the long-term reliability of in-situ replacement.
Increased Use of Remanufactured Engines: As the cost of new engines continues to rise, remanufactured engines will become an increasingly attractive alternative, potentially reducing the demand for in-situ ring replacement.
Electric Vehicle Adoption: The growing adoption of electric vehicles will gradually reduce the demand for internal combustion engine repairs, including ring replacement.

While electric vehicles are gaining traction, the internal combustion engine will remain a significant part of the automotive landscape for years to come. Therefore, understanding the nuances of engine repair, including the complexities of piston ring replacement, will continue to be essential for automotive professionals.

Conclusion

In conclusion, while replacing piston rings without removing the engine is technically possible, it is not a universally applicable solution. Its success hinges on careful evaluation of engine condition, adherence to precise technical specifications, and a clear understanding of the potential risks and limitations. Ultimately, the decision to pursue in-situ ring replacement should be based on a thorough assessment of the specific circumstances and a realistic expectation of the outcome. Technicians should prioritize transparency with their customers, clearly outlining the pros and cons of each repair option and providing a professional recommendation based on their expertise. The future of automotive repair lies in a blend of traditional skills and advanced diagnostic capabilities, allowing professionals to make informed decisions that optimize vehicle performance and customer satisfaction.
