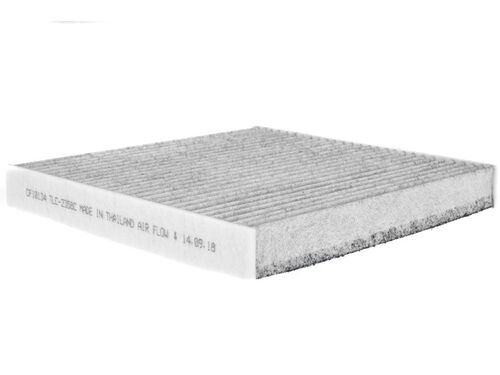

Cf10134 Fram Fresh Breeze Cabin Air Filter

The CF10134 Fram Fresh Breeze cabin air filter is a popular choice for many vehicles, offering a combination of particulate filtration and odor elimination. Understanding its maintenance, potential issues, and how to troubleshoot them is crucial for both car owners and mechanics. This article provides a practical guide to keeping your cabin air clean and your HVAC system running efficiently.

Maintenance: When and How to Replace

The recommended replacement interval for the CF10134 filter is typically every 12,000 to 15,000 miles, or annually, whichever comes first. However, this interval can vary significantly based on driving conditions. Driving in dusty or smoggy environments, or frequent city driving with stop-and-go traffic, will necessitate more frequent replacements. A good rule of thumb is to visually inspect the filter every 6 months.

How to Replace: The location of the cabin air filter varies depending on the vehicle make and model. Often, it's located behind the glove box, under the dashboard, or sometimes even under the hood. Always consult your vehicle's owner's manual for the specific location and removal instructions. Here are some general steps and examples:

Behind the Glove Box (Common):
Example: Honda Civic, Toyota Corolla. Typically, you'll need to empty the glove box, detach the glove box damper (if equipped), and then squeeze the sides of the glove box to release it from its hinges. Behind the glove box, you'll find a plastic cover that needs to be removed, revealing the cabin air filter housing. Slide out the old filter, noting the direction of airflow (usually indicated by an arrow), and insert the new CF10134 filter in the same orientation. Reassemble in reverse order.
Under the Dashboard:
Example: Some Ford models, like the Focus or Escape. Access often involves removing a lower dash panel or reaching up under the dash on the passenger side. The filter housing is typically secured with clips or screws. Again, pay attention to the airflow direction when replacing the filter.
Under the Hood:
Example: Some Nissan models. The cabin air filter might be housed in a compartment near the windshield wipers. This is less common but still a possibility. Locate the filter housing, unclip or unscrew the cover, and replace the filter, ensuring proper orientation.

Important Tip: When installing the new filter, make sure it's properly seated within the housing. A loose or improperly installed filter can allow unfiltered air to bypass the filter, reducing its effectiveness and potentially damaging HVAC components.

Troubleshooting: Common Problems and Solutions

Problem: Reduced Airflow from Vents

Symptom: Weak airflow from the vents, even when the fan is set to high.

Cause: A heavily clogged cabin air filter is the most likely culprit. Dirt, leaves, pollen, and other debris can accumulate on the filter's surface, restricting airflow.

Solution: Replace the cabin air filter with a new CF10134. In severe cases, you may also need to inspect and clean the blower motor and evaporator core, as debris can accumulate in these areas as well. For example, a clogged filter in a Jeep Grand Cherokee can lead to the blower motor working harder and potentially failing prematurely. If airflow doesn't improve after replacement, there might be issues with the blower motor resistor or the blower motor itself. Consult a mechanic if needed.

Problem: Unpleasant Odors from Vents

Symptom: Musty, moldy, or other unpleasant odors emanating from the vents, especially when the air conditioning is turned on.

Cause: Mold and mildew growth on the evaporator core or within the HVAC system. A dirty cabin air filter contributes to this problem by allowing moisture and organic matter to enter the system.

Solution: Replace the cabin air filter with a new CF10134, which includes activated carbon to help neutralize odors. You may also need to clean the evaporator core with an HVAC system cleaner or disinfectant. These cleaners are typically sprayed into the evaporator drain tube or directly onto the evaporator core (following product instructions carefully). For instance, a persistent musty odor in a Toyota Camry even after filter replacement likely indicates the need for evaporator cleaning. In some cases, professional cleaning is required.

Problem: Excessive Noise from Blower Motor

Symptom: A whistling or rattling noise coming from the blower motor area.

Cause: Debris lodged in the blower motor fan or housing. A damaged or worn blower motor can also cause noise.

Solution: First, check and replace the cabin air filter (CF10134). A clogged filter can cause the blower motor to work harder, increasing noise. If the noise persists, inspect the blower motor for debris. You might need to remove the blower motor to clean it thoroughly. If the blower motor is damaged or worn, replacement is necessary. For example, a noisy blower motor in a Chevy Silverado after off-roading might indicate debris ingestion due to a compromised or missing cabin air filter. Replacing both the filter and cleaning the blower motor is recommended.

Problem: Foggy Windows

Symptom: Windows fogging up easily and taking a long time to clear, even with the defroster on.

Cause: High humidity inside the vehicle, often exacerbated by a clogged cabin air filter that restricts airflow and reduces the effectiveness of the defroster.

Solution: Replace the cabin air filter with a new CF10134 to improve airflow. Also, ensure that the air conditioning system is functioning properly, as it removes moisture from the air. Check the recirculation setting; using it excessively can trap moisture inside the cabin. For example, persistent fogging in a Subaru Outback, especially during rainy seasons, usually points to a combination of a saturated cabin air filter and high humidity. Regularly cleaning the interior windows and using a dehumidifier inside the car can also help.

Keeping Your Car in Top Condition

Regular maintenance is key to keeping your car running smoothly and extending its lifespan. This includes:

Following the manufacturer's recommended maintenance schedule.
Regularly checking and changing fluids (oil, coolant, brake fluid, transmission fluid).
Inspecting and maintaining tires (pressure, tread depth).
Keeping the exterior clean to prevent rust and corrosion.
Addressing minor problems promptly before they escalate into major repairs.

By paying attention to these details and proactively addressing potential issues, you can ensure that your vehicle remains reliable and safe for years to come.
