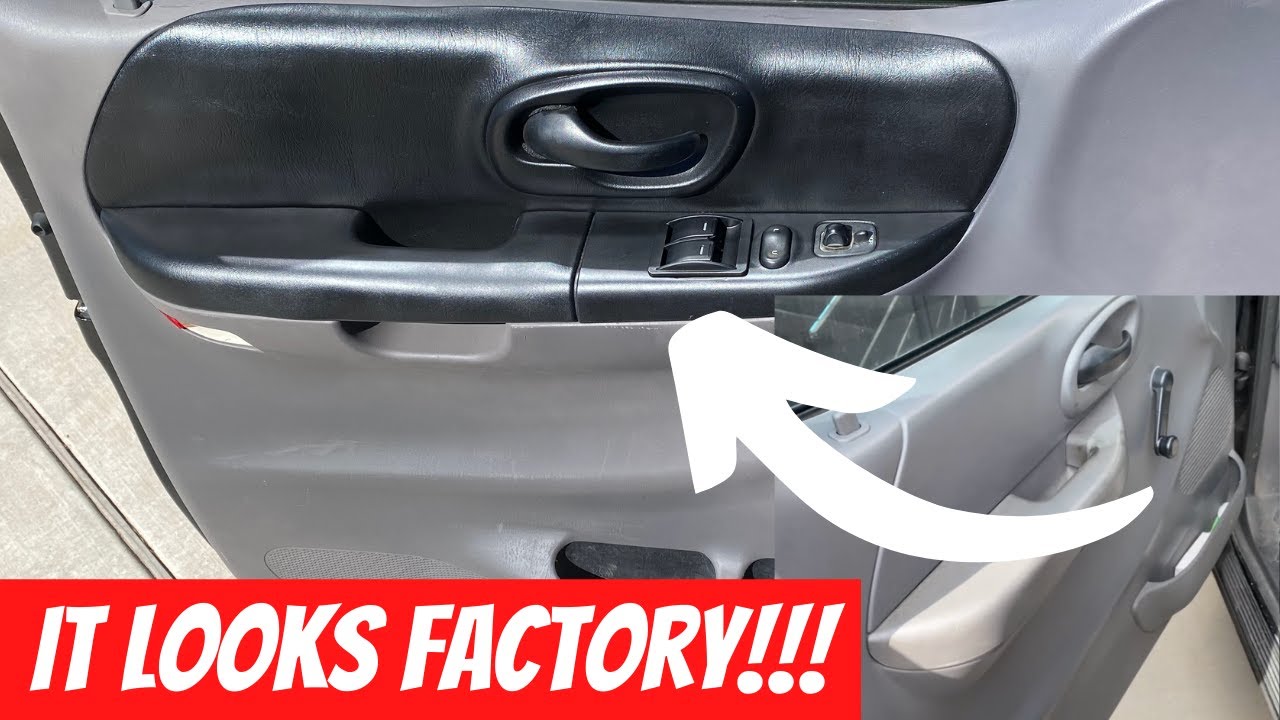

Convert Power Windows To Manual

The allure of power windows is undeniable. The effortless glide, controlled by a simple switch, represents a modern convenience we’ve come to expect in most vehicles. But what happens when the power fails? Or when you’re restoring a classic car and prefer the simplicity and reliability of a manual system? Converting power windows to manual is a surprisingly feasible project, offering a glimpse into the mechanics of automotive engineering and a chance to customize your ride. This guide will dissect the process, examining the components involved and outlining the necessary steps. Let's delve into the technical nuances of swapping electric motors for good, old-fashioned elbow grease.

Understanding the Systems

Before grabbing your wrenches, it's crucial to understand the core differences between power and manual window systems. This understanding forms the foundation for a successful conversion.

Power Window System

At its heart, a power window system consists of the following key components:

Motor: A small DC electric motor that provides the rotational force to raise and lower the window.
Regulator: A mechanism, typically a scissor-lift or cable-driven design, that translates the motor's rotational motion into the linear motion required to move the window glass.
Switches: Electrical switches that control the direction of current flow to the motor, dictating whether the window goes up or down.
Wiring Harness: The network of wires that connects the switches, motor, and power source (typically the vehicle's battery and fuse box).
Control Module (Sometimes): In more modern vehicles, a dedicated control module manages the power window system, potentially incorporating features like auto-up/down and anti-pinch protection.

When a switch is activated, it completes an electrical circuit, energizing the motor. The motor then drives the regulator, which moves the window glass along its track. The complexity of the system lies in the integration of these components and the electrical controls governing their operation.

Manual Window System

In stark contrast, the manual window system is remarkably simple. Its primary components include:

Window Crank: The handle that the user turns to operate the window.
Regulator: Similar in function to the power window regulator, the manual regulator translates rotational input from the crank into linear window movement. These are usually one of two designs, a scissor mechanism or a spiral drum type regulator.
Window Track: The guides that ensure the window glass moves smoothly and vertically.

The beauty of the manual system is its direct mechanical connection. Turning the crank directly rotates the regulator, which in turn moves the window. There are no electrical components to fail, making it inherently reliable.

The Conversion Process: A Step-by-Step Guide

The conversion process is generally straightforward, but requires patience and a good understanding of basic automotive mechanics. Here's a breakdown of the key steps:

Gathering the Necessary Parts: This is arguably the most critical step. You'll need manual window regulators, cranks, and associated hardware. The ideal scenario is to source these parts from a vehicle of the same make and model that was originally equipped with manual windows. This ensures proper fit and function. Salvage yards are excellent resources for these components. If you cannot find the exact replacement, universal manual window kits exist, though they may require some modification.
Disassembling the Door Panel: Begin by carefully removing the door panel. This typically involves removing screws, clips, and potentially disconnecting electrical connectors for door speakers, power locks, and other features. Consult your vehicle's service manual for specific instructions to avoid damaging the panel or its retaining hardware. Keep all screws and small parts organized to prevent loss.
Removing the Power Window Components: Disconnect the wiring harness from the power window motor. This may involve unplugging a connector or cutting and insulating the wires (if you choose to cut, ensure you leave enough wire to reconnect them later if needed). Remove the power window motor and regulator assembly. This usually involves unbolting the regulator from the door frame and detaching it from the window glass. Be careful when handling the window glass to prevent damage.
Preparing for Manual Regulator Installation: With the power window components removed, inspect the door frame for mounting points for the manual regulator. You may need to drill new holes if they are not already present. Use the manual regulator as a template to accurately mark the drill locations. Deburr the drilled holes to prevent sharp edges.
Installing the Manual Regulator: Install the manual regulator, securing it to the door frame with the appropriate bolts or screws. Ensure the regulator is properly aligned and that it moves freely without binding. Connect the regulator to the window glass. This often involves inserting the window glass into a bracket on the regulator and securing it with bolts or clips.
Installing the Window Crank: Locate the mounting point for the window crank on the door panel. This typically involves a splined shaft on the regulator that protrudes through the door panel. Install the window crank onto the shaft and secure it with a screw or clip.
Testing and Adjusting: Before reassembling the door panel, test the manual window system. Ensure the window moves smoothly up and down without excessive force or binding. If necessary, adjust the regulator or window track to achieve optimal operation. Check the alignment of the window in the frame.
Reassembling the Door Panel: Once you are satisfied with the operation of the manual window, carefully reassemble the door panel, reconnecting any electrical connectors that were disconnected earlier. Secure the panel with the screws and clips that were removed during disassembly.
Repeat for Other Windows: Repeat the process for each power window you wish to convert to manual operation.

Considerations and Potential Challenges

While the conversion process is relatively straightforward, several factors can influence the complexity and outcome of the project:

Availability of Parts: Sourcing the correct manual window components can be challenging, especially for older or less common vehicles. Patience and persistence are often required to locate the necessary parts.
Compatibility Issues: Even when using parts from the same make and model, minor variations in door frame design or window glass dimensions can present compatibility issues. Be prepared to make minor modifications to ensure proper fit and function.
Electrical System Interference: Disconnecting the power window motor can sometimes trigger error codes in the vehicle's computer system, particularly in newer vehicles with integrated control modules. Consult your vehicle's service manual or a qualified mechanic to determine if any special procedures are required to avoid or address these issues.
Door Panel Modifications: Depending on the design of the door panel, you may need to modify the panel to accommodate the window crank. This may involve cutting a hole in the panel or installing a trim ring around the crank.

Benefits of Converting to Manual Windows

Despite the convenience of power windows, there are compelling reasons to consider converting to a manual system:

Reliability: Manual window systems are inherently more reliable than power window systems due to their simplicity and lack of electrical components.
Cost Savings: Repairing or replacing a power window system can be expensive, especially if it involves replacing the motor or control module. Manual window systems are less prone to failure and require less maintenance.
Weight Reduction: While the weight difference is minimal, removing the power window motors and associated wiring can contribute to a slight reduction in overall vehicle weight.
Restoration Authenticity: For classic car restorations, converting to manual windows may be necessary to maintain the vehicle's original appearance and functionality.
Simplicity: For some, the inherent simplicity of a manual system and the tactile feel of operating the window crank provide a more engaging and satisfying driving experience. The act of manually cranking the window is a tangible connection to the machine.
Security: In the event of a power failure, manual windows will still function. They also provide a more secure way to seal your vehicle from the elements if electrical systems are compromised during an accident.

Conclusion

Converting power windows to manual is a rewarding project that offers a unique blend of mechanical simplicity and customization. While it requires some mechanical aptitude and patience, the process is generally straightforward and can be accomplished with basic tools and readily available parts. By understanding the fundamentals of both power and manual window systems, you can confidently tackle this conversion and enjoy the benefits of a simpler, more reliable, and potentially more engaging driving experience. Remember to always consult your vehicle's service manual and prioritize safety throughout the process. Good luck, and enjoy the satisfying click of a well-functioning manual window crank!
