Crankshaft Position Sensor For 2006 Nissan Altima

Understanding the Crankshaft Position Sensor in Your 2006 Nissan Altima

The 2006 Nissan Altima, a popular mid-size sedan, relies on a network of sensors to ensure optimal engine performance and efficiency. One of the most critical of these sensors is the Crankshaft Position Sensor (CKP). This article dives deep into the CKP sensor specific to the 2006 Altima, covering its function, common failure symptoms, troubleshooting, replacement procedures, and considerations for both the 2.5L QR25DE and the 3.5L VQ35DE engines.

What Does the Crankshaft Position Sensor Do?

The CKP sensor's primary function is to monitor the position and rotational speed of the crankshaft. It transmits this information to the engine control unit (ECU), often referred to as the engine control module (ECM). The ECU then uses this data to precisely time fuel injection and ignition, crucial for efficient combustion and smooth engine operation. Without a functioning CKP sensor, the engine can't accurately determine the position of the pistons, leading to a variety of performance issues.

Think of the crankshaft as the heart of your engine. The CKP sensor is like a vital sign monitor, constantly feeding information back to the brain (the ECU) so it can make informed decisions about how to keep the engine running smoothly. This precise timing is especially important for meeting emissions standards and achieving optimal fuel economy.

Identifying CKP Sensor Failure Symptoms in the 2006 Altima

Recognizing the signs of a failing CKP sensor is crucial for preventing further engine damage. Here are some common symptoms to watch out for in your 2006 Nissan Altima:

Engine Stalling: This is one of the most frequent symptoms. The engine may stall randomly, especially when idling or coming to a stop.
Difficulty Starting: A failing CKP sensor can prevent the engine from starting at all. The starter motor may crank, but the engine won't fire up.
Check Engine Light: The "Check Engine" light will likely illuminate, and a diagnostic scan will reveal codes related to the CKP sensor, such as P0335 (Crankshaft Position Sensor "A" Circuit Malfunction), P0336 (Crankshaft Position Sensor "A" Circuit Range/Performance), or related codes.
Rough Idle: The engine may idle erratically or roughly, with noticeable vibrations.
Poor Fuel Economy: Inaccurate timing can lead to inefficient combustion, resulting in reduced fuel mileage.
Hesitation or Stumbling During Acceleration: The engine may hesitate or stumble when you try to accelerate.
Engine Misfires: Inaccurate timing can cause misfires, resulting in a loss of power and rough engine operation.

It's important to note that these symptoms can also be caused by other issues, so a thorough diagnosis is essential before replacing the CKP sensor. Use an OBD-II scanner to retrieve trouble codes and narrow down the potential causes.

Diagnosing a Faulty CKP Sensor

Diagnosing a faulty CKP sensor typically involves several steps:

Visual Inspection: Inspect the sensor and its wiring for any signs of damage, such as cracks, frayed wires, or corrosion.
OBD-II Scan: Use an OBD-II scanner to retrieve diagnostic trouble codes (DTCs). Record all codes present.
Wiring Check: Use a multimeter to check the wiring harness for continuity and proper voltage. Refer to the 2006 Nissan Altima's service manual for specific voltage requirements.
Sensor Resistance Test: Use a multimeter to measure the resistance of the CKP sensor. Compare the reading to the manufacturer's specifications. An out-of-range reading indicates a faulty sensor.
Oscilloscope Test (Advanced): An oscilloscope can be used to visualize the signal produced by the CKP sensor. This can help identify intermittent or subtle sensor failures.

Caution: When testing electrical components, always disconnect the negative battery cable to prevent accidental shorts or damage to the electrical system. Consult a repair manual for specific wiring diagrams and testing procedures.

Replacing the CKP Sensor on the 2006 Nissan Altima

Replacing the CKP sensor is a relatively straightforward procedure, but it's important to follow the correct steps. The location of the CKP sensor varies slightly depending on whether your Altima has the 2.5L QR25DE or the 3.5L VQ35DE engine.

General Steps (Consult a service manual for engine-specific details):

Disconnect the Negative Battery Cable: This is a crucial safety step.

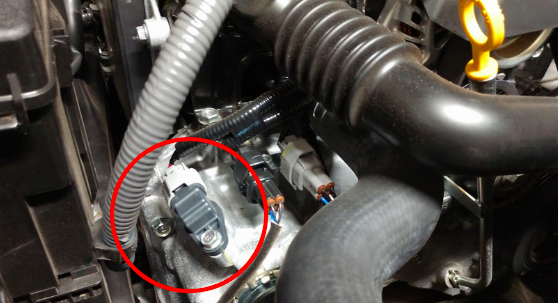

Locate the CKP Sensor:
- 2.5L QR25DE: The CKP sensor is typically located near the crankshaft pulley, on the front of the engine, close to the timing cover.
- 3.5L VQ35DE: The CKP sensor is usually found near the rear of the engine, close to the transmission. Access may be more challenging.
Disconnect the Electrical Connector: Carefully disconnect the electrical connector from the CKP sensor.
Remove the Old Sensor: Use a wrench or socket to remove the bolt securing the CKP sensor. Gently pull the sensor out.
Install the New Sensor: Install the new CKP sensor, ensuring it is properly seated. Tighten the retaining bolt to the specified torque.
Connect the Electrical Connector: Reconnect the electrical connector to the CKP sensor.
Reconnect the Negative Battery Cable: Reconnect the negative battery cable.
Clear Diagnostic Trouble Codes: Use an OBD-II scanner to clear any stored diagnostic trouble codes.
Test Drive: Test drive the vehicle to ensure the engine is running smoothly.

Important Considerations:

Use the Correct Sensor: Ensure you are using the correct CKP sensor for your specific engine (2.5L or 3.5L).
Torque Specifications: Always tighten the retaining bolt to the manufacturer's specified torque. Overtightening can damage the sensor or the engine block.
Proper Installation: Ensure the sensor is properly seated and the electrical connector is securely connected.

Choosing a Replacement CKP Sensor

When replacing the CKP sensor, you have several options:

OEM (Original Equipment Manufacturer): OEM sensors are made by the same manufacturer that supplied the original sensor to Nissan. They offer the best reliability and performance but are typically the most expensive.
Aftermarket Brands: Several reputable aftermarket brands offer CKP sensors for the 2006 Nissan Altima. These sensors are generally more affordable than OEM sensors but may not offer the same level of reliability or performance. Bosch, Denso, and Delphi are generally considered reliable aftermarket options.
Used Sensors: While used sensors may be the cheapest option, they are generally not recommended due to the risk of failure.

It's always recommended to use a high-quality replacement sensor from a reputable brand to ensure reliable performance and longevity. Saving a few dollars on a cheap sensor could end up costing you more in the long run if it fails prematurely.

Maintenance and Prevention

While CKP sensor failure can sometimes be unavoidable, proper vehicle maintenance can help prevent premature failure:

Regular Oil Changes: Maintaining clean engine oil helps prevent the buildup of sludge and debris that can damage the CKP sensor.
Inspect Wiring and Connectors: Regularly inspect the wiring and connectors for any signs of damage or corrosion.
Avoid Engine Overheating: Overheating can damage various engine components, including the CKP sensor. Ensure the cooling system is functioning properly.

Estimated Repair Costs

The cost of replacing a CKP sensor on a 2006 Nissan Altima can vary depending on several factors, including the location of the repair shop, the brand of the replacement sensor, and the engine type (2.5L or 3.5L). Generally, you can expect to pay:

Parts: $50 - $150 (depending on brand)
Labor: $50 - $200 (depending on location and engine complexity)

Therefore, the total cost of replacing a CKP sensor can range from $100 to $350. Getting quotes from several different repair shops is always a good idea to ensure you're getting a fair price.

Conclusion

The Crankshaft Position Sensor is a vital component in your 2006 Nissan Altima's engine management system. Understanding its function, recognizing the symptoms of failure, and performing proper diagnostics and replacement procedures are essential for maintaining your vehicle's performance and reliability. By following the guidance in this article, you can ensure your Altima continues to run smoothly for years to come.
