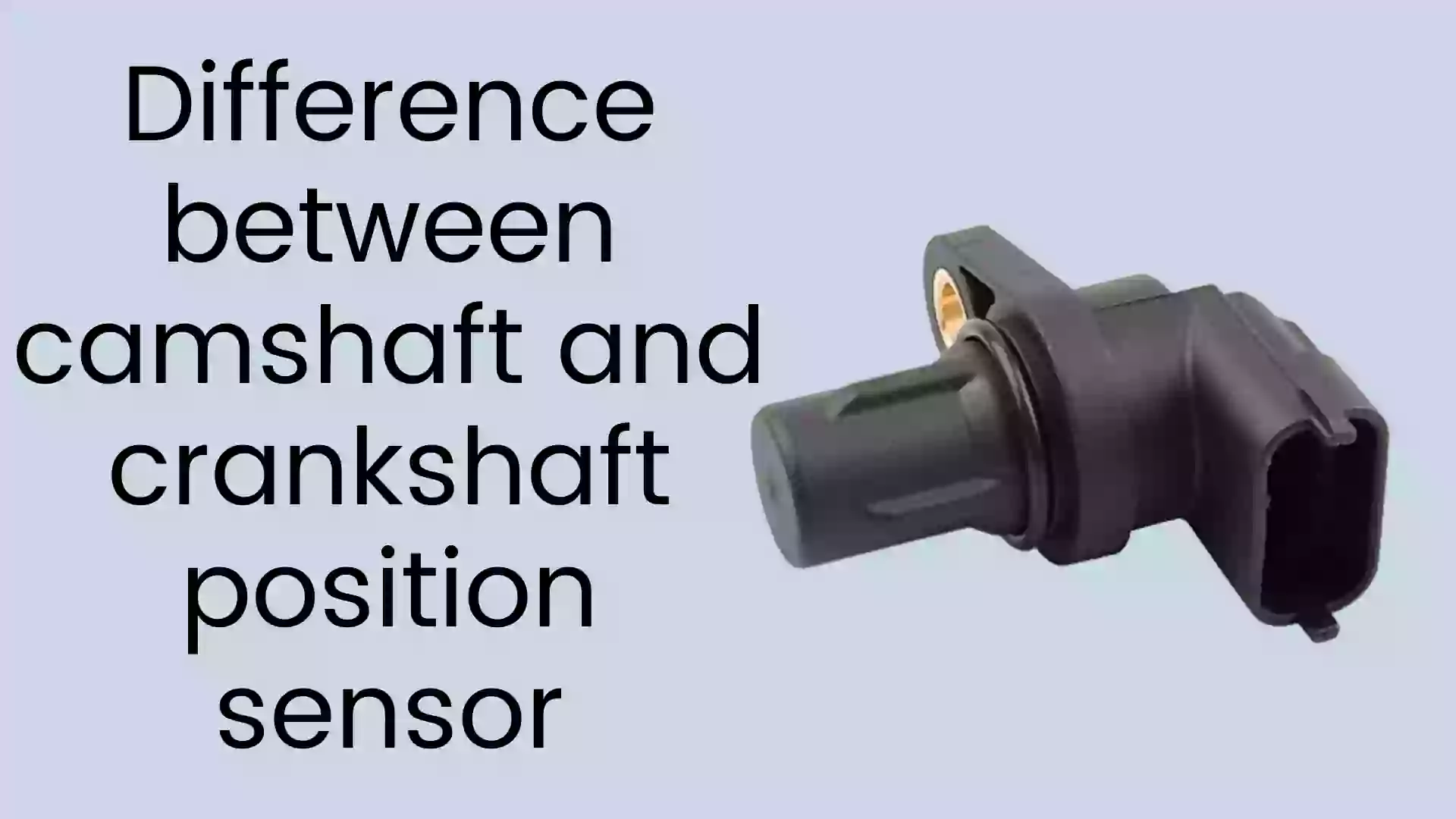

Difference Between Camshaft Sensor And Crankshaft Sensor

Unraveling the Timing Mysteries: Camshaft vs. Crankshaft Sensors

In the intricate dance of an internal combustion engine, timing is everything. And at the heart of ensuring this precise choreography are two critical sensors: the camshaft position sensor (CMP) and the crankshaft position sensor (CKP). While both play vital roles in engine management, their functions and the information they provide are distinct. Understanding these differences is crucial for diagnostics, maintenance, and overall engine performance.

The Crankshaft Position Sensor (CKP): The Heartbeat of the Engine

The crankshaft position sensor is often considered the primary timing sensor. Its main function is to monitor the rotational speed and position of the crankshaft. This is typically achieved through a reluctor wheel (a toothed or slotted wheel) attached to the crankshaft and a magnetic sensor. As the crankshaft rotates, the teeth or slots pass the sensor, creating a pulsing voltage signal. The Engine Control Unit (ECU) uses this signal to determine:

• Engine Speed (RPM): By counting the pulses per unit of time, the ECU accurately calculates the engine's revolutions per minute.
• Crankshaft Position: The precise timing of each pulse indicates the exact position of the crankshaft, allowing the ECU to determine when each piston is at Top Dead Center (TDC).
• Ignition Timing: With crankshaft position information, the ECU can accurately trigger the ignition system to fire the spark plugs at the optimal moment for combustion.
• Fuel Injection Timing: Similarly, the ECU uses the CKP signal to determine the precise moment to inject fuel into the cylinders, maximizing efficiency and power.

Because it's so critical, a malfunctioning CKP sensor can cause a range of issues, from hard starting and stalling to a complete no-start condition. In some cases, the engine may run erratically or experience a loss of power.

Real-world example: A common scenario involves a heat-soaked CKP sensor. After the engine has been running for an extended period, the sensor can overheat and begin to provide intermittent or inaccurate readings. This can lead to stalling, particularly when the engine is at idle or low speed. Once the sensor cools down, the engine may start and run normally until the sensor heats up again. This is often a sign of a failing sensor that needs to be replaced.

The Camshaft Position Sensor (CMP): Identifying the Cylinders

The camshaft position sensor, on the other hand, monitors the position of the camshaft. Like the CKP sensor, it typically uses a reluctor wheel and a magnetic sensor. However, the camshaft rotates at half the speed of the crankshaft in a four-stroke engine. The CMP sensor helps the ECU determine:

• Cylinder Identification: While the CKP sensor provides information about crankshaft position, it doesn't tell the ECU which cylinder is on its power stroke. The CMP sensor provides this crucial information, allowing the ECU to synchronize fuel injection and ignition events with the correct cylinder.
• Sequential Fuel Injection: In modern engines with sequential fuel injection, each injector is triggered individually. The CMP sensor is essential for proper operation of this system, ensuring that fuel is injected into the correct cylinder at the right time.
• Variable Valve Timing (VVT) Control: In engines equipped with VVT systems, the CMP sensor plays a critical role in monitoring the position of the camshaft and providing feedback to the ECU. This allows the ECU to adjust the camshaft timing to optimize engine performance and fuel economy across a range of operating conditions.

A failing CMP sensor can cause issues similar to those caused by a bad CKP sensor, but often with a different set of symptoms. Common problems include hard starting, reduced fuel economy, and a decrease in engine power. In some cases, the engine may enter a "limp mode" to protect itself from further damage.

Real-world example: Consider an engine with a misaligned camshaft timing belt or chain. This misalignment can affect the camshaft's position relative to the crankshaft. The CMP sensor will detect this discrepancy and send a fault code to the ECU. In response, the ECU might limit engine performance or illuminate the check engine light to alert the driver to the problem.

Key Differences Summarized

Here's a table summarizing the key differences between the CKP and CMP sensors:

Troubleshooting and Diagnostics

Diagnosing problems related to the CKP and CMP sensors typically involves the following steps:

1. Scan for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to check for any stored codes related to the CKP or CMP sensors. Common codes include P0335 (Crankshaft Position Sensor A Circuit), P0340 (Camshaft Position Sensor A Circuit), and related codes indicating circuit malfunctions or signal errors.
2. Visual Inspection: Inspect the sensors and their wiring for any signs of damage, corrosion, or loose connections.
3. Signal Testing: Use a multimeter or oscilloscope to check the sensor's output signal. Compare the signal waveform and voltage to the specifications outlined in the vehicle's service manual.
4. Resistance Testing: Use a multimeter to measure the sensor's resistance. Compare the resistance value to the specifications in the service manual.
5. Power and Ground Check: Ensure that the sensor is receiving the correct voltage and has a good ground connection.

When replacing a CKP or CMP sensor, it's crucial to use a high-quality replacement part from a reputable manufacturer. Incorrectly installed or low-quality sensors can lead to further problems and inaccurate readings.

The Interplay: Why Both Sensors Matter

While the CKP sensor is often considered the primary timing sensor, the CMP sensor provides critical information for cylinder identification and precise control of fuel injection and ignition. In many modern engines, the ECU can run solely on the CKP signal in a limited "limp home" mode if the CMP sensor fails. However, full performance and fuel efficiency are only achievable when both sensors are functioning correctly.

The relationship between the two sensors is vital for accurate engine management. The ECU constantly monitors the signals from both sensors to ensure that they are synchronized and providing consistent information. Any discrepancies between the two signals can indicate a problem with the sensors themselves, the timing belt or chain, or other engine components.

Advanced Applications: Beyond the Basics

In more advanced engine management systems, the CMP sensor is also used for:

• Misfire Detection: By comparing the crankshaft speed fluctuations with the camshaft position, the ECU can identify individual cylinder misfires.
• Adaptive Learning: The ECU uses the information from both sensors to continuously learn and adapt to changes in engine conditions, such as wear and tear, fuel quality, and altitude.

Understanding the subtle differences and interconnectedness of the camshaft and crankshaft sensors is key to diagnosing and resolving a wide range of engine performance issues. Whether you're a seasoned mechanic or a car enthusiast eager to learn more, grasping the principles behind these crucial sensors will empower you to keep your engine running smoothly and efficiently.
