Do I Need To Recalibrate After Windshield Replacement

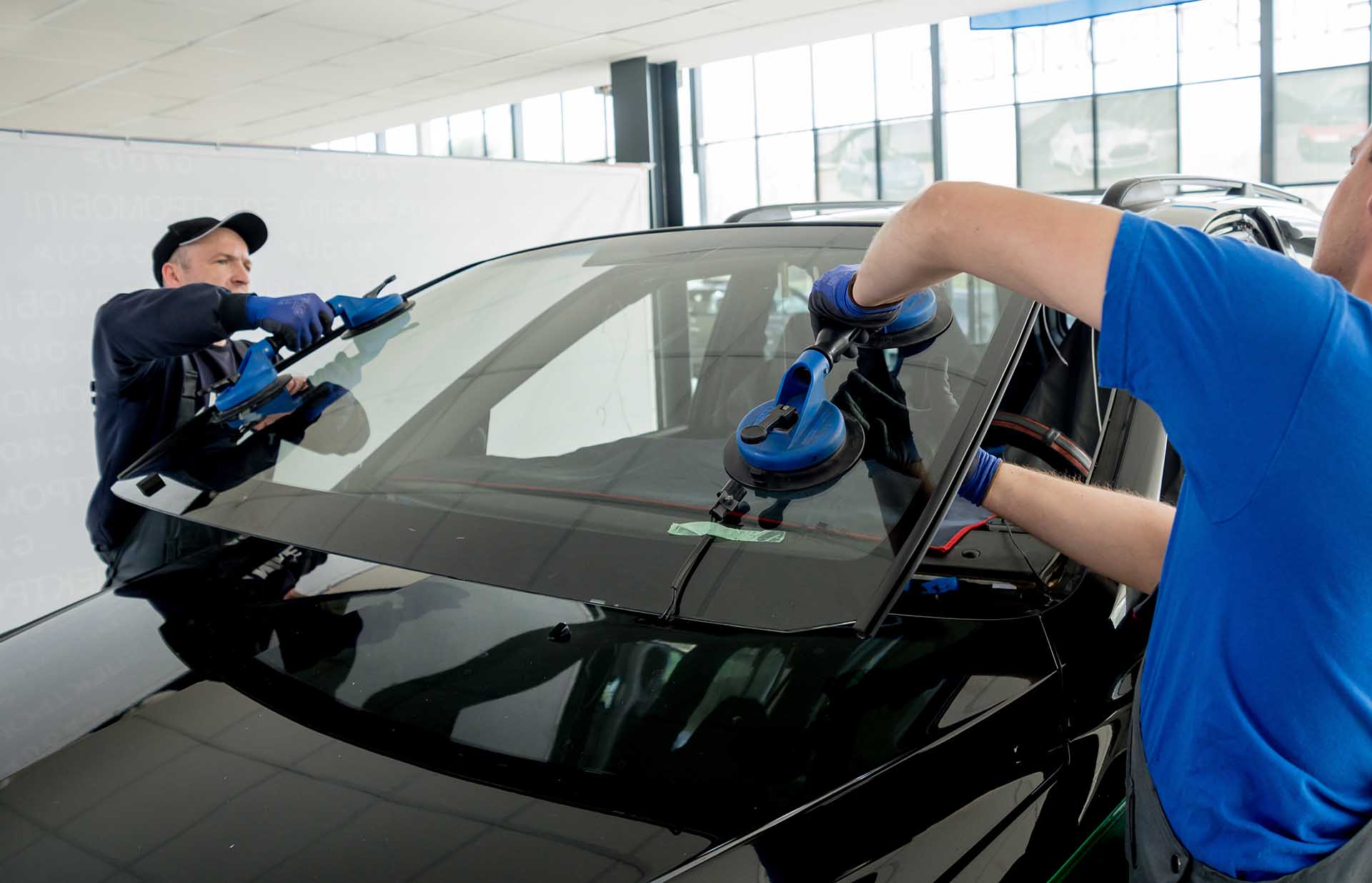

Windshield replacement is a common automotive repair, often necessary due to cracks, chips, or severe damage. While a seemingly straightforward procedure, it's crucial to understand whether or not your vehicle requires recalibration of its advanced driver-assistance systems (ADAS) after the new windshield is installed. Ignoring this step can compromise your safety and the functionality of important features.

Understanding ADAS and Windshield Recalibration

ADAS uses a network of sensors, cameras, and radar to enhance safety and assist drivers. These systems rely heavily on the windshield, which often houses the forward-facing camera. When a windshield is replaced, the camera's alignment can be disrupted, requiring recalibration. This ensures that the ADAS features operate correctly and provide accurate information to the driver.

Recalibration involves adjusting the camera's position and settings to match the vehicle's specifications. This process can be static (performed in a controlled environment with targets) or dynamic (performed while driving on a straight, well-marked road). The type of recalibration required depends on the vehicle manufacturer, the specific ADAS features installed, and the nature of the windshield replacement.

Problem: Identifying the Need for Recalibration

How do you know if your vehicle needs recalibration after a windshield replacement? Here are some common symptoms:

ADAS features malfunctioning or unavailable: This is the most obvious sign. Features like automatic emergency braking (AEB), lane departure warning (LDW), adaptive cruise control (ACC), and traffic sign recognition (TSR) might not function as expected or may be completely disabled. For example, on a Toyota Camry with Toyota Safety Sense (TSS), you might see a warning light indicating "Pre-Collision System Unavailable" or "Lane Departure Alert Malfunction."
Dashboard warning lights illuminated: Many vehicles will display specific warning lights to indicate an ADAS malfunction. These lights often depict a camera, a lane departure symbol, or a collision warning symbol. A Honda Civic with Honda Sensing might show a "Camera System Malfunction" warning on the instrument panel.
Inaccurate or inconsistent ADAS performance: The system might engage erratically or provide false warnings. For instance, the ACC on a Ford F-150 with Co-Pilot360 might brake unnecessarily or fail to maintain a safe following distance. The LDW might alert you even when you are clearly within your lane.
Error messages displayed on the infotainment screen: Some vehicles provide detailed error messages explaining the ADAS malfunction. A Tesla Model 3, for example, might display a message stating "Autopilot features temporarily unavailable. Camera obstruction or misalignment."

Causes of ADAS Malfunction After Windshield Replacement

Several factors can lead to ADAS malfunction after a windshield replacement:

Camera detachment and reattachment: Removing and reinstalling the forward-facing camera during the windshield replacement process can easily misalign it.
Windshield variations: Even slight variations in the thickness or curvature of the replacement windshield compared to the original can affect the camera's field of view and accuracy.
Improper installation: Incorrect installation of the windshield can alter the camera's mounting position and angle.
Failure to recalibrate: The most common cause is simply neglecting to perform the necessary recalibration after the new windshield is installed.

Solution: Steps to Take After Windshield Replacement

If you suspect that your vehicle requires recalibration, here's what you should do:

Consult your owner's manual: The owner's manual provides valuable information about your vehicle's ADAS features and the recommended procedures after windshield replacement. Consulting the owner's manual is crucial, as it will outline specific recalibration requirements for your model.
Contact the windshield replacement company: Inquire about whether they performed recalibration after the windshield replacement. Reputable companies specializing in windshield replacement are typically aware of ADAS requirements and may offer recalibration services. Ask for documentation that proves the recalibration process was completed successfully.
Visit a qualified mechanic or dealership: If the windshield replacement company did not perform recalibration, or if you are unsure about the quality of their work, schedule an appointment with a qualified mechanic or dealership that specializes in ADAS recalibration.
Diagnostic scan: A qualified technician will perform a diagnostic scan to identify any ADAS-related error codes and assess the camera's alignment.
Recalibration procedure: Based on the diagnostic results and the vehicle manufacturer's specifications, the technician will perform either a static or dynamic recalibration.
Static recalibration involves using specialized targets and software in a controlled environment, while dynamic recalibration requires driving the vehicle on a designated road.
Verification: After recalibration, the technician will verify that the ADAS features are functioning correctly and that no error codes remain.

Real-World Examples and Troubleshooting

Let's consider some common scenarios:

Scenario 1: Subaru Outback with EyeSight: After a windshield replacement, the EyeSight system displays a "Check Eyesight System" warning. The solution is to take the vehicle to a Subaru dealership or a certified repair shop equipped with the necessary EyeSight calibration tools. The technician will use the Subaru Diagnostic System (SDS) to perform a static recalibration.
Scenario 2: Nissan Rogue with ProPILOT Assist: The ProPILOT Assist system becomes unreliable after a windshield replacement. The adaptive cruise control might disengage unexpectedly, and the lane keeping assist might struggle to keep the vehicle centered. The solution is to have the system recalibrated by a Nissan technician using the CONSULT III Plus diagnostic tool. A dynamic recalibration might be necessary after the static recalibration.
Scenario 3: Audi Q5 with Pre Sense: The Audi Pre Sense system malfunctions, displaying a warning about restricted functionality. The solution involves a diagnostic scan to identify the specific error codes. A qualified Audi technician will then perform a static recalibration using the Audi diagnostic system (ODIS).

Common Issues and Fixes

Problem: Recalibration fails to complete. Cause: Obstruction in the camera's field of view, incorrect target placement (during static recalibration), or communication errors between the diagnostic tool and the vehicle's control module. Fix: Ensure a clear field of view, verify target placement accuracy, and check for any wiring or connection issues. Update the diagnostic tool software to the latest version.
Problem: ADAS features still malfunction after recalibration. Cause: Underlying sensor issues, damaged wiring, or software glitches. Fix: Thoroughly inspect the sensors, wiring harnesses, and connectors. Check for any software updates or recalls related to the ADAS system. Replace any faulty components as needed.
Problem: Inaccurate target placement during static recalibration. Cause: Using incorrect target patterns, improper distance measurements, or inadequate lighting conditions. Fix: Carefully follow the vehicle manufacturer's instructions for target placement. Use a laser measuring tool to ensure accurate distances. Ensure adequate and consistent lighting throughout the calibration area.

Maintaining Your Car in Top Condition

Proper maintenance is essential for keeping your car running smoothly and safely. Here are some tips:

Regular servicing: Follow the manufacturer's recommended service schedule for oil changes, filter replacements, and other maintenance tasks.
Tire maintenance: Check tire pressure regularly and rotate tires to ensure even wear. Replace tires when they reach the wear bars.
Brake maintenance: Inspect brake pads and rotors regularly and replace them when necessary. Flush the brake fluid every two to three years.
Fluid checks: Check and top up all fluids, including engine oil, coolant, brake fluid, power steering fluid, and windshield washer fluid.
ADAS system checks: If your vehicle is equipped with ADAS features, have them inspected and calibrated periodically, even if you don't experience any obvious problems. This will ensure that they are functioning optimally.
Windshield care: Repair small chips and cracks in the windshield promptly to prevent them from spreading. Use a windshield washer fluid that is specifically designed for automotive use.
Keep sensors clean: Ensure that all sensors related to ADAS are clean and free from obstructions. This includes the forward-facing camera, radar sensors, and ultrasonic sensors.

By understanding the importance of ADAS recalibration after windshield replacement and following these maintenance tips, you can ensure that your car remains safe, reliable, and enjoyable to drive. Prioritizing safety and staying proactive with maintenance are key to maximizing the lifespan and performance of your vehicle.
