How Do You Check Voltage With A Multimeter

Understanding how to check voltage with a multimeter is an essential skill for both car owners performing basic maintenance and professional mechanics tackling complex automotive issues. A multimeter is your go-to tool for diagnosing electrical problems, and voltage checks are a fundamental part of that process. This article will guide you through the process, focusing on real-world applications and troubleshooting.

Understanding Voltage and Its Importance

Voltage, measured in volts (V), is the electrical potential difference that drives current through a circuit. In a car, voltage is crucial for powering everything from the starter motor to the headlights and the onboard computer. A drop in voltage can cause a multitude of problems, so regular checks are important.

How to Check Voltage: A Step-by-Step Guide

Here’s a simplified guide to checking voltage using a multimeter:

1. Safety First: Always wear safety glasses and disconnect the negative battery terminal before working on electrical components, unless you’re specifically checking voltage while the circuit is active (like checking charging voltage).

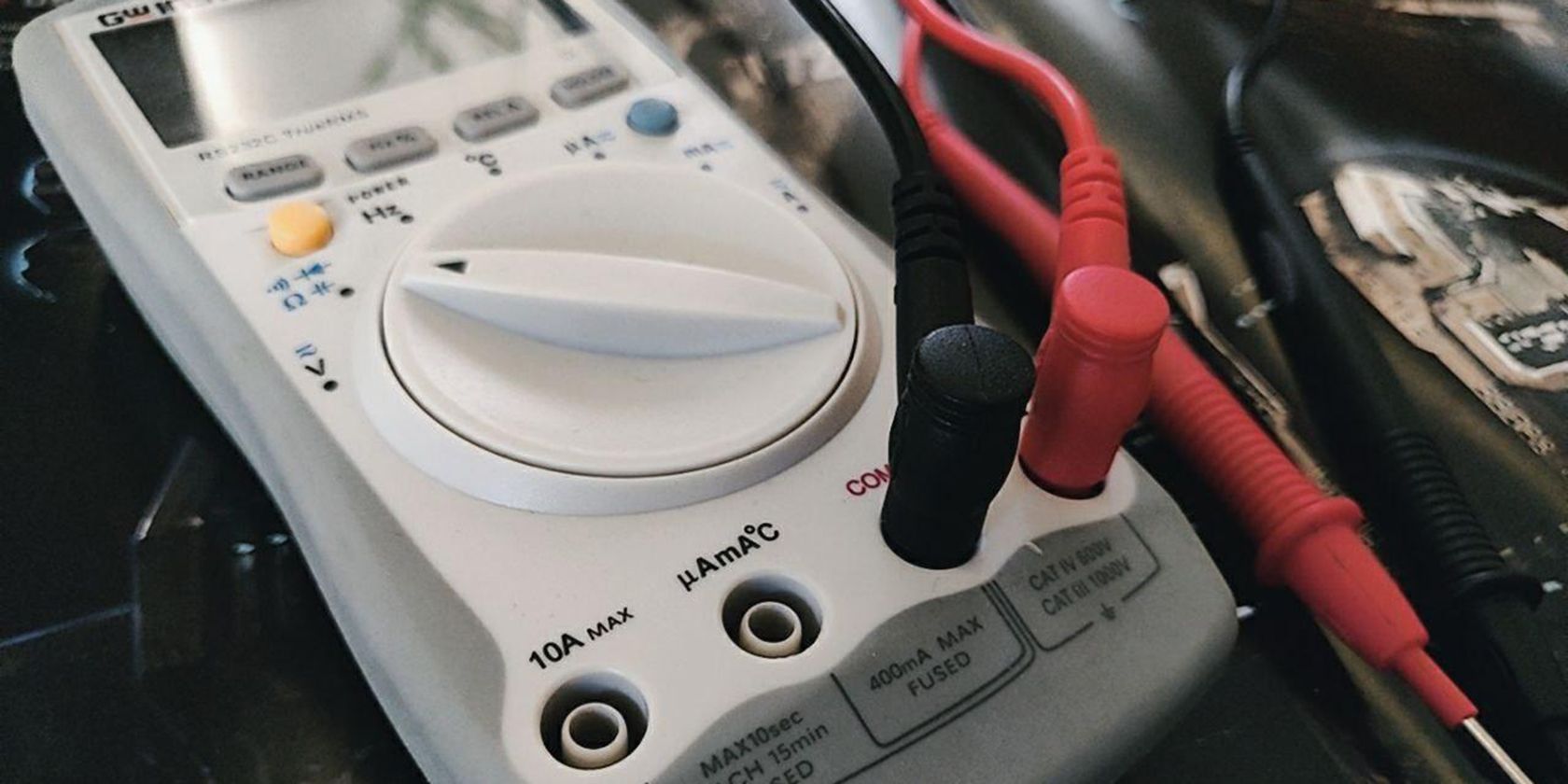

2. Set Up Your Multimeter: Turn your multimeter on and set the dial to the DC voltage (VDC) setting. If your multimeter has multiple voltage ranges, start with a higher range (e.g., 20V) and lower it as needed for a more precise reading. For automotive applications, the 20V range is generally suitable.
3. Identify Test Points: Determine the points where you want to measure voltage. These might be the battery terminals, a fuse, a connector, or a specific component.
4. Connect the Probes: Connect the black (negative) probe to a known good ground, usually a clean, unpainted metal surface on the car's chassis. Connect the red (positive) probe to the test point you identified.
5. Read the Display: Observe the multimeter display and note the voltage reading.

Troubleshooting Common Problems with Voltage Checks

Let's look at some practical scenarios where voltage checks can help:

1. Battery Voltage Check

Symptom: Car struggles to start, especially in cold weather. Dim headlights. Possible Cause: Low battery voltage. How to Check: With the engine off, connect the multimeter probes to the battery terminals. A healthy battery should read around 12.6V. A reading below 12V indicates a discharged or failing battery. Fix: Charge the battery using a battery charger. If the battery doesn't hold a charge, it likely needs to be replaced. For example, a 2015 Honda Civic exhibiting these symptoms likely needs a new battery if the voltage consistently reads below 12V after charging.

2. Charging System Voltage Check

Symptom: Battery light illuminates on the dashboard while driving. Car stalls unexpectedly. Possible Cause: Faulty alternator or voltage regulator. How to Check: Start the engine. With the engine running, connect the multimeter probes to the battery terminals again. A healthy charging system should read between 13.5V and 14.5V. A reading below 13.5V or above 14.5V indicates a problem with the charging system. Fix: If the voltage is too low, the alternator may be failing. If the voltage is too high, the voltage regulator may be faulty. Replacement or repair is often necessary. On a Ford F-150, a common issue is a failing alternator due to wear and tear, especially after high mileage. Use the multimeter to confirm the low voltage output.

3. Voltage Drop Test

Symptom: Component not working correctly, such as a dim headlight or a slow-turning starter motor. Possible Cause: Excessive resistance in the wiring or connections. How to Check: A voltage drop test measures the voltage lost across a specific circuit or component. With the circuit energized (engine running, lights on, etc.), connect the multimeter probes across the component or wire section you suspect has high resistance. For example, to check the voltage drop across a headlight connector, connect one probe to the power supply side of the connector and the other to the load side. A reading of more than 0.5V (0.3V is preferable) indicates excessive resistance. Fix: Clean or replace corroded connectors. Repair or replace damaged wiring. On older vehicles like a Jeep Wrangler, corrosion in the wiring harness is a common culprit causing voltage drops.

4. Fuse Voltage Check

Symptom: A particular circuit is not working (e.g., power windows, radio). Possible Cause: Blown fuse. How to Check: With the ignition on, check the voltage on both sides of the fuse. Connect the black probe to ground and the red probe to each side of the fuse. You should see battery voltage (around 12V) on both sides of a good fuse. If you see voltage on one side but not the other, the fuse is blown. Fix: Replace the blown fuse with a fuse of the same amperage rating. If the fuse blows again immediately, there's likely a short circuit in the wiring that needs to be addressed. In many Toyotas, issues with the power window motor can cause the fuse to blow repeatedly.

Tips for Keeping Your Car in Top Condition

• Regular Battery Checks: Check your battery voltage at least twice a year, especially before winter and summer.
• Maintain Clean Connections: Keep battery terminals and other electrical connections clean and free of corrosion. Use a wire brush and battery terminal cleaner.
• Inspect Wiring Regularly: Look for damaged or frayed wires. Repair or replace them as needed.
• Address Problems Early: Don't ignore warning signs like dim lights or slow starting. Early diagnosis and repair can prevent more serious problems.
• Proper Maintenance: Follow the manufacturer's recommended maintenance schedule for your vehicle.

By understanding how to check voltage with a multimeter and proactively addressing potential issues, you can keep your car running smoothly and avoid costly repairs down the road. Remember, if you're uncomfortable working on your car's electrical system, consult a qualified mechanic.
