How To Remove Body Mount Bolt After Breaking Head Off

Dealing with a broken body mount bolt is a frustrating, but unfortunately, common experience for many car enthusiasts, particularly those working on older vehicles. These bolts, which secure the body to the frame, are prone to corrosion and seizing, often leading to a snapped head when you try to remove them. This article provides a practical guide on how to tackle this problem, catering to car enthusiasts, owners, and hobby mechanics.

Understanding the Problem: Why Body Mount Bolts Break

Body mount bolts live a tough life. They're constantly exposed to the elements – road salt, water, and debris. Over time, this leads to rust and corrosion, causing the bolt to seize within the body mount or frame. Think of it like trying to unscrew a garden hose fitting that's been left outside for years. You're much more likely to break something than to loosen it.

Several factors contribute to the breaking of these bolts:

Corrosion: Rust weakens the bolt's structural integrity, making it more susceptible to snapping.
Seizing: Rust buildup creates friction, making it difficult to turn the bolt. Applying too much force can then break it.
Over-tightening: Previous mechanics may have overtightened the bolts, pre-stressing them and making them more likely to fail during removal.
Age: Simply put, older bolts are more prone to failure due to material fatigue.

Consider the classic Chevrolet C10 pickup, a popular platform for restoration and modification. Many of these trucks are decades old, and their body mount bolts have likely been exposed to years of harsh conditions. This makes them prime candidates for breakage. Similarly, older Jeep Wranglers (like the TJ or YJ) also frequently suffer from this issue, especially those that have seen a lot of off-road use.

Assessing the Damage and Preparing for the Repair

Before you start wrenching, take a moment to assess the situation. Determine exactly where the bolt broke. Is it flush with the body, protruding slightly, or deeply recessed? This will influence your chosen extraction method.

Gather the necessary tools and supplies. Essential items include:

Penetrating oil: A good quality penetrating oil like PB Blaster or Kroil is your best friend. Apply liberally and let it soak for at least several hours, preferably overnight.
Heat source: A propane or MAP gas torch can help loosen corroded bolts. Use with caution and ensure proper ventilation.
Drill: A high-quality drill with a set of drill bits, including left-handed drill bits, is crucial.
Easy-out extractors: These tapered, reverse-threaded tools are designed to grip the broken bolt and back it out.
Tap and die set: To clean up or repair the threads after removing the broken bolt.
Hammer and punch: To help center the drill bit and potentially break the corrosion.
Welding equipment (optional): If other methods fail, welding a nut to the broken bolt can provide a good gripping point.
Safety glasses and gloves: Protect yourself!

Safety First! Always wear safety glasses and gloves when working on automotive repairs. Be extremely cautious when using heat, and ensure you have a fire extinguisher nearby.

Extraction Methods: A Step-by-Step Guide

Here are several methods to remove a broken body mount bolt, ranging from the simplest to the more involved:

1. Penetrating Oil and Vibration

This is the first and often most effective step. Apply penetrating oil to the broken bolt and surrounding area. Let it soak for an extended period. Then, use a hammer and punch to gently tap around the bolt head remnant. The vibrations can help break the corrosion bond. Reapply penetrating oil and try to gently turn the bolt with pliers or a small wrench if any part of the bolt is protruding. This method is simple and might work if the bolt isn't too badly seized.

2. Left-Handed Drill Bits

Left-handed drill bits are designed to grab and back out the bolt as you drill. Center punch the broken bolt to create a starting point for the drill bit. Start with a small drill bit and gradually increase the size, using penetrating oil as you drill. The heat generated by the drilling, combined with the reverse threading, can sometimes be enough to loosen the bolt and back it out. This method is often successful if the bolt isn't seized too tightly.

Example: Imagine you're working on a rusted body mount bolt on a Ford F-150. Center punch the broken bolt carefully. Select a small left-handed drill bit and begin drilling slowly. If you're lucky, the bolt will start to unscrew as you drill.

3. Easy-Out Extractors

Easy-out extractors are tapered, reverse-threaded tools that grip the inside of the broken bolt. After drilling a pilot hole (according to the extractor's instructions), insert the extractor and gently turn it counterclockwise with a wrench or socket. The extractor will bite into the bolt and, hopefully, back it out. Be careful not to apply too much force, as easy-outs can break, making the situation even worse.

Important: Use high-quality easy-outs. Cheap ones are more likely to break. And always use the correct size for the pilot hole you drilled.

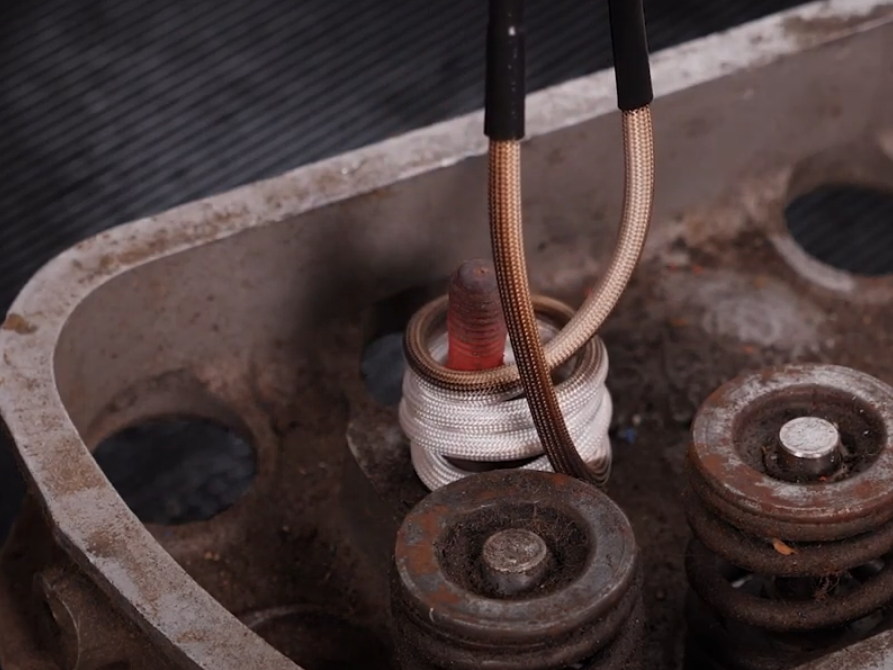

4. Heat

Applying heat to the surrounding area can help break the corrosion bond. Use a propane or MAP gas torch to heat the body mount or frame around the bolt. Be careful not to overheat the area or damage surrounding components. After heating, try the penetrating oil and vibration method again, or use an easy-out extractor. Heat expands the metal, which can loosen the bolt. This is often very effective, but proceed with caution to avoid damaging any surrounding parts or causing a fire.

5. Welding a Nut

If the bolt is accessible, and other methods have failed, welding a nut to the broken bolt can provide a strong gripping point. Clean the area around the bolt and weld a nut to the center of the broken end. Let it cool, then use a wrench to turn the nut and hopefully extract the bolt. The heat from the welding process can also help loosen the corrosion. This is a more advanced technique, requiring welding skills, but can be very effective. This works well because welding introduces intense, localized heat that helps free the bolt, and the added nut provides a solid point for applying torque.

6. Last Resort: Cutting and Drilling

If all else fails, you may need to resort to more drastic measures. This might involve cutting away part of the body mount or frame to gain access to the bolt, or drilling out the entire bolt. This is a time-consuming and potentially risky process, so it should only be attempted as a last resort. If drilling, start with a small pilot hole and gradually increase the size until you've removed most of the bolt. Be careful not to damage the threads in the body mount or frame. After drilling, you may need to use a tap to clean up the threads.

Cleaning and Repairing the Threads

Once you've successfully removed the broken bolt, it's crucial to clean and inspect the threads in the body mount or frame. Use a tap and die set to chase the threads, removing any remaining rust or debris. If the threads are damaged, you may need to use a thread repair kit (like a Heli-Coil) to restore them. This ensures that the new body mount bolt will tighten properly and securely.

Preventing Future Problems

To prevent future body mount bolt failures, take these precautions:

Use anti-seize compound: Apply anti-seize compound to the threads of the new body mount bolts before installation. This will help prevent corrosion and seizing in the future.
Proper torque: Tighten the bolts to the manufacturer's specified torque. Over-tightening can pre-stress the bolts and make them more likely to fail.
Regular inspection: Periodically inspect the body mount bolts for signs of corrosion. If you spot any rust, address it promptly by cleaning the bolts and applying a rust inhibitor.
Consider stainless steel hardware: If you live in an area with harsh winters or road salt, consider replacing the original body mount bolts with stainless steel hardware. Stainless steel is much more resistant to corrosion.

Practical Takeaways

Patience is key: Don't rush the process. Apply penetrating oil liberally and allow it to soak for an extended period.
Start with the simplest methods: Try penetrating oil and vibration before resorting to more aggressive techniques.
Use the right tools: Invest in quality tools, such as left-handed drill bits and easy-out extractors.
Don't force it: If a bolt is not budging, stop and reassess. Applying too much force can break the bolt or the extractor.
Preventative maintenance: Apply anti-seize compound to the new bolts and inspect them regularly to prevent future problems.

By following these steps and using the right tools and techniques, you can successfully remove a broken body mount bolt and get your vehicle back on the road. Remember to prioritize safety and take your time, and you'll be well on your way to tackling this common automotive repair.
