Layout 2012 Dodge Ram 1500 Fuse Box Diagram
The 2012 Dodge Ram 1500 is a dependable truck, but like any vehicle, electrical issues can arise. Understanding the fuse box layout and how to troubleshoot problems is crucial for both car owners and mechanics. This guide provides a practical overview of the fuse box, focusing on maintenance, troubleshooting common issues, and offering solutions.
Understanding Your 2012 Dodge Ram 1500 Fuse Boxes
The 2012 Ram 1500 typically has two main fuse boxes: one located under the hood (the Power Distribution Center or PDC) and another inside the cabin, usually on the driver's side, often behind a small access panel. Knowing the location of these fuse boxes is the first step in diagnosing electrical problems. Consult your owner's manual for the precise locations and a detailed diagram, as there can be minor variations based on trim level and options.

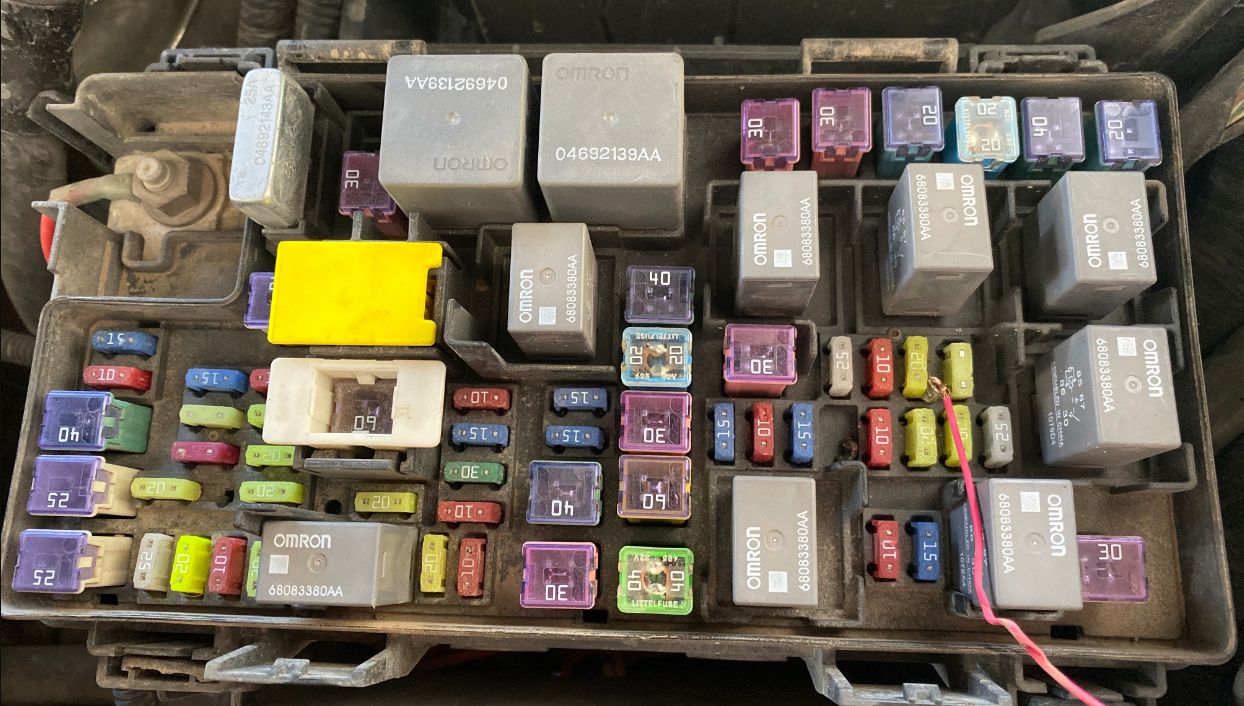

The under-hood fuse box (PDC) generally houses fuses and relays for high-current components like the starter motor, alternator, air conditioning compressor, and various lighting circuits. The interior fuse box typically handles lower-current circuits such as the radio, power windows, door locks, and instrument panel.
Common Issues and Troubleshooting
Electrical problems often manifest as a seemingly random failure of a specific component. Before tearing into complex wiring harnesses, always check the fuses first. It's the simplest and often the most effective step.
Symptom: Headlights Not Working
Problem: One or both headlights fail to illuminate.
Cause: A blown fuse in the under-hood fuse box (PDC) is the most common culprit. Less frequently, a faulty relay or headlight bulb could be the issue.
Solution:
- Consult the fuse box diagram in your owner's manual or a reliable online resource to identify the headlight fuse.
- Visually inspect the fuse. A blown fuse will have a broken filament inside the glass or a melted connector on a blade fuse.
- Replace the fuse with one of the same amperage rating. Using a higher amperage fuse can cause serious damage.
- If the new fuse blows immediately, there's a short circuit in the headlight wiring. This requires further diagnosis, possibly by a qualified mechanic.
- If the fuse doesn't blow but the headlight still doesn't work, check the bulb and the headlight relay (if equipped).
Symptom: Radio Not Working
Problem: The radio powers off or doesn't turn on at all.
Cause: A blown fuse in the interior fuse box is the most likely cause. A faulty radio unit or wiring issue is less common.
Solution:
- Locate the radio fuse in the interior fuse box.
- Inspect the fuse and replace it if blown.
- If the radio still doesn't work, check the radio wiring harness for loose connections.
- If the problem persists, the radio unit itself may be faulty and require professional repair or replacement.
Symptom: Power Windows Not Working
Problem: One or more power windows fail to operate.
Cause: This could be due to a blown fuse (either a dedicated window fuse or a general power circuit fuse), a faulty window motor, a bad window switch, or damaged wiring within the door.
Solution:
- Check the relevant fuse in the interior fuse box.
- If the fuse is good, test the window switch using a multimeter to ensure it's sending power to the window motor.
- If the switch is working, the window motor may be faulty and need replacement. You might also check the wiring harness going into the door, as wires can break or become damaged over time from repeated opening and closing.
Example: Similar Issues in Other Vehicles
The troubleshooting steps outlined above are applicable to many vehicles. For example, a non-functional cigarette lighter/power outlet in a Honda Civic or a malfunctioning windshield wiper in a Ford F-150 could often be traced back to a blown fuse. The principle of checking fuses first remains the same across different makes and models.
Maintenance Tips for Electrical Systems
- Regular Fuse Inspection: Periodically inspect the fuses in both fuse boxes, even if you're not experiencing any electrical problems. Look for signs of corrosion or damage.
- Use the Correct Fuses: Always replace blown fuses with fuses of the exact same amperage rating. Using a higher amperage fuse can overload the circuit and cause a fire.
- Keep Fuse Boxes Clean: Keep the fuse boxes free from dirt, moisture, and debris. Use a vacuum cleaner to remove any loose particles.
- Inspect Wiring: Regularly inspect the wiring harnesses for signs of damage, such as frayed wires or cracked insulation.
- Professional Checkups: Have your vehicle's electrical system checked by a qualified mechanic during routine maintenance visits. They can identify potential problems before they become major issues.
Final Thoughts
Understanding your 2012 Dodge Ram 1500's fuse box layout and performing basic troubleshooting can save you time and money. However, if you're not comfortable working with electrical systems, it's always best to consult a qualified mechanic. Remember, safety is paramount when dealing with electricity in your vehicle.
By following these tips and regularly maintaining your vehicle's electrical system, you can help ensure its reliability and longevity.
