Toyota Highlander Hybrid Battery Jump Start

The Toyota Highlander Hybrid, known for its fuel efficiency and reliability, can sometimes face the same issue as any other vehicle: a dead battery. While the hybrid system handles much of the vehicle's power needs, the 12-volt battery is still essential for starting the car, operating accessories, and maintaining computer memory. If you find yourself with a dead battery in your Highlander Hybrid, don't panic. Jump-starting it is a relatively straightforward process, although it's crucial to follow the correct procedure to avoid damaging the hybrid system or the battery itself.

Understanding the Toyota Highlander Hybrid Battery System

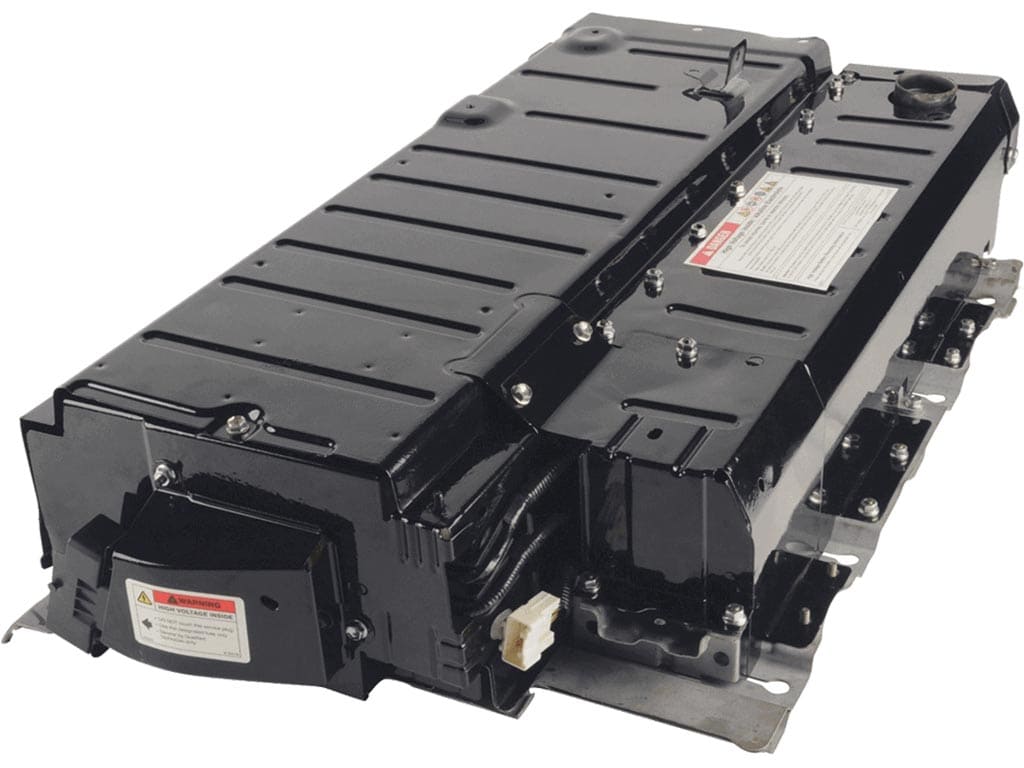

Before attempting to jump-start your Highlander Hybrid, it's important to understand the basics of its battery system. Unlike a conventional car, the Highlander Hybrid has two batteries: the high-voltage hybrid battery and the 12-volt auxiliary battery. The high-voltage battery powers the electric motors and provides the bulk of the vehicle's power. The 12-volt battery, located typically under the hood or sometimes in the rear cargo area, is responsible for starting the car (booting up the hybrid system), operating lights, radio, and other accessories. It's this 12-volt battery that needs to be jump-started.

It's important to note that you cannot jump-start another car using your Highlander Hybrid. The vehicle's electrical system is designed for its own internal needs, and attempting to jump-start another vehicle could damage the hybrid system.

Tools You'll Need

To safely jump-start your Toyota Highlander Hybrid, you'll need the following tools:

• Jumper Cables: Invest in a good quality set of jumper cables with sturdy clamps.
• Another Vehicle (or a Portable Jump Starter): You'll need a vehicle with a healthy 12-volt battery or a portable jump starter. Make sure the jump starter is fully charged before use.
• Safety Glasses: Protect your eyes from potential battery acid splashes.
• Gloves: Protect your hands from dirt and potential acid exposure.
• Owner's Manual: Consult your owner's manual for specific information about your Highlander Hybrid model and battery location.

Step-by-Step Guide to Jump-Starting Your Toyota Highlander Hybrid

Follow these steps carefully to jump-start your Highlander Hybrid safely:

1. Safety First!

Park both vehicles (the Highlander Hybrid and the jump-start vehicle) close enough to each other that the jumper cables can reach both batteries comfortably. Make sure both vehicles are in Park (P) or Neutral (N), with the parking brakes engaged. Turn off both vehicles' ignition systems, headlights, and all accessories (radio, climate control, etc.). This minimizes the risk of electrical surges.

2. Locate the Batteries

Consult your owner's manual to locate the 12-volt battery in both vehicles. In the Highlander Hybrid, it's usually under the hood, but some models may have it in the rear cargo area. Identify the positive (+) and negative (-) terminals on both batteries. They are clearly marked. If there's corrosion on the terminals, clean them with a wire brush before proceeding.

3. Connecting the Jumper Cables

This is the most crucial step. Follow the order carefully to avoid sparks and potential damage:

1. Connect the RED clamp of the jumper cable to the POSITIVE (+) terminal of the DEAD battery in the Highlander Hybrid.
2. Connect the other RED clamp to the POSITIVE (+) terminal of the GOOD battery in the jump-start vehicle.
3. Connect the BLACK clamp to the NEGATIVE (-) terminal of the GOOD battery in the jump-start vehicle.
4. Connect the final BLACK clamp to a GROUNDED METAL SURFACE on the Highlander Hybrid, away from the battery. Important: Do NOT connect it directly to the negative (-) terminal of the dead battery. This reduces the risk of sparks igniting hydrogen gas that may be present around the battery. A good grounding point is a clean, unpainted metal part of the engine block or chassis.

4. Starting the Jump-Start Vehicle

Start the jump-start vehicle and let it run for a few minutes. This will allow the good battery to transfer some charge to the dead battery in the Highlander Hybrid.

5. Attempting to Start the Highlander Hybrid

After a few minutes, try to start the Toyota Highlander Hybrid. If it starts, let it run for at least 20-30 minutes to allow the alternator to recharge the battery. If it doesn't start, double-check all the connections and try again. If it still doesn't start, the battery may be too far gone and may need to be replaced.

6. Disconnecting the Jumper Cables

Once the Highlander Hybrid is running, disconnect the jumper cables in the REVERSE ORDER of connection:

1. Remove the BLACK clamp from the GROUNDED METAL SURFACE on the Highlander Hybrid.
2. Remove the BLACK clamp from the NEGATIVE (-) terminal of the GOOD battery in the jump-start vehicle.
3. Remove the RED clamp from the POSITIVE (+) terminal of the GOOD battery in the jump-start vehicle.
4. Remove the RED clamp from the POSITIVE (+) terminal of the battery in the Highlander Hybrid.

After the Jump-Start

After successfully jump-starting your Highlander Hybrid, it's crucial to have the battery and charging system checked by a qualified mechanic. A dead battery could be a sign of an underlying issue, such as a faulty alternator or a parasitic drain. Getting it checked will prevent future problems. Also, consider driving the Highlander Hybrid for an extended period after the jump start, or using a battery charger, to ensure the battery is fully recharged.

Preventing Future Dead Battery Situations

Here are some tips to help prevent future dead battery incidents in your Toyota Highlander Hybrid:

• Turn off all lights and accessories when you exit the vehicle. Leaving lights on is a common cause of dead batteries.
• Avoid short trips. Short trips don't give the alternator enough time to fully recharge the battery.
• Have your battery tested regularly. A battery test can identify a weak battery before it fails completely.
• Consider a battery tender. If you don't drive your Highlander Hybrid frequently, a battery tender can help keep the battery charged.
• Be mindful of extreme temperatures. Both hot and cold weather can shorten battery life.

When to Call for Professional Help

If you're uncomfortable jump-starting your Toyota Highlander Hybrid, or if you've tried jump-starting it and it still won't start, it's best to call for professional help. Contact a roadside assistance service or a qualified mechanic. They can diagnose the problem and provide the necessary repairs.

Disclaimer: This guide is for informational purposes only and should not be considered a substitute for professional advice. Always consult your owner's manual and follow safety precautions when working with batteries and electrical systems. The author and publisher are not responsible for any damage or injury resulting from the use of this information.
