Transfer Case Front Output Shaft Seal Replacement

The transfer case: it's a crucial component in many four-wheel-drive (4WD) and all-wheel-drive (AWD) vehicles, often tucked away and forgotten until something goes wrong. One of the common issues that can arise is a leaky front output shaft seal. This article will guide you through understanding what this seal does, why it fails, and how to tackle its replacement, even if you're not a seasoned professional. We'll break down the technical aspects into manageable chunks and provide practical tips along the way.

What is the Transfer Case and Its Front Output Shaft Seal?

Think of the transfer case as a middleman in your vehicle's drivetrain. In a 4WD vehicle like a Jeep Wrangler or a Ford F-150 with 4WD, the transmission sends power to the transfer case. The transfer case then splits that power, sending it to both the front and rear axles. In some AWD vehicles, like a Subaru Outback or an Audi Quattro, the transfer case (often integrated within the transmission assembly) constantly or variably distributes power between the front and rear wheels, optimizing traction.

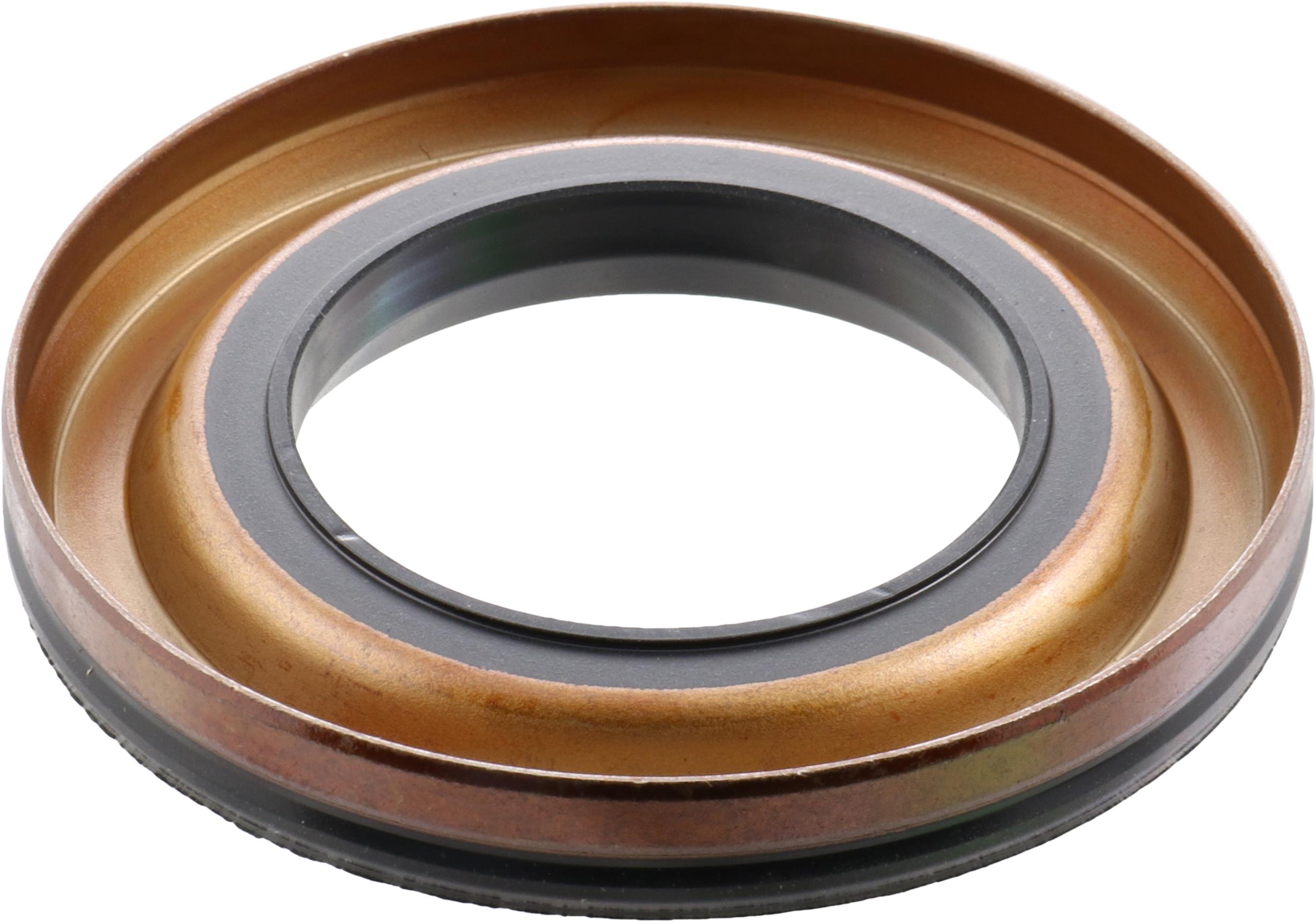

The front output shaft is the rotating shaft that transmits power from the transfer case to the front differential and, ultimately, the front wheels. This shaft needs to exit the transfer case housing. This is where the front output shaft seal comes in. It's a circular seal, typically made of rubber or a similar flexible material, that sits snugly around the output shaft where it exits the transfer case. Its job is simple but vital: to prevent the lubricating oil inside the transfer case from leaking out. Think of it like a cork in a wine bottle – except for oil, and under much more stress!

Why Do These Seals Fail?

Output shaft seals, like any other component, are subject to wear and tear over time. Here are some common reasons for their failure:

Age and Deterioration: Rubber seals harden and crack as they age, especially when exposed to heat and chemicals. Over time, the seal loses its elasticity and can no longer maintain a tight seal around the shaft. Imagine an old rubber band that's been stretched too many times – it eventually loses its snap.
Heat: High operating temperatures within the transfer case can accelerate seal degradation. Hard driving, towing, or neglecting fluid changes can all contribute to overheating.
Contamination: Dirt, debris, and even small metal particles circulating within the transfer case fluid can act as abrasives, gradually wearing down the seal's surface. Regular fluid changes are crucial to prevent this.
Shaft Wear: If the output shaft itself is worn, corroded, or scored, it can damage the seal as it rotates. Imagine trying to seal a jagged surface with a rubber ring – it wouldn't work very well.
Improper Installation: A new seal can be damaged during installation if it's not seated correctly or if excessive force is used. Using the correct tools and techniques is critical.
High Mileage: Simply put, the more miles you put on your vehicle, the more likely it is that the seals will wear out.

Symptoms of a Leaky Front Output Shaft Seal

The most obvious symptom is a visible oil leak coming from the front of the transfer case. You might notice a puddle of oil under your vehicle after it's been parked, or you might see oil dripping from the area around the output shaft. Here are some other telltale signs:

Low Transfer Case Fluid Level: A significant leak will eventually lead to a low fluid level in the transfer case. This can cause damage to the internal components due to insufficient lubrication.
Whining or Grinding Noises: If the fluid level is low enough, you might start hearing unusual noises from the transfer case, especially when engaging 4WD or AWD. This is a sign of serious damage and should be addressed immediately.
Oil Splatter: You might notice oil splatter on the underside of your vehicle, particularly around the transfer case and front differential.
Burning Oil Smell: If the leaking oil drips onto a hot exhaust component, you might smell burning oil.

Replacing the Front Output Shaft Seal: A Step-by-Step Guide

Replacing the front output shaft seal is a task that can be tackled by a reasonably skilled DIY mechanic. However, it's essential to have the right tools and to follow the proper procedures. Always consult your vehicle's service manual for specific instructions and torque specifications. Here's a general overview of the process:

Safety First: Park your vehicle on a level surface, engage the parking brake, and use wheel chocks for extra security. Disconnect the negative battery cable.
Raise the Vehicle: Use a jack and jack stands to safely raise the vehicle. Make sure the jack stands are placed securely under the frame rails.
Drain the Transfer Case Fluid: Locate the drain plug on the transfer case and remove it to drain the fluid. Have a drain pan ready to catch the oil. Properly dispose of the used fluid.
Remove the Front Driveshaft: Disconnect the front driveshaft from the transfer case. This usually involves removing bolts or U-joint straps. Mark the driveshaft and the transfer case flange so you can reinstall it in the same orientation. This helps maintain balance.
Access the Seal: You now need to access the seal. Depending on the vehicle, this may involve removing a yoke or flange from the output shaft. Some vehicles might require disassembling parts of the transfer case itself. Again, consult your service manual.
Remove the Old Seal: Use a seal puller or a similar tool to carefully remove the old seal. Be careful not to damage the transfer case housing or the output shaft. Sometimes a screwdriver can be used, but extreme caution is needed to avoid scratching the shaft.
Inspect the Shaft: Carefully inspect the output shaft for any signs of wear, corrosion, or damage. If the shaft is damaged, you'll need to replace it before installing the new seal.
Install the New Seal: Lubricate the new seal with clean transfer case fluid. Use a seal installation tool or a socket of the correct size to carefully drive the new seal into place. Make sure the seal is seated squarely and flush with the housing.
Reassemble: Reinstall the yoke or flange, tightening the bolts to the correct torque specification. Reconnect the front driveshaft, aligning the marks you made earlier.
Refill the Transfer Case: Locate the fill plug on the transfer case and refill it with the correct type and amount of fluid. Check the fluid level.
Lower the Vehicle: Remove the jack stands and lower the vehicle.
Test Drive: Take the vehicle for a short test drive and check for any leaks around the new seal.

Important Considerations:

Use the Right Tools: Having the right tools will make the job much easier and safer. A seal puller and a seal installation tool are essential for this task.
Torque Specifications: Always use a torque wrench to tighten bolts to the correct torque specification. Overtightening can damage the components, while undertightening can lead to leaks.
Quality Parts: Use a high-quality replacement seal from a reputable manufacturer. Cheap seals may not last as long or provide a reliable seal.
Cleanliness: Keep everything clean during the process. Dirt and debris can contaminate the transfer case fluid and damage the new seal.

When to Seek Professional Help

While replacing the front output shaft seal is within the capabilities of many DIY mechanics, there are times when it's best to seek professional help. If you're not comfortable working on your vehicle's drivetrain, or if you encounter any difficulties during the process, it's best to take it to a qualified mechanic. Additionally, if the transfer case is severely damaged or if you suspect internal problems, a professional diagnosis and repair are necessary. Remember, a damaged transfer case can lead to serious and costly repairs down the road. For example, if the seal replacement doesn't solve the problem and there is internal wear on the transfer case of your BMW X5, this might point to chain stretch or bearing failure requiring specialized expertise.

Practical Takeaways

Regularly Inspect for Leaks: Periodically check your vehicle for any signs of oil leaks, especially around the transfer case and front differential. Early detection can prevent more serious problems.
Maintain Proper Fluid Levels: Check the transfer case fluid level regularly and top it off as needed. Low fluid levels can lead to overheating and damage to the internal components.
Follow the Maintenance Schedule: Adhere to the manufacturer's recommended maintenance schedule for your vehicle, including transfer case fluid changes. This will help to keep the seals and other components in good condition.
Use the Correct Fluid: Always use the correct type of transfer case fluid specified in your vehicle's service manual. Using the wrong fluid can damage the seals and other components.
Don't Ignore Warning Signs: If you notice any unusual noises or vibrations from the transfer case, have it checked out by a qualified mechanic. Ignoring these warning signs can lead to more serious and costly repairs.

By understanding the function of the front output shaft seal, the reasons for its failure, and the steps involved in its replacement, you can take proactive steps to maintain your vehicle's 4WD or AWD system and prevent costly repairs. Remember to prioritize safety, use the right tools, and follow the proper procedures. With a little knowledge and effort, you can keep your vehicle running smoothly for years to come.
