Transmission Fluid For 2014 Gmc Sierra 1500

Alright, let's talk transmission fluid for your 2014 GMC Sierra 1500. This isn't just a "dump and fill" situation. Getting the right fluid, understanding the transmission type, and following the proper procedure are crucial to keeping your truck shifting smoothly for years to come. We're going to dive deep, covering everything from fluid specs to DIY tips.

Understanding Your Transmission

First and foremost, you need to identify *exactly* which transmission you have. The 2014 Sierra 1500 came with a few different options, primarily the 6L80 and 6L90. While they might look similar, they use different fluids and have slightly different maintenance requirements. The easiest way to figure out which one you have is to check the RPO (Regular Production Option) codes sticker. This sticker is usually located in the glove box or on the driver's side door jamb. Look for codes starting with "M" followed by three digits. M30 typically indicates the 6L80 transmission, while M82 points to the 6L90.

Knowing your transmission is important because the internal components – friction plates, valve body solenoids, etc. – are designed to work with specific fluid properties. Using the wrong fluid can lead to slipping, harsh shifting, overheating, and ultimately, premature transmission failure. That's a costly repair you definitely want to avoid.

The Right Fluid: Dexron VI

Both the 6L80 and 6L90 transmissions in your 2014 Sierra 1500 require Dexron VI automatic transmission fluid. Dexron VI is a synthetic fluid developed by General Motors. It's specifically formulated to provide improved oxidation stability, friction durability, and anti-wear protection compared to older Dexron fluids. Using anything other than Dexron VI is strongly discouraged and can lead to serious problems. There are many aftermarket Dexron VI fluids available from various brands (like Mobil 1, Valvoline, AMSOIL, ACDelco), and choosing one comes down to personal preference and budget. Just make sure it *explicitly states* that it meets the Dexron VI specification.

Important Note: While Dexron VI is backwards compatible with older Dexron standards (like Dexron III), you should *never* use an older Dexron fluid in a transmission designed for Dexron VI. The opposite is true: Dexron VI *can* be used where Dexron III was previously specified. However, for your Sierra, stick with Dexron VI.

Synthetic vs. Conventional Dexron VI

You'll often see both synthetic and conventional Dexron VI fluids available. Synthetic fluids generally offer superior performance, especially in extreme temperatures. They tend to resist oxidation and breakdown better than conventional fluids, leading to longer service intervals and improved protection. If you tow frequently, live in a hot climate, or generally subject your truck to heavy use, a synthetic Dexron VI is definitely worth the extra cost.

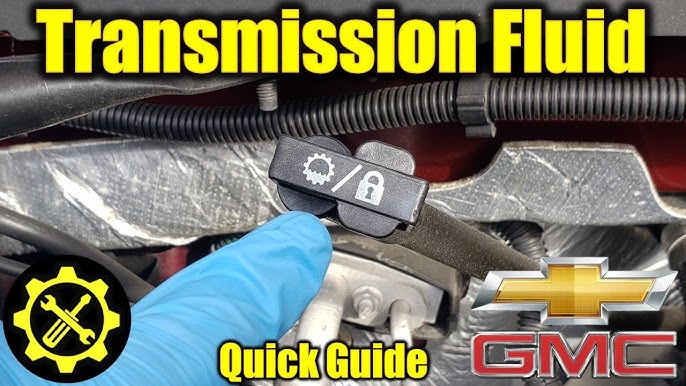

Checking the Transmission Fluid Level

Unlike some older vehicles, your 2014 Sierra 1500 likely doesn't have a traditional dipstick for checking the transmission fluid level. Instead, it uses a check plug located on the side of the transmission pan. This method requires a specific procedure to ensure an accurate reading.

Here's the basic process (consult your service manual for specific torque specs and diagrams):

1. Warm up the Transmission: The transmission fluid must be at the correct operating temperature. This typically involves driving the vehicle for about 15-20 minutes until the fluid temperature reaches a specific range (usually around 120-140°F or 49-60°C). You'll need a scan tool capable of reading transmission fluid temperature (TFT) to verify this.
2. Level Surface: Park the vehicle on a perfectly level surface.
3. Locate the Check Plug: Locate the check plug on the side of the transmission pan.
4. Remove the Check Plug: Carefully remove the check plug. Be prepared for a small amount of fluid to drip out.
5. Check Fluid Level: If fluid drips out slowly, the fluid level is correct. If no fluid drips out, the level is low. If fluid gushes out, the level is too high.
6. Add or Drain Fluid: If the fluid level is low, use a pump to add Dexron VI fluid through the check plug hole until it just starts to drip out. If the fluid level is too high, allow the excess fluid to drain out until it just drips.
7. Reinstall the Check Plug: Reinstall the check plug to the specified torque.

Caution: The exhaust system is often located near the transmission. Be careful not to burn yourself during this procedure. Also, overtightening the check plug can damage the transmission pan. Use a torque wrench and follow the manufacturer's specifications.

Changing the Transmission Fluid

There are two main methods for changing the transmission fluid: a pan drop and filter change, and a full fluid exchange.

Pan Drop and Filter Change

This method involves removing the transmission pan, replacing the filter, cleaning the pan, and refilling the transmission with fresh fluid. It's a relatively straightforward procedure that most experienced DIYers can handle. However, it only replaces about 40-50% of the fluid in the system, as a significant amount remains in the torque converter and transmission cooler lines.

Here's a simplified outline:

1. Drain the Fluid: Loosen the transmission pan bolts and carefully drain the fluid.
2. Remove the Pan: Once the fluid is drained, remove the pan completely.
3. Replace the Filter: Remove the old filter and install a new one. Make sure the new filter is properly seated.
4. Clean the Pan: Clean the inside of the pan thoroughly, removing any debris or sediment. Replace the pan gasket with a new one.
5. Reinstall the Pan: Reinstall the pan, tightening the bolts to the specified torque in a crisscross pattern.
6. Refill the Transmission: Refill the transmission with the correct amount of Dexron VI fluid. Use the check plug procedure described above to verify the fluid level.

Full Fluid Exchange

A full fluid exchange replaces nearly all of the fluid in the transmission, including the fluid in the torque converter and cooler lines. This is typically done using a specialized machine that connects to the transmission cooler lines. While it's the most effective way to change the fluid, it requires specialized equipment and is often best left to a professional. The risks involved include improper line connections and causing damage to the transmission if the pressure is too high.

Service Intervals

General Motors recommends changing the transmission fluid every 97,500 miles (156,000 km) under normal driving conditions. However, if you subject your truck to severe duty, such as towing heavy loads, frequent stop-and-go driving, or operating in extreme temperatures, you should shorten the service interval to every 45,000 to 60,000 miles (72,000 to 96,000 km). It's always better to err on the side of caution when it comes to transmission maintenance.

Regularly checking your transmission fluid, even if it just means inspecting the fluid on the check plug, can help you catch potential problems early. If you notice the fluid is dark, smells burnt, or contains debris, it's time for a fluid change, regardless of the mileage interval. Ignoring these warning signs can lead to serious and expensive transmission repairs.

Finally, remember to dispose of used transmission fluid properly. It's considered hazardous waste and should not be poured down the drain or into the ground. Most auto parts stores will accept used oil and transmission fluid for recycling.
