Transmission Fluid Pressure Sensor/switch A'' Circuit

The modern automatic transmission is a marvel of engineering. It orchestrates a complex dance of gears, clutches, and hydraulic circuits to seamlessly provide the correct gear ratio for any given driving condition. At the heart of this sophisticated system lies a network of sensors and switches that monitor various parameters, allowing the transmission control module (TCM) to make informed decisions. One such crucial component is the Transmission Fluid Pressure (TFP) sensor or switch, and understanding its function and potential faults, particularly those related to a "Circuit A" error, is essential for diagnosing and maintaining these complex systems.

Understanding Transmission Fluid Pressure (TFP)

Before diving into the specifics of the "Circuit A" fault, it's vital to grasp the significance of transmission fluid pressure. The transmission fluid, often referred to as ATF (Automatic Transmission Fluid), serves multiple critical roles. It acts as a hydraulic fluid, a lubricant, a coolant, and a friction modifier. Pressure within the transmission's hydraulic circuits is what actually actuates the various clutches and bands that engage different gear ratios. Without adequate pressure, the transmission will slip, fail to shift correctly, or not shift at all.

The TFP sensor or switch monitors this pressure. The specific design can vary, but generally, these components provide feedback to the TCM about the pressure levels within specific hydraulic circuits or the overall system pressure. This information is critical for the TCM to:

Confirm gear selection: By monitoring pressure in specific circuits, the TCM can verify that the correct clutch pack has engaged for the commanded gear.
Adjust shift timing and feel: The TCM can modulate the pressure applied to clutches during a shift to achieve smooth and efficient gear changes.
Detect potential problems: Unusually high or low pressure readings can indicate a problem with the transmission's hydraulics, such as a leak, a stuck valve, or a failing pump.
Initiate protective measures: If a critical pressure fault is detected, the TCM might initiate a "limp mode," restricting the transmission to a single gear to prevent further damage.

Sensor vs. Switch: A Key Distinction

While both sensors and switches monitor transmission fluid pressure, they operate differently. A TFP switch is a simple on/off device. It closes (or opens) a circuit when pressure reaches a predetermined threshold. Think of it like a light switch – it's either on or off. A TFP sensor, on the other hand, provides a continuous analog signal proportional to the pressure. This signal is usually a voltage that varies with pressure. The TCM can then interpret this voltage to determine the exact pressure level. Modern transmissions often use sensors for their greater accuracy and ability to provide more nuanced information.

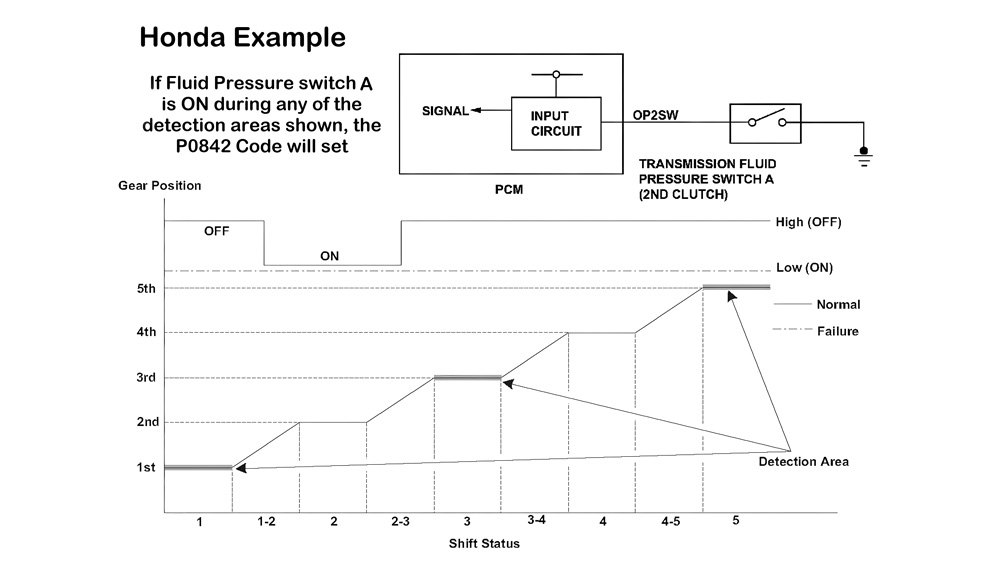

"Circuit A" Explained

The term "Circuit A" refers to a fault related to the electrical circuit associated with a specific TFP sensor or switch. Diagnostic Trouble Codes (DTCs) often use alphabetical designations to identify specific circuits related to a component. For example, a P0960 code might indicate a problem with the "Shift Solenoid A Control Circuit," while a P0961 could indicate a range/performance problem with the same solenoid.

In the context of a TFP sensor/switch "Circuit A" fault, the error usually points to a problem with the following:

The sensor/switch itself: The sensor or switch could be faulty, providing an incorrect signal or no signal at all.
The wiring harness: Damaged, corroded, or disconnected wiring can disrupt the signal.
The connector: Loose or corroded connections at the sensor/switch connector or the TCM connector can cause problems.
The TCM: In rare cases, the TCM itself could be faulty, preventing it from correctly interpreting the signal from the sensor/switch.
Power or ground issues: The sensor/switch requires a stable power supply and ground connection to function correctly. Problems with these can trigger a "Circuit A" fault.

The specific symptoms and the DTCs (Diagnostic Trouble Codes) associated with a "Circuit A" fault can vary depending on the vehicle and the specific transmission. However, common symptoms include:

Erratic shifting: The transmission may shift harshly, slip, or fail to shift into the correct gear.
Limp mode: The transmission may be restricted to a single gear.
Check engine light: The check engine light will illuminate, indicating a problem with the engine or transmission control system.
Transmission warning light: Some vehicles have a separate warning light specifically for transmission problems.

Diagnosing a "Circuit A" Fault

Diagnosing a "Circuit A" fault requires a systematic approach. Here's a general outline of the steps involved:

Retrieve the DTC: Use a scan tool to retrieve the specific DTC(s) related to the "Circuit A" fault. This will provide valuable clues about the nature of the problem. Pay attention to any associated codes, as these might point to additional issues.
Inspect the wiring and connectors: Visually inspect the wiring harness and connectors associated with the TFP sensor/switch. Look for signs of damage, corrosion, or loose connections. Pay close attention to the connector at the sensor/switch itself and the connector at the TCM.
Test the sensor/switch: Use a multimeter to test the sensor/switch according to the manufacturer's specifications. This typically involves measuring resistance and voltage at specific terminals. If you are dealing with a switch, check for continuity when the specified pressure is applied (if possible to simulate). If you are dealing with a sensor, check for the correct voltage output range as the pressure varies (again, simulating pressure might require special tools).
Check the wiring continuity: Use a multimeter to check the continuity of the wiring between the sensor/switch connector and the TCM connector. This will verify that there are no breaks or shorts in the wiring. Also, check for shorts to ground or power.
Verify power and ground: Ensure that the sensor/switch is receiving the correct voltage and has a good ground connection. Use a multimeter to check the voltage at the power terminal and the resistance between the ground terminal and the vehicle's chassis ground.
Consult the wiring diagram: A wiring diagram for your specific vehicle and transmission is essential for accurate diagnosis. This will show the exact wiring configuration and the location of all the relevant components.
Consider a professional opinion: If you are not comfortable performing these tests, or if you are unable to identify the cause of the problem, it is best to consult a qualified mechanic.

Tools Needed

To effectively diagnose a "Circuit A" fault, you'll need the following tools:

Scan Tool: To retrieve and clear DTCs. A scan tool that can access transmission-specific codes is essential.
Multimeter: To measure voltage, resistance, and continuity.
Wiring Diagram: A detailed wiring diagram for your specific vehicle and transmission.
Basic Hand Tools: Screwdrivers, pliers, sockets, and wrenches.
Wire Strippers and Crimpers: For repairing damaged wiring.
Contact Cleaner: To clean corroded connectors.

Preventive Measures

While a "Circuit A" fault can occur due to various reasons, certain preventive measures can help minimize the risk:

Regular Transmission Fluid Changes: Maintaining clean and properly filled transmission fluid is crucial for the health of the transmission. Follow the manufacturer's recommended fluid change intervals.
Inspect Wiring Regularly: During routine maintenance, visually inspect the wiring harness and connectors associated with the transmission. Look for signs of damage, corrosion, or wear.
Avoid Harsh Driving: Aggressive driving habits can put excessive stress on the transmission, increasing the risk of component failure.
Address Issues Promptly: If you notice any signs of transmission problems, such as erratic shifting or slipping, address them promptly. Ignoring these symptoms can lead to more serious damage.

Understanding the role of the Transmission Fluid Pressure sensor/switch and the potential causes of a "Circuit A" fault empowers you to diagnose and address transmission issues effectively. While some repairs may require specialized tools and expertise, a systematic approach and a thorough understanding of the system can often lead to a successful resolution. Remember to always consult a qualified mechanic if you are unsure about any aspect of the diagnosis or repair process.
