What Temperature Should Your Transmission Fluid Be

Maintaining the correct transmission fluid temperature is crucial for optimal performance, longevity, and reliability of modern automatic transmissions. Deviations from the ideal range can lead to significant issues, ranging from reduced fuel economy and shift quality degradation to catastrophic transmission failure. This article provides an in-depth examination of transmission fluid temperature, exploring the engineering rationale behind temperature management, comparing different cooling strategies, outlining maintenance best practices, and considering future trends in transmission thermal management.

The Ideal Temperature Range and Why It Matters

The ideal operating temperature for most conventional automatic transmission fluids (ATF) typically falls between 175°F (80°C) and 220°F (104°C). Some modern, synthetic ATFs can tolerate slightly higher temperatures. Staying within this range is essential because:

Fluid Viscosity: ATF's viscosity changes with temperature. Too cold, and it becomes thick, hindering smooth shifting and increasing internal friction. Too hot, and it thins out, losing its lubricating properties and leading to increased wear on transmission components.

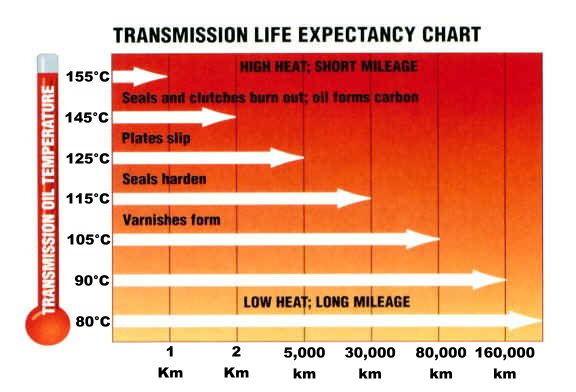

Oxidation and Degradation: Excessive heat accelerates the oxidation process of the ATF. This oxidation leads to the formation of varnish, sludge, and acids, which can clog valve bodies, reduce clutch friction, and damage seals. The rate of oxidation increases exponentially with temperature. For example, every 20°F (11°C) above the optimal range can significantly reduce the fluid's lifespan.
Seal Integrity: High temperatures can cause seals and o-rings to harden, shrink, and crack, leading to fluid leaks and pressure loss, further compromising transmission performance.
Clutch Performance: ATF is vital in the operation of clutch packs in automatic transmissions. Overheating the fluid can glaze the clutch material, reducing its coefficient of friction and causing slipping, shuddering, and ultimately, clutch failure.

Cooling Strategies: From Basic to Advanced

Various cooling systems are employed to maintain ATF temperature within the optimal range. These can be broadly categorized as:

1. Factory-Installed Transmission Fluid Coolers

Most vehicles come equipped with a factory-installed transmission fluid cooler, typically located within the radiator. The ATF circulates through a dedicated section of the radiator, exchanging heat with the engine coolant. This system is simple, cost-effective, and leverages the existing cooling capacity of the engine. However, it's also limited in its ability to keep the ATF cool under heavy loads or in hot climates.

Pros: Simple design, low cost, requires no additional plumbing (in most cases).

Cons: Limited cooling capacity, heats the ATF when engine coolant is hot, inefficient in heavy-duty applications.

2. Auxiliary Transmission Fluid Coolers

Auxiliary coolers are aftermarket additions designed to supplement or replace the factory cooler. These are typically air-to-oil coolers mounted in front of the radiator or in another area with good airflow. They offer significantly improved cooling capacity, particularly in demanding conditions like towing, off-roading, or racing.

Pros: Significantly increased cooling capacity, independent of engine coolant temperature, relatively easy to install.

Cons: Added cost, requires additional plumbing and mounting, can overcool the ATF in cold climates (thermostat or bypass valve recommended).

3. Thermostatically Controlled Coolers

These coolers incorporate a thermostat or bypass valve to regulate the flow of ATF through the cooler. This ensures that the ATF reaches and maintains the optimal operating temperature quickly, even in cold weather. This is crucial because excessively cold ATF can also hinder performance and increase wear.

Pros: Maintains optimal ATF temperature in all climates, prevents overcooling, improves cold-weather performance.

Cons: More complex and expensive than basic coolers, requires proper thermostat calibration.

4. Liquid-to-Liquid Heat Exchangers (Advanced Designs)

Some high-performance vehicles or heavy-duty trucks utilize more sophisticated liquid-to-liquid heat exchangers. These systems circulate ATF through a dedicated heat exchanger that is cooled by a separate coolant loop, often with its own dedicated radiator and pump. This provides precise and efficient temperature control, even under extreme conditions. Electric oil pumps are now used in some applications to regulate the coolant flow through the heat exchanger for maximum efficiency.

Pros: Highly efficient temperature control, independent of engine coolant temperature, allows for precise optimization of ATF temperature.

Cons: Complex and expensive, requires significant modifications to the vehicle's cooling system.

Reliability and Maintenance

Proper maintenance is crucial for ensuring the reliability of the transmission and its cooling system. Key maintenance steps include:

Regular Fluid Checks: Monitor the ATF level and condition regularly. Low fluid levels can lead to overheating and damage. Darkened or burnt-smelling fluid indicates overheating and the need for a fluid change.
Fluid Changes: Follow the manufacturer's recommended fluid change intervals. Severe-duty applications (towing, off-roading) may require more frequent changes. Consider using a high-quality synthetic ATF for improved thermal stability and longer lifespan.
Cooler Inspection: Periodically inspect the transmission cooler for leaks, damage, and debris buildup. Clean the cooler fins to ensure proper airflow.
Thermostat Function (If Applicable): Verify that the thermostat is functioning correctly to prevent overcooling in cold weather.
Temperature Monitoring: Using a scan tool or aftermarket gauge to monitor the ATF temperature allows you to proactively address potential overheating issues. This is especially helpful for vehicles used in demanding applications.

Ignoring these maintenance steps can significantly reduce transmission lifespan and lead to costly repairs.

Future Trends in Transmission Thermal Management

The automotive industry is rapidly evolving, and transmission thermal management is no exception. Several trends are shaping the future of this field:

Electrification: Electric vehicles (EVs) and hybrid electric vehicles (HEVs) are increasingly common. While some EVs use direct-drive systems, many HEVs and some performance EVs still utilize transmissions. These transmissions often require sophisticated thermal management systems to maintain optimal operating temperatures for both the electric motor and the transmission components.
Advanced Fluid Formulations: Next-generation ATFs are being developed with improved thermal stability, oxidation resistance, and friction characteristics. These fluids are designed to withstand higher temperatures and provide longer service intervals.
Smart Cooling Systems: Electronic control units (ECUs) are being used to actively manage transmission cooling systems based on real-time operating conditions. These systems can adjust coolant flow, fan speed, and other parameters to optimize ATF temperature and minimize energy consumption.
Lightweight Materials: Manufacturers are exploring the use of lightweight materials, such as aluminum and composites, in transmission coolers to reduce weight and improve thermal efficiency.

Conclusion

Maintaining the correct transmission fluid temperature is a critical aspect of automotive maintenance and engineering. By understanding the principles of thermal management, selecting appropriate cooling strategies, and adhering to recommended maintenance practices, automotive professionals can help ensure the long-term reliability and performance of automatic transmissions. The increasing complexity of modern vehicles and the shift towards electrification will further emphasize the importance of advanced thermal management systems in the years to come. The automotive industry is focused on improving efficiency, and optimizing transmission fluid temperature is a key component in achieving this goal. The future holds advancements in fluid technology, active cooling, and integration with overall vehicle thermal management strategies.

Staying informed about these developments will be essential for automotive professionals to continue providing top-notch service and support.
