What Tools Are Needed To Change Brake Pads
So, you're tackling a brake pad replacement? Excellent choice! It's a rewarding job that saves you money and gives you valuable hands-on experience. You're likely already comfortable with basic car maintenance, so let's dive into the tools you'll need to do the job safely and effectively. This isn't just about having the right tool; it's about having the safe and efficient tool for the task.

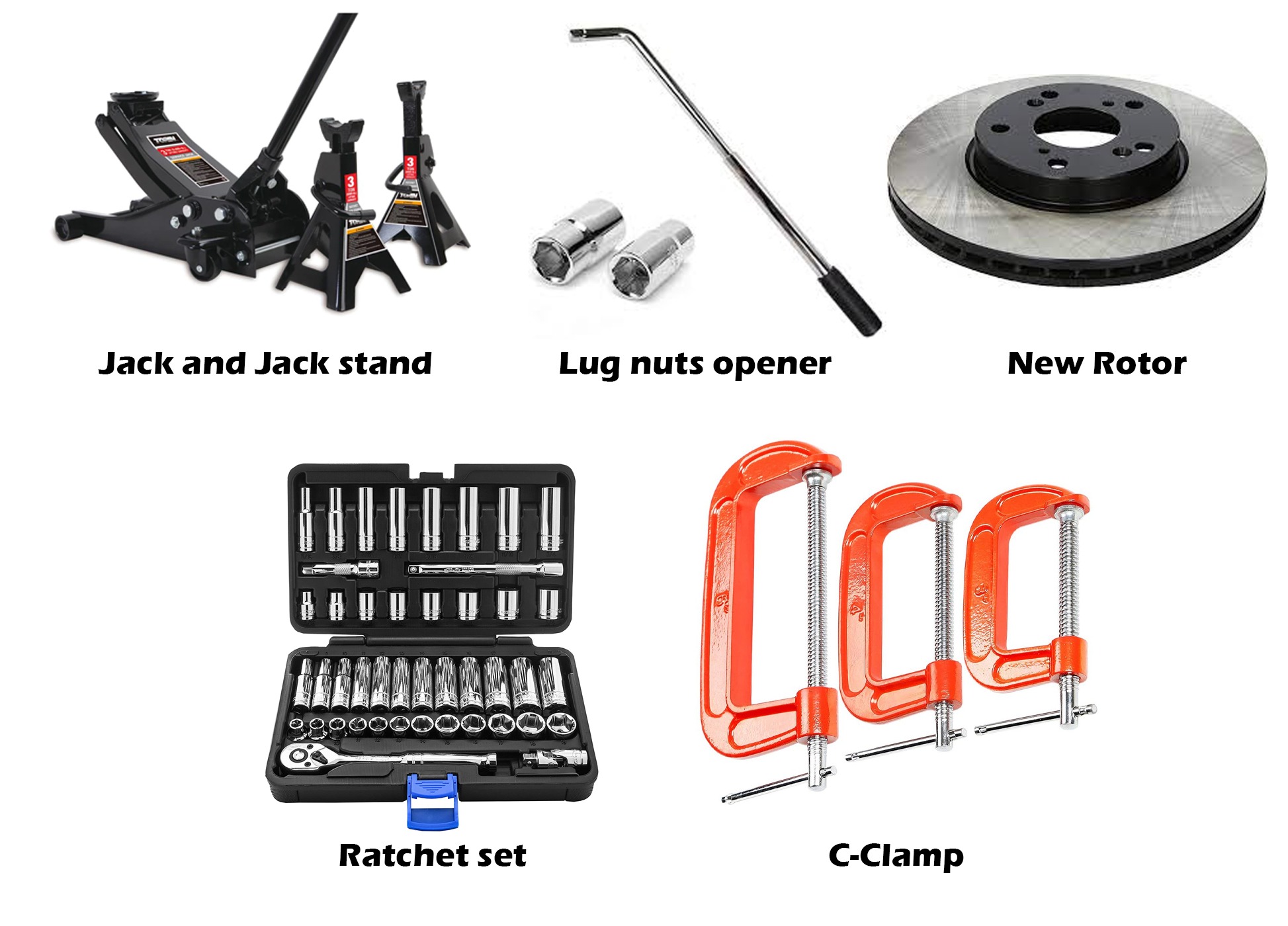

Essential Tools for Brake Pad Replacement
These are the absolute must-haves for any brake job. Skimping here can lead to frustration, damage, or even injury.
1. Jack and Jack Stands
This is non-negotiable. Never, ever work under a vehicle supported only by a jack. A quality floor jack with sufficient lifting capacity for your vehicle is the first step. Make sure you're using the correct jacking points – consult your owner's manual. Once the car is lifted, immediately position two sturdy jack stands under the vehicle's frame rails or designated support points. These are your lifesavers. Don't cheap out on these – buy quality stands rated for well above your vehicle's weight.
2. Wheel Chocks
Another crucial safety item. Place wheel chocks behind the wheels opposite the ones you're working on. This prevents the vehicle from rolling. Believe it or not, even with the parking brake engaged, movement is possible, especially on an incline.
3. Lug Nut Wrench (and Breaker Bar)
You'll need to remove the wheels, obviously. A standard lug nut wrench often suffices, but a breaker bar will be your best friend if the lug nuts are seized or over-torqued. A breaker bar provides extra leverage to loosen stubborn nuts. A socket set with the correct size socket for your lug nuts is also essential. Using the wrong size socket can round off the nuts, making them even harder to remove.
4. Brake Caliper Tool (C-Clamp or Caliper Spreader)
This is arguably the most brake-specific tool. When replacing brake pads, you need to compress the caliper piston back into the caliper body to make room for the new, thicker pads. A simple C-clamp can work for many applications. Place the old brake pad against the piston and use the C-clamp to slowly and evenly compress the piston. Be extremely careful not to damage the piston boot.
For vehicles with rear parking brakes integrated into the caliper (often found on newer vehicles with electronic parking brakes, though common on older manual ones too), a C-clamp might not be sufficient. These calipers require a caliper spreader, or a special tool that both compresses and rotates the piston simultaneously. Attempting to force a rotating piston with a C-clamp will damage the caliper. Consult your vehicle's repair manual to determine if you need this special tool. Some caliper spreaders are universal and come with various adapters to fit different caliper types. They often are labeled as "disc brake tool set".
5. Socket Set and Wrench Set
Brake calipers are held in place by bolts, and you'll need the appropriate sockets and wrenches to remove them. Metric sizes are most common on modern vehicles. A comprehensive set is a worthwhile investment for any DIY mechanic. Pay attention to the torque specifications for re-installation, which we'll cover later.
6. Brake Cleaner
Brake dust is nasty stuff – it's abrasive, carcinogenic, and generally unpleasant. Brake cleaner is specifically formulated to dissolve brake dust and other contaminants without damaging rubber or plastic components. Always use brake cleaner in a well-ventilated area and wear eye protection. Spray down the caliper, rotor, and surrounding components to clean them up before reassembly.
7. Gloves and Eye Protection
Safety first! Wear gloves to protect your hands from brake dust, grease, and chemicals. Eye protection is equally important to prevent brake dust or debris from getting into your eyes.
8. Torque Wrench
This is critical for properly tightening the caliper bolts and lug nuts. Over-tightening can strip threads or warp components, while under-tightening can lead to loose bolts and catastrophic brake failure. Consult your vehicle's repair manual for the correct torque specifications and use a torque wrench to ensure accurate tightening. Don't guess – torque to spec!
Nice-to-Have Tools (That Make the Job Easier)
While not strictly essential, these tools can significantly improve your efficiency and reduce the risk of damaging components.
1. Impact Wrench
An impact wrench, especially one with a cordless design, can significantly speed up the process of removing lug nuts and caliper bolts. However, never use an impact wrench to tighten bolts. Always use a torque wrench for final tightening to ensure proper torque specifications are met.
2. Brake Pad Spreader
While you can often use a screwdriver or pry bar to push the new brake pads into the caliper bracket, a dedicated brake pad spreader tool makes the job much easier and less likely to damage the pads or the bracket. It applies even pressure and prevents the pads from binding.
3. Wire Brush
A wire brush is useful for cleaning rust and corrosion from the caliper bracket and rotor hub. A clean surface ensures proper pad seating and prevents noise.
4. Hammer (and Punch)
Sometimes, brake rotors can become seized to the hub due to rust. A hammer, combined with a brass or rubber punch, can help loosen the rotor without damaging it. Avoid using a steel hammer directly on the rotor, as this can cause damage.
5. Brake Bleeder Kit
While not always necessary for a simple brake pad replacement, it's a good idea to bleed the brakes if the brake fluid is old or if you suspect air has entered the system. A brake bleeder kit, either a vacuum bleeder or a pressure bleeder, makes this process much easier and more efficient than the traditional two-person method. If you compress the caliper piston significantly, bleeding is a good idea because the piston will force fluid back through the system that has potentially collected moisture or debris. Remember to use the correct type of brake fluid for your vehicle (DOT 3, DOT 4, etc.).
6. Diagnostic Scanner (for Electronic Parking Brakes)
If your vehicle has an electronic parking brake (EPB), you may need a diagnostic scanner to put the EPB system into service mode before you can replace the rear brake pads. Service mode retracts the parking brake actuator, allowing you to compress the caliper piston. Attempting to force the piston back without putting the EPB in service mode can damage the actuator. Consult your vehicle's repair manual for specific instructions. Not all vehicles require this; some have manual releases or procedures.
Materials You'll Need
Beyond the tools, remember these consumables:
- New Brake Pads: Obviously! Choose quality pads that are appropriate for your driving style.
- Brake Hardware Kit: This typically includes new shims, clips, and bolts. Replacing these components ensures proper pad seating and reduces brake noise.
- Brake Rotor Cleaner/Degreaser: An alternative to brake cleaner specifically for cleaning the rotors.
- Brake Fluid: Only if you plan to bleed the brakes. Use the correct type of fluid for your vehicle.
- Copper Anti-Seize Compound: Apply a thin layer to the back of the brake pads and the contact points on the caliper bracket to prevent squealing.
Important Considerations
Consult your vehicle's repair manual: This is your bible for any repair. It provides specific instructions, torque specifications, and diagrams for your particular vehicle. Haynes and Chilton manuals are popular options.
Work in a well-lit area: Good lighting is essential for safety and accuracy.
Take your time: Don't rush the process. Brake work requires careful attention to detail.
Inspect all components: While you're working on the brakes, inspect the rotors, calipers, brake lines, and hoses for any signs of wear or damage. Replace any worn or damaged components as needed.
Proper Disposal: Dispose of used brake pads and brake fluid responsibly. Contact your local auto parts store or recycling center for proper disposal methods.
Changing brake pads is a manageable task for the experienced DIYer, but it's crucial to have the right tools and knowledge. With the proper preparation and attention to detail, you can save money and gain valuable experience. But remember, if you're ever unsure about any aspect of the process, it's always best to consult a qualified mechanic. Your safety and the safety of others on the road depend on properly functioning brakes.
