Where Is The Thermostatic Expansion Valve Located

For decades, the thermostatic expansion valve (TXV) has been a steadfast, if somewhat overlooked, component in vehicle air conditioning systems. Its primary function – regulating refrigerant flow to the evaporator – has remained largely unchanged. But as automotive technology hurtles towards an electrified and increasingly intelligent future, the TXV, like many other mechanical components, faces a period of transformation. This article explores the current location of the TXV, its evolving role in modern vehicles, and the potential innovations that will shape its future, offering a glimpse into a rapidly changing landscape of automotive climate control.

The Current Landscape: Location and Function

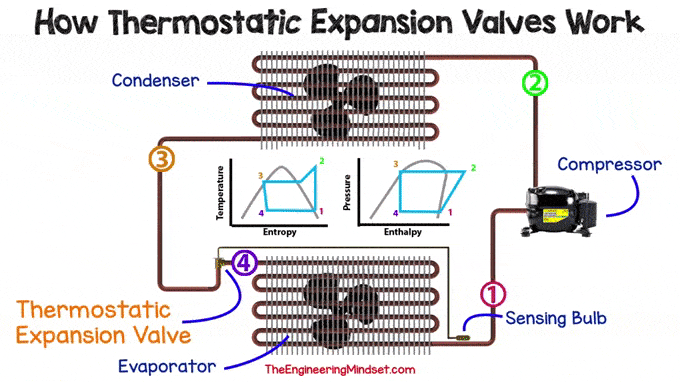

In conventionally powered vehicles, the TXV's location is relatively consistent: it's typically found at the inlet of the evaporator core, within the HVAC (Heating, Ventilation, and Air Conditioning) unit. This strategic placement allows the TXV to precisely control the amount of liquid refrigerant entering the evaporator, ensuring optimal cooling performance while preventing liquid refrigerant from entering the compressor – a scenario that can cause significant damage.

The TXV operates on a simple yet effective principle. A sensing bulb, usually filled with a volatile fluid, is positioned at the evaporator outlet. This bulb measures the temperature of the refrigerant exiting the evaporator. Based on this temperature, the TXV adjusts the opening of a needle valve, regulating the flow of high-pressure liquid refrigerant from the condenser into the evaporator. If the evaporator is too warm (meaning the refrigerant is fully vaporized), the TXV opens further, allowing more refrigerant to enter and absorb heat. Conversely, if the evaporator is too cold (indicating a risk of liquid refrigerant entering the compressor), the TXV restricts refrigerant flow.

While the basic function remains the same, variations exist in TXV design. Some utilize internal equalization, while others employ external equalization. External equalization is generally preferred for larger evaporator cores or systems with significant pressure drops, as it provides more accurate control. This accuracy is becoming increasingly important as manufacturers strive for greater efficiency and passenger comfort.

Challenges and Opportunities in Electric and Hybrid Vehicles

The rise of electric vehicles (EVs) and hybrid electric vehicles (HEVs) presents both challenges and opportunities for TXV technology. In internal combustion engine (ICE) vehicles, waste heat from the engine can be used for cabin heating. EVs and HEVs, however, lack this readily available heat source. This necessitates a greater reliance on electric resistance heaters or, more efficiently, heat pumps.

In an EV or HEV equipped with a heat pump, the TXV plays a crucial role in the refrigerant circuit, just as it does in a traditional air conditioning system. However, the demands are different. Heat pumps need to operate efficiently in both heating and cooling modes, often under a wider range of ambient temperatures than traditional AC systems. This requires more sophisticated TXV control strategies.

One significant challenge is maintaining optimal performance in cold climates. Heat pump efficiency drops dramatically as temperatures plummet. Innovative solutions are being explored to address this, including:

Enhanced TXV designs: TXVs capable of more precise and rapid adjustments to refrigerant flow are needed to optimize heat pump performance under varying conditions. This includes micro-channel TXVs with faster response times.
Smart control algorithms: Sophisticated software algorithms can predict heating and cooling demands and proactively adjust the TXV to maximize efficiency. These algorithms can leverage data from vehicle sensors, weather forecasts, and driver preferences.
Alternative refrigerants: The industry is moving away from refrigerants with high Global Warming Potential (GWP) towards more environmentally friendly alternatives like R-1234yf and, eventually, R-290 (propane) or CO2 (R-744). These new refrigerants have different thermodynamic properties, requiring TXVs to be designed and calibrated specifically for each refrigerant.

The integration of the TXV into the broader vehicle control system is also becoming increasingly important. As vehicles become more connected and autonomous, the HVAC system needs to be able to anticipate and respond to changes in the driving environment. For example, if the vehicle anticipates a period of regenerative braking, it could proactively reduce the cooling load to minimize energy consumption.

Emerging Technologies and the Future of the TXV

Several emerging technologies have the potential to revolutionize TXV design and function:

Electronically Controlled Expansion Valves (EEVs)

EEVs are already gaining traction in the automotive industry. Unlike traditional TXVs, which rely on mechanical feedback, EEVs are controlled electronically by the vehicle's ECU (Engine Control Unit). This allows for much more precise and dynamic control of refrigerant flow.

EEVs offer several advantages:

Improved efficiency: EEVs can optimize refrigerant flow based on real-time conditions, maximizing cooling and heating performance while minimizing energy consumption.
Enhanced diagnostics: EEVs can provide detailed data on refrigerant flow and system performance, making it easier to diagnose and troubleshoot problems.
Integration with advanced control systems: EEVs can be seamlessly integrated with other vehicle systems, such as adaptive cruise control and lane keeping assist, to optimize climate control based on driving conditions.

Microfluidic Expansion Valves

Microfluidic technology holds promise for creating extremely small and precise expansion valves. These valves could be integrated directly into the evaporator core, allowing for localized control of refrigerant flow. This could lead to more uniform cooling and heating, as well as reduced refrigerant charge.

Smart Refrigerant Management Systems

The future of automotive climate control lies in smart refrigerant management systems that combine advanced sensors, sophisticated control algorithms, and electronically controlled components like EEVs. These systems will be able to:

Predict heating and cooling demands based on driver preferences, weather conditions, and vehicle usage.
Optimize refrigerant flow to maximize efficiency and minimize energy consumption.
Detect and diagnose potential problems early, preventing costly repairs.
Adapt to changing environmental conditions and regulatory requirements.

The location of these future 'valves' may not be as easily defined as the classic TXV. Instead, we might see distributed refrigerant control points embedded within the evaporator and condenser themselves, allowing for granular management of heat exchange.

Realistic Challenges and the Path Forward

While the future of automotive climate control is bright, several challenges need to be addressed:

Cost: Advanced technologies like EEVs and microfluidic valves are currently more expensive than traditional TXVs. Cost reductions will be necessary for widespread adoption.
Complexity: Smart refrigerant management systems are complex and require sophisticated software and hardware. Ensuring reliability and durability will be crucial.
Refrigerant transition: The transition to new refrigerants with lower GWP presents technical challenges, as TXVs and other components need to be designed and calibrated specifically for each refrigerant.
Cybersecurity: As vehicle systems become more connected, cybersecurity becomes a growing concern. Ensuring the security of refrigerant management systems is essential to prevent unauthorized access and manipulation.

Overcoming these challenges will require collaboration between automakers, suppliers, and researchers. Investing in research and development, establishing industry standards, and promoting education and training will be essential to pave the way for a future of efficient, sustainable, and intelligent automotive climate control.

A Visionary Note

The humble TXV, in its current and future forms, represents more than just a component in an air conditioning system. It symbolizes the ongoing evolution of automotive technology towards greater efficiency, sustainability, and intelligence. As vehicles become increasingly electrified, connected, and autonomous, the TXV will play a vital role in ensuring passenger comfort while minimizing energy consumption and environmental impact. The future of mobility is not just about getting from point A to point B; it's about doing so in a way that is both enjoyable and responsible. And in that journey, the smart, adaptive descendants of the TXV will be silent, yet vital, partners.
