2004 Ford F150 Trasnfwe Case Relay Module

The 2004 Ford F-150, a workhorse admired for its reliability and versatility, incorporates a relatively simple yet critical component in its four-wheel-drive system: the transfer case relay module. While often overlooked in favor of more glamorous powertrain parts, this module plays a vital role in enabling seamless switching between two-wheel drive (2WD) and four-wheel drive (4WD). In this guide, we'll delve into the inner workings of this component, exploring its function, architecture, diagnostic procedures, and potential failure modes. Think of it as a deep dive into the unsung hero of your F-150's off-road capability.

Understanding the Transfer Case and its Control System

Before we dissect the relay module itself, let's establish the broader context: the transfer case and its control system. The transfer case is essentially a gearbox attached to the transmission. Its primary function is to split power from the transmission and direct it to both the front and rear axles, enabling 4WD. In the 2004 F-150, the transfer case is typically controlled electronically, meaning that instead of manually shifting a lever, the driver uses a dashboard-mounted switch to select the desired drive mode (2H, 4H, or 4L).

This electronic control relies on a network of sensors, actuators, and, of course, the transfer case relay module. The driver's mode selection sends a signal to the vehicle's computer (Powertrain Control Module, or PCM). The PCM, in turn, evaluates various inputs (speed, throttle position, etc.) to determine if the requested shift is safe and appropriate. If all conditions are met, the PCM commands the transfer case relay module to energize specific relays, which then activate the transfer case motor. This motor physically shifts the transfer case into the selected gear.

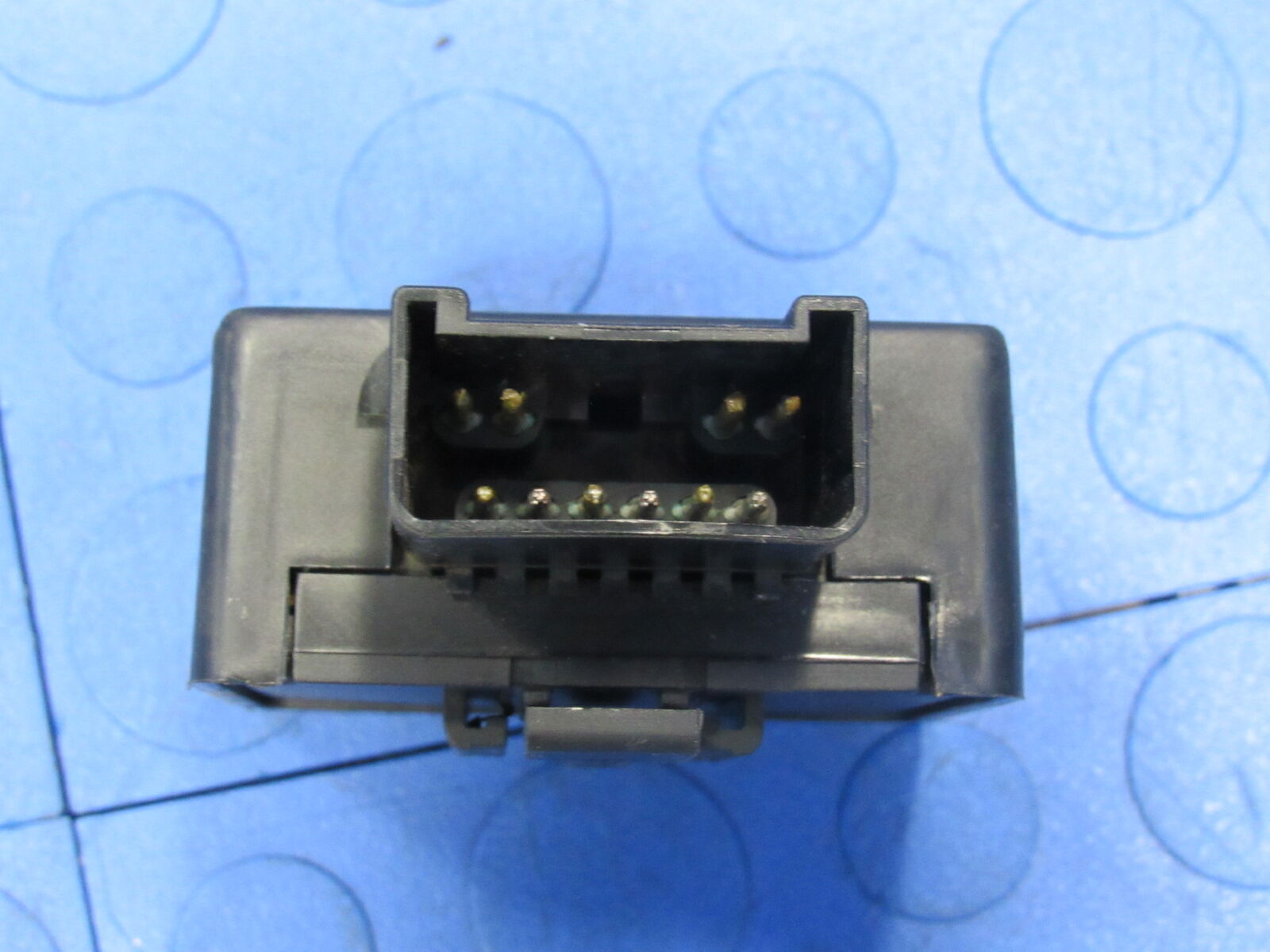

The Transfer Case Relay Module: A Closer Look

The transfer case relay module is essentially a switchboard containing multiple relays. Each relay controls a specific function within the transfer case shifting process. Common functions include:

Shift Motor Direction: Controlling the polarity of the voltage applied to the shift motor to dictate whether it moves the transfer case gears forward or backward.
Range Selection: Selecting between high-range (4H) and low-range (4L) gears.
Neutral Position (if applicable): Some transfer cases include a neutral position, which disengages both axles from the transmission.

The module receives low-current signals from the PCM and uses them to control high-current circuits that power the transfer case motor. Think of it like a set of amplifiers; a small signal triggers a much larger action.

Relay Architecture and Operation

Each relay within the module typically consists of:

Coil: A coil of wire that, when energized with electricity, creates an electromagnetic field.
Armature: A movable piece of metal that is attracted by the electromagnetic field when the coil is energized.
Contacts: Electrical contacts that are either opened or closed by the movement of the armature. There's usually a normally open (NO) contact that closes when the relay is activated, and sometimes a normally closed (NC) contact that opens when the relay is activated.

When the PCM sends a signal to the relay module, it energizes the coil of a specific relay. The electromagnetic field pulls the armature, which, in turn, closes (or opens) the contacts. This completes the high-current circuit that powers the transfer case motor, initiating the shift.

Why use relays instead of directly controlling the motor with the PCM? The answer is current handling. The PCM's output circuits are designed to handle low currents. The transfer case motor, on the other hand, requires significantly higher current. Using relays allows the PCM to control the motor without being overloaded.

Diagnostic Procedures and Troubleshooting

When your F-150's 4WD system malfunctions, the transfer case relay module is one potential culprit. Here's a breakdown of common symptoms and diagnostic steps:

Common Symptoms

Failure to Shift into 4WD: The most obvious symptom. You select 4H or 4L, but the system doesn't engage.
Grinding Noises During Shift: Indicates a potential issue with the transfer case internals, but the relay module could also be contributing if it's not fully engaging the motor.
4WD Light Flashing: Indicates a communication error or a problem with the shift process.
4WD System Inoperative: The entire 4WD system is non-functional.

Diagnostic Steps

Check Fuses: Always start with the basics. Inspect the fuses related to the transfer case and 4WD system. A blown fuse is a common cause of failure. Refer to your owner's manual for fuse locations.
Scan for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to retrieve any stored DTCs. Codes related to the transfer case, shift motor, or relay module can provide valuable clues. Common codes include those indicating circuit faults, motor position errors, or communication issues.
Inspect the Relay Module: Physically inspect the relay module for signs of damage, such as corrosion, melted plastic, or loose connections. A visual inspection can often reveal obvious problems.
Test Relay Functionality: You can test the functionality of individual relays using a multimeter. Check for continuity across the relay contacts when the relay is both energized and de-energized. Also, check the coil resistance. An open or shorted coil indicates a faulty relay. Some advanced scanners have the ability to command relays on and off for testing purposes.
Check Wiring and Connectors: Inspect the wiring harness and connectors leading to the relay module, transfer case motor, and PCM. Look for damaged wires, corroded terminals, or loose connections. Use a multimeter to check for voltage and ground at the appropriate pins.
Monitor Data Stream: Use a diagnostic scanner to monitor the data stream from the PCM related to the transfer case. This can provide insights into the PCM's commands and the feedback from the transfer case position sensor.
Shift Motor Testing: The shift motor itself can be tested independently. Applying voltage directly to the motor (with proper polarity and precautions) should cause it to move. If the motor doesn't respond, it's likely faulty. Important: Always disconnect the motor from the transfer case before testing to avoid potential damage.

Caution: Always disconnect the battery's negative terminal before working on electrical components to prevent accidental shorts and electrical shocks.

Potential Failure Modes

The transfer case relay module can fail in several ways:

Relay Failure: Individual relays within the module can fail due to contact wear, coil burnout, or mechanical damage. This is the most common failure mode.
Corrosion: Corrosion on the relay terminals or circuit board can disrupt electrical connections, leading to intermittent or complete failure.
Overheating: Excessive current draw or a faulty shift motor can cause the relay module to overheat, damaging the internal components.
Wiring Damage: Damage to the wiring harness or connectors leading to the module can disrupt the flow of electricity.
Internal Circuit Board Failure: In rare cases, the internal circuit board within the module can fail due to component defects or physical damage.

Replacement and Maintenance

Replacing a faulty transfer case relay module is typically a straightforward process. Disconnect the old module, connect the new module, and verify that the 4WD system is functioning correctly. When selecting a replacement module, ensure that it is compatible with your specific F-150 model year and trim level. OEM (Original Equipment Manufacturer) parts are often the most reliable option, but aftermarket alternatives can also provide good performance at a lower cost.

Preventative maintenance for the transfer case relay module is limited, but regular inspection of the wiring harness and connectors can help identify potential problems early on. Keeping the connections clean and dry can also help prevent corrosion. Furthermore, regularly exercising the 4WD system (engaging and disengaging it periodically) can help prevent the shift motor and transfer case from seizing up, reducing the strain on the relay module.

In conclusion, while the transfer case relay module might seem like a small and insignificant component, it's a critical part of the 2004 Ford F-150's 4WD system. Understanding its function, architecture, diagnostic procedures, and potential failure modes can empower you to troubleshoot and repair 4WD problems effectively, keeping your truck ready for any terrain.
