2021 Nissan Rogue Ac Relay Location

The 2021 Nissan Rogue represented a significant redesign for the popular compact SUV, bringing with it updated styling, enhanced technology, and refinements to its powertrain. For automotive professionals tasked with diagnosing and repairing these vehicles, understanding the location and function of key components like the AC relay is crucial. This article delves into the specifics of the 2021 Rogue's AC relay location, exploring the engineering rationale behind its placement, comparing it to other vehicles, and providing insights into maintenance and future trends.

AC Relay Location and Function

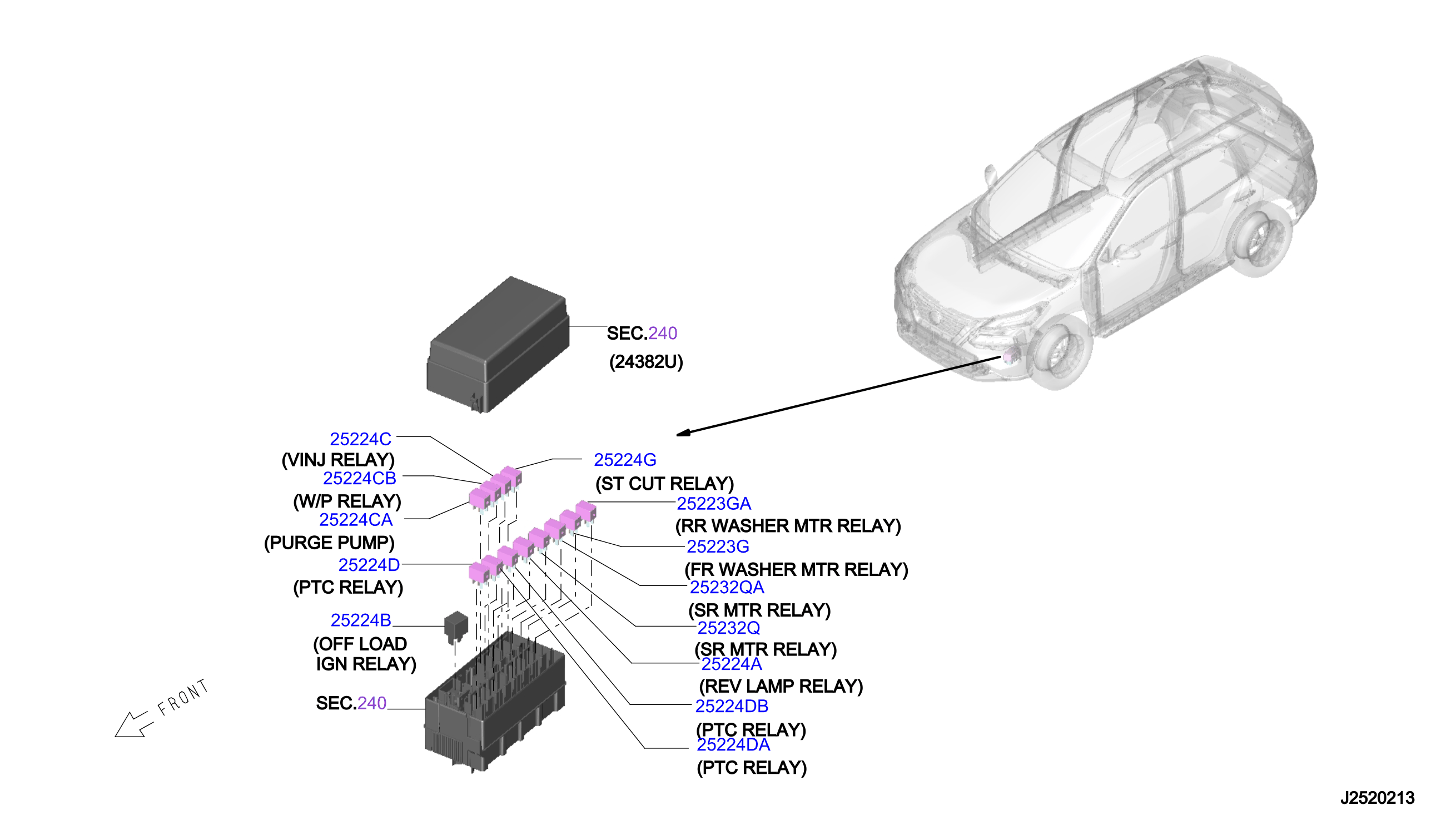

The AC relay in the 2021 Nissan Rogue is typically located within the Intelligent Power Distribution Module (IPDM E/R), which is situated in the engine compartment, usually near the battery. The specific location within the IPDM E/R may vary slightly depending on the trim level and any optional equipment installed. Identifying the correct relay often requires consulting the vehicle's wiring diagram or using a scan tool to pinpoint the specific circuit causing the issue. The relay's function is simple yet vital: it acts as an electrically controlled switch that allows the vehicle's computer to activate the air conditioning compressor clutch. When the driver selects the AC, the computer sends a signal to the AC relay, which then closes the circuit, providing power to the compressor clutch and engaging the AC system.

Technical Specifications and Engineering Choices

The AC relay itself is a standard automotive relay, typically a 12V DC relay with a current rating sufficient to handle the compressor clutch's load. Nissan's decision to integrate the AC relay into the IPDM E/R reflects a broader trend in automotive engineering towards centralized control and distribution of electrical power. This approach offers several advantages, including reduced wiring complexity, improved diagnostic capabilities, and the ability to implement sophisticated power management strategies. By housing multiple relays and fuses within a single module, Nissan can streamline the vehicle's electrical system and improve its overall reliability. The IPDM E/R also allows for features like soft-start functionality for the AC compressor, reducing stress on the engine and extending the life of the compressor. The specific relay used is likely a standard automotive relay, rated to handle the current draw of the AC compressor clutch. Information on the exact amperage rating can be found within the vehicle's service manual.

Comparison with Alternatives

In older vehicles, the AC relay was often located in a separate relay box, sometimes under the hood or even in the passenger compartment. This decentralized approach required more wiring and made troubleshooting more difficult. Modern vehicles from other manufacturers, such as Toyota and Honda, also utilize integrated power distribution modules similar to Nissan's IPDM E/R. However, the specific location and design of these modules can vary. For example, some manufacturers may place the IPDM E/R in a different location within the engine compartment or even inside the cabin. The trend, however, is clearly towards integration and centralization for enhanced efficiency and diagnostic capabilities. A key difference can lie in the accessibility of the relay itself. Some IPDM designs make relay replacement relatively straightforward, while others require more disassembly.

Real-World Performance and Reliability Aspects

The reliability of the AC relay is generally good, but like any electrical component, it can fail over time due to factors such as heat, vibration, and corrosion. A failing AC relay can manifest in several ways, including intermittent AC operation, complete AC failure, or even a parasitic draw on the battery. In the 2021 Rogue, the integrated nature of the IPDM E/R means that diagnosing an AC relay issue often requires more than just checking the relay itself. Technicians must also inspect the wiring harness, connectors, and the IPDM E/R itself for any signs of damage or corrosion. Furthermore, a failing AC compressor clutch or other AC system components can overload the relay, leading to premature failure. Therefore, a comprehensive diagnosis of the entire AC system is essential when troubleshooting AC relay issues.

Maintenance Tips

Preventative maintenance can help extend the life of the AC relay and the entire AC system. Regularly inspecting the engine compartment for signs of corrosion or damage is a good starting point. Cleaning the battery terminals and ensuring proper grounding can also help prevent electrical issues. When replacing the AC relay, it's crucial to use a high-quality replacement part that meets or exceeds Nissan's specifications. Using a cheap or generic relay can lead to premature failure and potentially damage other components. Consider using a dielectric grease on the relay terminals to prevent corrosion. Moreover, it's crucial to follow proper diagnostic procedures when troubleshooting AC problems. Simply replacing the AC relay without identifying the root cause of the issue may not solve the problem and could even lead to further damage. Before condemning the relay, verify the control signal from the ECM to the relay coil, and check the voltage and ground at the relay terminals. A wiring diagram is invaluable for this process.

Pros and Cons of Integrated Power Distribution

Pros:

Reduced wiring complexity: Fewer individual wires and connectors contribute to a cleaner and more organized engine compartment.

Improved diagnostic capabilities: The IPDM E/R often includes self-diagnostic features that can help pinpoint electrical issues.

Enhanced power management: The integrated design allows for sophisticated power management strategies, such as load shedding and voltage regulation.

Space saving: Consolidating relays and fuses into a single module saves space in the engine compartment.

Cons:

Increased complexity: Diagnosing issues within the IPDM E/R can be more complex than troubleshooting individual relays.

Potential for cascading failures: A failure within the IPDM E/R can potentially affect multiple systems.

Higher replacement cost: Replacing the entire IPDM E/R can be more expensive than replacing a single relay.

Accessibility: Depending on the design, accessing and replacing individual relays within the IPDM E/R can be difficult.

Future Trends

The automotive industry is rapidly evolving, with electric vehicles (EVs) and advanced driver-assistance systems (ADAS) becoming increasingly prevalent. These trends are likely to further influence the design and function of power distribution systems. In EVs, the AC compressor is typically powered by an electric motor, eliminating the need for a traditional belt-driven compressor and clutch. However, relays are still used to control the electric compressor and other AC system components. As vehicles become more autonomous, the reliability and redundancy of electrical systems will become even more critical. Future IPDM E/R designs are likely to incorporate more sophisticated diagnostic features, over-the-air software updates, and advanced power management capabilities. Solid-state relays (SSRs) may also become more common, offering improved reliability and faster switching speeds compared to traditional electromechanical relays. The shift towards zonal architectures, where vehicle functions are grouped into specific zones with dedicated controllers and power distribution, will also impact relay placement and functionality.

Furthermore, the increasing use of 48V electrical systems in vehicles will require relays and other components to be designed to handle higher voltages and currents. This transition will also necessitate changes in diagnostic procedures and tooling. Predictive maintenance, enabled by data analytics and machine learning, will play an increasingly important role in preventing AC system failures. By analyzing data from sensors and onboard diagnostics, technicians can identify potential issues before they lead to component failure, reducing downtime and improving customer satisfaction.

Forward-Looking Note

The automotive industry is in a period of unprecedented transformation. As vehicles become more complex and reliant on electricity, the role of automotive professionals will continue to evolve. Staying up-to-date with the latest technologies, diagnostic procedures, and repair techniques is essential for success. Embracing new tools and embracing continuous learning will be crucial for navigating the challenges and opportunities of the future automotive landscape. The location of the AC relay in the 2021 Nissan Rogue is just one small piece of a much larger puzzle, but understanding the engineering rationale behind its placement and function is a valuable step towards becoming a more proficient and effective automotive technician. As the industry moves towards electrification and autonomy, a strong foundation in electrical systems and diagnostic principles will be more important than ever.
