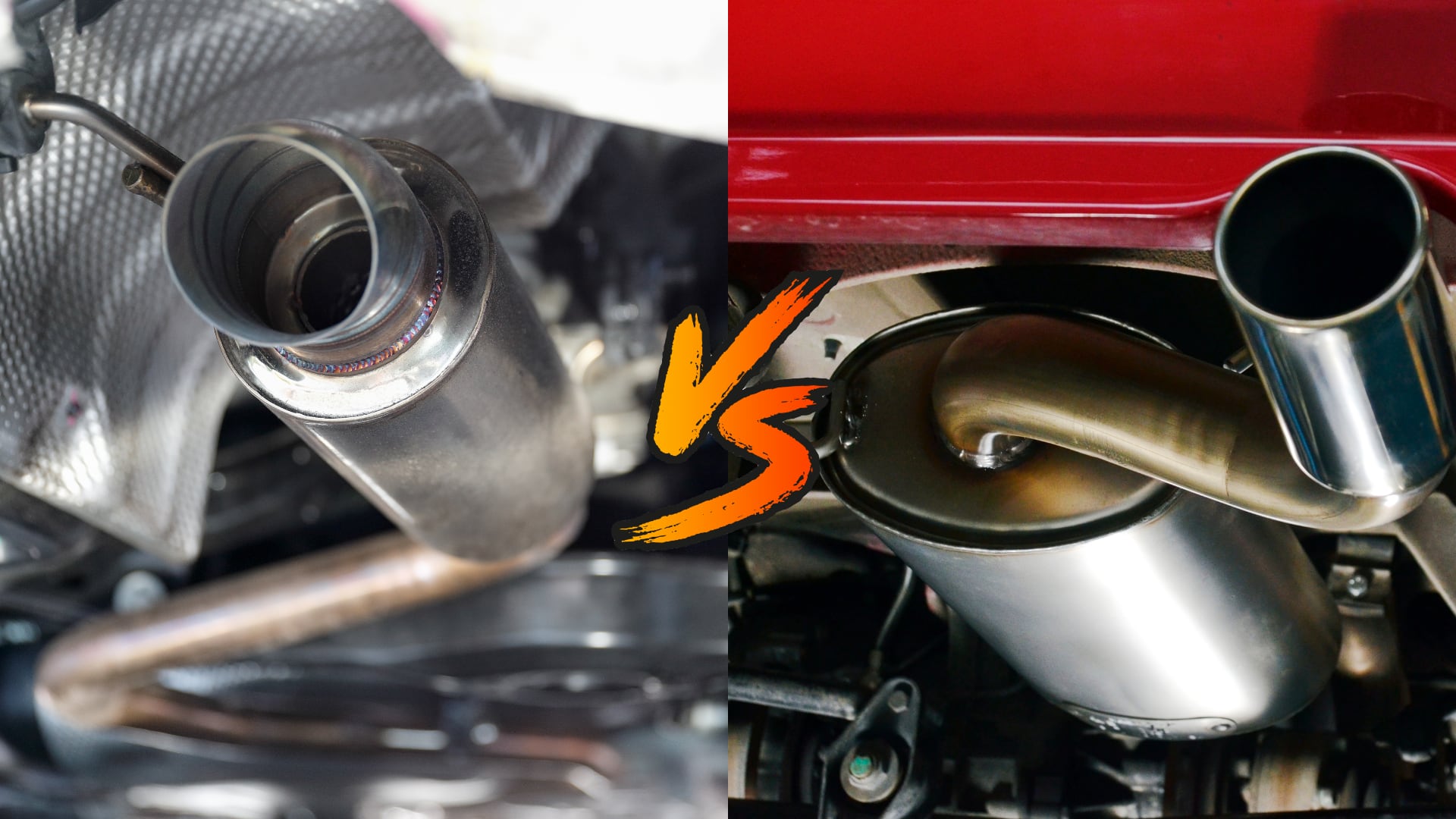

Difference Between Resonator And Muffler

The exhaust system of a vehicle is a complex network designed to safely expel exhaust gases from the engine while minimizing noise and pollutants. Within this system, two crucial components often get confused: the resonator and the muffler. While both contribute to sound reduction, they operate on different principles and target different frequencies. Understanding the distinctions between these two devices is essential for automotive enthusiasts, mechanics, and anyone looking to optimize their vehicle's performance and sound profile.

Resonator: Fine-Tuning the Exhaust Note

A resonator, sometimes called a Helmholtz resonator, is a component designed to dampen specific sound frequencies within the exhaust stream. Its primary function isn't to drastically reduce overall volume like a muffler, but rather to tune the exhaust note by canceling out specific unwanted frequencies that contribute to drone, rasp, or harshness. Think of it as a targeted noise control device.

How a Resonator Works

The typical resonator consists of a chamber, often cylindrical, connected to the main exhaust pipe via a small neck or opening. This chamber acts as an acoustic filter. When sound waves of a particular frequency enter the resonator, they cause the air inside the chamber to resonate. By carefully designing the size and shape of the chamber and neck, manufacturers can tune the resonator to a specific frequency. At this resonant frequency, the sound waves entering the chamber will be out of phase with the sound waves in the main exhaust pipe, leading to destructive interference. This destructive interference effectively cancels out or significantly reduces the amplitude of the targeted frequency.

Think of it like this: imagine pushing a child on a swing. If you push at the swing's natural frequency (resonance), the swing's amplitude increases dramatically. Conversely, if you push at a different frequency, you'll likely dampen the swing's motion. A resonator works on the same principle, but with sound waves instead of a swing.

Types of Resonators

There are several types of resonators, each with its own characteristics and applications:

• Helmholtz Resonators: The most common type, as described above, consisting of a chamber and a neck.
• Side-Branch Resonators: Similar to Helmholtz resonators but typically have a longer neck, which allows for more precise frequency tuning.
• Quarter-Wave Resonators: These resonators utilize a pipe of a specific length (one-quarter of the wavelength of the target frequency) to create a standing wave that cancels out the unwanted frequency.

Resonator Placement and Impact

Resonators are typically placed upstream of the muffler, often closer to the engine. This placement allows them to address the primary frequencies generated by the engine before they reach the muffler. Because resonators are designed for targeted frequency cancellation, they generally have minimal impact on overall exhaust flow. Replacing a resonator with a straight pipe may increase exhaust volume slightly, but it will primarily alter the tone, often for the worse by introducing drone or rasp.

Example: Many modern vehicles, particularly those with four-cylinder engines, use resonators to eliminate the high-frequency rasp that is common in these engines. Aftermarket exhaust systems often incorporate resonators to fine-tune the exhaust note and minimize drone at highway speeds.

Muffler: The Sound Absorption Authority

The muffler is the primary noise reduction device in the exhaust system. Unlike the resonator, which targets specific frequencies, the muffler aims to reduce the overall volume of the exhaust noise across a broad range of frequencies. It achieves this through a combination of sound absorption, reflection, and interference techniques.

How a Muffler Works

Mufflers generally employ a series of internal chambers and tubes, often filled with sound-absorbing materials like fiberglass or steel wool. These internal components force the exhaust gases to travel along a convoluted path, disrupting the sound waves and reducing their energy. Here are the common methods mufflers use to reduce noise:

• Absorption: Sound-absorbing materials convert sound energy into heat energy. The more absorbent the material, the greater the noise reduction.
• Reflection: Internal baffles and chambers reflect sound waves back upon themselves, causing them to interfere destructively and reduce their overall amplitude.
• Interference: Specifically designed chambers create opposing sound waves that cancel each other out, reducing the overall noise level.

Types of Mufflers

There are several different types of mufflers, each offering varying degrees of noise reduction and performance:

• Chambered Mufflers: These mufflers use a series of chambers and baffles to reflect and disrupt sound waves. They are generally effective at reducing noise but can also restrict exhaust flow, potentially impacting performance.
• Absorption Mufflers (Straight-Through): These mufflers feature a straight-through perforated core surrounded by sound-absorbing material. They offer minimal restriction to exhaust flow, making them popular for performance applications, but they typically provide less noise reduction than chambered mufflers.
• Turbo Mufflers: These mufflers combine elements of both chambered and absorption designs, offering a balance between noise reduction and performance. They often feature a spiral or turbine-like internal design to disrupt sound waves.

Muffler Placement and Impact

Mufflers are typically located at the rear of the exhaust system, furthest from the engine. This placement allows them to address the remaining noise after the exhaust gases have passed through the catalytic converter and, potentially, a resonator. Replacing a muffler can significantly impact both the exhaust volume and tone. A performance muffler will often be louder than a stock muffler and may alter the exhaust note to a deeper, more aggressive sound.

Example: Swapping a stock chambered muffler for a straight-through absorption muffler on a sports car will typically result in a louder, more aggressive exhaust note and potentially a slight increase in horsepower due to reduced backpressure. However, this change may also increase the risk of exceeding noise regulations in some areas.

Resonator vs. Muffler: Key Differences Summarized

Here's a table summarizing the key differences between resonators and mufflers:

Choosing the Right Component: Considerations for Modification

When modifying your exhaust system, understanding the function of both the resonator and muffler is crucial for achieving your desired results. Consider the following:

• Desired Sound Level: If your primary goal is to reduce overall exhaust volume, focus on the muffler. Consider a chambered muffler for maximum noise reduction or a turbo muffler for a balance of noise reduction and performance.
• Desired Tone: If you want to fine-tune the exhaust note, eliminating drone or rasp, focus on the resonator. Consider adding or replacing the resonator with a unit tuned to the specific frequency you want to eliminate.
• Performance Goals: If you're seeking to maximize performance, prioritize minimizing exhaust backpressure. A straight-through muffler and a high-flow resonator (or removal of the resonator altogether, with careful consideration of the resulting tone) can help achieve this. However, be mindful of potential noise increases.
• Legal Regulations: Be aware of local noise regulations before making any modifications to your exhaust system. Exceeding these limits can result in fines or other penalties.

In conclusion, while both the resonator and muffler contribute to the overall sound of your vehicle's exhaust, they do so in different ways. The resonator acts as a fine-tuning device, targeting specific frequencies to eliminate unwanted sounds, while the muffler is the primary noise reduction device, reducing the overall volume of the exhaust. By understanding the differences between these two components, you can make informed decisions about modifications to your exhaust system, achieving your desired sound and performance goals while staying within legal limits.
