Finding The Blend Door Actuator In Your 2008 Nissan Altima

If you're experiencing inconsistent heating or cooling in your 2008 Nissan Altima, with one side blowing hot while the other blows cold, or perhaps no heat at all, chances are you're dealing with a faulty blend door actuator. This article will guide you through locating this crucial component and understanding its role in your vehicle's climate control system. We'll cover its function, common issues, and best practices for addressing potential problems. This is a project suitable for experienced DIYers, but remember to always prioritize safety and consult a professional if you're unsure about any step.

Background: Your Altima's Climate Control System

Before we dive into locating the blend door actuator, let's understand the system it's a part of. Your 2008 Nissan Altima utilizes a system where the engine's heat and the air conditioning compressor's cooling are blended together to achieve the desired cabin temperature. This blending is controlled by the Heating, Ventilation, and Air Conditioning (HVAC) system. At the heart of this system is the heater core, a small radiator-like component that circulates hot coolant from the engine, and the evaporator, which cools the air using refrigerant.

The HVAC system comprises several components working in unison: the blower motor that pushes air through the system, the heater core, the evaporator, and a series of ducts that direct the airflow to different vents in the cabin. The temperature selection is managed by the blend door, and critically, the blend door actuator that physically moves the blend door. Think of the blend door as a diverter valve, directing air either through the heater core for heat, bypassing it for cooling, or somewhere in between for a mixture of both.

Technical Breakdown: How the Blend Door Actuator Works

The blend door actuator is a small electric motor that responds to signals from the HVAC control panel. When you adjust the temperature dial in your Altima, the HVAC control module sends a signal to the blend door actuator. This signal tells the actuator to rotate a specific amount, which in turn moves the blend door. The actuator typically contains a small potentiometer, a variable resistor, which provides feedback to the HVAC control module about the blend door's current position. This feedback allows the system to accurately control the temperature inside the vehicle. Actuators commonly use a pulse width modulated (PWM) signal for precise position control.

In simple terms, you turn the dial, the actuator gets the message, the door moves, and the system confirms the door is where it should be. The blend door actuator is usually mounted near the HVAC unit, within the dashboard. Its accessibility can vary greatly depending on the vehicle model and the specific actuator's location.

Locating the Blend Door Actuator in a 2008 Nissan Altima

Now for the crux of the matter: finding the blend door actuator in your 2008 Altima. This can be a bit of a scavenger hunt, but follow these steps:

Step 1: Gather Information

Before you start tearing apart your dashboard, consult your vehicle's repair manual (Haynes or Chilton are good options) or an online database like Alldata or Mitchell OnDemand. These resources provide detailed diagrams and instructions specific to your vehicle. Understanding the general location and appearance of the actuator beforehand will save you time and frustration.

Step 2: Determine Which Actuator is the Issue

Your Altima may have multiple actuators: one for the temperature blend door, one for mode selection (directing air to the defrost, vents, or floor), and potentially one for the recirculation door. The symptoms you're experiencing can help narrow down which actuator is likely at fault. For instance, if you have issues with temperature control, the temperature blend door actuator is the prime suspect. If you can't switch between defrost, vents, and floor settings, the mode door actuator is more likely the culprit.

Step 3: Inspect the Suspect Area

The blend door actuator is generally located behind the dashboard, near the center console. Specifically, you'll want to focus on the area around the HVAC unit, which is often positioned in the center of the dashboard. In the 2008 Altima, the primary blend door actuator is often more accessible from the passenger side footwell. You will likely need to remove some lower dashboard trim panels to gain access. These panels are typically held in place by plastic clips and/or screws.

Important: Disconnect the negative battery terminal before beginning any electrical work. This prevents accidental shorts and damage to your vehicle's electrical system.

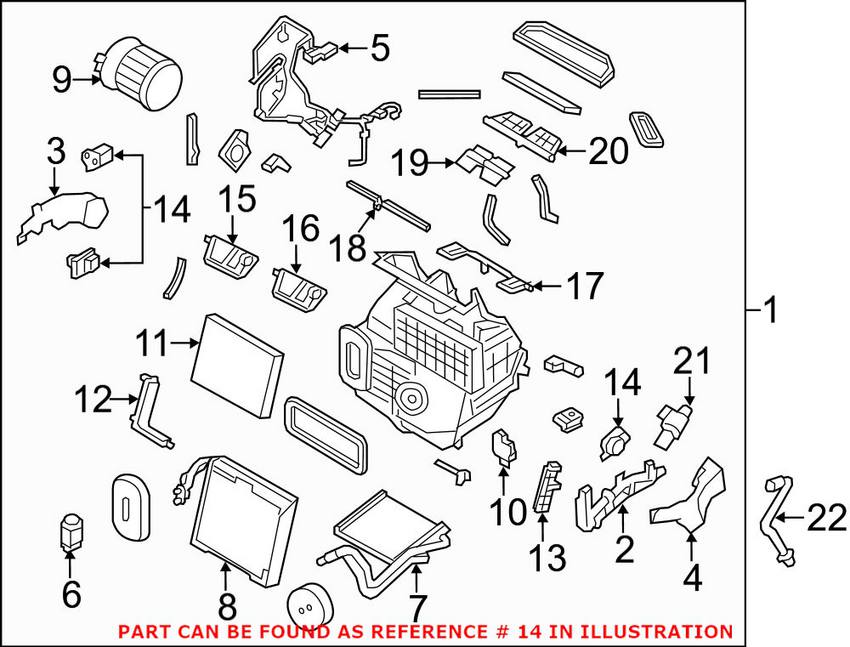

Once the trim panels are removed, look for a small plastic housing with an electrical connector attached. The actuator will have a small arm or linkage that connects to the blend door itself. You may need a flashlight to see clearly.

Step 4: Verification

Once you believe you've found the actuator, there are a few ways to verify it's the correct one.

Visual Inspection: Compare the actuator's appearance to diagrams in your repair manual. Look for the arm connecting to the blend door linkage.
Audible Test: With the engine off and the ignition on (but the engine not started), have someone adjust the temperature control knob while you listen near the actuator. You should hear a faint whirring or clicking sound as the actuator motor operates.
Physical Test (with caution): Carefully touch the actuator while someone adjusts the temperature. You should feel it vibrating or moving slightly. Be extremely careful not to force anything or put excessive pressure on the actuator, as this could damage it or the blend door linkage.

Common Issues and Maintenance Concerns

Blend door actuators are prone to failure due to their constant use and the harsh environment they operate in (temperature fluctuations, dust, and vibrations). Common issues include:

Broken Gears: The internal gears within the actuator can strip or break, preventing the actuator from moving the blend door.
Faulty Motor: The electric motor itself can fail, either due to wear and tear or electrical problems.
Damaged Potentiometer: A failing potentiometer results in inaccurate feedback to the HVAC control module, leading to erratic temperature control.
Electrical Issues: Problems with the wiring harness, connector, or the HVAC control module can also prevent the actuator from functioning properly.

While there's not much preventative maintenance you can perform on a blend door actuator, avoiding extreme temperature changes inside the vehicle (e.g., leaving the car in direct sunlight with the windows closed) can help prolong its lifespan. Regularly cleaning the HVAC system's air filter can also reduce dust and debris buildup that could affect the actuator.

Do's and Don'ts / Best Practices

Do disconnect the negative battery terminal before working on any electrical components.
Do consult a repair manual or online database for vehicle-specific instructions and diagrams.
Do use proper tools and techniques to avoid damaging plastic trim panels or other components.
Do be patient and methodical; rushing can lead to mistakes and further damage.
Don't force anything. If a trim panel or component is not coming loose easily, double-check for hidden screws or clips.
Don't ignore warning signs. If you notice inconsistent heating or cooling, address the issue promptly to prevent further damage to the HVAC system.
Don't buy cheap aftermarket actuators. While they may seem like a bargain, they often have poor build quality and a short lifespan. Stick with reputable brands like Dorman, ACDelco, or OEM Nissan parts.

Conclusion

Locating the blend door actuator in your 2008 Nissan Altima requires some patience and a bit of detective work. By following these steps, you should be able to identify the correct actuator and determine whether it needs replacement. If you are comfortable with basic automotive repairs, replacing the actuator yourself can save you money on labor costs. However, if you are unsure about any aspect of the repair process, it's always best to consult a qualified mechanic. A malfunctioning blend door actuator can make driving uncomfortable and potentially affect the resale value of your vehicle. Taking the time to diagnose and address the issue will ensure that you and your passengers enjoy a comfortable and controlled climate inside your Altima for years to come. Ultimately, if you're unsure about tackling this job yourself, seek professional assistance. A trusted mechanic can quickly diagnose and repair the problem, ensuring your HVAC system is functioning optimally.
