Forward Emergency Braking System Warning Light Infiniti

The appearance of a Forward Emergency Braking (FEB) system warning light in your Infiniti can be unsettling, especially when you're not immediately sure what it signifies. This article delves into the intricacies of the Infiniti's FEB system, the common reasons behind the warning light illumination, troubleshooting steps, and preventative measures to keep your system operating optimally. We'll cover the underlying technology, potential malfunctions, and practical solutions useful for both DIY enthusiasts and professional mechanics.

Understanding Infiniti's Forward Emergency Braking (FEB) System

Infiniti's FEB system is an advanced driver-assistance system (ADAS) designed to mitigate or prevent frontal collisions. It uses a combination of sensors, typically a radar sensor located in the front grille emblem and a camera system mounted near the rearview mirror, to monitor the distance and closing speed to vehicles ahead. When the system detects a potential collision, it provides a series of warnings, escalating from audible alerts to visual cues on the instrument cluster. If the driver doesn't respond, the FEB system can automatically apply the brakes to reduce the severity of the impact or, in some cases, avoid the collision altogether. This system is often linked to, or integrated with, other safety features like Intelligent Cruise Control (ICC) and Forward Collision Warning (FCW).

Key Components of the FEB System:

Radar Sensor: Emits radio waves to measure the distance and speed of the vehicle ahead. Critically important for all-weather performance.
Camera System: Identifies vehicles, pedestrians, and lane markings. Usually relies on clear visibility.
Control Module: Processes the data from the sensors and determines if intervention is necessary.
Brake Actuator: Applies the brakes automatically when a collision is imminent.

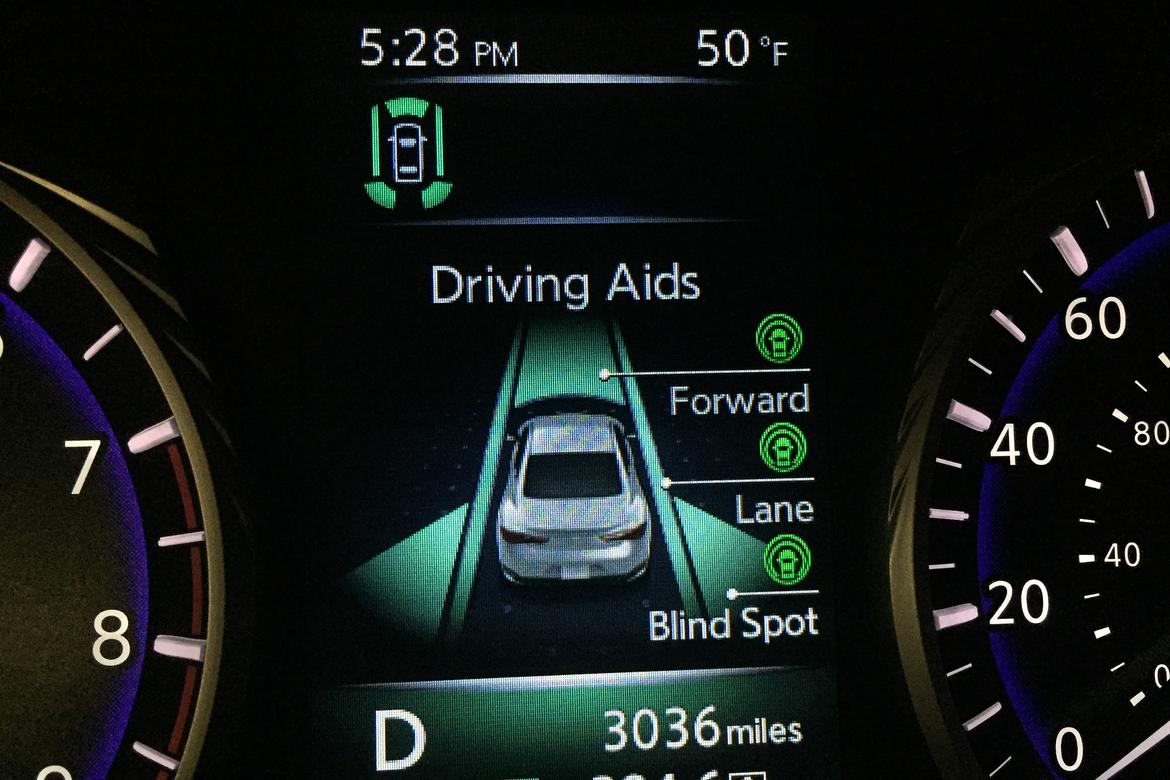

Instrument Cluster Display: Shows warnings and system status.

Common Reasons for the FEB Warning Light

The FEB warning light can illuminate for a variety of reasons, ranging from simple sensor obstructions to more complex system malfunctions. Understanding these potential causes can help you diagnose the problem effectively.

Sensor Obstruction: This is perhaps the most common culprit. Mud, snow, ice, or even a bug splattered on the radar sensor or camera lens can impair their ability to function correctly. Even a slightly misaligned front license plate can interfere with the radar signal.
Sensor Malfunction: The radar sensor or camera itself may be faulty. Internal component failure, damage from an accident, or corrosion can all lead to sensor malfunction. Diagnostics with a suitable scan tool are usually necessary to pinpoint this type of issue.
Wiring Issues: Damaged, corroded, or loose wiring connecting the sensors, control module, and brake actuator can disrupt communication and trigger the warning light. Rodents are notorious for gnawing on automotive wiring harnesses.
Control Module Failure: Though less common, the FEB control module itself can fail. This can be due to electrical surges, internal component failure, or software glitches.
Software Glitches: The FEB system relies on complex software. Software bugs or corrupted data can cause the system to malfunction. A software update from an Infiniti dealer might be required to resolve this.
Wheel Alignment Issues: In some cases, particularly on vehicles with advanced driver-assistance systems, even a slight misalignment of the wheels can affect the accuracy of the sensors and trigger the FEB warning light.
Brake System Problems: Issues within the brake system itself, such as a faulty brake booster or a malfunctioning ABS module, can indirectly affect the FEB system.
Low Battery Voltage: A weak or dying battery can sometimes cause seemingly unrelated electronic systems to malfunction, including the FEB system.

Troubleshooting the FEB Warning Light: A Step-by-Step Guide

Diagnosing the FEB warning light requires a systematic approach. Here's a step-by-step guide to help you pinpoint the problem:

Visual Inspection: Start by visually inspecting the radar sensor and camera lens for any obstructions. Clean them thoroughly with a soft cloth and mild detergent. Ensure the front license plate is not obstructing the radar sensor. Also, check the wiring harness for any obvious damage.
Check for Error Codes: Use an OBD-II scanner to check for diagnostic trouble codes (DTCs) related to the FEB system. These codes can provide valuable clues about the nature of the problem. Common codes might include those related to sensor performance, signal strength, or communication errors. More advanced scan tools can often provide live data from the sensors, allowing you to see their readings in real-time.
Sensor Testing: If you suspect a faulty sensor, you can use a multimeter to check its voltage and resistance. Consult the Infiniti service manual for the specific testing procedures and acceptable values. However, interpreting these readings often requires specialized knowledge.
Wiring Harness Inspection: Carefully inspect the wiring harness for any signs of damage, corrosion, or loose connections. Use a voltmeter to check for continuity in the wiring.
Battery Voltage Check: Use a multimeter to check the battery voltage. A healthy battery should have a voltage of around 12.6 volts when the engine is off.
Wheel Alignment Check: If the warning light persists and you suspect a wheel alignment issue, have your vehicle's alignment checked by a qualified technician.
Consult the Service Manual: The Infiniti service manual contains detailed troubleshooting procedures and diagrams for the FEB system. Refer to it for specific instructions and torque specifications.
Professional Diagnosis: If you're unable to diagnose the problem yourself, it's best to take your vehicle to a qualified mechanic or Infiniti dealer for professional diagnosis and repair. They have the specialized tools and expertise to accurately diagnose and fix complex issues.

Common Diagnostic Trouble Codes (DTCs) Related to FEB:

Knowing common DTCs can significantly speed up the diagnostic process. Here are some frequently encountered codes:

C1A10: Front Radar Sensor Aiming Incomplete/Incorrect.
C1A11: Front Radar Sensor Blocked.
C1A12: Front Radar Sensor Malfunction.
C1A13: Camera System Malfunction.
U1000: CAN Communication Circuit Malfunction. (Indicates a problem with the communication network between the control modules.)

Remember that these codes are merely starting points; further investigation is always necessary to confirm the root cause.

Repairing and Replacing FEB Components

Repairing or replacing FEB components requires caution and precision. Improper installation or calibration can render the system ineffective or even dangerous.

Sensor Replacement:

Replacing a faulty radar sensor or camera typically involves removing the front bumper or interior trim. After installation, the new sensor must be calibrated using a specialized diagnostic tool. This calibration process ensures that the sensor is properly aligned and functioning correctly.

Wiring Repair:

Repairing damaged wiring involves splicing and soldering new wires, using heat-shrink tubing to protect the connections. Ensure that the wiring harness is properly secured to prevent future damage.

Control Module Replacement:

Replacing the FEB control module requires programming the new module with the vehicle's specific configuration data. This is typically done using a diagnostic tool and an online connection to the Infiniti server.

Calibration is Key:

After any repairs or replacements involving the FEB system, it's crucial to perform a dynamic calibration. This usually involves driving the vehicle under specific conditions to allow the system to learn and adapt to its surroundings. The owner's manual and service information will outline the correct calibration procedures.

Preventative Maintenance and Best Practices

Preventative maintenance is key to keeping your FEB system operating reliably. Here are some best practices:

Regular Cleaning: Regularly clean the radar sensor and camera lens to remove any dirt, debris, or obstructions.
Professional Inspections: Have the FEB system inspected by a qualified technician during routine maintenance visits.
Software Updates: Keep the system software up to date by visiting an Infiniti dealer for regular software updates.
Prompt Repairs: Address any warning lights or malfunctions promptly to prevent further damage or system failure.
Avoid Modifications: Avoid making any modifications to the vehicle's front end that could interfere with the FEB system's sensors.
Safe Driving Habits: Remember that the FEB system is an aid, not a replacement for safe driving practices. Always maintain a safe following distance and pay attention to your surroundings.

Real-World Example: Diagnosing a C1A11 Code

Consider a scenario where an Infiniti owner reports an FEB warning light and a subsequent scan reveals a C1A11 code (Front Radar Sensor Blocked). The first step would be a thorough visual inspection of the radar sensor. In this case, the technician discovered a thick layer of dried mud caked onto the sensor. After carefully cleaning the sensor, the warning light disappeared, and the system functioned normally. This simple example highlights the importance of starting with the basics before jumping to more complex diagnoses.

However, if cleaning the sensor doesn't resolve the issue, further investigation is needed. This could involve checking the sensor's alignment, inspecting the wiring harness for damage, and testing the sensor's performance with a multimeter or specialized scan tool.

Conclusion

The Forward Emergency Braking system is a complex but vital safety feature in modern vehicles. Understanding its components, potential malfunctions, and troubleshooting procedures is essential for maintaining its proper function. By following the steps outlined in this article, you can effectively diagnose and address FEB system issues, ensuring the safety and well-being of yourself and your passengers. Remember to consult the Infiniti service manual for detailed instructions and specifications, and don't hesitate to seek professional help when needed.
