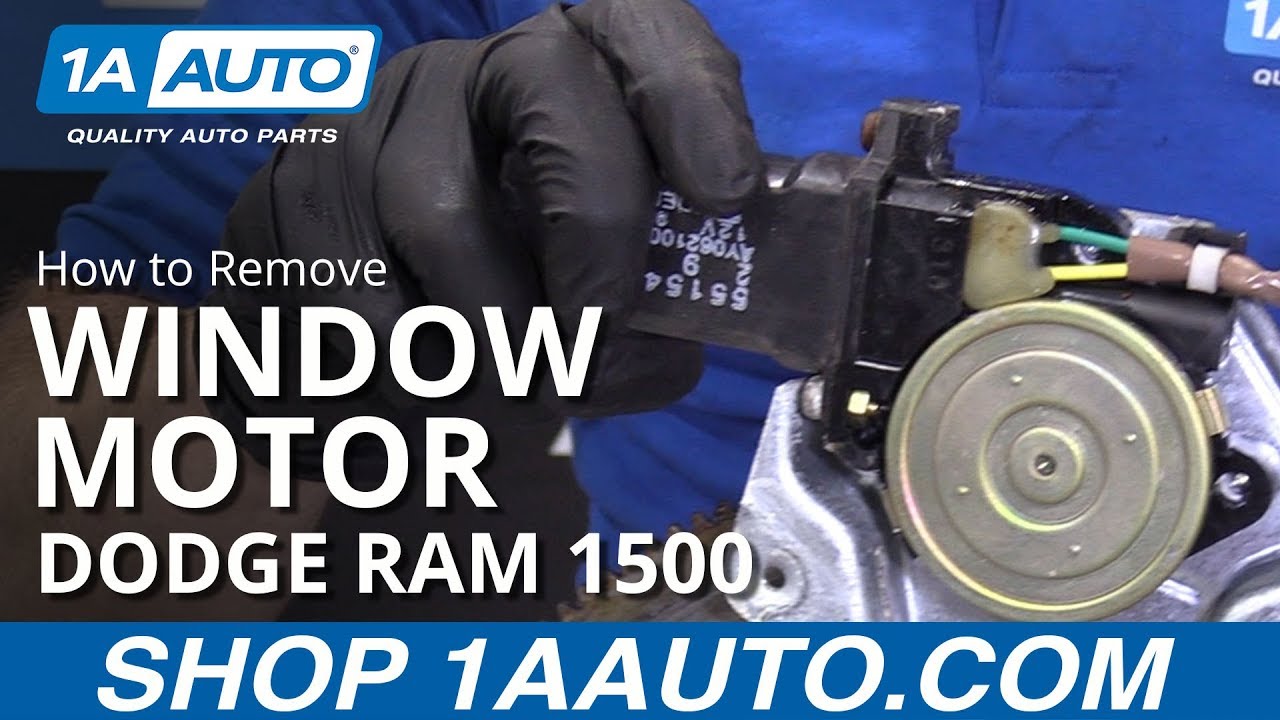

How To Replace A Window Motor

The power window, a staple in modern vehicles, provides convenience and safety. When the window motor fails, it disrupts this convenience and can even compromise security. This article delves into the intricacies of window motor replacement, focusing on technical aspects, alternative solutions, reliability concerns, and future trends.

Understanding Window Motor Systems

A typical power window system comprises several key components: the window motor, the regulator (which converts the motor's rotational motion into linear window movement), the window switch, and the wiring harness. The motor itself is usually a permanent magnet DC (PMDC) motor, chosen for its relatively high torque-to-size ratio and simple control. Engineering choices often involve balancing motor size, power consumption, and noise levels. Different regulator types exist, each with its own advantages and disadvantages:

Cable Regulator: Uses a cable-and-pulley system to raise and lower the window. Relatively inexpensive but prone to cable wear and breakage.
Scissor Regulator: Employs a scissor-like mechanism for window movement. More robust than cable regulators but can be bulkier.
Arm Regulator: Utilizes a pivoting arm to move the window. Offers a good balance of strength and compactness, often found in newer vehicles.

The window switch acts as a simple on/off switch, directing power to the motor in either direction to raise or lower the window. Modern systems often incorporate electronic control modules (ECMs) that provide features like auto-up/down, pinch protection, and remote operation. These ECMs monitor motor current and position to provide feedback and prevent damage.

Step-by-Step Window Motor Replacement

Replacing a window motor generally involves the following steps. Always disconnect the negative battery terminal before starting any electrical work.

Remove the Door Panel: This usually involves removing screws hidden behind trim pieces and then carefully prying the panel away from the door frame. Specialized trim removal tools are highly recommended to avoid damaging the panel.
Disconnect Electrical Connectors: Once the panel is off, disconnect all electrical connectors attached to it, including the window switch, door lock actuator, and speakers.
Remove the Vapor Barrier: Carefully peel back the vapor barrier (plastic sheet) that protects the door's interior from moisture. Take care not to tear it, as it will need to be reinstalled later.
Access the Window Regulator and Motor: Locate the window regulator and motor assembly. Depending on the vehicle, you may need to partially lower the window to access the mounting bolts.
Secure the Window: Before disconnecting the regulator from the window, securely prop up the window to prevent it from falling. This can be done using wedges, clamps, or specialized window support tools.
Remove the Old Motor and Regulator: Disconnect the electrical connector to the window motor. Then, carefully remove the bolts holding the motor and regulator assembly in place.
Install the New Motor and Regulator: Install the new motor and regulator assembly in the reverse order of removal. Ensure that all bolts are tightened to the manufacturer's specified torque.
Reconnect the Window to the Regulator: Carefully reconnect the window to the regulator mechanism. Ensure that the window is properly aligned.
Test the Operation: Connect the negative battery terminal and test the window operation. Ensure that the window moves smoothly and that the auto-up/down and pinch protection features are working correctly.
Reinstall the Vapor Barrier and Door Panel: Reinstall the vapor barrier and door panel in the reverse order of removal.

Technical Tip: Before installing the new motor, bench-test it by connecting it directly to a 12V power source to ensure it is functioning correctly.

Alternatives to Full Replacement

In some cases, a full window motor replacement may not be necessary. Consider these alternatives:

Motor Repair: If the motor is simply stuck, sometimes a gentle tap with a hammer can dislodge it. This is a temporary fix at best.
Regulator Repair: If the regulator cable is broken or the mechanism is binding, repairing the regulator may be sufficient. However, if the regulator is severely damaged, replacement is usually the best option.
Electrical Issues: Check the window switch, wiring harness, and fuses before assuming the motor is the problem. A faulty switch or a blown fuse can mimic a motor failure.

Pros and Cons of Alternatives

Motor Repair (Tapping):

Pros: Quick and potentially free.

Cons: Unreliable, temporary fix, may further damage the motor.

Regulator Repair:

Pros: Can be more cost-effective than full replacement, reduces waste.

Cons: Requires specialized tools and skills, may not be possible for all regulator types.

Electrical Troubleshooting:

Pros: Can identify and fix simple problems, avoids unnecessary motor replacement.

Cons: Requires electrical testing equipment and knowledge.

Reliability, Maintenance, and Troubleshooting

Window motor reliability is affected by several factors, including:

Motor Quality: Using a high-quality replacement motor from a reputable manufacturer is crucial. Cheaper motors often have shorter lifespans.
Operating Conditions: Frequent use, exposure to extreme temperatures, and dirt accumulation can accelerate motor wear.
Regulator Condition: A binding or damaged regulator puts extra strain on the motor, reducing its lifespan.

Maintenance Tips:

Lubricate the Window Tracks: Periodically lubricating the window tracks with a silicone-based lubricant can reduce friction and extend the life of the motor and regulator.
Avoid Overusing the Window: Avoid holding the window switch down after the window has reached its fully opened or closed position. This can overheat the motor.
Address Problems Promptly: If you notice any unusual noises or slow window movement, address the problem promptly to prevent further damage.

Troubleshooting Common Issues:

Window Doesn't Move: Check the fuse, window switch, and motor. Use a multimeter to test for voltage at the motor connector.
Window Moves Slowly: Check the regulator for binding and lubricate the window tracks.
Window Makes Noise: Inspect the regulator for damage and lubricate the moving parts.

Future Trends in Window Motor Technology

The automotive industry is constantly evolving, and window motor technology is no exception. Future trends include:

Brushless DC Motors: Brushless DC (BLDC) motors offer several advantages over traditional PMDC motors, including higher efficiency, longer lifespan, and quieter operation. Expect to see more BLDC motors used in window systems in the future.
Smart Window Systems: Integration with advanced driver-assistance systems (ADAS) and infotainment systems will enable features like automatic window closing in response to rain or security threats.
Lighter Materials: The use of lighter materials in window regulators and motors will help reduce vehicle weight and improve fuel efficiency.
Improved Diagnostics: More sophisticated diagnostic systems will provide technicians with detailed information about window motor performance, making troubleshooting easier and faster.

Furthermore, electrochromic windows (smart glass) are emerging, where the window tint can be adjusted electronically. While currently expensive, they hold promise for improved comfort and energy efficiency. This would require different types of control systems and potentially new motor designs to operate.

Conclusion: Adapting to Automotive Advancements

Replacing a window motor requires a thorough understanding of the system's components and proper troubleshooting techniques. As automotive technology advances, it's crucial for automotive professionals to stay updated on the latest trends and diagnostic procedures. The shift towards electric vehicles and more sophisticated electronic systems will require continuous learning and adaptation to ensure that vehicles remain safe, reliable, and convenient for drivers. By understanding the nuances of window motor replacement and embracing new technologies, automotive professionals can continue to provide valuable service in a rapidly changing industry.
