Imagine your lungs after a brisk run. You're gasping for air, needing a massive, unrestricted gulp to replenish oxygen levels. The intake manifold on your KA24DE engine performs a similar crucial function, acting as the "lungs" of your four-cylinder powerplant. But unlike our relatively simple respiratory system, the intake manifold is a complex piece of engineering, carefully designed to distribute air evenly and efficiently to each cylinder for optimal combustion.

The KA24DE Intake Manifold: A Deep Dive

The intake manifold's primary role is to provide a pathway for air (and sometimes fuel in older designs) to enter the engine's cylinders. It's more than just a pipe, though. It's a carefully sculpted system designed to maximize airflow, minimize resistance, and ensure each cylinder receives a consistent charge of air. On the KA24DE, a naturally aspirated (non-turbocharged or supercharged) engine found in Nissan 240SXs, pickups, and other vehicles, the intake manifold is a critical component for achieving reliable power and fuel efficiency.

How it Works: From Throttle Body to Cylinder Head

The journey of air into the KA24DE begins at the throttle body. When you press the accelerator pedal, you're effectively opening the throttle plate within the throttle body, allowing more air to enter the intake system. From the throttle body, the air travels through the intake manifold. The KA24DE intake manifold typically consists of a plenum and runners.

  • Plenum: The plenum is a large chamber designed to act as a reservoir of air. It provides a consistent supply of air to all the runners. Think of it as the lungs themselves, holding a large volume of air ready to be inhaled. The size and shape of the plenum are crucial for maintaining consistent pressure and flow to each cylinder.
  • Runners: The runners are individual pipes that extend from the plenum to each cylinder head's intake port. Each runner is precisely designed to deliver the correct amount of air to its respective cylinder. The length and diameter of the runners are carefully tuned to take advantage of intake resonance, a phenomenon where pressure waves within the runners can help "pack" more air into the cylinders at certain engine speeds.

The KA24DE utilizes a sequential multi-port fuel injection system. This means that fuel injectors are located near each intake port, injecting fuel directly into the air stream just before it enters the cylinder. This design provides precise fuel metering and improved atomization, leading to better combustion and reduced emissions.

The Mechanical Details: Material, Design, and Common Issues

The KA24DE intake manifold is typically made from cast aluminum. Aluminum is lightweight, relatively inexpensive, and offers good heat dissipation. The casting process allows for complex shapes and precise runner designs. The manifold is bolted to the cylinder head using a gasket to create a tight seal and prevent air leaks.

Some common issues associated with the KA24DE intake manifold include:

  • Vacuum Leaks: Cracks, damaged gaskets, or loose connections can create vacuum leaks, allowing unmetered air to enter the engine. This can cause a lean air-fuel mixture, resulting in rough idling, poor performance, and potential engine damage. Vacuum leaks are often detected using a smoke test or by carefully inspecting vacuum lines and gaskets.
  • Clogged Runners: Over time, carbon deposits and other contaminants can accumulate in the runners, restricting airflow. This can lead to uneven cylinder-to-cylinder performance and reduced overall power. Cleaning the intake manifold periodically can help prevent this issue.
  • Damaged Throttle Body Gasket: The gasket between the throttle body and the intake manifold can deteriorate, leading to vacuum leaks. Replacing this gasket is a relatively simple and inexpensive repair.

Pros and Cons of the KA24DE Intake Manifold Design

Pros:

  • Reliable Performance: The KA24DE intake manifold design is known for its reliability and consistent performance.
  • Cost-Effective: The cast aluminum construction and relatively simple design make it a cost-effective component.
  • Ease of Maintenance: The intake manifold is relatively easy to access and maintain.
  • Good Low-End Torque: The runner design is optimized for strong low-end torque, which is beneficial for everyday driving and truck applications.

Cons:

  • Limited High-RPM Power: The intake manifold design is not optimized for maximum high-RPM power. The relatively long runners prioritize low-end torque at the expense of top-end horsepower.
  • Material Susceptibility: The aluminum is susceptible to corrosion and damage over time, requiring replacement.
  • Not Ideal for High Modification: When significantly modifying the KA24DE for higher horsepower, the stock manifold becomes a significant bottleneck, and an aftermarket manifold is usually required.

Use Cases and Manufacturer Examples

The KA24DE intake manifold saw widespread use across various Nissan models, reflecting the engine's versatility. Here are a few examples:

  • Nissan 240SX (1989-1998): In the 240SX, the KA24DE (particularly the KA24DE version) provided a balance of power and fuel efficiency, making it a popular choice for both street driving and motorsports.
  • Nissan Hardbody Pickup (D21): The KA24DE was a common engine option in the Hardbody pickup, providing ample torque for hauling and off-road driving.
  • Nissan Altima (First Generation): The KA24DE powered the first generation Altima, offering a reliable and fuel-efficient option for everyday commuting.

In all these applications, the intake manifold played a crucial role in delivering air efficiently to the engine, contributing to its overall performance and reliability. While the specific design may have varied slightly between models, the fundamental principles remained the same.

Aftermarket Options and Upgrades

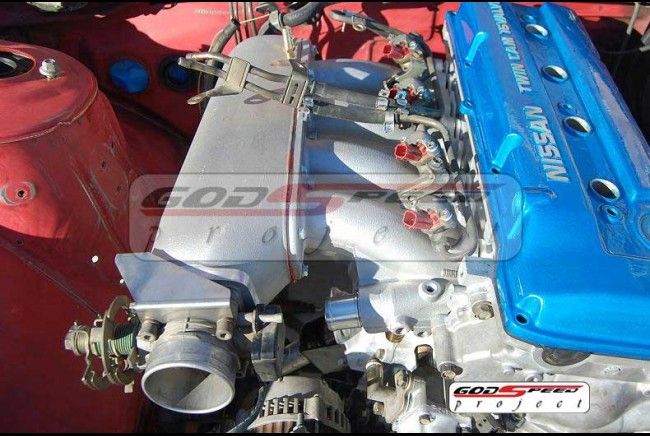

For those looking to extract more power from their KA24DE engine, aftermarket intake manifolds are available. These manifolds often feature:

  • Shorter Runners: Shorter runners generally improve high-RPM horsepower at the expense of low-end torque.
  • Larger Plenum: A larger plenum can provide a more consistent supply of air, particularly at higher engine speeds.
  • Improved Flow Design: Aftermarket manifolds are often designed with smoother internal surfaces and optimized runner shapes to reduce airflow resistance.

However, it's important to note that simply bolting on an aftermarket intake manifold may not result in significant power gains. Other modifications, such as improved exhaust systems, upgraded fuel injectors, and ECU tuning, may be necessary to fully realize the potential of an aftermarket intake manifold.

Real-World Insights and Recommendations

Based on real-world experience and feedback from KA24DE enthusiasts, here are some insights and recommendations:

  • Regular Inspection: Regularly inspect your intake manifold for vacuum leaks and other signs of damage. Early detection can prevent more serious problems.
  • Proper Maintenance: Clean the throttle body and intake manifold periodically to remove carbon deposits and maintain optimal airflow.
  • Gasket Replacement: When replacing the intake manifold or throttle body, always use new gaskets to ensure a tight seal.
  • Consider Aftermarket Options Carefully: If you're considering an aftermarket intake manifold, research your options carefully and choose a manifold that is appropriate for your intended use and engine modifications.
  • Tuning is Crucial: After installing an aftermarket intake manifold, it's essential to have your engine properly tuned to optimize performance and prevent engine damage.

In conclusion, the KA24DE intake manifold is a vital component for delivering air to the engine's cylinders. While the stock manifold is reliable and effective for most applications, aftermarket options are available for those seeking to maximize power. By understanding the principles of operation and following proper maintenance practices, you can ensure that your KA24DE engine continues to perform at its best.
