Imagine you're running a marathon. On a cool day, you feel energized and your performance is optimal. But on a scorching summer day, you quickly become fatigued, your pace slows, and you might even overheat. Your engine experiences a similar phenomenon when turbocharged. Adding a turbocharger forces more air into the engine, creating more power, but it also significantly increases the temperature of that air. This is where an intercooler steps in, acting as a vital component to keep your turbocharged KA24DE running strong and reliable.

The Need for Cooling: Hot Air's Downfall

When air is compressed, its temperature rises dramatically. This heated air, now packed with oxygen molecules ready to combust, presents several problems. Firstly, hot air is less dense than cold air. Less dense air means less oxygen molecules per unit volume entering the combustion chamber, ultimately hindering power output. Secondly, elevated intake air temperatures (IATs) increase the risk of detonation, also known as engine knock or pinging. Detonation is an uncontrolled and damaging combustion process that can rapidly destroy engine components, especially pistons and connecting rods. Finally, excessively high temperatures can strain the engine's cooling system, potentially leading to overheating and further damage.

How an Intercooler Works: A Thermal Exchange

An intercooler, in its simplest form, is a heat exchanger. It functions similarly to a radiator, but instead of cooling engine coolant, it cools the compressed air coming from the turbocharger before it enters the intake manifold. There are two main types of intercoolers:

Air-to-Air Intercoolers

These are the most common type, especially in aftermarket KA24DE turbo kits. They consist of a core with a network of fins and passages that allow the hot compressed air to flow through. As the air passes through the core, it dissipates heat to the surrounding air flowing over the fins. This process is called convection. The larger the surface area of the core and the greater the airflow across it, the more efficient the cooling. Air-to-air intercoolers are typically mounted in the front of the vehicle (FMIC - Front Mount Intercooler) where they can receive a constant supply of fresh air. Another mounting location is a SMIC (Side Mount Intercooler) which is typically found near the front wheel well.

Water-to-Air Intercoolers

Also known as liquid-cooled intercoolers, these systems use a separate coolant circuit to cool the compressed air. The hot air flows through a core surrounded by coolant. The coolant absorbs the heat and is then pumped to a dedicated radiator (also called a heat exchanger) where the heat is dissipated to the atmosphere. Water-to-air intercoolers are generally more compact than air-to-air intercoolers and can offer superior cooling performance, especially in situations where airflow is limited. However, they are more complex and require additional components such as a coolant pump, reservoir, and radiator.

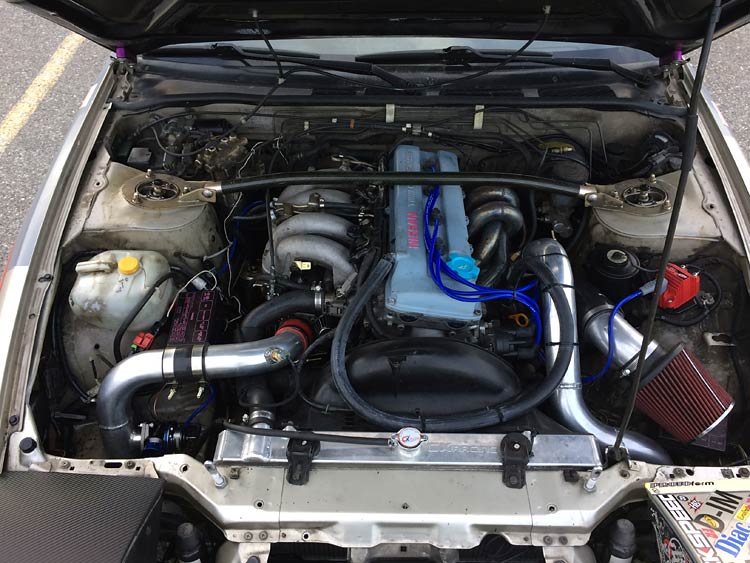

Components of a KA24DE Intercooler Kit

A complete intercooler kit for a KA24DE turbo setup typically includes the following:

  • Intercooler Core: The heart of the system, responsible for heat exchange.
  • Piping: Connects the turbocharger outlet to the intercooler inlet and the intercooler outlet to the throttle body/intake manifold. Typically made of aluminum or stainless steel for durability and heat dissipation.
  • Silicone Couplers: Flexible connectors that join the pipes together and provide a degree of vibration dampening.
  • Clamps: Securely fasten the couplers to the pipes. T-bolt clamps are preferred for their superior clamping force and resistance to slippage.
  • Mounting Brackets: Used to securely mount the intercooler core to the vehicle's chassis.
  • Blow-Off Valve (BOV) or Bypass Valve (BPV) Flange: A pre-welded flange on the piping to accommodate a BOV or BPV, which releases excess pressure when the throttle is closed, preventing compressor surge and improving turbocharger longevity.

Pros and Cons of Intercoolers

Pros:

  • Increased Power: Cooler, denser air means more oxygen for combustion, resulting in higher horsepower and torque.
  • Reduced Detonation Risk: Lower IATs significantly reduce the likelihood of engine knock, improving engine reliability.
  • Improved Engine Longevity: By reducing thermal stress on engine components, an intercooler can extend the life of your engine.
  • More Consistent Performance: Cooler IATs lead to more consistent power output, especially in hot weather conditions.

Cons:

  • Cost: Intercooler kits can be a significant investment, especially high-quality, well-engineered kits.
  • Installation Complexity: Installing an intercooler kit requires some mechanical skill and may involve cutting and welding.
  • Increased Turbo Lag (Potential): The increased volume of the intercooler piping can slightly increase turbo lag, although this is usually minimal with a properly sized intercooler.
  • Reduced Airflow to Radiator (FMIC): A large front-mount intercooler can partially block airflow to the radiator, potentially leading to cooling issues in extreme conditions. This is usually mitigated by choosing an appropriate core size and/or upgrading the radiator.

Use Cases: When is an Intercooler Necessary?

An intercooler is essential for any turbocharged KA24DE engine producing significant boost. If you're running more than a few PSI of boost, especially on a stock engine, an intercooler is non-negotiable for long-term reliability. Even at lower boost levels, an intercooler can provide noticeable performance gains and reduce the risk of detonation, making it a worthwhile upgrade. Intercoolers are also beneficial in hot climates or when the vehicle is used for track days or other high-performance driving situations where the engine is subjected to sustained high loads.

Manufacturer Examples and Considerations

Several reputable manufacturers offer intercooler kits specifically designed for the KA24DE turbo conversion. Some popular brands include:

  • CXRacing: Offers budget-friendly kits with decent performance, but may require some modification for optimal fitment.
  • ISR Performance: Known for their high-quality, well-engineered kits that offer excellent performance and fitment.
  • GReddy: A well-respected Japanese brand that offers premium intercooler kits with exceptional cooling efficiency and durability.

When choosing an intercooler kit, consider the following factors:

  • Core Size and Design: A larger core generally provides better cooling, but can also increase turbo lag. Choose a core size appropriate for your power goals and driving style. Bar-and-plate cores are generally more efficient than tube-and-fin cores, but can also be more expensive.
  • Piping Diameter: The diameter of the intercooler piping should be matched to the size of the turbocharger and throttle body. Too small piping will restrict airflow, while too large piping can increase turbo lag.
  • Material Quality: Choose a kit made from high-quality materials such as aluminum or stainless steel for durability and corrosion resistance.
  • Fitment: Ensure that the kit is designed specifically for your KA24DE chassis and that it includes all necessary hardware for installation. Read reviews and research online to gauge the fitment quality of different kits.
  • Pressure Testing: Ensure that the kit has been pressure tested to ensure that there are no leaks in the core or piping.

Real-World Insights and Recommendations

In practice, a well-chosen and properly installed intercooler kit can transform the performance and reliability of a turbocharged KA24DE. Many users report significant reductions in IATs, resulting in increased horsepower and torque, improved throttle response, and a noticeable reduction in detonation. However, it's important to remember that an intercooler is just one piece of the puzzle. A proper tune is essential to take full advantage of the intercooler's benefits and to ensure that the engine is running safely. Additionally, upgrading other components such as the fuel injectors, fuel pump, and engine management system may be necessary to support the increased power output.

For most KA24DE turbo builds aiming for moderate power levels (around 300-400 horsepower), a front-mount air-to-air intercooler with a core size of around 24x12x3 inches is generally a good starting point. Pay close attention to the quality of the core and the welding on the end tanks, as these are common points of failure on cheaper kits. Investing in a high-quality intercooler kit from a reputable manufacturer is often worth the extra cost, as it can save you headaches and potential engine damage in the long run. Don't underestimate the importance of proper installation. Take your time, follow the instructions carefully, and ensure that all connections are secure and leak-free. Consider using heat shielding to protect the intercooler piping from radiant heat from the engine and exhaust manifold. Finally, monitor your IATs with a gauge or data logger to ensure that the intercooler is performing as expected and to identify any potential problems early on.
