Locating The Blend Door Actuator In A 2015 Nissan Sentra

Experiencing inconsistent heating or cooling in your 2015 Nissan Sentra? You might be dealing with a faulty blend door actuator. This component plays a crucial role in regulating the temperature inside your vehicle, and when it fails, it can lead to significant discomfort, especially during extreme weather conditions. This article will guide you through understanding the problem, identifying the symptoms, understanding the root cause, and finding the right solution to restore comfort to your Sentra's cabin.

Understanding the Blend Door Actuator Problem

The blend door actuator is a small electric motor that controls a flap, known as the blend door, inside your car's HVAC (Heating, Ventilation, and Air Conditioning) system. This door mixes hot air from the heater core and cold air from the evaporator core to achieve your desired temperature. When the actuator malfunctions, it can no longer accurately position the blend door, resulting in temperature inconsistencies.

Symptoms of a Faulty Blend Door Actuator

Recognizing the symptoms early can help prevent further complications. Here are some common signs that your 2015 Nissan Sentra's blend door actuator might be failing:

Inconsistent Temperature: This is the most common symptom. You might experience hot air blowing from one side of the vents while cold air comes from the other. Or, the temperature might fluctuate randomly, never settling at your desired setting.
No Heat or No Air Conditioning: In some cases, the actuator might get stuck in a position that completely blocks either hot or cold air, leaving you with only one extreme.
Clicking or Tapping Noises Behind the Dashboard: These noises often occur when the actuator's gears are stripped or broken. The motor continues to run, trying to move the door, but the damaged gears just slip, creating a clicking or tapping sound.
Temperature Control Not Responding: When you adjust the temperature knob or buttons, nothing happens. The temperature remains the same regardless of your input.
Actuator Moving Erratically: You may hear the actuator constantly adjusting, even when the temperature setting hasn't been changed. This can indicate a problem with the actuator's internal sensors or control circuit.

Root Cause: Why Blend Door Actuators Fail

Several factors can contribute to blend door actuator failure. Here are some of the most common causes:

Wear and Tear: Like any mechanical component, blend door actuators are subject to wear and tear over time. The constant movement of the actuator and the stresses on its internal components can eventually lead to failure.
Dust and Debris: The HVAC system can accumulate dust, dirt, and other debris. These particles can interfere with the actuator's operation, causing it to bind or seize.
Moisture: Leaks in the HVAC system or from the outside can introduce moisture into the actuator. Moisture can corrode electrical contacts and cause internal damage.
Voltage Fluctuations: Problems with the car's electrical system, such as voltage spikes or drops, can damage the actuator's motor or control circuitry.
Binding Blend Door: If the blend door itself is stiff or binding due to corrosion or debris, the actuator has to work harder to move it. This increased stress can shorten the actuator's lifespan.
Manufacturing Defects: While less common, manufacturing defects in the actuator itself can also lead to premature failure.

Consequences of Ignoring the Problem

Ignoring a faulty blend door actuator can lead to more than just discomfort. Here's what can happen if you postpone the repair:

Reduced Comfort: The most immediate consequence is inconsistent or absent heating and cooling, making driving uncomfortable, especially in extreme weather.
Safety Concerns: In extreme heat or cold, the lack of proper climate control can affect your concentration and reaction time, potentially leading to safety hazards.
HVAC System Damage: A struggling actuator can put undue stress on other components of the HVAC system, potentially leading to further damage and more costly repairs.
Increased Fuel Consumption: In some cases, a malfunctioning blend door actuator can cause the compressor to run constantly, increasing fuel consumption.
Resale Value Impact: A malfunctioning HVAC system can negatively impact the resale value of your vehicle.

Recommended Fixes for Your 2015 Nissan Sentra

The primary fix for a faulty blend door actuator is replacement. Here's a breakdown of the process and considerations:

Diagnosis: The first step is to confirm that the blend door actuator is indeed the problem. A mechanic can use a scan tool to check for diagnostic trouble codes (DTCs) related to the HVAC system and the actuator. They can also manually test the actuator's function.
Part Selection: When replacing the actuator, it's crucial to choose a quality part. You can opt for an OEM (Original Equipment Manufacturer) part from Nissan, which guarantees fit and performance, or a reputable aftermarket brand. Ensure the part is specifically designed for your 2015 Nissan Sentra.

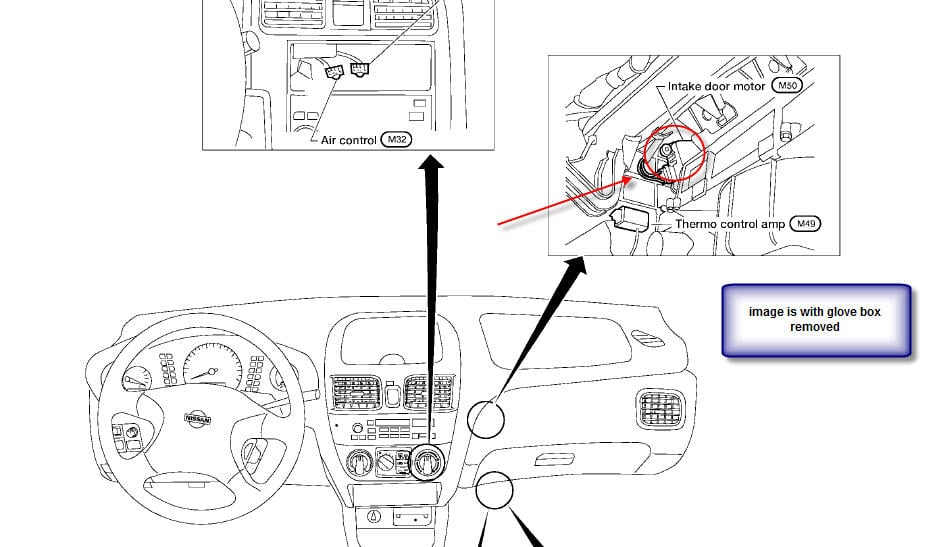

Location and Access: The blend door actuator is typically located behind the dashboard. The exact location can vary, but it's often near the center console or under the driver's side dashboard. Accessing the actuator usually requires removing some dashboard panels or trim pieces.
Replacement Procedure:
1. Disconnect the negative battery terminal to prevent electrical shorts.
2. Locate the faulty blend door actuator.
3. Disconnect the electrical connector from the actuator.
4. Remove the screws or bolts that secure the actuator to the HVAC housing.
5. Carefully remove the old actuator.
6. Install the new actuator, ensuring it is properly aligned.
7. Secure the actuator with the screws or bolts.
8. Reconnect the electrical connector.
9. Reconnect the negative battery terminal.
Calibration (If Necessary): Some vehicles require the new actuator to be calibrated using a scan tool. This ensures that the actuator is properly synchronized with the HVAC control system. Consult your vehicle's repair manual or a professional mechanic to determine if calibration is necessary.
Testing: After replacing the actuator, test the HVAC system to ensure that the temperature control is working correctly and that there are no unusual noises.

Cost Estimates and Shop Advice

The cost of replacing a blend door actuator can vary depending on several factors, including the cost of the part, the labor rate, and the complexity of the job. Here's a general estimate:

Part Cost: The cost of a blend door actuator for a 2015 Nissan Sentra can range from $50 to $150, depending on the brand and quality. OEM parts tend to be more expensive than aftermarket parts.
Labor Cost: The labor cost can vary depending on the mechanic's hourly rate and the amount of time it takes to access and replace the actuator. The labor time is usually between 1 to 3 hours. At an average labor rate of $100 per hour, the labor cost can range from $100 to $300.
Total Cost: The total cost for replacing a blend door actuator can range from $150 to $450 or more.

DIY vs. Professional Repair: Replacing a blend door actuator can be a challenging task, especially for those with limited automotive repair experience. It often requires accessing hard-to-reach areas behind the dashboard and potentially removing trim pieces. If you're not comfortable working on your car's electrical system or disassembling interior components, it's best to have the repair done by a professional mechanic.

Choosing a Repair Shop: When selecting a repair shop, look for one that has experience working on Nissan vehicles and a good reputation. Read online reviews and ask for recommendations from friends or family. Make sure the shop offers a warranty on their work and uses quality parts.

Credibility and Common Failure Points

While there isn't a widespread recall specifically for blend door actuators on the 2015 Nissan Sentra, it's a known issue across various Nissan models. Online forums and automotive communities often discuss blend door actuator failures, with many owners reporting problems around the 60,000 to 100,000-mile mark. While not a TSB (Technical Service Bulletin) outlining a specific defect requiring repair, technicians are familiar with diagnosing and addressing HVAC temperature control issues. Check online Nissan forums for model-specific experiences and potential DIY tips. This information, coupled with the symptoms described above, can aid in diagnosing the problem and making an informed decision about repair options.
