Nissan Check Engine Light Codes Your Complete Guide

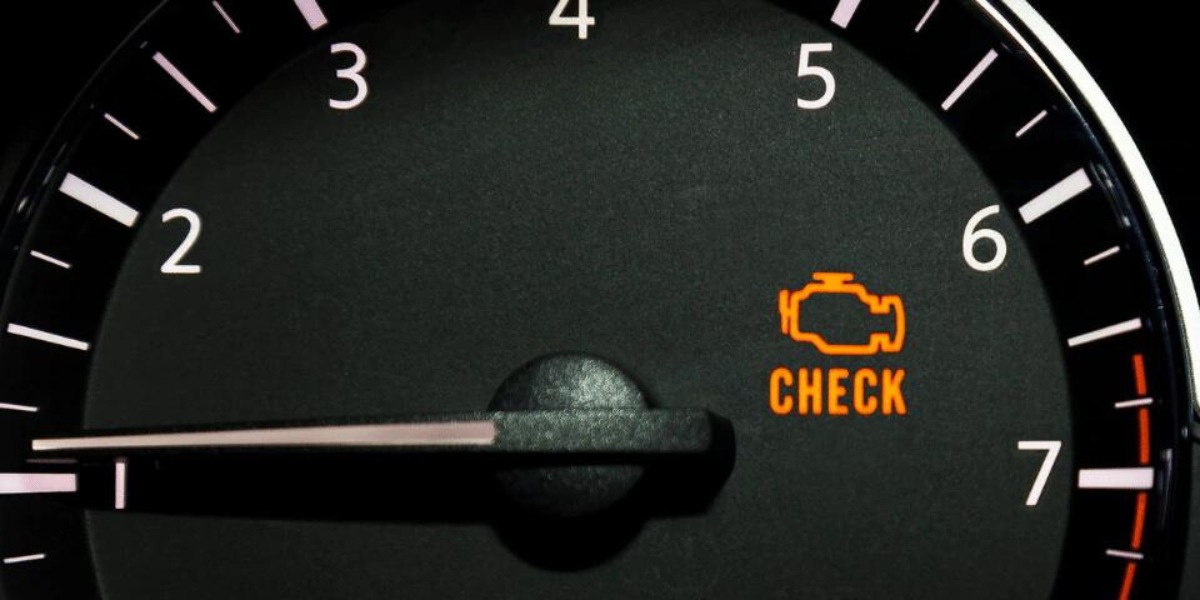

The dreaded "Check Engine Light" (CEL), also known as the Malfunction Indicator Lamp (MIL), is a common sight on many dashboards. While often alarming, it doesn't necessarily indicate imminent engine failure. Instead, it's your Nissan's onboard diagnostic (OBD) system signaling that something is amiss. This guide will delve into the world of Nissan check engine light codes, providing you with the knowledge to diagnose, understand, and potentially resolve the underlying issues, saving you time and money.

Background: Nissan's Onboard Diagnostic System

Modern vehicles, including Nissans, rely on sophisticated computer systems to control engine performance, emissions, and other critical functions. At the heart of this system is the Engine Control Unit (ECU), sometimes called the Powertrain Control Module (PCM). The ECU constantly monitors various sensors throughout the engine and drivetrain. These sensors provide real-time data on parameters such as:

  • Engine speed (RPM): Measured by the crankshaft position sensor.
  • Engine load: Determined by the mass airflow (MAF) sensor and throttle position sensor (TPS).
  • Oxygen levels in the exhaust: Monitored by oxygen (O2) sensors, also known as lambda sensors.
  • Coolant temperature: Measured by the coolant temperature sensor (CTS).
  • Fuel pressure: Monitored by the fuel pressure sensor (FPS), if equipped.
  • Vehicle speed: Measured by the vehicle speed sensor (VSS).

The ECU compares these sensor readings to pre-programmed values stored in its memory. If a sensor reading falls outside the acceptable range, the ECU recognizes a fault and stores a Diagnostic Trouble Code (DTC) in its memory. The check engine light illuminates, signaling that a DTC has been stored and needs attention.

Technical Breakdown: How the System Works

The OBD system is more than just a simple light switch. It employs a complex set of algorithms and diagnostic routines to identify and categorize faults. Here's a breakdown of the process:

  1. Sensor Monitoring: Each sensor sends a signal to the ECU. The ECU interprets this signal as a specific value (e.g., voltage, frequency).
  2. Data Comparison: The ECU compares the sensor value to a pre-defined range. This range represents the expected normal operating parameters.
  3. Fault Detection: If the sensor value deviates from the acceptable range for a predetermined duration or frequency, the ECU flags a potential fault. This can be due to a sensor malfunction, a wiring issue, or a problem with the system the sensor is monitoring.
  4. DTC Storage: The ECU stores a specific DTC corresponding to the detected fault. These codes are standardized, allowing technicians to understand the nature of the problem regardless of the vehicle manufacturer.
  5. MIL Illumination: In most cases, the ECU will illuminate the check engine light to alert the driver to the stored DTC. However, some minor issues might not trigger the light immediately.
  6. Freeze Frame Data: When a DTC is stored, the ECU also captures "freeze frame" data. This data represents the sensor values and engine operating conditions at the exact moment the fault was detected. This information is invaluable for diagnosing intermittent problems.

OBD-II Codes: Modern vehicles use OBD-II (On-Board Diagnostics II) standard, which provides a standardized set of DTCs. These codes are typically five characters long and follow a specific format. For example, "P0300" signifies a random/multiple cylinder misfire detected.

  • First Character: Indicates the system affected:
    • P: Powertrain (engine, transmission)
    • B: Body (airbags, power windows)
    • C: Chassis (ABS, suspension)
    • U: Network (communication between ECUs)
  • Second Character: Indicates the code type:
    • 0: Generic (SAE) code - standard across all manufacturers
    • 1, 2, 3: Manufacturer-specific code - unique to Nissan
  • Third Character: Indicates the subsystem:
    • 1: Fuel and Air Metering
    • 2: Fuel and Air Metering - Injector Circuit
    • 3: Ignition System or Misfire
    • 4: Auxiliary Emission Controls
    • 5: Vehicle Speed Controls and Idle Control System
    • 6: Computer Output Circuit
    • 7: Transmission
    • 8: Transmission
  • Fourth and Fifth Characters: These two numbers provide further information about the specific fault.

Common Issues and Maintenance Concerns

While the check engine light can be triggered by a wide variety of issues, some are more common than others in Nissan vehicles:

  • P0420/P0430: Catalyst System Efficiency Below Threshold: This usually indicates a failing catalytic converter. While sometimes caused by a bad oxygen sensor, the converter itself is often the culprit. This is a common issue in older Nissans.
  • P0171/P0174: System Too Lean: This suggests that the engine is running with too little fuel or too much air. Common causes include vacuum leaks, a faulty MAF sensor, a clogged fuel filter, or a failing fuel pump.
  • P0300-P030x: Misfire Detected: These codes indicate that one or more cylinders are not firing properly. Causes can include faulty spark plugs, ignition coils, fuel injectors, or low compression.
  • P0440-P0457: Evaporative Emission Control System (EVAP) Leaks: These codes relate to the EVAP system, which prevents fuel vapors from escaping into the atmosphere. Common causes include a loose or damaged gas cap, a faulty purge valve, or a leaking EVAP hose.
  • P0011/P0021: Variable Valve Timing (VVT) Over-Advanced: Many modern Nissans use VVT to optimize engine performance and fuel economy. These codes indicate a problem with the VVT system, often related to a clogged oil control valve or a faulty VVT solenoid.
  • MAF Sensor Issues: The MAF sensor is crucial for calculating engine load. If it's dirty or faulty, it can cause a wide range of performance problems and trigger various DTCs.
  • Oxygen Sensor Failures: Oxygen sensors degrade over time and need to be replaced periodically. Faulty O2 sensors can affect fuel economy and emissions.

Maintenance Tips:

  • Regularly inspect and replace air filters to ensure proper airflow to the engine.
  • Use high-quality fuel and consider using fuel injector cleaner periodically to keep the fuel system clean.
  • Follow the recommended maintenance schedule for spark plug replacement.
  • Check and tighten the gas cap regularly to prevent EVAP leaks.
  • Monitor engine performance and address any unusual symptoms promptly.

Do's and Don'ts / Best Practices

Here's a list of do's and don'ts to help you effectively troubleshoot Nissan check engine light codes:

Do's:

  • Read the Codes: Use an OBD-II scanner to read the DTCs stored in the ECU. Knowing the code is the first step to diagnosing the problem. Invest in a quality OBD-II scanner - even a basic one can be incredibly useful.
  • Research the Codes: Once you have the codes, research them thoroughly. Understand what each code means and the potential causes. Consult repair manuals, online forums, and reliable automotive websites.
  • Inspect the Obvious: Before diving into complex repairs, check for simple problems like a loose gas cap, disconnected vacuum hoses, or damaged wiring.
  • Use a Digital Multimeter: A multimeter is essential for testing sensors, wiring, and electrical components. Learn how to use it to measure voltage, resistance, and continuity.
  • Check Wiring and Connectors: Carefully inspect wiring harnesses and connectors for damage, corrosion, or loose connections. Clean and reseat connectors as needed.
  • Use a Smoke Machine: A smoke machine can be invaluable for locating vacuum leaks, which are a common cause of check engine lights.
  • Clear the Codes (Cautiously): After making repairs, clear the DTCs and monitor the vehicle to see if the problem returns. Be aware that some codes require multiple drive cycles to clear.
  • Document Everything: Keep a detailed record of your diagnostic steps, repairs, and code history. This will help you track your progress and identify patterns.

Don'ts:

  • Ignore the Light: Ignoring the check engine light can lead to more serious and expensive problems down the road.
  • Replace Parts Randomly: Don't just start replacing parts without proper diagnosis. This can be a waste of money and may not fix the underlying problem.
  • Use Cheap or Unreliable Parts: Use high-quality replacement parts from reputable brands. Cheap parts may fail prematurely and cause further problems.
  • Disregard Freeze Frame Data: The freeze frame data provides valuable clues about the conditions that triggered the DTC. Don't ignore it!
  • Assume the Worst: The check engine light doesn't always mean a catastrophic engine failure. Many times, it's a relatively minor issue.
  • Drive Aggressively with a Misfire: If you have a misfire code, avoid driving aggressively, as this can damage the catalytic converter.
  • Neglect Basic Maintenance: Regular maintenance, such as oil changes and air filter replacements, can help prevent check engine light issues.

Conclusion

Understanding Nissan check engine light codes can empower you to diagnose and potentially resolve common automotive problems. By following the steps outlined in this guide, you can save time and money while keeping your Nissan running smoothly. Remember to always prioritize safety and consult a qualified mechanic if you are unsure about any repair. While clearing the codes is tempting after a fix, it's highly recommended to perform a drive cycle to confirm that the issue is resolved. The check engine light is a valuable tool – use it wisely!
