Troubleshooting A 2013 Nissan Pathfinders Cooling Fan

The cooling fan on a 2013 Nissan Pathfinder is a critical component of the engine's thermal management system. Overheating can lead to severe engine damage, ranging from warped cylinder heads to complete engine failure. Properly functioning cooling fans are essential for maintaining optimal engine temperature, especially during demanding conditions like towing, off-roading, or simply driving in hot weather. This article dives deep into troubleshooting cooling fan issues on your Pathfinder, giving you the knowledge to diagnose and potentially resolve problems yourself.

Background: The VQ35DE and Cooling System Basics

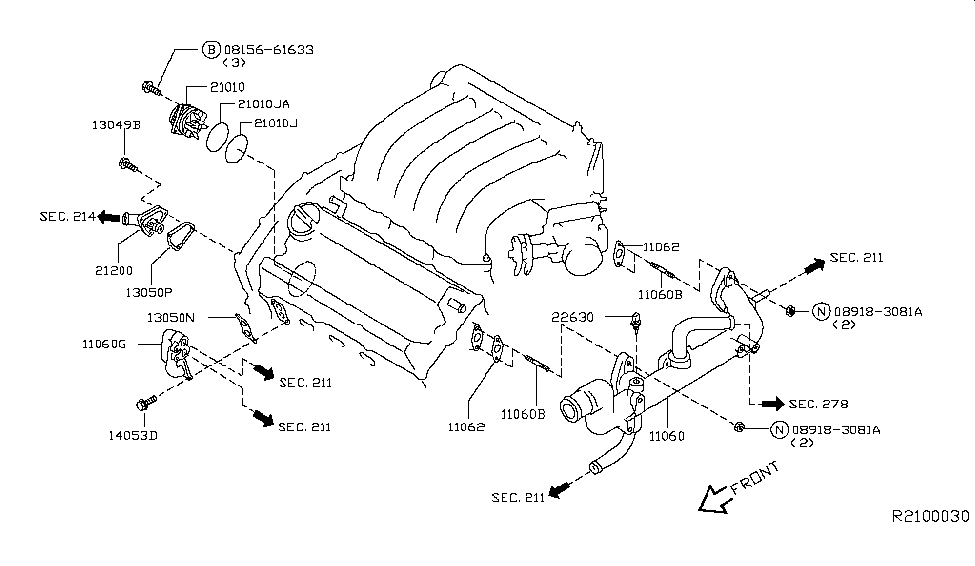

The 2013 Nissan Pathfinder is equipped with the VQ35DE engine, a 3.5-liter V6 known for its reliability and performance. Like all internal combustion engines, the VQ35DE generates a significant amount of heat as a byproduct of the combustion process. The cooling system is designed to dissipate this heat, preventing the engine from overheating. The system consists of several key components:

• Radiator: The primary heat exchanger, responsible for transferring heat from the coolant to the surrounding air.
• Coolant: A mixture of water and antifreeze (ethylene glycol or propylene glycol) that circulates through the engine, absorbing heat.
• Water Pump: Circulates the coolant throughout the engine and cooling system.
• Thermostat: Regulates coolant flow to maintain a consistent engine operating temperature.
• Cooling Fan(s): Assist the radiator in dissipating heat, especially when the vehicle is stationary or moving slowly.
• Coolant Temperature Sensor (CTS): Monitors the temperature of the coolant and provides data to the Engine Control Module (ECM).

In the 2013 Pathfinder, the cooling fan system typically includes electric fan(s) controlled by the ECM (Engine Control Module), also referred to as the ECU (Engine Control Unit). This electronic control allows for variable fan speeds, optimizing cooling performance while minimizing energy consumption. Some models might have one fan, while others have two.

Technical Breakdown: How the Cooling Fan System Works

The cooling fan system on the 2013 Pathfinder operates based on several inputs, primarily coolant temperature and vehicle speed. Here's a simplified explanation of the process:

1. Coolant Temperature Sensing: The CTS continuously monitors the coolant temperature. This sensor is typically a thermistor, a resistor whose resistance changes with temperature. The ECM reads the voltage signal from the CTS to determine the coolant temperature.
2. Vehicle Speed Sensing: The ECM also receives input from the vehicle speed sensor (VSS). This allows the ECM to determine if the vehicle is moving and, therefore, benefiting from airflow over the radiator.
3. ECM Processing: The ECM uses the data from the CTS and VSS, along with other parameters like air conditioning (A/C) activation, to determine the appropriate fan speed. The ECM uses programmed lookup tables or algorithms to make these decisions.
4. Fan Control: The ECM controls the cooling fan(s) by sending a signal to the fan control module or directly to the fan motor(s). This signal is often a Pulse Width Modulated (PWM) signal, which varies the duty cycle (the percentage of time the signal is high) to control the fan speed. A higher duty cycle corresponds to a higher fan speed.
5. Fan Operation: The fan motor(s) respond to the control signal and operate at the commanded speed, drawing air through the radiator to dissipate heat.

The fan control module, if present, acts as an intermediary between the ECM and the fan motor. It receives the control signal from the ECM and provides the necessary power to the fan motor. It also may have built-in protection circuits to prevent damage to the fan motor or the ECM.

Common Cooling Fan Issues and Maintenance Concerns

Several issues can affect the cooling fan system on a 2013 Pathfinder. Here are some common problems and their potential causes:

• Fan Not Working at All:
  • Blown Fuse: The most common cause. Check the cooling fan fuse in the under-hood fuse box. Consult your owner's manual for the correct fuse location and amperage.
  • Faulty Fan Motor: The fan motor itself may be worn out or damaged. Test the motor by applying direct voltage (typically 12V) to it. If it doesn't spin, the motor is likely bad.
  • Faulty Fan Control Module: If equipped, the fan control module could be malfunctioning. This can be tested with a multimeter, or by swapping with a known good module (if available).
  • Wiring Issues: Damaged or corroded wiring between the ECM, fan control module (if present), and fan motor can interrupt the signal.
  • Faulty CTS: Although less common, a faulty CTS can prevent the ECM from activating the fan. However, a faulty CTS will often trigger a check engine light.
  • ECM Issue: In rare cases, the ECM itself could be malfunctioning, preventing it from sending the correct signal to the fan.
• Fan Runs Constantly:
  • Faulty CTS: A shorted CTS can cause the ECM to think the engine is overheating, resulting in the fan running constantly.
  • Stuck Relay (if applicable): Some older systems use a relay to control the fan. A stuck relay can cause the fan to run continuously. The 2013 Pathfinder is less likely to use a simple relay, but it's a possibility.
  • Wiring Issue: A short to ground in the wiring harness can also cause the fan to run constantly.
  • ECM Issue: Again, though rare, ECM malfunction is possible.
• Fan Runs Intermittently or at Incorrect Speed:
  • Wiring Issues: Loose connections or corroded wiring can cause intermittent fan operation.
  • Faulty Fan Control Module: A partially malfunctioning fan control module can cause erratic fan speed.
  • Faulty CTS: An inaccurate CTS can cause the fan to operate at the wrong speed.
• Overheating Despite Fan Function: If your engine is overheating even with the fan operating, look at other parts of the system. It might be the water pump, a clogged radiator, or issues with the thermostat.

Maintenance Concerns: Regularly inspect the cooling fan(s) for any signs of damage or wear. Check the wiring harness for any cracks or fraying. Clean the radiator fins to ensure proper airflow. Also, ensure that the coolant level is adequate and that the coolant is in good condition (no signs of rust or contamination). Coolant should be changed according to the manufacturer's recommended schedule.

Do's and Don'ts / Best Practices

Do's:

• Check Fuses First: Always start with the basics. Check the cooling fan fuse(s) before proceeding with more complex troubleshooting.
• Use a Multimeter: A multimeter is essential for testing voltage, continuity, and resistance. Learn how to use it properly to diagnose electrical issues.
• Consult a Wiring Diagram: A wiring diagram will help you trace the wiring and identify potential points of failure.
• Disconnect the Battery: When working on electrical components, disconnect the negative battery terminal to prevent shorts and electrical damage.
• Test the Fan Motor Directly: Applying direct voltage to the fan motor can quickly determine if the motor is functioning.
• Use OEM or High-Quality Replacement Parts: When replacing components, use genuine Nissan parts or high-quality aftermarket alternatives to ensure proper fit and performance.
• Check for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to check for any DTCs related to the cooling system. These codes can provide valuable clues about the nature of the problem.

Don'ts:

• Ignore Overheating Symptoms: Overheating can cause severe engine damage. Address any overheating issues promptly.
• Work on a Hot Engine: Allow the engine to cool down completely before working on the cooling system.
• Bypass Fuses or Relays: Never bypass fuses or relays, as this can create a fire hazard or damage other components.
• Use Tap Water in the Cooling System: Always use a 50/50 mixture of distilled water and antifreeze in the cooling system. Tap water contains minerals that can corrode the engine.
• Overfill the Cooling System: Overfilling the cooling system can cause coolant to overflow and potentially damage components.
• Assume the Worst: Start with the simplest and most common causes before assuming a major component failure.

Conclusion

Troubleshooting cooling fan issues on a 2013 Nissan Pathfinder requires a systematic approach. By understanding how the system works, identifying common problems, and following best practices, you can effectively diagnose and potentially resolve cooling fan issues yourself. Remember to start with the basics, use appropriate tools, and consult a wiring diagram. If you're not comfortable working on electrical components, it's always best to consult a qualified mechanic. However, with a bit of knowledge and patience, you can keep your Pathfinder's engine running cool and avoid costly repairs. Checking the fuse should always be your first step, before more invasive troubleshooting. Good luck!
