Where Is Bank 2 Sensor 1 Location

Locating Bank 2 Sensor 1, often abbreviated as B2S1, is a common diagnostic task for automotive technicians. However, simply knowing what it is isn't enough; understanding where it is, why it's there, and how it functions within the broader engine management system is crucial for accurate diagnosis and effective repair. This article delves into the intricacies of B2S1 location, its technical specifications, and real-world implications for automotive professionals.

Understanding Bank 2 and Sensor 1

Before pinpointing the location, let's define the terms. "Bank 2" refers to the cylinder bank opposite Bank 1 on engines with a V or opposed (boxer) configuration. Bank 1 is conventionally the bank containing cylinder #1. If the engine is an inline configuration, there is only one bank, so there is no Bank 2. "Sensor 1" signifies the upstream oxygen sensor, also known as the pre-catalytic converter sensor. This sensor is responsible for measuring the oxygen content in the exhaust gas before it enters the catalytic converter. Its primary function is to provide feedback to the Engine Control Unit (ECU) for fine-tuning the air-fuel ratio.

Therefore, B2S1 is the oxygen sensor located before the catalytic converter on the cylinder bank opposite the one containing cylinder #1 (assuming the engine is not an inline engine).

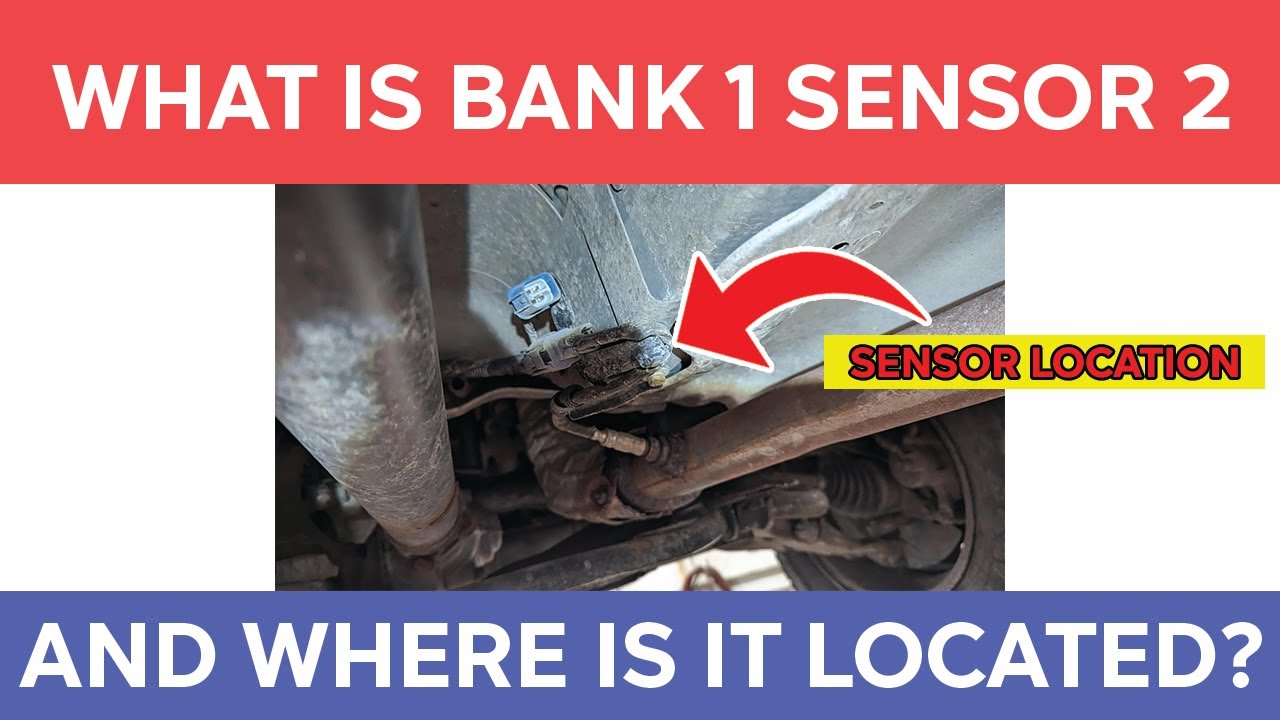

Locating B2S1: The Practical Approach

The physical location of B2S1 varies significantly depending on the vehicle make, model, and engine configuration. Here's a general guide, but always consult the vehicle-specific repair manual or online database for precise information:

General Location Guidelines:

V-Engines (V6, V8, V10, V12): B2S1 will typically be found on the exhaust manifold or exhaust pipe close to the engine block on the side opposite Bank 1. Visual inspection is key. Look for a sensor threaded into the exhaust system with an electrical connector. It's often shielded by a heat shield.

Flat/Boxer Engines (e.g., Subaru): Similar to V-engines, B2S1 will be located on the exhaust manifold or pipe near the engine block on one side of the engine. Access can be challenging depending on the vehicle's design and undercarriage layout.

Inline Engines: Inline engines lack a Bank 2. The upstream oxygen sensor is simply referred to as Sensor 1.

Common Challenges and Solutions:

Heat Shields: Oxygen sensors are often shielded by heat shields to protect them from excessive heat. These shields can obscure the sensor and make access difficult. Proper tools and techniques are essential for removing and reinstalling heat shields without damage.
Corrosion: Exhaust systems are exposed to harsh environments, leading to corrosion. Corrosion can seize the sensor in place, making removal difficult and potentially damaging the exhaust manifold threads. Penetrating oil and specialized oxygen sensor sockets are crucial for successful removal.
Tight Spaces: Engine compartments are often tightly packed, making access to the oxygen sensor challenging. Using extensions, swivel sockets, and specialized oxygen sensor removal tools is often necessary.
Wiring Harness Interference: Other wiring harnesses or components may obstruct access to the oxygen sensor connector. Careful maneuvering and potentially disconnecting interfering components may be required.

Technical Specifications and Engineering Choices

B2S1, being an upstream oxygen sensor, is primarily a lambda sensor. Lambda (λ) represents the air-fuel ratio relative to stoichiometry (the ideal ratio for complete combustion, approximately 14.7:1 for gasoline). The sensor generates a voltage signal that corresponds to the oxygen content in the exhaust gas. Different types of oxygen sensors exist:

Zirconia Sensors: These are the most common type. They generate a voltage based on the difference in oxygen partial pressure between the exhaust gas and atmospheric air (used as a reference). They operate at high temperatures (around 300°C) to function effectively. Zirconia sensors produce a voltage that varies between 0.1V (lean) and 0.9V (rich).
Titania Sensors: These sensors use a different technology where the resistance changes based on the oxygen concentration in the exhaust. They require a reference voltage and are less common than zirconia sensors.
Wideband Sensors (Air-Fuel Ratio Sensors): These are more sophisticated and provide a linear output over a wider range of air-fuel ratios. They are often used in modern vehicles with advanced engine management systems. They utilize a pumping cell to maintain stoichiometric conditions within a diffusion gap, allowing for precise measurement of oxygen content.

The choice of sensor type depends on the vehicle manufacturer's design requirements and the complexity of the engine management system. Wideband sensors provide more precise feedback for optimal fuel efficiency and emissions control.

Engineering Considerations:

Operating Temperature: Oxygen sensors require a high operating temperature to function accurately. Sensor location is strategically chosen to ensure rapid warm-up and maintain optimal operating temperature.
Response Time: The sensor must respond quickly to changes in exhaust gas composition. Sensor design and placement influence response time.
Durability: Oxygen sensors are exposed to extreme temperatures, corrosive exhaust gases, and vibrations. Robust materials and construction are essential for long-term reliability.
Connector Design: The electrical connector must be sealed to prevent moisture and contaminants from affecting the sensor's signal. Connectors are often keyed to prevent accidental misconnection.

Real-World Performance and Diagnostics

A properly functioning B2S1 is crucial for optimal engine performance, fuel efficiency, and emissions control. Faulty B2S1 sensors can lead to a variety of problems:

Poor Fuel Economy: Incorrect air-fuel ratios can result in excessive fuel consumption.
Rough Idling: An inaccurate signal from B2S1 can disrupt the engine's idle control system, leading to rough idling or stalling.
Increased Emissions: Improper air-fuel ratios can increase emissions of harmful pollutants such as hydrocarbons (HC), carbon monoxide (CO), and nitrogen oxides (NOx).
Check Engine Light (MIL) Illumination: The ECU monitors the B2S1 signal and will illuminate the MIL if it detects a malfunction or out-of-range reading. Common diagnostic trouble codes (DTCs) associated with B2S1 include P0150, P0151, P0152, P0153, P0154.

Diagnostic Procedures:

Diagnosing B2S1 involves several steps:

Visual Inspection: Check for any obvious damage to the sensor, wiring, or connector.
Scan Tool Diagnosis: Use a scan tool to read DTCs and monitor the B2S1 signal in real-time. Look for unusual voltage fluctuations, slow response times, or a lack of activity.
Multimeter Testing: Use a multimeter to check the sensor's resistance and voltage output. Consult the vehicle-specific repair manual for the correct values.
Wiring Inspection: Inspect the wiring harness for any damage, corrosion, or loose connections.
Backpressure Testing: Excessive backpressure in the exhaust system can affect the oxygen sensor's readings. Perform a backpressure test to rule out exhaust system restrictions.

Reliability Aspects and Maintenance Tips

Oxygen sensors are subject to degradation over time due to exposure to contaminants and extreme temperatures. Here are some tips to improve their reliability and longevity:

Use High-Quality Fuel: Low-quality fuel can contain additives that can contaminate the oxygen sensor.
Address Engine Problems Promptly: Issues such as oil leaks, coolant leaks, and misfires can damage the oxygen sensor.
Avoid Excessive Idling: Prolonged idling can lead to carbon buildup on the sensor.
Replace the Sensor at Recommended Intervals: Most manufacturers recommend replacing oxygen sensors every 60,000 to 100,000 miles.
Use Anti-Seize Compound Sparingly: When installing a new oxygen sensor, apply a small amount of anti-seize compound to the threads to prevent seizing. Avoid getting anti-seize on the sensor element.

Comparison with Alternatives

The alternative to an oxygen sensor (lambda sensor) measuring oxygen content directly is to infer the air-fuel ratio from other parameters. While not a direct replacement for B2S1, other sensors contribute to the ECU's understanding of the air-fuel mixture:

Mass Airflow (MAF) Sensor: Measures the mass of air entering the engine. Combined with RPM and other data, the ECU estimates the required fuel. Pros: Provides a direct measurement of air intake. Cons: Doesn't directly measure oxygen content, susceptible to contamination.
Manifold Absolute Pressure (MAP) Sensor: Measures the pressure in the intake manifold. Used to estimate air intake, especially in speed-density systems. Pros: Relatively simple and reliable. Cons: Less accurate than MAF sensors, especially with modifications.
Crankshaft Position Sensor (CKP) and Camshaft Position Sensor (CMP): Provide information about engine speed and position, essential for fuel injection timing. Pros: Critical for engine operation. Cons: Don't directly measure air-fuel ratio.

These sensors work in conjunction with the oxygen sensors to provide a comprehensive picture of the engine's operating conditions. Replacing B2S1 with a "dummy" resistor or signal generator is not a viable option, as it will compromise engine performance, fuel efficiency, and emissions control.

Future Trends

The future of oxygen sensing in automotive applications is focused on improving accuracy, durability, and integration with advanced engine management systems. Some emerging trends include:

Solid-State Oxygen Sensors: These sensors use solid-state materials to detect oxygen concentration. They offer potential advantages in terms of size, response time, and durability.
Integrated Sensors: Combining multiple sensors into a single unit to reduce complexity and cost. For example, integrating the oxygen sensor with a temperature sensor or pressure sensor.
Wireless Sensors: Exploring wireless communication between the sensor and the ECU to eliminate wiring harnesses and improve flexibility.
Advanced Diagnostics: Developing more sophisticated diagnostic algorithms to detect subtle sensor degradation and predict failures before they occur.

Conclusion

Understanding the location, function, and diagnostic procedures for B2S1 is essential for automotive professionals. As engine technology continues to evolve, staying informed about the latest advancements in oxygen sensing technology will be crucial for providing accurate and effective repairs. The automotive industry is moving toward greater complexity and interconnectedness, so a solid understanding of fundamental principles, coupled with continuous learning, will ensure success in the years to come. Embrace the challenges and opportunities presented by these advancements, and remain committed to providing high-quality service to your customers.
