Do You Need A Brake Controller For Trailer Brakes

Towing a trailer opens up a world of possibilities, from hauling equipment and supplies to enjoying weekend getaways with a camper or boat. But before you hit the road, understanding the braking requirements is crucial for safe and controlled towing. A key component in this system, especially for heavier trailers, is the brake controller. So, the big question: Do you actually need a brake controller for your trailer brakes? Let's dive into the specifics.

Understanding Trailer Brake Systems

To answer that, we first need to understand how trailer brakes work. There are typically two main types:

• Surge Brakes: These are self-contained hydraulic systems. When the tow vehicle decelerates, the trailer's inertia (resistance to change in motion) pushes forward on the trailer hitch, activating a master cylinder within the trailer's coupling. This pressurized hydraulic fluid then actuates the trailer's brakes. Surge brakes don't require any electrical connection to the tow vehicle beyond lights.
• Electric Brakes: These rely on an electrical signal from the tow vehicle to activate electromagnets inside the trailer's brake drums. When energized, these electromagnets attract an armature (a pivoting lever) that engages the brake shoes against the drum, slowing the trailer. Electric brakes offer more control and adjustability compared to surge brakes.

Most modern trailers exceeding a certain weight threshold are equipped with electric brakes, primarily because of their superior control and integration with the tow vehicle.

The Role of the Brake Controller

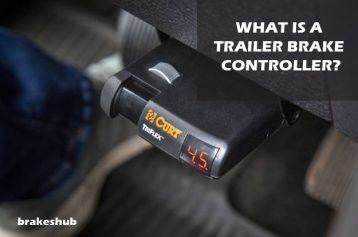

A brake controller is an electronic device mounted inside the tow vehicle that sends a variable electrical signal to the trailer's electric brakes. This signal determines the braking force applied by the trailer brakes. The controller essentially modulates the amount of electrical current flowing to the trailer brakes, allowing you to synchronize the trailer's braking with your tow vehicle's.

Think of it as a volume knob for your trailer brakes. Without a brake controller, you'd either have no trailer brakes at all, or they'd engage at full force whenever the tow vehicle's brakes are applied – a jarring and potentially dangerous situation.

Types of Brake Controllers

Brake controllers generally fall into two categories:

• Time-Delayed Controllers: These controllers apply the trailer brakes after a preset time delay following the activation of the tow vehicle's brakes. The amount of braking force is usually adjustable, but the initial delay is fixed. They are generally less expensive but offer less precise control.
• Proportional Controllers: These controllers are more sophisticated. They use an inertia sensor to detect the deceleration rate of the tow vehicle. The braking force applied to the trailer is then proportional to this deceleration. This provides smoother, more responsive braking, as the trailer brakes engage in direct relation to how hard you're braking in the tow vehicle. Proportional controllers are generally more expensive but offer significantly better performance and safety.

Do You Need a Brake Controller? The Weight Threshold

The crucial factor determining whether you need a brake controller is the weight of your trailer. Federal and state regulations often specify a weight threshold above which trailer brakes are required, and consequently, a brake controller is also needed for electric brakes. While specific laws vary by location, a common threshold is 3,000 pounds Gross Trailer Weight (GTW).

Gross Trailer Weight (GTW) is the total weight of the trailer and its contents. It's the actual weight you're towing, not just the empty weight of the trailer. You can determine the GTW by weighing the loaded trailer at a truck stop or weigh station.

Therefore, the general rule is:

If your trailer's GTW exceeds 3,000 pounds (or the specific weight threshold in your jurisdiction), you are legally required to have brakes on the trailer, and if those brakes are electric, you need a brake controller.

Even if your trailer is *slightly* below this weight, consider the advantages of having a brake controller for added safety and control, especially in challenging driving conditions or hilly terrain.

Beyond the Law: Why a Brake Controller is Important

Even if you're *just* under the weight limit where trailer brakes are legally mandated, there are compelling reasons to consider installing a brake controller:

• Improved Safety: Trailer brakes significantly reduce the stopping distance required when towing. This is crucial in emergency situations and helps prevent accidents. A brake controller allows you to fine-tune the trailer braking force, ensuring that the trailer doesn't push or sway during braking.
• Reduced Wear and Tear: Without trailer brakes, the tow vehicle's brakes have to work much harder to stop the combined weight of the vehicle and the trailer. This leads to increased wear and tear on the tow vehicle's brakes, tires, and suspension. A brake controller helps distribute the braking load, extending the life of your vehicle's components.
• Enhanced Control: A brake controller gives you greater control over the trailer, particularly in challenging situations such as downhill grades, windy conditions, or slippery surfaces. You can manually apply the trailer brakes using the controller's manual override feature, helping to stabilize the trailer and prevent sway.
• Legal Compliance: As mentioned earlier, many jurisdictions require trailer brakes (and consequently a brake controller for electric brakes) for trailers exceeding a certain weight. Failure to comply can result in fines, penalties, and even being prohibited from towing the trailer.

Installing a Brake Controller: A DIY Project?

Installing a brake controller is generally a straightforward DIY project for those with basic automotive electrical knowledge. However, it's crucial to follow the manufacturer's instructions carefully and to use appropriate wiring and connectors. The basic steps involve:

1. Choosing the Right Controller: Select a time-delayed or proportional controller based on your towing needs and budget. Consider features such as manual override, adjustable gain, and diagnostic capabilities.
2. Locating the Mounting Position: Choose a location within easy reach of the driver and where the controller won't be obstructed.
3. Wiring the Controller: Connect the controller to the tow vehicle's brake light switch, battery positive terminal, ground, and trailer brake wire. Most modern trucks come pre-wired with a connector for the brake controller, but older models may require more extensive wiring. Always disconnect the battery before working on any electrical system.
4. Connecting the Trailer Wiring: Ensure that the trailer's electric brake wires are properly connected to the tow vehicle's trailer connector.
5. Testing and Adjusting: After installation, test the brake controller to ensure that the trailer brakes are functioning correctly. Adjust the gain (braking force) setting to optimize braking performance.

If you're not comfortable working with automotive electrical systems, it's best to have a qualified mechanic install the brake controller for you. A professional installation ensures that the controller is wired correctly and that the trailer brakes are properly adjusted.

Troubleshooting Common Brake Controller Issues

Even with proper installation, brake controllers can sometimes experience problems. Here are some common issues and potential solutions:

• No Trailer Brakes: Check the wiring connections, fuses, and trailer brake magnets. Ensure that the brake controller is receiving power and that the gain setting is properly adjusted.
• Weak Trailer Brakes: Increase the gain setting on the brake controller. Inspect the trailer brake shoes and drums for wear.
• Overly Aggressive Trailer Brakes: Decrease the gain setting on the brake controller. Check for brake drag on the trailer.
• Brake Controller Error Codes: Consult the brake controller's manual for specific error code meanings and troubleshooting steps.

Conclusion

In conclusion, if your trailer's GTW exceeds the legal threshold in your area (often 3,000 pounds), you absolutely need a brake controller to operate electric brakes. Beyond the legal requirement, a brake controller significantly enhances safety, control, and reduces wear and tear on your tow vehicle. Investing in a quality brake controller is a smart decision for any serious tower, providing peace of mind and ensuring a safer towing experience. Choose the right controller for your needs, install it correctly, and maintain it properly, and you'll be well-equipped for your towing adventures.
