1990 Manual Transmission Gear Ratios And Performance

The year 1990 marks an interesting point in automotive history, particularly when examining manual transmissions. While automatic transmissions were gaining popularity, the manual gearbox still held a significant presence, especially for drivers prioritizing performance, control, and fuel efficiency. Understanding the gear ratios of 1990 manual transmissions, and how they affected vehicle performance, offers valuable insight for classic car enthusiasts, mechanics, and anyone interested in automotive engineering.

Understanding Gear Ratios

At its core, a gear ratio is the relationship between the number of teeth on the driving gear (connected to the engine) and the number of teeth on the driven gear (connected to the wheels). A higher gear ratio (e.g., 3.50:1) means the engine spins 3.5 times for every one rotation of the wheels. This provides more torque, suitable for acceleration and climbing hills. Conversely, a lower gear ratio (e.g., 0.80:1) means the engine spins less for each wheel rotation, offering better fuel economy and lower engine RPMs at higher speeds.

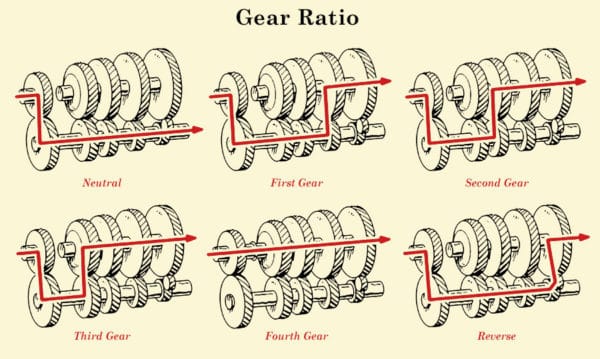

In a manual transmission, a set of different gear ratios are available, allowing the driver to select the optimal ratio for different driving conditions. These ratios are typically expressed as a numerical value, such as 3.75:1 for first gear, 2.20:1 for second gear, and so on.

Factors Influencing Gear Ratio Selection in 1990: Several factors influenced the gear ratios chosen by manufacturers in 1990:

Engine Characteristics: The engine's torque curve (how much torque it produces at different RPMs) was a primary consideration. Engines with strong low-end torque could utilize taller (numerically lower) gear ratios, while engines that needed to rev higher to produce power required shorter (numerically higher) ratios.
Vehicle Weight: Heavier vehicles generally needed shorter gear ratios to get moving, especially from a standstill. Lighter vehicles could manage with taller gears for improved fuel economy.
Intended Use: Vehicles designed for performance, such as sports cars, typically had shorter gear ratios in the lower gears for quicker acceleration. Vehicles designed for fuel efficiency, such as economy cars, often had taller gear ratios in the higher gears for relaxed cruising. Trucks and SUVs needed lower gears for towing and off-road use.
Number of Gears: The number of gears in the transmission also affected the ratios. A 5-speed transmission, common in 1990, required a wider spread of ratios than a 4-speed to cover the same range of speeds and driving conditions.
Fuel Economy Standards: Increasing fuel economy standards influenced manufacturers to incorporate taller gear ratios, especially in overdrive gears.

Typical 1990 Manual Transmission Gear Ratios: Examples

It's important to note that gear ratios varied significantly across different makes and models in 1990. However, we can provide some examples of typical gear ratios for different types of vehicles:

Compact/Economy Cars: A typical 5-speed manual transmission in a compact car might have the following ratios:
- 1st: 3.50 - 4.00:1
- 2nd: 1.90 - 2.30:1
- 3rd: 1.30 - 1.60:1
- 4th: 1.00:1 (Direct Drive)
- 5th: 0.75 - 0.85:1 (Overdrive)
Sports Cars: A sports car with a 5-speed manual might have:
- 1st: 2.80 - 3.30:1
- 2nd: 1.70 - 2.00:1
- 3rd: 1.20 - 1.40:1
- 4th: 1.00:1 (Direct Drive)
- 5th: 0.70 - 0.80:1 (Overdrive)
Trucks/SUVs: A truck or SUV with a 5-speed manual could have:
- 1st: 4.00 - 4.50:1 (or even higher for heavy-duty applications)
- 2nd: 2.20 - 2.60:1
- 3rd: 1.40 - 1.70:1
- 4th: 1.00:1 (Direct Drive)
- 5th: 0.75 - 0.85:1 (Overdrive)

These are just examples, and the specific ratios would vary depending on the engine, vehicle weight, and intended use. It's always best to consult the vehicle's service manual for the exact gear ratios.

Final Drive Ratio

In addition to the transmission gear ratios, the final drive ratio also plays a crucial role in overall vehicle performance. The final drive ratio is the gear ratio in the differential that connects the transmission to the axles and wheels. It further multiplies the torque coming from the transmission. A shorter final drive ratio provides quicker acceleration, while a taller final drive ratio improves fuel economy.

Impact on Performance

The combination of the transmission gear ratios and the final drive ratio directly affects several aspects of vehicle performance:

Acceleration: Shorter gear ratios (both in the transmission and the final drive) provide better acceleration. This is because they multiply the engine's torque, allowing the vehicle to accelerate more quickly from a standstill.
Top Speed: Taller gear ratios allow for higher top speeds. With taller gears, the engine doesn't have to spin as fast to achieve a given road speed. However, too tall of a gear ratio can result in the engine struggling to overcome aerodynamic drag at high speeds.
Fuel Economy: Taller gear ratios, especially in overdrive gears, improve fuel economy. This is because the engine is running at lower RPMs at a given speed, reducing fuel consumption.
Towing Capacity: Shorter gear ratios are essential for towing. They provide the extra torque needed to pull heavy loads.
Off-Road Capability: Shorter gear ratios are also beneficial for off-road driving. They provide the torque needed to navigate challenging terrain, such as steep hills and rocky surfaces.

Common Issues with 1990 Manual Transmissions

While generally reliable, 1990 manual transmissions are susceptible to certain issues as they age:

Worn Synchronizers: Synchronizers are responsible for matching the speeds of the gears during shifting. Over time, they can wear out, leading to grinding noises or difficulty shifting into gear.
Clutch Wear: The clutch disc can wear out over time, resulting in clutch slippage (where the engine revs up but the car doesn't accelerate properly) or difficulty shifting.
Bearing Failure: Bearings within the transmission can fail, causing noise, vibration, and eventual transmission failure.
Seal Leaks: Seals can deteriorate over time, leading to oil leaks. Low oil levels can damage the transmission.
Linkage Problems: The shift linkage can become worn or damaged, making it difficult to select gears.

Regular maintenance, including fluid changes and inspections, can help prevent these problems and extend the life of a 1990 manual transmission.

Modifying Gear Ratios

It is possible to modify the gear ratios in a 1990 manual transmission, although it's a complex and potentially expensive undertaking. Common modifications include:

Gear Swaps: Replacing individual gears with gears having different ratios. This requires careful selection of compatible gears and professional installation.
Transmission Swaps: Replacing the entire transmission with a different unit that has the desired gear ratios. This can be a more cost-effective option than swapping individual gears.
Final Drive Ratio Changes: Changing the final drive ratio in the differential. This is a relatively common modification for improving acceleration or fuel economy.

Before modifying gear ratios, it's crucial to carefully consider the potential impact on vehicle performance, fuel economy, and overall drivability. It's also important to choose components that are compatible with the vehicle and to have the work performed by a qualified mechanic.

Conclusion

The gear ratios in a 1990 manual transmission played a crucial role in determining the vehicle's performance characteristics. Understanding these ratios, and how they relate to engine characteristics, vehicle weight, and intended use, is essential for anyone interested in these classic vehicles. While specific ratios varied across different makes and models, the fundamental principles remained the same: shorter gear ratios for acceleration and towing, and taller gear ratios for fuel economy and top speed. By understanding these principles, enthusiasts and mechanics can better appreciate the engineering behind these transmissions and make informed decisions about maintenance, repair, and modification.

Whether you're restoring a classic car, performing maintenance on a vintage truck, or simply curious about automotive history, understanding the intricacies of 1990 manual transmission gear ratios offers a fascinating glimpse into the past and a deeper appreciation for the technology that shaped the automotive landscape.

Remember to always consult your vehicle's service manual for specific information about your transmission's gear ratios and maintenance requirements. Proper care and maintenance are key to keeping these classic transmissions running smoothly for years to come.
