2012 Nissan Rogue A/c Relay Location

Let's delve into the specifics of locating the air conditioning (A/C) relay within a 2012 Nissan Rogue. This seemingly small component plays a crucial role in the overall functionality of your vehicle's climate control system. Understanding its location and how it interacts with other parts of the A/C system can be incredibly helpful for troubleshooting cooling issues.

Understanding the A/C System Basics

Before we pinpoint the relay's position, it’s beneficial to grasp the fundamentals of an automotive A/C system. In a nutshell, the system works by circulating a refrigerant that absorbs heat from the cabin air and releases it outside. The main components include:

Compressor: This is the heart of the system. It compresses the refrigerant, raising its pressure and temperature.
Condenser: Located in front of the radiator, the condenser dissipates heat from the compressed refrigerant, turning it into a high-pressure liquid.
Expansion Valve (or Orifice Tube): This component regulates the flow of refrigerant into the evaporator, causing a pressure drop and allowing the refrigerant to evaporate.
Evaporator: Situated inside the dashboard, the evaporator absorbs heat from the cabin air as the refrigerant evaporates, cooling the air that's blown into the vehicle.
Refrigerant Lines: These hoses and pipes connect all the components, allowing the refrigerant to circulate.

The A/C relay acts as an electrical switch that controls the flow of power to the A/C compressor clutch. When the A/C is turned on, the vehicle's control module sends a signal to the relay. This signal energizes the relay's coil, creating an electromagnetic field that pulls a switch closed, completing the circuit and allowing power to flow to the compressor clutch. The energized clutch engages the compressor, allowing it to begin circulating refrigerant and cooling the cabin.

Locating the A/C Relay in a 2012 Nissan Rogue

Now, let’s get to the specific location of the A/C relay in a 2012 Nissan Rogue. Typically, relays are housed within fuse boxes or relay centers. The Rogue has two main locations to check:

1. The Interior Fuse Box

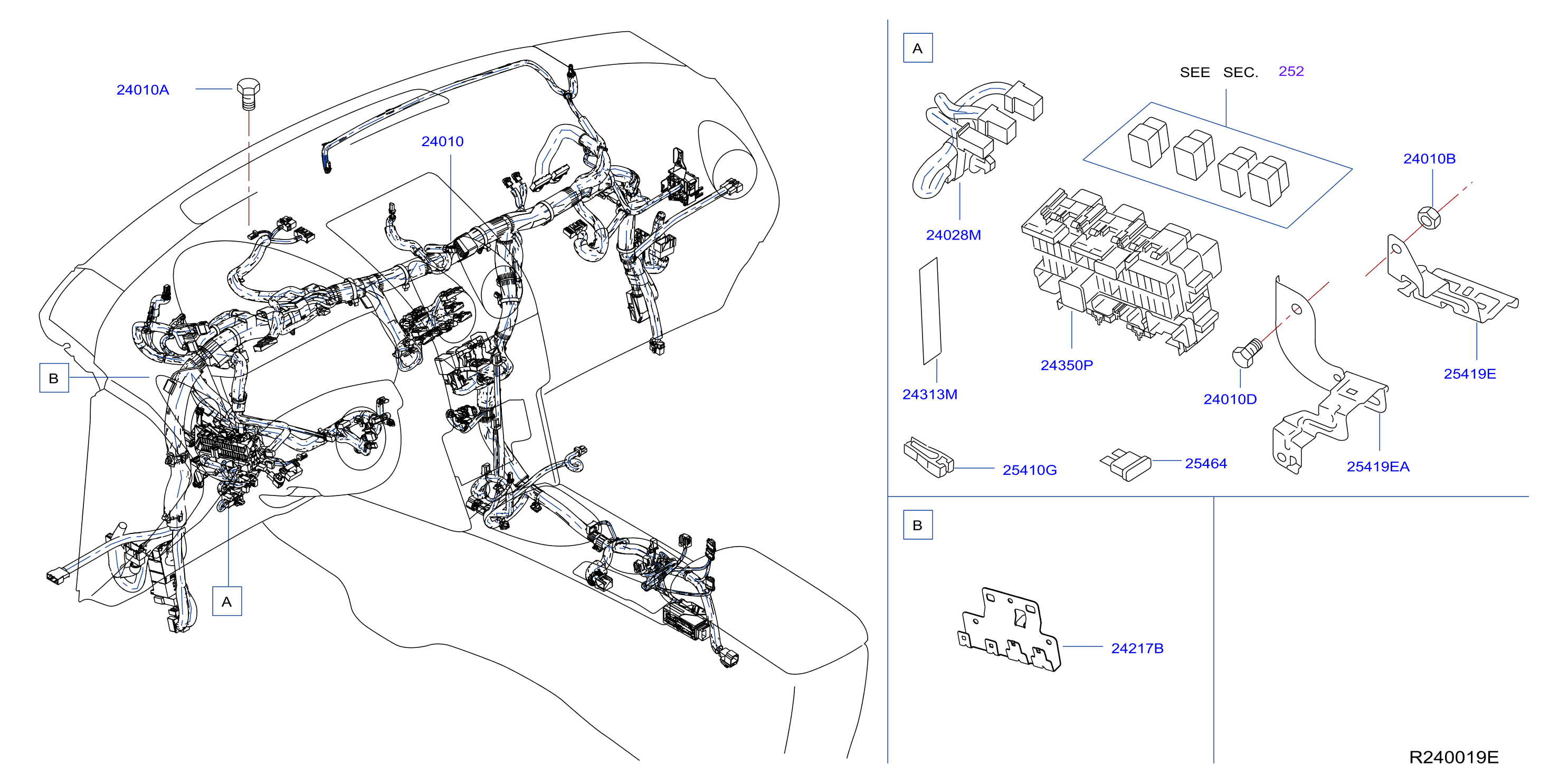

The primary location to investigate is the interior fuse box. This is usually found beneath the dashboard on the driver's side. The exact placement can vary slightly depending on the specific trim level and optional equipment of your Rogue, but it's generally near the steering column.

Accessing the Fuse Box: You may need a small screwdriver or trim removal tool to carefully pry open the fuse box cover. Some covers simply snap into place and can be pulled off by hand. Once open, you'll see a cluster of fuses and relays. Crucially, there will be a diagram either printed on the inside of the fuse box cover or within the owner's manual. This diagram is your roadmap to identifying the A/C relay.

Identifying the A/C Relay: Consult the fuse box diagram. Look for labels such as "A/C," "Compressor," or something similar. The symbol used on the diagram might look like a small rectangle with a coil symbol inside or a simplified representation of a relay. It's vital to use the diagram specific to your 2012 Rogue model, as relay locations can change between model years and trim levels.

Relay Appearance: Once identified on the diagram, the relay itself will usually be a small, cube-shaped plastic component. Common colors are black, gray, or blue. Relays typically have several (usually four or five) male terminals that plug into the fuse box socket.

2. The Engine Compartment Fuse/Relay Box

While less common for the A/C relay *directly*, it's prudent to check the engine compartment fuse/relay box. This is usually located near the battery or on the inner fender well. This box houses relays and fuses for various engine and vehicle systems.

Accessing the Fuse/Relay Box: The engine compartment fuse/relay box typically has a hinged or snap-on cover. Some covers might require you to depress tabs to release them.

Identifying Related Components: Even if the A/C compressor relay isn’t located here, there might be fuses or relays related to the A/C system, such as those for the cooling fans, which are crucial for condenser cooling. A malfunctioning cooling fan can indirectly affect A/C performance. Check the diagram (usually on the underside of the cover) and look for labels related to cooling fans or any other components related to the A/C.

Troubleshooting A/C Issues and the Relay

If your 2012 Nissan Rogue's A/C is not working correctly, the A/C relay is one of the first things to check. Here's a simple diagnostic procedure:

Check the Fuse: Before suspecting the relay, examine the A/C fuse. The fuse is usually located in the same fuse box as the relay. A blown fuse is a common cause of A/C failure and is much easier to fix than replacing a relay. Use a fuse tester or visually inspect the fuse to see if the filament is broken. Replace any blown fuses with one of the correct amperage rating.
Relay Swapping (Carefully!): If the fuse is good, you can try swapping the A/C relay with a relay of the same type and rating from a less critical system. For example, you could swap it with the horn relay or a relay for another non-essential function. Make sure the replacement relay has the exact same part number and pin configuration. If the A/C starts working after the swap, you've likely found a faulty relay. If the function of the swapped relay now doesn't work, then it confirms the relay is defective.
Voltage Testing: If you have a multimeter, you can test the relay socket for power. With the A/C turned on, there should be voltage present at the terminals that provide power to the compressor clutch. This requires understanding the relay wiring diagram, which can often be found online for your specific vehicle model. Proceed with caution when testing electrical circuits and disconnect the battery if you are unsure of the procedure.
Relay Testing (Off the Vehicle): Some relays can be tested independently using a multimeter and a 12V power source. You can apply power to the relay's coil terminals and check for continuity across the switch terminals. A functioning relay will show continuity when the coil is energized.

Important Considerations

Safety First: Always disconnect the negative battery terminal before working on any electrical components in your vehicle.
Correct Replacement: When replacing a relay, ensure you use a relay with the exact same part number and specifications as the original. Using an incorrect relay can damage the A/C system or other electrical components.
Consult a Professional: If you are not comfortable working on your vehicle's electrical system, it's always best to consult a qualified mechanic. A professional can accurately diagnose the problem and ensure that repairs are done correctly.
Wiring Diagrams: Obtain a wiring diagram for your specific 2012 Nissan Rogue model. This will provide valuable information about the A/C system's wiring and relay connections. Online databases and repair manuals often contain these diagrams.

By understanding the location and function of the A/C relay, along with basic troubleshooting steps, you can effectively diagnose and potentially resolve A/C problems in your 2012 Nissan Rogue. Remember to prioritize safety and seek professional help when needed. Happy motoring!
