2015 Nissan Rogue Ac Compressor Replacement

The 2015 Nissan Rogue, a popular choice for its blend of fuel efficiency and practicality, relies on a properly functioning air conditioning system to keep its occupants comfortable. At the heart of this system lies the AC compressor, a vital component responsible for circulating refrigerant throughout the AC loop. When this compressor fails, the cabin turns into a sauna, especially during sweltering summer months. Understanding the intricacies of its operation and the replacement process can empower even the amateur engineer to tackle this repair, saving significant cost compared to professional service.

Understanding the AC System and Compressor Function

Before diving into the replacement procedure, it's crucial to grasp the fundamental principles of the air conditioning system. The system operates on the principles of thermodynamics, using refrigerant (typically R-134a or the newer R-1234yf) to absorb and release heat.

The cycle unfolds as follows:

1. Compressor: The AC compressor, driven by the engine via a belt, pressurizes the refrigerant, increasing its temperature. This high-pressure, high-temperature refrigerant leaves the compressor as a gas.
2. Condenser: The hot, high-pressure refrigerant flows to the condenser, usually located in front of the radiator. Here, air flowing through the condenser fins dissipates heat, causing the refrigerant to condense into a high-pressure liquid.
3. Receiver-Drier (or Accumulator): The high-pressure liquid refrigerant then passes through a receiver-drier (or accumulator in some systems). This component filters out moisture and contaminants, ensuring only clean, dry refrigerant proceeds further.
4. Expansion Valve (or Orifice Tube): The refrigerant reaches the expansion valve (or orifice tube). This crucial component meters the flow of refrigerant into the evaporator, causing a rapid pressure drop. As the pressure drops, the refrigerant rapidly expands and vaporizes, absorbing heat in the process.
5. Evaporator: Located inside the vehicle's dashboard, the evaporator absorbs heat from the cabin air blown across its fins by the blower motor. The cold, low-pressure refrigerant then returns to the compressor, completing the cycle.

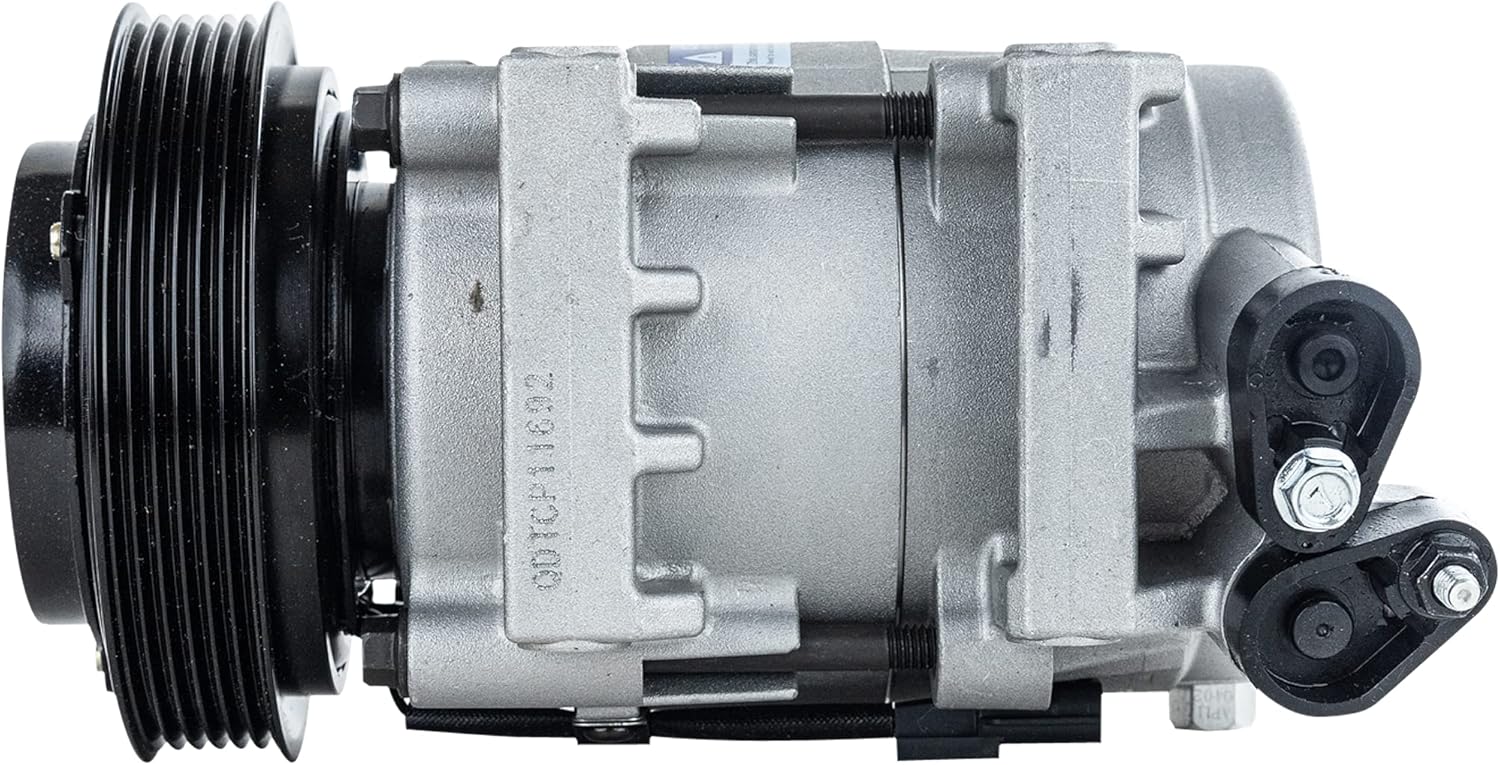

The 2015 Nissan Rogue utilizes a variable displacement compressor, also known as a swashplate compressor. Unlike fixed displacement compressors that pump a constant volume of refrigerant per revolution, a variable displacement compressor adjusts its output based on cooling demand. This is achieved by varying the angle of the swashplate, which in turn alters the stroke of the pistons inside the compressor. This design improves fuel economy and provides more consistent cooling performance.

A common cause of AC compressor failure in the Rogue, and other vehicles, is internal wear and tear, leading to reduced compression efficiency. Other potential causes include refrigerant leaks, system contamination, and electrical problems with the compressor clutch.

Diagnosing a Failing AC Compressor

Identifying a failing AC compressor requires careful observation and a methodical approach. Here are some common symptoms:

• Lack of Cold Air: This is the most obvious symptom. If the AC system is blowing warm air despite being turned on, the compressor might be the culprit.
• Unusual Noises: Grinding, squealing, or rattling noises emanating from the compressor area are strong indicators of internal damage. These noises often worsen when the AC is engaged.
• Compressor Clutch Issues: The compressor clutch engages and disengages the compressor pulley from the engine. If the clutch fails to engage, the compressor won't run. A faulty clutch might produce a clicking sound or not engage at all. You can visually inspect the clutch with the engine running and AC on to see if it's spinning along with the pulley.
• Refrigerant Leaks: While not directly a compressor failure symptom, significant refrigerant leaks can starve the compressor of lubrication, leading to premature failure. Check for oily residue around the compressor and other AC components.
• High Pressure Readings: Using AC manifold gauges, abnormally high pressure readings on both the high and low sides of the system can indicate a compressor malfunction. Always consult a professional for accurate diagnosis using manifold gauges if you are not experienced.

Before condemning the compressor, it's crucial to rule out other potential issues, such as a clogged condenser, a faulty expansion valve, or low refrigerant levels. A thorough diagnostic process is essential for accurate repair.

2015 Nissan Rogue AC Compressor Replacement Procedure: A Step-by-Step Guide

Important Safety Precautions: Working with refrigerants and automotive systems involves inherent risks. Always wear appropriate safety gear, including safety glasses and gloves. Recover refrigerant using a certified recovery machine; do not vent refrigerant into the atmosphere. Disconnect the negative battery terminal before starting any electrical work. If you're uncomfortable with any of these steps, seek professional assistance.

1. Refrigerant Recovery: The first and most critical step is to recover the remaining refrigerant from the AC system using a certified refrigerant recovery machine. This is essential for environmental protection and is often legally mandated. Connect the recovery machine to the high and low-side service ports and follow the machine's instructions to evacuate the system.
2. Disconnect Battery: Disconnect the negative battery terminal to prevent accidental electrical shorts during the replacement process.
3. Locate the AC Compressor: The AC compressor on the 2015 Nissan Rogue is typically located on the front of the engine, driven by a belt. Consult a repair manual or online resources for the exact location and specific access instructions for your model.
4. Remove the Drive Belt: Use a wrench or socket to relieve the tension on the belt tensioner pulley and remove the drive belt from the AC compressor pulley. Make note of the belt routing for reinstallation.
5. Disconnect Electrical Connections: Disconnect the electrical connector(s) from the AC compressor. This typically involves unclipping a connector or removing a retaining clip.
6. Disconnect Refrigerant Lines: Carefully disconnect the refrigerant lines from the compressor. Use appropriate wrenches to loosen the fittings, taking care not to damage the lines. Expect a small amount of oil to leak out when disconnecting the lines. Have a rag ready to catch any spills.
7. Remove the Compressor Mounting Bolts: Remove the bolts that secure the AC compressor to the engine block. These bolts can be tight, so use appropriate tools and leverage.
8. Remove the Compressor: Carefully remove the old AC compressor from the vehicle.
9. Prepare the New Compressor: Before installing the new compressor, add the correct type and amount of PAG oil specified for the 2015 Nissan Rogue's AC system. Consult the vehicle's service manual or the compressor manufacturer's instructions for the recommended oil type and quantity. Pour the oil into the compressor's oil sump and rotate the compressor shaft to distribute the oil evenly.
10. Install the New Compressor: Install the new AC compressor in the reverse order of removal. Ensure that all mounting bolts are tightened to the correct torque specifications.
11. Reconnect Refrigerant Lines: Reconnect the refrigerant lines to the new compressor, using new O-rings to ensure a proper seal. Tighten the fittings to the correct torque specifications.
12. Reconnect Electrical Connections: Reconnect the electrical connector(s) to the AC compressor.
13. Install the Drive Belt: Reinstall the drive belt, ensuring it is properly routed around all pulleys and that the belt tensioner is properly engaged.
14. Evacuate and Recharge the System: This is a critical step. Use a vacuum pump to evacuate the AC system for at least 30-45 minutes to remove air and moisture. Then, recharge the system with the correct amount of refrigerant, following the vehicle's specifications.
15. Test the System: Start the engine and turn on the AC system. Check for cold air blowing from the vents. Use AC manifold gauges to verify that the system pressures are within the normal operating range.

Post-Replacement Considerations

After replacing the AC compressor, it's crucial to address any underlying issues that may have contributed to the compressor failure. This may involve:

• Flushing the System: If the old compressor failed catastrophically, metal debris may have contaminated the AC system. Flushing the system with a dedicated AC flush solution can remove these contaminants.
• Replacing the Receiver-Drier (or Accumulator): The receiver-drier or accumulator is responsible for filtering moisture and contaminants from the refrigerant. It's generally recommended to replace this component whenever the AC system is opened.
• Inspecting and Replacing the Expansion Valve (or Orifice Tube): The expansion valve or orifice tube controls the flow of refrigerant into the evaporator. If this component is clogged or malfunctioning, it can negatively affect system performance.

Conclusion

Replacing the AC compressor on a 2015 Nissan Rogue is a complex but achievable task for the mechanically inclined individual. By understanding the principles of the AC system, following a methodical approach, and adhering to safety precautions, you can successfully restore your vehicle's air conditioning to its former glory. Remember, if you're uncertain about any aspect of the procedure, seek professional assistance from a qualified automotive technician. Proper diagnosis, careful execution, and attention to detail are key to a successful AC compressor replacement.
