2016 Nissan Rogue Thermostat Location

Okay, so you're searching for the thermostat location on your 2016 Nissan Rogue. Chances are, you're experiencing some cooling system issues, and that's never fun. Let's get you pointed in the right direction. Finding the thermostat and, if needed, replacing it, is a common task for many Rogue owners, and while it’s not the most complex repair, it does require some knowledge and the right tools. This guide will walk you through it.

Understanding the Role of the Thermostat

Before we dive into the location, let’s quickly recap what the thermostat does. The thermostat is a crucial component in your engine's cooling system. It acts like a valve, regulating the flow of coolant to the radiator. When the engine is cold, the thermostat remains closed, allowing the engine to warm up quickly. Once the engine reaches its optimal operating temperature (usually around 180-200°F or 82-93°C), the thermostat opens, allowing coolant to circulate through the radiator to dissipate heat. If the thermostat fails, it can cause overheating or, conversely, the engine might not reach its optimal operating temperature, leading to poor fuel economy and performance.

Symptoms of a Faulty Thermostat

How do you know if your thermostat is acting up? Here are some common signs:

Overheating: This is perhaps the most obvious symptom. If your temperature gauge is constantly in the red zone, or you see steam coming from under the hood, your engine is likely overheating. A stuck-closed thermostat is a prime suspect here.
Engine Runs Cold: On the opposite end, if your engine never seems to reach its normal operating temperature, even after driving for a while, the thermostat might be stuck open. Your heater might also blow cold air, especially at idle.
Fluctuating Temperature Gauge: If the temperature gauge is constantly moving up and down, instead of staying relatively steady, this could also indicate a thermostat problem.
Poor Fuel Economy: An engine that runs too cold will often consume more fuel.
Check Engine Light: A malfunctioning thermostat can sometimes trigger the check engine light. Common codes related to thermostat issues include P0128 (Coolant Thermostat Malfunction (Coolant Temperature Below Thermostat Regulating Temperature)), among others.

Locating the Thermostat on a 2016 Nissan Rogue

Alright, let's get to the point – where is the thermostat located on your 2016 Nissan Rogue? You'll find it housed in a thermostat housing connected to the engine block, near where the upper radiator hose connects. Here's a more detailed breakdown:

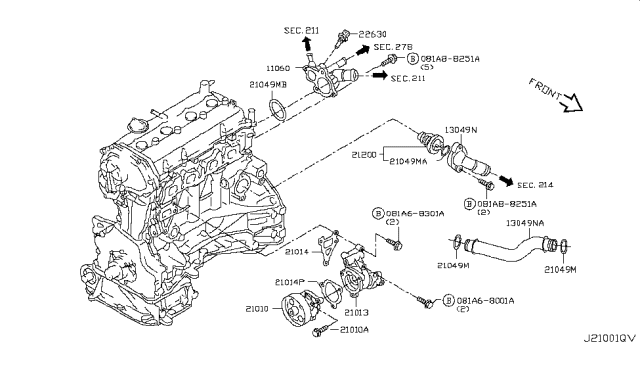

Specifically: On the 2016 Nissan Rogue with the 2.5L QR25DE engine, the thermostat housing is usually located on the right side (passenger side) of the engine, where the upper radiator hose connects to the engine block. It's often tucked behind the alternator, so you'll need to look carefully. It's a black plastic housing with a few bolts holding it in place.

Step-by-Step Instructions to Access the Thermostat

Here’s a general outline of how to access the thermostat. Always consult your Rogue's repair manual for specific instructions and torque specifications. This is a general guide and should not replace professional advice or manufacturer instructions.

Safety First: Allow the engine to cool down completely before starting any work. Never work on a hot engine. Disconnect the negative battery terminal to prevent any electrical accidents.
Gather Your Tools: You'll need the following tools:
- Socket set with various sizes (typically 10mm, 12mm, and 13mm sockets).
- Wrench set (same sizes as sockets).
- Screwdrivers (Phillips and flathead).
- Pliers.
- Drain pan.
- New thermostat and gasket (make sure it's the correct one for your 2016 Rogue).
- Coolant (the correct type for your Nissan Rogue – check your owner's manual).
- Funnel.
- Shop towels or rags.
Drain the Coolant: Locate the radiator drain cock (usually at the bottom of the radiator). Place the drain pan underneath and open the drain cock to drain the coolant. You don't need to drain all the coolant, but enough so that the level is below the thermostat housing. Alternatively, you can disconnect the lower radiator hose, but this can be messier.
Remove Air Intake Components (If Necessary): Depending on the specific configuration of your Rogue, you might need to remove some air intake components to gain better access to the thermostat housing. This might involve removing the air filter box and intake tube.
Disconnect the Upper Radiator Hose: Loosen the hose clamp that secures the upper radiator hose to the thermostat housing. Twist and pull the hose to remove it. Be prepared for a little coolant spillage.
Remove Any Obstructions: Check for any wiring harnesses or other components that might be blocking access to the thermostat housing and carefully move them out of the way.
Remove the Thermostat Housing: Locate the bolts holding the thermostat housing in place. Usually, there are two or three bolts. Use the appropriate socket or wrench to remove the bolts. Be careful not to strip the bolt heads.
Remove the Old Thermostat: Once the housing is removed, you should be able to see the thermostat. Carefully remove the old thermostat and inspect the housing for any corrosion or damage. Clean the housing thoroughly.
Install the New Thermostat: Install the new thermostat, making sure it's oriented correctly. There's usually a marking on the thermostat that indicates the correct orientation. Install the new gasket or O-ring that came with the new thermostat.
Reinstall the Thermostat Housing: Carefully reinstall the thermostat housing, making sure the gasket is properly seated. Tighten the bolts to the manufacturer's specified torque (refer to your repair manual). Overtightening can damage the housing.
Reinstall Everything Else: Reconnect the upper radiator hose, reattach any wiring harnesses or components you removed, and reinstall the air intake components (if applicable).
Refill the Coolant: Slowly refill the cooling system with the correct type of coolant. Use a funnel to prevent spills.
Bleed the Cooling System: Bleeding the cooling system is crucial to remove any air pockets. Locate the bleeder valve (usually on or near the thermostat housing or radiator). Open the bleeder valve and allow air to escape until only coolant comes out. Close the bleeder valve.
Check for Leaks: Start the engine and let it run for a few minutes. Monitor the temperature gauge and check for any coolant leaks around the thermostat housing, radiator hoses, or bleeder valve.
Top Off Coolant (If Necessary): After the engine has cooled down, check the coolant level in the radiator and overflow tank. Add coolant as needed to maintain the proper level.

Important Considerations and Tips

Use the Right Coolant: Using the wrong type of coolant can damage your cooling system. Refer to your owner's manual for the correct coolant specification.
Torque Specifications: Always use a torque wrench to tighten the thermostat housing bolts to the manufacturer's specified torque.
Inspect Hoses: While you have the cooling system open, inspect the radiator hoses for any cracks, leaks, or swelling. Replace them if necessary.
Safety Precautions: Coolant is toxic. Avoid getting it on your skin or in your eyes. If you do, rinse thoroughly with water. Dispose of used coolant properly at a recycling center or auto parts store.

Estimated Cost

The cost of replacing a thermostat on a 2016 Nissan Rogue can vary depending on whether you do it yourself or take it to a mechanic. Here's a general estimate:

DIY: The thermostat itself typically costs between $20 and $50. You'll also need to factor in the cost of coolant (around $20-$30). So, the total cost for a DIY job could be around $40-$80, plus the cost of any tools you may need to purchase.
Mechanic: If you take it to a mechanic, you can expect to pay between $150 and $300 or more, including parts and labor. Labor rates vary depending on your location.

When to Seek Professional Help

While replacing a thermostat is a manageable task for many DIYers, there are situations where it's best to seek professional help:

You're Not Comfortable: If you're not comfortable working on your car's cooling system, it's best to leave it to a professional.
You Encounter Difficulties: If you encounter any difficulties during the replacement process, such as stripped bolts or damaged components, it's best to stop and seek professional assistance.
Persistent Overheating: If you replace the thermostat and your engine still overheats, there may be other underlying issues, such as a faulty water pump, a clogged radiator, or a blown head gasket. These issues require a more thorough diagnosis and repair.

By understanding the location of your thermostat, the symptoms of a faulty thermostat, and the steps involved in replacing it, you can make an informed decision about whether to tackle this repair yourself or seek professional help. Remember to always prioritize safety and consult your Rogue's repair manual for specific instructions. Good luck!
