2019 Nissan Altima Code P059F: Understanding and Resolving the Issue

The 2019 Nissan Altima, while a popular and reliable vehicle, can occasionally present its owners with diagnostic trouble codes (DTCs). One such code is P059F, which can be a cause for concern. This article will provide a comprehensive overview of the P059F code in the 2019 Nissan Altima, covering its meaning, potential causes, symptoms, troubleshooting steps, and possible solutions. Our goal is to equip you with the knowledge needed to understand and address this issue effectively, potentially saving you time and money.

Understanding the P059F Code

The OBD-II (On-Board Diagnostics II) code P059F specifically refers to the "Active Grille Air Shutter 'A' Control Circuit Performance." In simpler terms, it indicates that the vehicle's computer (the Engine Control Module or ECM) has detected a problem with the performance of the active grille air shutter system. These shutters are designed to improve fuel efficiency and engine warm-up times by controlling airflow to the radiator. When the ECM detects an issue with this system, it triggers the P059F code and illuminates the check engine light on your dashboard.

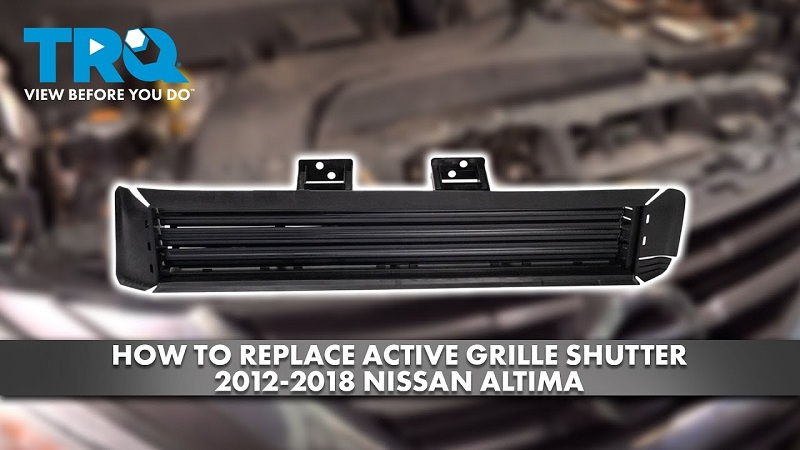

The active grille shutter system works by opening and closing louvers located in the front grille. When the engine is cold, the shutters remain closed to restrict airflow, allowing the engine to reach its optimal operating temperature more quickly. Once the engine is warm, the shutters open to allow airflow for cooling. The ECM monitors the position and operation of these shutters, and if it detects a discrepancy between the expected and actual performance, it will set the P059F code.

Potential Causes of the P059F Code in a 2019 Nissan Altima

Several factors can contribute to the P059F code appearing in your 2019 Nissan Altima. Identifying the root cause is crucial for effective repair. Here's a breakdown of the most common culprits:

Faulty Active Grille Air Shutter Actuator: The actuator is the motor that physically opens and closes the grille shutters. If this actuator fails, the shutters may not operate correctly, triggering the code. This is often due to wear and tear, electrical issues within the actuator itself, or physical damage.
Wiring or Connector Issues: Damaged, corroded, or loose wiring and connectors associated with the active grille air shutter system can disrupt communication between the actuator, the ECM, and the position sensor. This is a common cause, especially in areas prone to moisture or road salt.
Active Grille Air Shutter Position Sensor Failure: The position sensor provides feedback to the ECM about the position of the shutters. If this sensor malfunctions, the ECM may receive inaccurate information, leading to the P059F code.
Damaged or Obstructed Grille Shutters: Physical damage to the grille shutters, such as being bent or broken, can prevent them from moving freely. Obstructions, such as debris or ice, can also hinder their operation.
ECM (Engine Control Module) Failure: Although less common, a faulty ECM can sometimes incorrectly interpret signals from the active grille air shutter system, resulting in the P059F code. This is usually only suspected after other potential causes have been ruled out.
Software Issues: In rare cases, a software glitch within the ECM can cause the code to appear. A software update may be necessary to resolve this.

Symptoms Associated with the P059F Code

Recognizing the symptoms associated with the P059F code can help you diagnose the problem more quickly. The most common symptoms include:

Check Engine Light: This is the most obvious symptom. The check engine light will illuminate on your dashboard to alert you to a problem.
Reduced Fuel Efficiency: If the grille shutters are stuck open, the engine may take longer to warm up, resulting in reduced fuel efficiency. Conversely, if they are stuck closed, the engine may overheat, also impacting fuel economy.
Engine Overheating: If the grille shutters are stuck closed, airflow to the radiator may be restricted, potentially leading to engine overheating, especially during hot weather or strenuous driving conditions.
Engine Not Warming Up Properly: If the grille shutters are stuck open, the engine may take longer to reach its optimal operating temperature, particularly in cold weather.
Performance Issues: In some cases, you might experience minor performance issues, such as a slight decrease in acceleration.

Troubleshooting Steps for the P059F Code

Troubleshooting the P059F code requires a systematic approach. Here's a step-by-step guide you can follow:

Read the Diagnostic Trouble Code: Use an OBD-II scanner to confirm the presence of the P059F code and check for any other related codes. This will provide valuable clues about the underlying issue.
Visually Inspect the Active Grille Air Shutter System: Carefully examine the grille shutters for any signs of damage, obstructions, or loose connections. Look for broken louvers, debris, or corrosion.
Check the Wiring and Connectors: Inspect the wiring and connectors associated with the active grille air shutter actuator and position sensor. Look for signs of damage, corrosion, or loose connections. Use a multimeter to check for continuity and voltage.
Test the Active Grille Air Shutter Actuator: Use a scan tool or multimeter to test the actuator's functionality. You can typically command the actuator to open and close using the scan tool. Check for proper voltage and ground at the actuator connector.
Test the Active Grille Air Shutter Position Sensor: Use a multimeter to check the position sensor's output signal. The signal should change as the shutters are opened and closed. Refer to the vehicle's service manual for specific testing procedures.
Check for Technical Service Bulletins (TSBs): Consult the Nissan TSB database for any bulletins related to the P059F code and the 2019 Altima. TSBs may provide specific diagnostic and repair procedures.
Clear the Code and Retest: After performing any repairs, clear the P059F code using an OBD-II scanner and then drive the vehicle to see if the code returns. This will confirm whether the repair was successful.

Possible Solutions for the P059F Code

The solution for the P059F code will depend on the underlying cause. Here are some possible solutions:

Replace the Active Grille Air Shutter Actuator: If the actuator is faulty, replacing it is the most likely solution. Ensure you purchase a genuine Nissan part or a high-quality aftermarket replacement.
Repair or Replace Wiring and Connectors: If damaged wiring or connectors are found, repair or replace them as needed. Use proper crimping and soldering techniques to ensure a secure connection. Consider using dielectric grease to protect the connections from corrosion.
Replace the Active Grille Air Shutter Position Sensor: If the position sensor is faulty, replacing it will be necessary. Again, using a genuine Nissan part or a reputable aftermarket replacement is recommended.
Remove Obstructions and Repair Damage: If the grille shutters are obstructed or damaged, remove the obstructions and repair any damage. In some cases, the entire grille assembly may need to be replaced.
ECM Reprogramming or Replacement: If the ECM is suspected of being faulty, have it tested by a qualified technician. Reprogramming or replacing the ECM may be necessary, but this should only be done as a last resort.
Software Update: Check with your Nissan dealer to see if a software update is available for the ECM. This update may resolve software glitches that are causing the P059F code.

Preventative Maintenance

While you can't completely prevent all mechanical issues, regular maintenance can help minimize the risk of encountering the P059F code and other problems. Consider these preventative measures:

Regularly Inspect the Grille Area: Visually inspect the grille area for any signs of damage or obstructions. Remove any debris or ice that may be present.
Check Wiring Connections: Periodically check the wiring connections associated with the active grille air shutter system for corrosion or looseness. Clean and tighten connections as needed.
Professional Inspections: Have your vehicle inspected by a qualified mechanic on a regular basis. They can identify potential problems before they escalate into major issues.

When to Seek Professional Help

While some troubleshooting steps can be performed by the average car owner, it's often best to seek professional help from a qualified mechanic, especially if:

You lack the necessary tools or equipment.
You are not comfortable working on your vehicle.
You are unable to identify the root cause of the problem.
The problem is complex or involves the ECM.

A qualified mechanic will have the expertise, experience, and specialized equipment needed to accurately diagnose and repair the P059F code in your 2019 Nissan Altima. They can also ensure that all repairs are performed correctly and safely.

Conclusion

The P059F code in a 2019 Nissan Altima indicates a problem with the active grille air shutter system. Understanding the meaning of the code, potential causes, symptoms, and troubleshooting steps is crucial for resolving the issue effectively. By following the guidelines outlined in this article, you can gain a better understanding of the problem and potentially save time and money on repairs. Remember to prioritize safety and seek professional help when needed. By addressing the P059F code promptly, you can ensure the continued performance and fuel efficiency of your 2019 Nissan Altima.
