The 2011 Nissan Maxima is a fantastic car, known for its sporty performance and refined interior. However, like any vehicle, it's prone to certain issues over time. One of the most common and frustrating is a failing AC compressor. Staying cool in the summer isn't just about comfort; it's about safety, alertness, and overall driving experience. This guide will walk you through the process of replacing the AC compressor on your 2011 Maxima, providing the knowledge and confidence to tackle this job yourself.

Background: The 2011 Nissan Maxima Climate Control System

The 2011 Maxima utilizes a sophisticated climate control system to regulate cabin temperature and humidity. Understanding the basic components and their functions is crucial before diving into the AC compressor replacement.

Key Components:

  • AC Compressor: The heart of the system. It's a belt-driven pump that circulates refrigerant throughout the AC system.
  • Condenser: Located in front of the radiator, the condenser dissipates heat from the high-pressure refrigerant gas, turning it into a high-pressure liquid.
  • Evaporator: Located inside the dashboard, the evaporator absorbs heat from the cabin air, cooling it down. The refrigerant boils and turns back into a gas.
  • Expansion Valve (or Orifice Tube): This regulates the flow of refrigerant into the evaporator, controlling the cooling process. The 2011 Maxima uses an expansion valve.
  • Receiver Drier (or Accumulator): This component filters out moisture and debris from the refrigerant.
  • Refrigerant: The working fluid that absorbs and releases heat, cycling through the system. The 2011 Maxima typically uses R-134a refrigerant.
  • Pressure Switches: These switches monitor the refrigerant pressure and prevent the compressor from running if the pressure is too low or too high, protecting the system.
  • Climate Control Module: The electronic brain that controls the entire system, adjusting fan speed, temperature, and mode settings.

Technical Breakdown: How the AC System Works

The AC system operates on the principle of heat transfer through refrigerant phase changes. Here’s a simplified explanation:

  1. The compressor increases the pressure of the refrigerant gas, raising its temperature.
  2. The hot, high-pressure refrigerant gas flows to the condenser, where it releases heat to the outside air and condenses into a high-pressure liquid.
  3. The high-pressure liquid refrigerant then flows through the receiver drier, where moisture and debris are removed.
  4. Next, the refrigerant passes through the expansion valve, which restricts the flow and reduces the pressure of the liquid refrigerant. This causes the refrigerant to cool significantly.
  5. The cold, low-pressure refrigerant enters the evaporator, where it absorbs heat from the air passing over it. This cools the air that blows into the cabin. The refrigerant evaporates into a low-pressure gas.
  6. Finally, the low-pressure refrigerant gas returns to the compressor to start the cycle again.

The expansion valve is a crucial component. It meters the correct amount of refrigerant into the evaporator, preventing it from flooding or starving. It’s more precise than the orifice tube alternative.

Common AC Compressor Issues and Maintenance Concerns

AC compressors are robust, but they're subjected to high pressures and temperatures, leading to eventual failure. Here are common problems:

  • Internal Failure: Bearings can wear out, pistons can seize, or valves can break down. This usually results in a noisy compressor or complete failure to pump refrigerant. You might hear a grinding or rattling noise.
  • Clutch Failure: The compressor clutch engages and disengages the compressor pulley, allowing it to cycle on and off. The clutch can wear out, causing it to slip or fail to engage altogether. A visual inspection of the clutch for signs of wear and tear is important.
  • Refrigerant Leaks: Leaks can occur at various points in the system, including the compressor seals. Low refrigerant levels can cause the compressor to work harder and eventually fail. Finding and fixing leaks before replacing the compressor is crucial.
  • Contamination: Debris and moisture in the system can damage the compressor and other components. This is why it's vital to flush the system when replacing the compressor.
  • Electrical Problems: Issues with the wiring, relays, or pressure switches can prevent the compressor from running.

Maintenance: Regular AC system maintenance can extend the life of your compressor. This includes:

  • Having the refrigerant level checked and recharged as needed.
  • Inspecting the drive belt for wear and tear.
  • Having the system inspected for leaks.
  • Running the AC system regularly, even during the winter months, to circulate the refrigerant and keep the seals lubricated.

AC Compressor Replacement: Step-by-Step Guide

Disclaimer: Working with AC systems involves handling refrigerant, which can be harmful to the environment and potentially dangerous. It's highly recommended to have the system professionally evacuated by a certified technician before starting any repairs. If you choose to proceed on your own, ensure you understand the risks and take appropriate precautions.

Tools and Materials Needed:

  • New AC Compressor (specific to 2011 Nissan Maxima)
  • New Receiver Drier
  • Expansion Valve (recommended, especially if there's evidence of contamination)
  • AC System Flush Kit (and compatible flush solution)
  • Refrigerant Oil (compatible with the refrigerant used in your system – usually PAG oil)
  • New O-rings (for all connections)
  • Refrigerant R-134a (or equivalent)
  • AC Manifold Gauge Set
  • Vacuum Pump
  • Socket Set
  • Wrench Set
  • Screwdrivers
  • Pliers
  • Torque Wrench
  • Safety Glasses
  • Gloves
  • Recovery Machine (for professional evacuation)

Procedure:

  1. Evacuate the System: This is the most crucial step. If you don't have a recovery machine, take your car to a certified technician to have the refrigerant professionally evacuated. Releasing refrigerant into the atmosphere is illegal and harmful.
  2. Disconnect the Battery: Disconnect the negative battery terminal to prevent electrical shorts.
  3. Locate the AC Compressor: On the 2011 Maxima, the compressor is typically located on the front of the engine, driven by a belt. Consult your service manual for the exact location.
  4. Remove the Drive Belt: Use a wrench or socket to release the tension on the belt tensioner and remove the drive belt from the compressor pulley.
  5. Disconnect Electrical Connectors: Disconnect the electrical connector(s) from the compressor.
  6. Disconnect Refrigerant Lines: Carefully disconnect the refrigerant lines from the compressor. Use a wrench to loosen the fittings. Be prepared for a small amount of residual refrigerant oil to leak out. Have a rag handy to wipe it up. Replace the O-rings with new ones immediately.
  7. Remove the Compressor: Remove the bolts that secure the compressor to the engine bracket. Carefully lift the compressor out of the engine bay.
  8. Replace the Receiver Drier: The receiver drier should always be replaced when replacing the compressor. Locate the receiver drier (usually near the condenser), disconnect the refrigerant lines, and remove the old drier. Install the new drier with new O-rings.
  9. Replace the Expansion Valve (Recommended): Replacing the expansion valve is highly recommended, especially if there is evidence of contamination in the system. It is typically located at the firewall where the refrigerant lines enter the evaporator core. Disconnect the refrigerant lines and remove the old valve. Install the new valve with new O-rings.
  10. Flush the System: This is critical to remove any debris or contamination from the system. Follow the instructions that come with your AC flush kit. Be sure to flush the evaporator, condenser, and refrigerant lines separately. Do *not* flush the compressor, receiver drier, or expansion valve.
  11. Install the New Compressor: Mount the new compressor to the engine bracket, tightening the bolts to the specified torque.
  12. Connect Refrigerant Lines: Connect the refrigerant lines to the compressor, using new O-rings. Tighten the fittings to the specified torque.
  13. Connect Electrical Connectors: Connect the electrical connector(s) to the compressor.
  14. Install the Drive Belt: Reinstall the drive belt, ensuring it's properly seated on the compressor pulley.
  15. Add Refrigerant Oil: Consult your vehicle's service manual or the compressor manufacturer's instructions to determine the correct type and amount of refrigerant oil to add to the system. You can add the oil directly to the compressor or distribute it throughout the system.
  16. Evacuate and Recharge the System: Connect the AC manifold gauge set and vacuum pump to the system. Evacuate the system for at least 30-45 minutes to remove any air and moisture. Then, recharge the system with the correct amount of refrigerant, following the instructions on the refrigerant can or the service manual.
  17. Check for Leaks: Use a leak detector or soapy water to check for leaks at all connections.
  18. Test the System: Start the engine and turn on the AC. Verify that the system is cooling properly. Monitor the pressure readings on the AC manifold gauge set to ensure they are within the correct range.

Do’s and Don’ts / Best Practices

Do’s:

  • Do have the system professionally evacuated before starting any repairs.
  • Do replace the receiver drier and expansion valve.
  • Do use new O-rings for all connections.
  • Do flush the system thoroughly.
  • Do use the correct type and amount of refrigerant oil.
  • Do torque all fittings to the specified torque.
  • Do wear safety glasses and gloves.
  • Do consult your vehicle's service manual for specific instructions and torque specifications.

Don’ts:

  • Don't release refrigerant into the atmosphere.
  • Don't reuse old O-rings.
  • Don't skip the flushing step.
  • Don't over-tighten fittings.
  • Don't use incompatible refrigerant oil.
  • Don't work on the system without proper training or experience.

Conclusion

Replacing the AC compressor on your 2011 Nissan Maxima is a complex but manageable task for the experienced DIYer. By following this guide carefully, using the correct tools and materials, and adhering to best practices, you can save money and restore the cooling performance of your vehicle. Remember, safety is paramount. If you are not comfortable working with refrigerant or electrical systems, it's best to leave the job to a qualified professional. Taking your time, being meticulous, and double-checking your work will lead to a successful AC compressor replacement and a much more comfortable driving experience. Good luck, and stay cool!

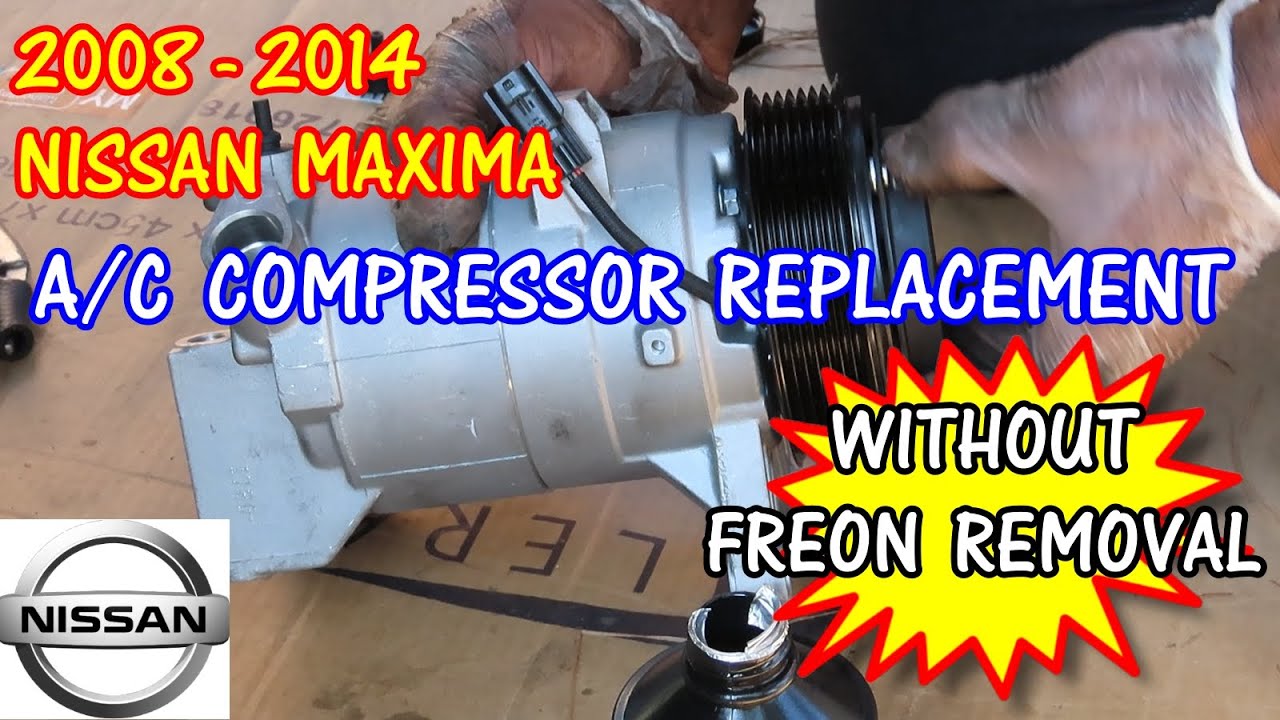

A Guide To 2011 Nissan Maxima Ac Compressor Replacement BEST VIDEO ANYWHERE! 2008 - 2014 Nissan Maxima - AC Compressor
www.youtube.com

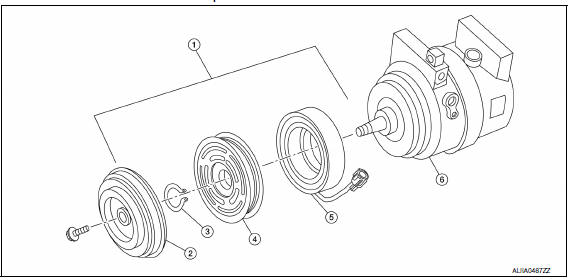

A Guide To 2011 Nissan Maxima Ac Compressor Replacement Nissan Maxima Service and Repair Manual - Removal and installation
