Imagine your Nissan Titan's engine as a finely tuned orchestra. Each cylinder fires in sequence, creating power. But what happens to the exhaust gases, the byproduct of this combustion? They need a pathway, a conductor if you will, to guide them away from the engine and out through the exhaust system. This is where the exhaust manifold comes in, a critical component often overlooked until problems arise. Let's delve into the world of Nissan Titan exhaust manifolds, exploring their function, potential issues, and the intricacies of replacement.

The Exhaust Manifold: A Hotspot of Engineering

The exhaust manifold's primary job is deceptively simple: collect exhaust gases from multiple cylinders and direct them into a single pipe, typically leading to the catalytic converter. However, the operating environment is anything but simple. The manifold is bolted directly to the cylinder head, exposing it to extreme temperatures and pressures with each engine cycle. These conditions cycle over and over and over again! Understanding the manifold's operation requires a closer look at the combustion process itself.

How it Works Mechanically

After the air-fuel mixture explodes in the cylinder, the piston travels downwards on the power stroke. As the piston moves upwards on the exhaust stroke, the exhaust valve opens, allowing the high-pressure, high-temperature exhaust gases to escape into the exhaust port. The exhaust manifold is bolted to this port. The manifold's design aims to efficiently collect these gases from all cylinders, minimizing backpressure. This is where engineering considerations like runner length and diameter come into play.

Runner Length: Shorter runners generally improve high-RPM power by reducing resistance to flow, allowing the engine to "breathe" easier at higher speeds. Longer runners, on the other hand, can improve low-end torque by creating a scavenging effect, where the pressure waves within the runners help draw out exhaust gases from other cylinders. Equal length runners ensure each cylinder evacuates at the same rate.

Runner Diameter: A larger diameter runner reduces restriction, increasing flow. A smaller diameter runner increases exhaust velocity. The ideal diameter is a balance between these two characteristics.

Because the cylinders fire in a precise sequence, manifolds are often designed with careful attention to how each runner empties and fills. The exhaust pulse created by one firing cylinder can help to draw exhaust from a following cylinder.

Materials and Design Variations

Nissan Titan exhaust manifolds are typically made from cast iron or stainless steel. Each material has its own advantages and disadvantages.

Cast Iron: Cast iron manifolds are the more common choice for factory exhaust manifolds. They are relatively inexpensive to manufacture, durable, and excellent at damping vibrations and reducing noise. However, they are also heavy and more prone to cracking due to thermal stress. Because they are cast, they are not very precise and restrict exhaust flow.

Stainless Steel: Stainless steel manifolds are lighter than cast iron manifolds and offer superior resistance to corrosion. They also allow for more design flexibility, enabling smoother bends and optimized runner lengths for improved exhaust flow. However, stainless steel manifolds are more expensive and can be more prone to warping or cracking if not properly designed and fabricated. Aftermarket performance manifolds are usually stainless steel and may be available with ceramic coatings.

Common Issues and Symptoms

Exhaust manifolds endure a harsh operating environment, making them susceptible to various problems. Here are some common issues that can plague your Titan's exhaust manifold:

  • Cracking: Repeated heating and cooling cycles can cause stress cracks in the manifold, particularly in cast iron manifolds.
  • Warping: Extreme heat can warp the manifold, leading to leaks at the cylinder head or exhaust pipe flange.
  • Broken Studs/Bolts: The extreme heat can seize exhaust manifold bolts, making them difficult to remove and prone to breaking during disassembly.
  • Gasket Failure: The gasket between the manifold and the cylinder head or exhaust pipe can fail, leading to exhaust leaks.

A faulty exhaust manifold can manifest in several ways:

  • Exhaust Leak Noise: A hissing or ticking sound, often louder when the engine is cold, is a telltale sign of an exhaust leak. This may sound like an exhaust leak near the front of the vehicle.
  • Reduced Engine Performance: An exhaust leak can disrupt the engine's scavenging effect, leading to reduced power and fuel economy.
  • Poor Fuel Economy: The engine control unit (ECU) may compensate for the exhaust leak by adjusting the air-fuel mixture, resulting in lower fuel efficiency.
  • Check Engine Light: An exhaust leak can trigger the check engine light, often accompanied by diagnostic trouble codes (DTCs) related to oxygen sensor readings or fuel trim issues.
  • Smell of Exhaust in the Cabin: In severe cases, exhaust fumes can enter the vehicle's cabin through the ventilation system.

Replacement Procedure: A Detailed Overview

Replacing an exhaust manifold on a Nissan Titan is a moderately complex job that requires patience, the right tools, and a solid understanding of automotive mechanics. Consult a repair manual or reputable online resource specific to your Titan's year and engine for detailed instructions and torque specifications. Here's a general overview of the process:

  1. Safety First: Disconnect the negative battery cable. Allow the engine to cool completely before starting the repair.
  2. Access: Depending on the Titan's configuration (2WD or 4WD), you may need to remove underbody shields, splash guards, or other components to access the exhaust manifold.
  3. Disconnect Sensors and Wiring: Disconnect any oxygen sensors or other sensors that are attached to the exhaust manifold. Carefully unclip and move any wiring harnesses that may be in the way.
  4. Loosen Exhaust Connections: Disconnect the exhaust manifold from the exhaust pipe. This may involve removing bolts, nuts, or clamps. Penetrating oil can be very helpful here.
  5. Remove the Manifold: Carefully remove the exhaust manifold bolts. These bolts can be seized and prone to breaking, so use penetrating oil and apply even pressure. Use an exhaust manifold bolt extraction kit if needed. You may need to use a breaker bar to apply extra leverage. Once all the bolts are removed, carefully wiggle the manifold loose and remove it from the engine.
  6. Clean the Mating Surfaces: Thoroughly clean the cylinder head and exhaust pipe mating surfaces. Remove any old gasket material or debris. Ensure the surfaces are clean and free of any imperfections. Use a gasket scraper or a wire brush.
  7. Install New Gasket and Manifold: Install a new exhaust manifold gasket and carefully position the new manifold onto the cylinder head. Make sure to use the correct orientation.
  8. Torque the Bolts: Install the exhaust manifold bolts and torque them to the manufacturer's specified torque in the correct sequence. Use a torque wrench to ensure the bolts are properly tightened. Over-tightening the bolts can damage the manifold or cylinder head.
  9. Reconnect Exhaust Connections: Reconnect the exhaust manifold to the exhaust pipe. Install new gaskets if necessary.
  10. Reconnect Sensors and Wiring: Reconnect any oxygen sensors or other sensors that were disconnected. Reclip any wiring harnesses that were moved.
  11. Reassemble: Reinstall any underbody shields, splash guards, or other components that were removed.
  12. Final Check: Double-check all connections and ensure everything is properly installed.
  13. Reconnect Battery: Reconnect the negative battery cable.
  14. Start the Engine: Start the engine and check for exhaust leaks. Listen carefully for any hissing or ticking sounds.
  15. Test Drive: Take the vehicle for a test drive to ensure everything is functioning properly.

Important Considerations:

  • Broken exhaust manifold bolts are a very common problem. Be prepared to deal with them.
  • Use new bolts whenever possible. The old bolts are likely stretched and fatigued.
  • Apply anti-seize compound to the threads of the new bolts to prevent them from seizing in the future.
  • If you're replacing a cracked cast iron manifold with a stainless steel manifold, be sure to use the correct gaskets and hardware. The stainless steel manifold will expand and contract more than the cast iron manifold, so it's important to use gaskets and hardware that can accommodate this expansion and contraction.

Aftermarket Options: Performance vs. Stock

While replacing a faulty manifold with a stock replacement is a straightforward approach, the aftermarket offers a range of performance manifolds that can potentially enhance your Titan's engine performance. However, there are tradeoffs to consider.

Performance Manifolds: These are typically made from stainless steel with optimized runner lengths and diameters for improved exhaust flow. They can result in increased horsepower and torque, particularly at higher RPMs. However, they can also be more expensive, and may require modifications to the exhaust system. They may also be louder than stock manifolds.

Shorty Headers: Are an upgrade from the stock manifold, but do not offer as much gain as long tube headers. They may allow the vehicle to meet emissions requirements.

Long Tube Headers: offer the highest level of performance upgrade. Long tube headers require some modification to the vehicle, and may remove catalytic converters. These are not emissions legal in most locations.

Stock Replacement: A direct replacement for the original manifold. This is usually the cheapest and easiest solution.

Real-World Insights and Recommendations

Based on real-world experience, a few key recommendations can help ensure a successful exhaust manifold replacement on your Nissan Titan:

  • Invest in Quality Tools: A good set of sockets, wrenches, and a torque wrench are essential. A breaker bar and penetrating oil are invaluable for dealing with stubborn bolts. An exhaust manifold bolt extraction kit is a must-have if you live in an area where cars rust.
  • Take Your Time: Don't rush the process. Allow plenty of time for the engine to cool, and take your time removing the old manifold and installing the new one.
  • Double-Check Everything: Before starting the engine, double-check all connections and ensure everything is properly tightened.
  • Consider a Professional Installation: If you're not comfortable with the complexity of the job, consider having a professional mechanic perform the replacement.

The exhaust manifold is a critical component in your Nissan Titan's exhaust system. By understanding its function, potential issues, and the intricacies of replacement, you can ensure that your engine continues to breathe freely and perform optimally. Whether you choose to tackle the replacement yourself or enlist the help of a professional, a well-maintained exhaust manifold is essential for a healthy and efficient engine.

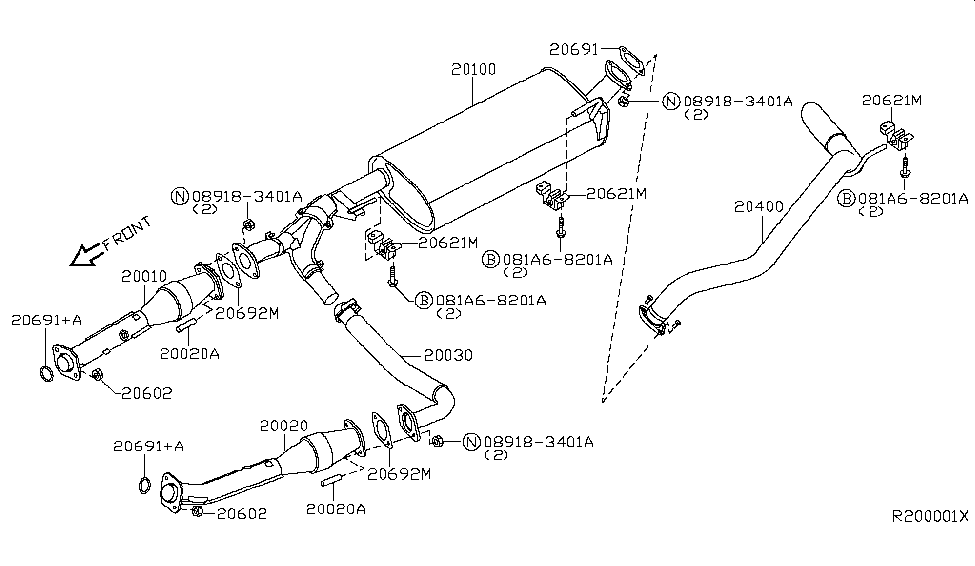

A Guide To Nissan Titan Exhaust Manifold Replacement 2004 Nissan Titan Parts Diagram - Wiring Site Resource
wiringdatabaseinfo.blogspot.com

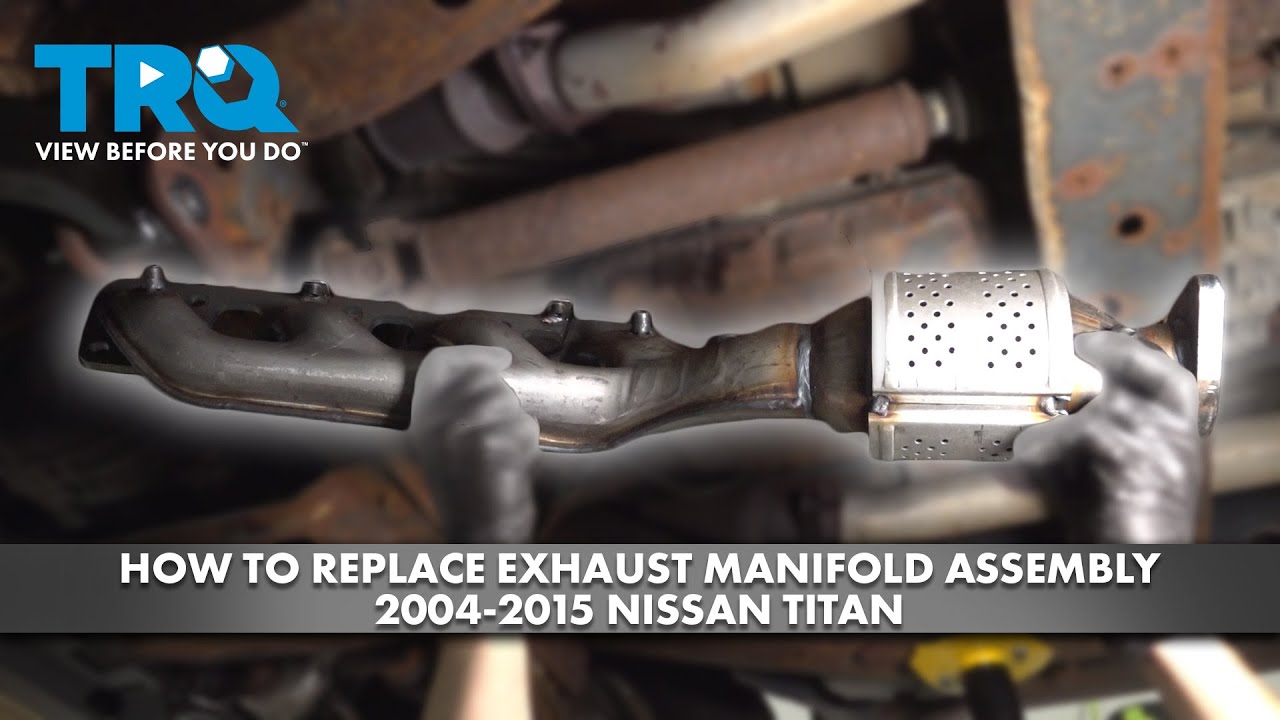

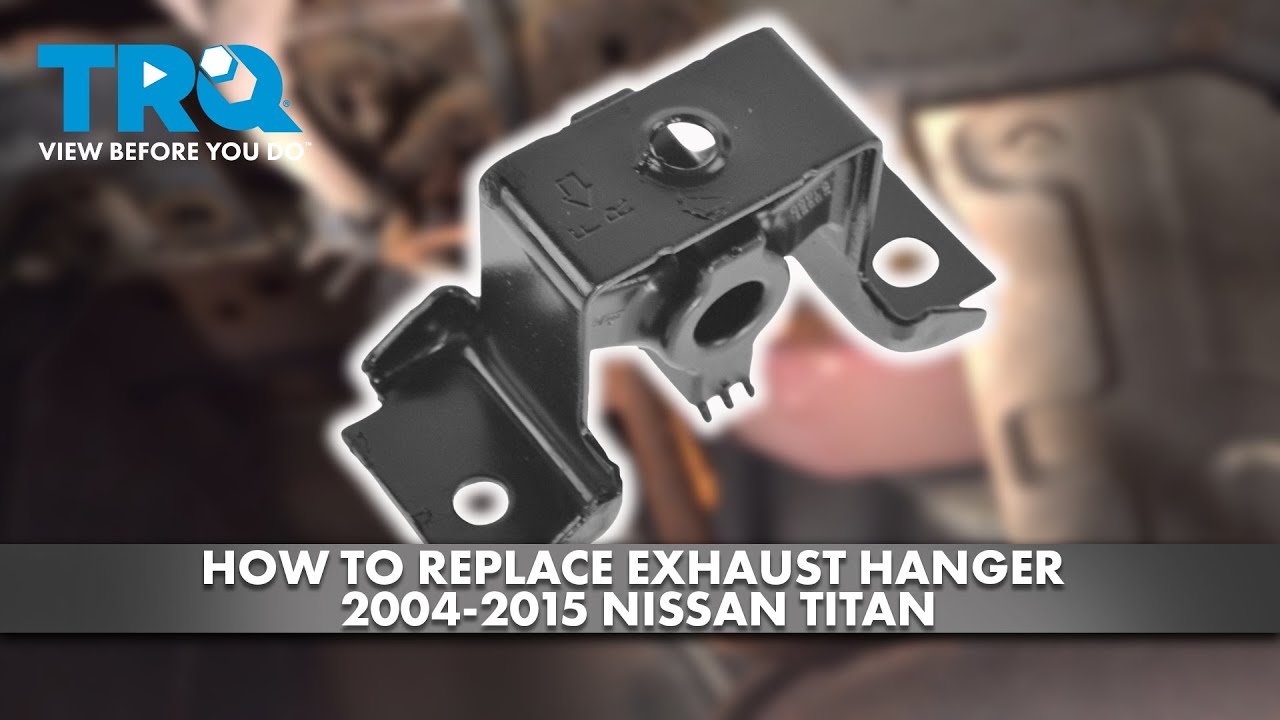

A Guide To Nissan Titan Exhaust Manifold Replacement How to Replace Exhaust Hanger 2004-2015 Nissan Titan - YouTube
