A Simple Guide To Replacing Wiper Blades On Your 2016 Nissan Rogue

Ever watched a painter meticulously prepare their canvas, ensuring a smooth, unblemished surface before applying the first stroke? Your windshield is that canvas, and your wiper blades are the artist's tools, ensuring a clear view of the road ahead. Neglecting them is like trying to paint with a frayed brush – the results are, at best, subpar, and at worst, dangerous. This guide will walk you through replacing the wiper blades on a 2016 Nissan Rogue, not just as a task, but as an opportunity to understand a crucial safety system.

The Mechanics of a Clear View: How Windshield Wipers Work

The windshield wiper system is deceptively simple, yet ingeniously effective. It's primarily a linkage system powered by an electric motor. Here’s a breakdown of the key components and their functions:

• Electric Motor: The heart of the system, typically located beneath the cowl (the area between the windshield and the hood). It provides the rotational force to drive the wipers. The motor speed is controlled by the wiper switch in your car, allowing for different wiping speeds (low, high, intermittent).
• Linkage: This is a series of interconnected metal rods and pivots that translate the motor's rotational motion into the oscillating (back-and-forth) movement of the wiper arms. The linkage is designed to distribute the force evenly across both wiper arms, ensuring they move in sync.
• Wiper Arms: These are the metal arms that extend from the base of the windshield and hold the wiper blades against the glass. They are spring-loaded to maintain constant pressure, ensuring effective contact with the windshield.
• Wiper Blades: The business end of the system. These are the rubber blades that actually wipe away water, snow, and debris from the windshield. They consist of a rubber squeegee held in place by a metal or plastic frame.

When you activate the wipers, the electric motor starts rotating. This rotational motion is transferred through the linkage, which converts it into the back-and-forth movement of the wiper arms. The spring-loaded wiper arms then press the wiper blades against the windshield, and as the blades move across the glass, they wipe away any obstruction. Different wiper speeds are achieved by varying the speed of the electric motor.

The 2016 Nissan Rogue uses a fairly standard system, but the specifics of the linkage and motor location can vary slightly depending on the trim level and optional features.

Choosing the Right Blades: A Deep Dive

Wiper blades aren't just generic rubber strips. There are several types, each with its own set of pros and cons:

• Conventional Wiper Blades: These are the most common and typically the least expensive. They consist of a rubber blade held in place by a metal frame with multiple pressure points.
  • Pros: Affordable, readily available.
  • Cons: Can be prone to streaking, especially at higher speeds. The multiple pressure points can be less effective at conforming to curved windshields. The exposed metal frame can be susceptible to corrosion, particularly in areas with harsh winters.
  • Use Cases: Suitable for areas with moderate rainfall and mild winters.
  • Manufacturer Example: Bosch Excel+
• Beam Blades: These feature a single, continuous rubber blade that is molded to a curved frame. This design provides more even pressure distribution across the windshield.
  • Pros: Excellent wiping performance, especially at higher speeds. More aerodynamic design, which can reduce wind lift. Longer lifespan compared to conventional blades.
  • Cons: More expensive than conventional blades.
  • Use Cases: Ideal for areas with heavy rainfall, snow, or ice. Excellent choice for vehicles with curved windshields.
  • Manufacturer Example: Bosch Icon, Rain-X Latitude
• Hybrid Blades: These combine features of both conventional and beam blades. They have a metal or plastic frame that is enclosed in a rubber or plastic shell.
  • Pros: Good wiping performance, relatively durable. Offer a more streamlined appearance than conventional blades.
  • Cons: Can be more expensive than conventional blades. Performance may not be significantly better than a good quality beam blade.
  • Use Cases: A good compromise for those seeking a balance between performance and price.
  • Manufacturer Example: Denso Designer, Valeo Ultimate
• Winter Blades: These are specifically designed for cold-weather conditions. They feature a rubber boot that encases the blade frame, preventing ice and snow from building up and hindering performance.
  • Pros: Excellent performance in snow and ice. Prevents ice buildup on the blade frame.
  • Cons: Can be more expensive than conventional blades. Not ideal for use in warmer weather, as the rubber boot can wear down quickly.
  • Use Cases: Essential for areas with heavy snowfall and freezing temperatures.
  • Manufacturer Example: Michelin Winter, Rain-X Winter

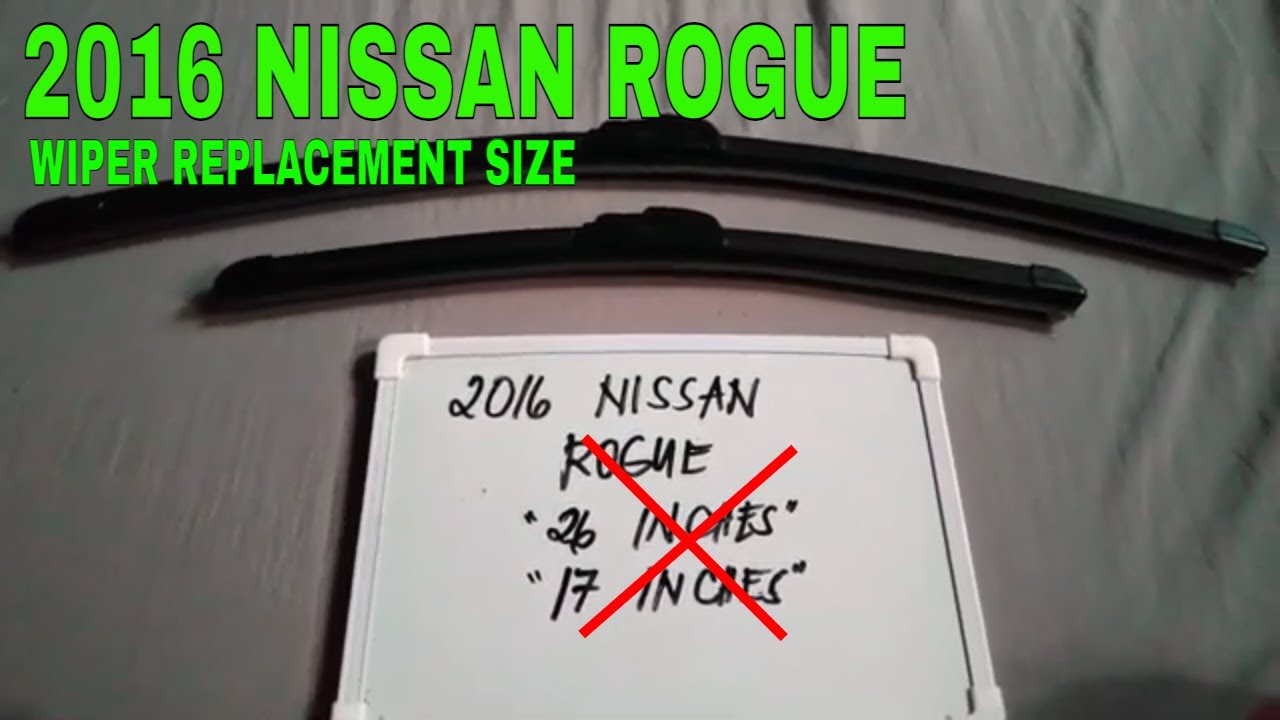

For the 2016 Nissan Rogue, the correct blade sizes are typically 26 inches for the driver's side and 17 inches for the passenger's side. Always double-check your owner's manual or use an online parts finder to confirm the correct sizes for your specific vehicle. Choosing the right type of blade depends on your local climate and driving conditions. If you live in an area with frequent rain or snow, beam or hybrid blades are a worthwhile investment. If you primarily drive in mild weather, conventional blades may suffice.

Step-by-Step Guide: Replacing Your 2016 Rogue's Wiper Blades

Replacing wiper blades is a straightforward task that can be completed in a matter of minutes with a few simple tools:

1. Gather Your Supplies: You'll need a new set of wiper blades of the correct size, and possibly a flat-head screwdriver (depending on the type of connector used). A clean cloth or paper towels are also helpful to wipe down the windshield.
2. Lift the Wiper Arms: Carefully lift the wiper arms away from the windshield. Be gentle to avoid scratching the glass. Some wiper arms have a "service position" that allows them to be lifted further for easier access. Consult your owner's manual if you're unsure.
3. Remove the Old Blades: This is where the process can vary depending on the type of connector. Most commonly, you'll find one of the following attachment methods:
   • J-Hook: This is the most common type. Locate the small tab or button on the underside of the wiper blade where it connects to the arm. Press or squeeze the tab, and then slide the blade down and off the J-hook.
   • Pin Lock: This type has a small pin that locks the blade in place. Depress the pin and slide the blade off the arm.
   • Side Lock: This type has a clip on the side of the blade that needs to be released. Use a small flat-head screwdriver to gently pry the clip open and then slide the blade off.
   • Bayonet: Rotate the old wiper blade to a 90-degree angle from the wiper arm. Then, push the blade in toward the arm and rotate it back to its original position to disengage it.
4. Attach the New Blades: Align the new blade with the wiper arm and attach it using the reverse of the removal process. Make sure the blade clicks or locks securely into place.
5. Lower the Wiper Arms: Carefully lower the wiper arms back onto the windshield. Ensure the blades are properly seated and not obstructed.
6. Test the Wipers: Turn on your wipers and washer fluid to test the new blades. Observe the wiping pattern for any streaks or gaps. If you notice any issues, double-check that the blades are properly installed and seated correctly.

Pro Tip: Before installing the new blades, clean your windshield thoroughly with glass cleaner. This will remove any dirt or debris that could damage the new blades or cause streaking.

Pros and Cons of DIY vs. Professional Installation

While replacing wiper blades is generally a simple task, there are situations where professional installation might be preferable. Here's a comparison:

• DIY:
  • Pros: Cost-effective, convenient, allows you to learn about your car's systems.
  • Cons: Requires some basic mechanical knowledge, potential for damage if not done carefully, can be messy.
• Professional Installation:
  • Pros: Guarantees correct installation, saves time and effort, avoids potential damage.
  • Cons: More expensive, requires a trip to a service center.

If you're comfortable with basic car maintenance tasks and have a good understanding of the wiper blade attachment method, DIY is a great option. However, if you're unsure or have any concerns about damaging your vehicle, professional installation is recommended.

Real-World Insights and Recommendations

Based on real-world use, here are a few additional tips and insights:

• Regular Inspection: Check your wiper blades regularly for signs of wear and tear, such as cracks, tears, or hardening of the rubber. Even if they appear to be in good condition, replace them every 6-12 months for optimal performance.
• Wiper Blade Maintenance: Clean your wiper blades regularly with a damp cloth or paper towel to remove dirt and debris. This will help extend their lifespan and improve their performance.
• Use Washer Fluid: Always use washer fluid when operating your wipers. Running the wipers on a dry windshield can damage both the blades and the glass.
• Avoid Using Wipers on a Frozen Windshield: Attempting to use your wipers to clear a frozen windshield can damage the blades and the wiper motor. Use an ice scraper and defroster instead.
• Consider a Windshield Treatment: Applying a hydrophobic windshield treatment (like Rain-X) can help repel water and reduce the need for wipers in light rain. This can also improve visibility and extend the life of your wiper blades.

Replacing your wiper blades is a small but essential maintenance task that can significantly improve your driving safety. By understanding how the wiper system works and choosing the right blades for your needs, you can ensure a clear view of the road ahead, no matter the weather conditions. Don't underestimate the importance of this often-overlooked component – a clear view can be the difference between a safe journey and a dangerous situation.
