Catalytic Converter For 2006 Nissan Pathfinder

The 2006 Nissan Pathfinder, a rugged and reliable SUV, relies on a catalytic converter as a crucial component of its exhaust system. This often-overlooked device plays a vital role in reducing harmful emissions, ensuring the vehicle complies with stringent environmental regulations. This guide delves into the technical aspects of the 2006 Pathfinder's catalytic converter, explaining its function, construction, common issues, and potential solutions.

Understanding Catalytic Conversion

At its core, a catalytic converter is a chemical reactor. It uses a catalyst to convert harmful pollutants in exhaust gases into less harmful substances. The Pathfinder's converter, like most modern converters, is a three-way catalytic converter. This means it simultaneously addresses three primary pollutants:

Hydrocarbons (HC): Unburned fuel that contributes to smog.
Carbon Monoxide (CO): A poisonous, odorless gas.
Nitrogen Oxides (NOx): Contributors to smog and acid rain.

The "three-way" aspect refers to the three chemical reactions that occur within the converter. Oxidation reactions reduce hydrocarbons and carbon monoxide, while a reduction reaction addresses nitrogen oxides. The ideal outcome is the conversion of these pollutants into water (H2O), carbon dioxide (CO2), and nitrogen (N2) – substances that are significantly less harmful to the environment.

The Chemistry in Action

The catalytic converter works by providing a surface where these chemical reactions can occur more easily. The exhaust gases pass through a ceramic honeycomb structure coated with a thin layer of catalyst materials. These materials are typically precious metals like platinum, palladium, and rhodium. Each metal plays a specific role in facilitating the desired chemical reactions.

Platinum (Pt): Primarily oxidizes hydrocarbons (HC).
Palladium (Pd): Primarily oxidizes carbon monoxide (CO).
Rhodium (Rh): Primarily reduces nitrogen oxides (NOx).

The chemical reactions involved are complex, but can be summarized as follows:

Oxidation of Hydrocarbons: 2HC + O2 → 2H2O + CO2
Oxidation of Carbon Monoxide: 2CO + O2 → 2CO2
Reduction of Nitrogen Oxides: 2NOx → N2 + xO2

The efficiency of these reactions is heavily dependent on the air-fuel ratio of the engine. The engine's computer, the Engine Control Unit (ECU), uses oxygen sensors to monitor the exhaust gas composition and adjust the fuel injection to maintain a near-stoichiometric air-fuel ratio (around 14.7:1). This ensures the converter operates at its peak efficiency. Any deviation from this ratio can significantly impair the converter's ability to reduce emissions.

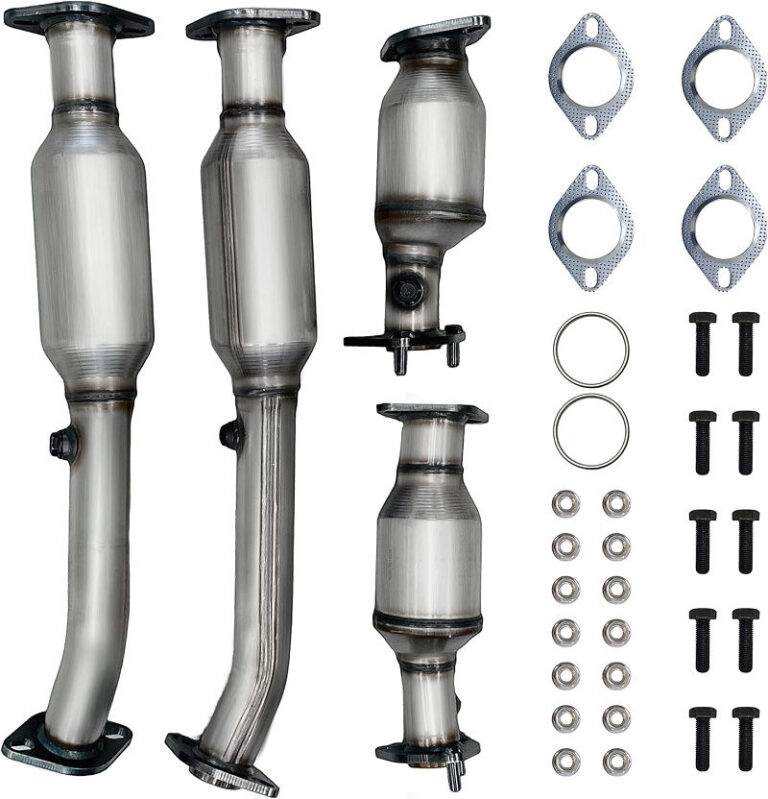

Construction of the 2006 Pathfinder Catalytic Converter

The 2006 Pathfinder's catalytic converter is a complex assembly designed to withstand high temperatures and harsh operating conditions. Key components include:

The Substrate: This is the core of the converter, typically made of a ceramic material formed into a honeycomb structure. This honeycomb provides a large surface area for the catalyst to coat, maximizing contact between the exhaust gases and the catalyst.
The Catalyst Coating (Washcoat): A thin, porous layer applied to the substrate. This layer increases the surface area available for the precious metals and also helps to distribute the metals evenly. The washcoat itself is usually composed of materials like alumina.
The Precious Metals (Catalysts): Platinum, palladium, and rhodium are the primary catalytic materials, dispersed throughout the washcoat.
The Metal Shell: A stainless steel casing that encases the substrate and provides structural support. The shell is designed to withstand high temperatures and protect the delicate internal components from damage.
Heat Shields: Often incorporated to protect surrounding components from the intense heat generated by the converter.
Inlet and Outlet Pipes: These pipes connect the converter to the exhaust system, allowing exhaust gases to flow in and out.

The specific design and configuration of the catalytic converter can vary depending on the Pathfinder's engine and emissions requirements. However, the fundamental principles of operation and construction remain consistent.

Common Problems and Troubleshooting

Despite their robust construction, catalytic converters are susceptible to failure over time. Several factors can contribute to a malfunctioning converter, including:

Contamination: This is the most common cause of converter failure. Oil leaks, coolant leaks, and excessive fuel in the exhaust can contaminate the catalyst, poisoning it and rendering it ineffective. For example, burning oil can coat the catalyst with phosphorus, effectively blocking its active sites.
Overheating: Excessive heat can damage the substrate and the catalyst. This can be caused by engine misfires, which send unburned fuel into the converter, causing it to overheat.
Physical Damage: Impacts from road debris can damage the converter's shell or internal components.
Age and Deterioration: Over time, the catalyst can become less effective due to thermal degradation and attrition.

Symptoms of a failing catalytic converter can include:

Check Engine Light: The most common indicator. Diagnostic trouble codes (DTCs) related to catalytic converter efficiency (e.g., P0420) are often triggered.
Reduced Engine Performance: A clogged converter can restrict exhaust flow, leading to a noticeable decrease in power and acceleration.
Poor Fuel Economy: A failing converter can disrupt the air-fuel ratio, leading to increased fuel consumption.
Failed Emissions Test: The vehicle may fail an emissions test due to high levels of hydrocarbons, carbon monoxide, or nitrogen oxides in the exhaust.
Rattling Noise: A broken substrate can rattle inside the converter's shell.
Overheating: In some cases, a severely clogged converter can cause excessive heat buildup in the engine compartment.

Diagnosing Converter Problems

A proper diagnosis is crucial before replacing a catalytic converter. Simply replacing the converter without addressing the underlying cause of the failure will likely result in another failed converter in the near future. Diagnostic steps include:

Scanning for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to retrieve any stored DTCs. Pay close attention to codes related to catalytic converter efficiency, oxygen sensor readings, and engine misfires.
Inspecting the Converter: Visually inspect the converter for physical damage, such as dents, cracks, or rust.
Checking Oxygen Sensor Readings: Monitor the oxygen sensor readings upstream and downstream of the converter. The downstream sensor should exhibit a relatively stable voltage compared to the upstream sensor if the converter is functioning correctly. Erratic or fluctuating readings on the downstream sensor may indicate a problem.
Performing a Backpressure Test: A backpressure test can help determine if the converter is clogged. This involves measuring the exhaust pressure upstream of the converter using a pressure gauge. Excessive backpressure indicates a blockage.
Checking for Contamination Sources: Inspect the engine for oil leaks, coolant leaks, and other potential sources of contamination.

Replacement and Maintenance

If the catalytic converter is diagnosed as faulty, replacement is usually necessary. When selecting a replacement converter, ensure it meets or exceeds the original equipment manufacturer (OEM) specifications for the 2006 Nissan Pathfinder. Aftermarket converters are available, but their quality and performance can vary significantly. Choose a reputable brand to ensure proper fitment and emissions compliance.

Preventative maintenance can help extend the life of the catalytic converter. This includes:

Regular Engine Tune-Ups: Ensure the engine is properly tuned and maintained to prevent misfires and other issues that can damage the converter.
Addressing Oil Leaks and Coolant Leaks: Repair any oil or coolant leaks promptly to prevent contamination of the catalyst.
Using High-Quality Fuel: Avoid using low-quality fuel that may contain contaminants.

While replacing a catalytic converter can be a significant expense, it is essential for maintaining the vehicle's emissions compliance and ensuring optimal engine performance. A properly functioning catalytic converter not only benefits the environment but also contributes to the overall reliability and longevity of the 2006 Nissan Pathfinder.
